Usable area: 126.35 m2 / The cost of the realization: 114 200 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (10) Detailed drawings
List of materials
Comments (3)

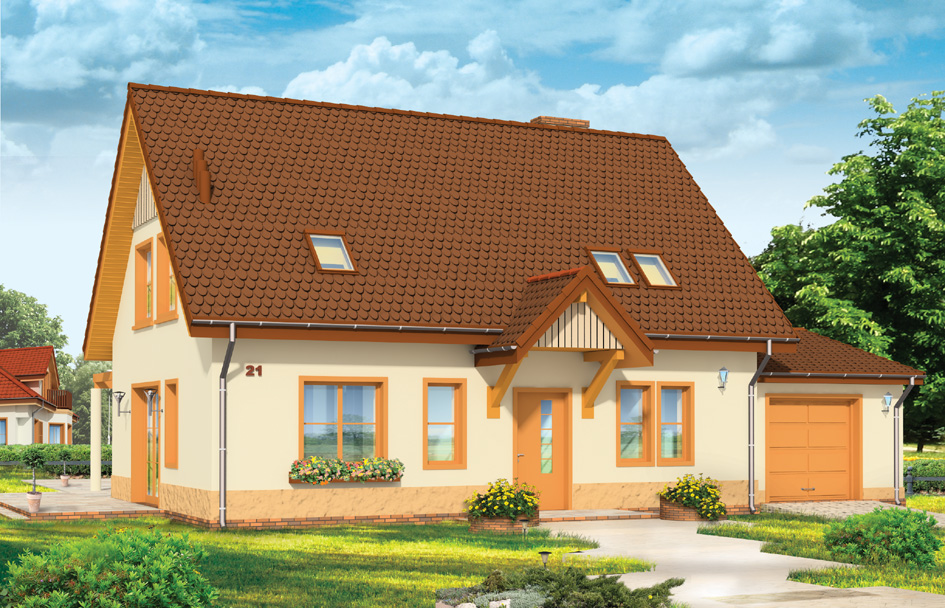

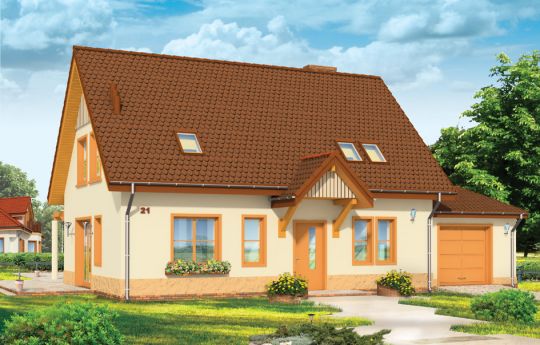

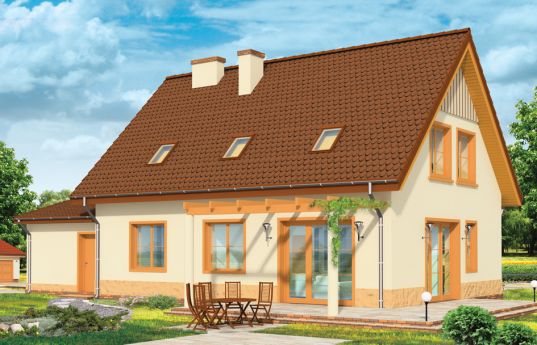

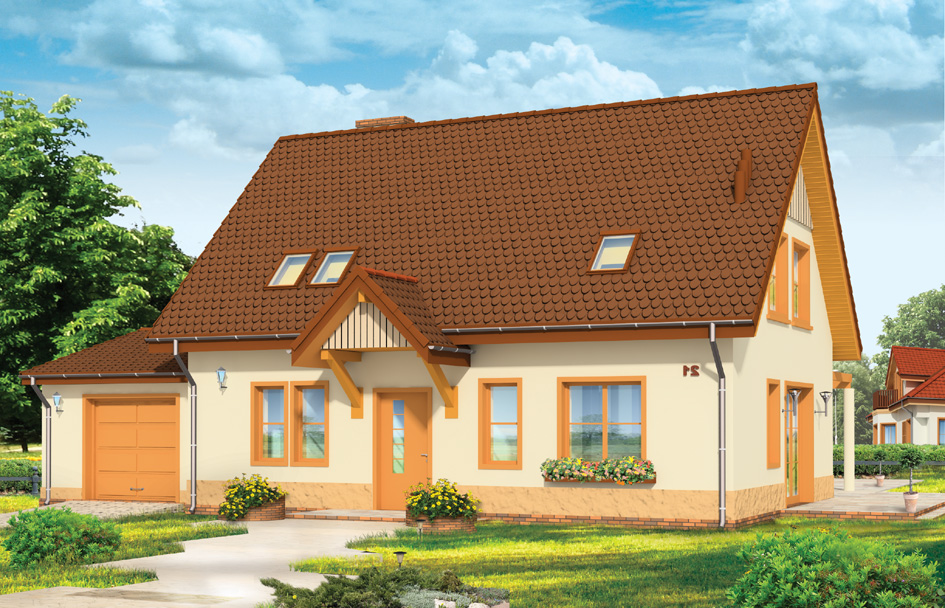

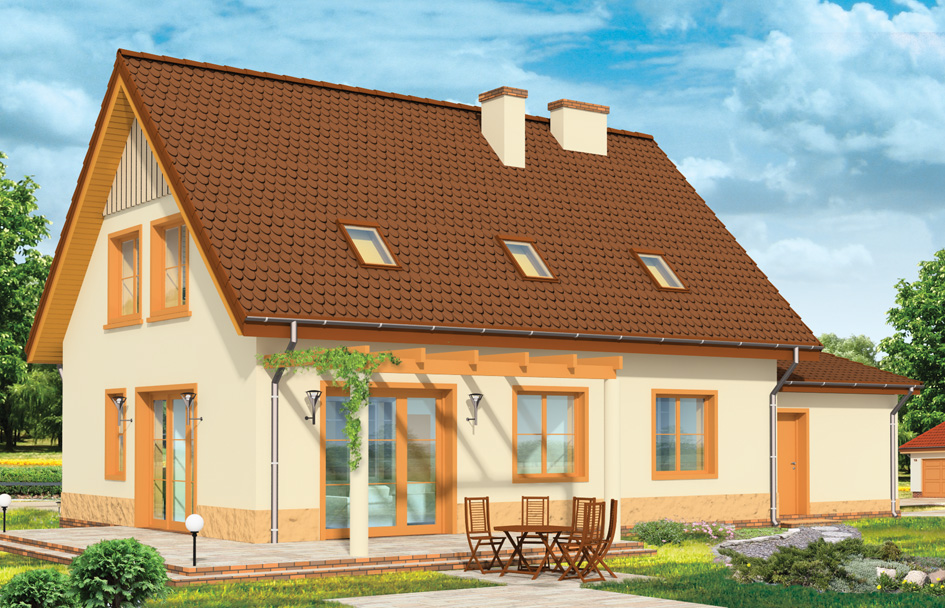

Forest nook 2 house plan is a variant version of the popular project Forest nook. The building obtained a new exterior look. Entrance porch has been also changed. System of inside walls in the house was slightly redesigned as well as terrace shape and layout of the living room doors. As a result, from the living room you can also exit to the back of the house. The house fits both on the plot with a garden at the back or at the side. The interior of the house is a single-space area consisting of the living room with lounge, dining area and kitchen. On the ground floor an extra room with bathroom, boiler room and garage is designed. On the top floor there are three bedrooms with bathroom and dressing room. There is also available a mirror version of Forest nook 2.
Specifications:
- Cubature: 535 m3 / 18890,85 ft3
- Built-up area: 129,6 m2 / 1394,50 ft2
- Total area: 198,44 m2 / 2135,21 ft2
- Net area: 156,74 m2 + garage / 1686,52 ft2 + garage
- Usable area: 126,35 m2 / 283,53 ft2
- Roof area: 212,1 m2 / 2282,20 ft2
- Roof slope: 45 and 16 degrees
- Height of the building: 8,30 m (8,60 m with foundation) / 27,22 ft (28,21 ft with foundation)
- Wide of the building: 15,72 m / 51,56 ft
- Length of the building: 8,49 m / 27,85 ft
- Minimum plot width: 22,72 m / 74,52 ft
- Minimum plot length: 18,39 m / 60,32 ft
- Height of rooms: 2,70 m / 8,86 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls - bilayer walls airbrick MAX
- Ceiling - Teriva
- Roof - tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 37 900,00 EUR |
| The raw state closed | 56 700,00 EUR |
| The cost of finishing works | 57 600,00 EUR |
| Execution of turnkey home | 114 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Forest nook 2 - detailed file
House plan Forest nook 2 - detailed file - mirror
