Julka 4 house plan

Usable area: 139.29 m2   /   The cost of the realization: 126 300 EUR

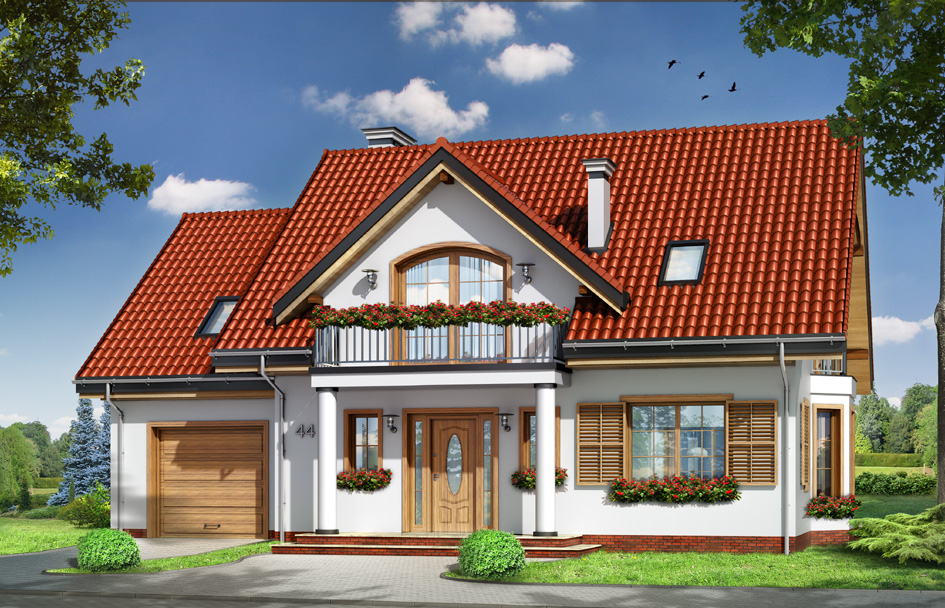

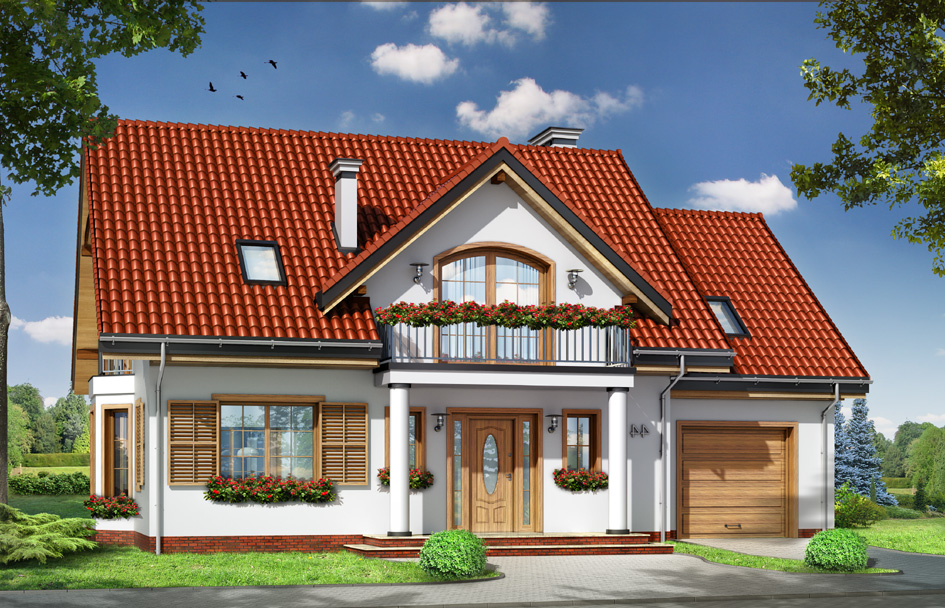

House plan Julka 4 - front visualization

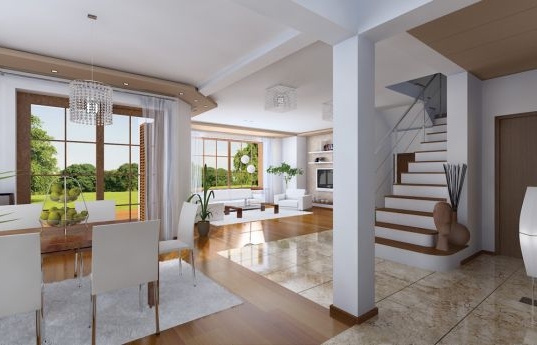

Show mirror image

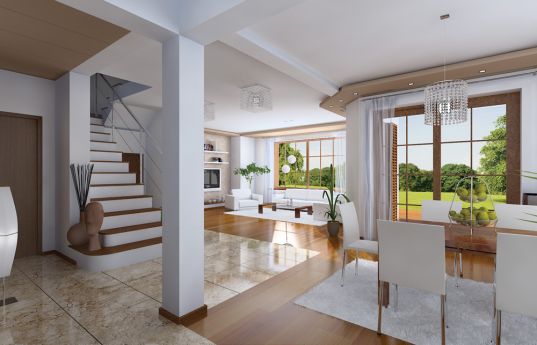

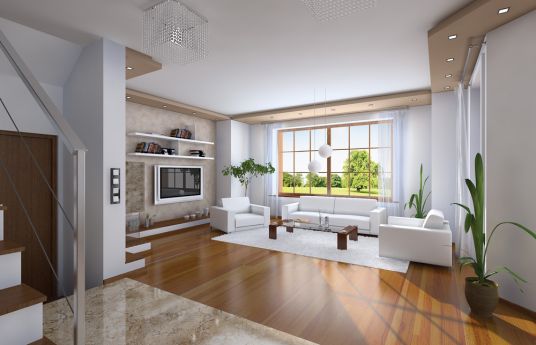

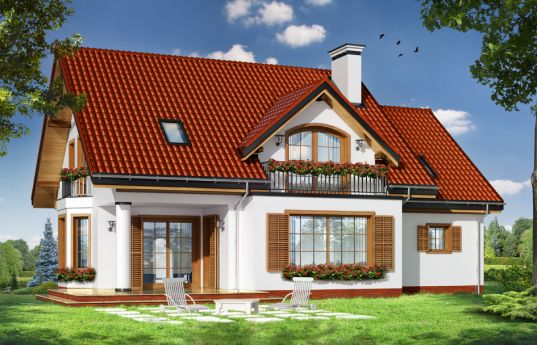

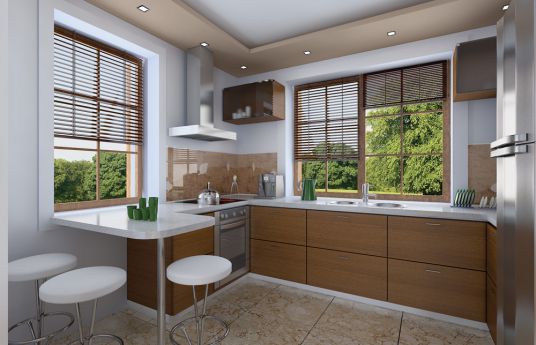

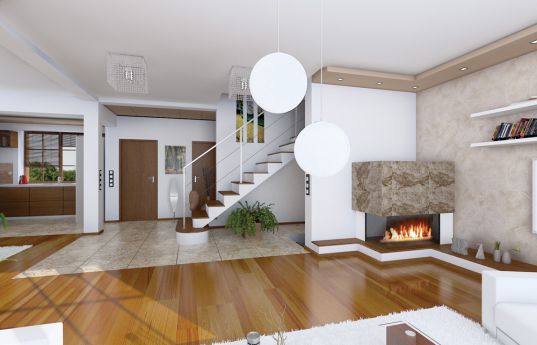

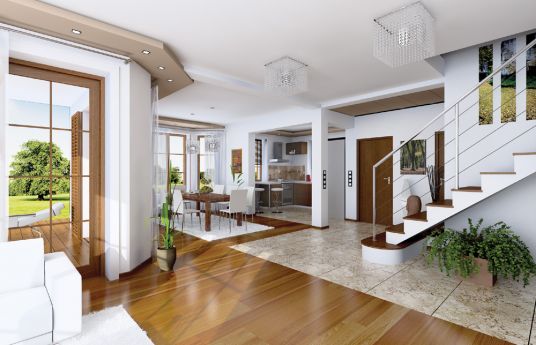

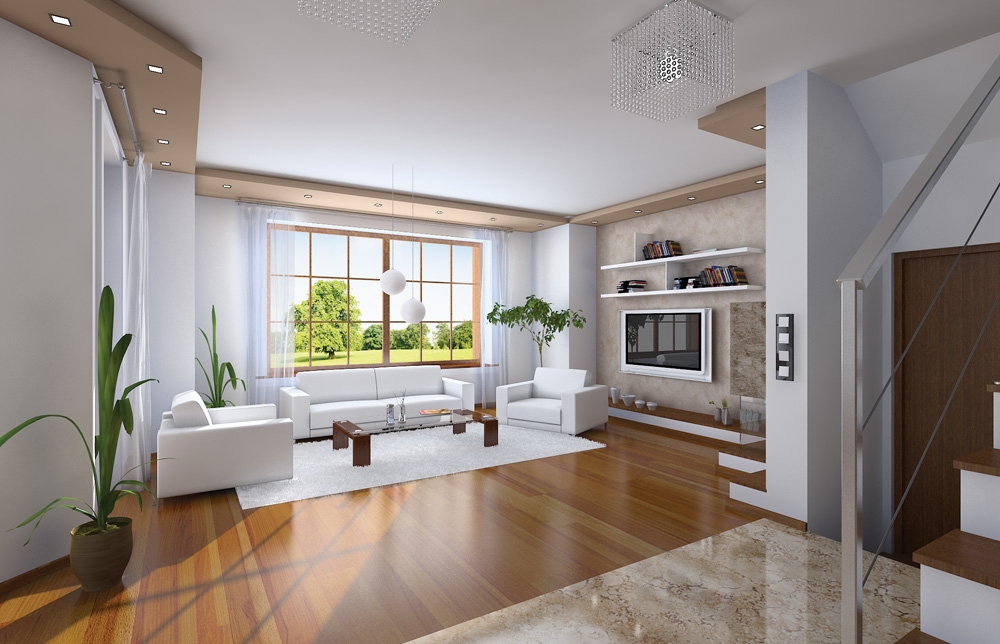

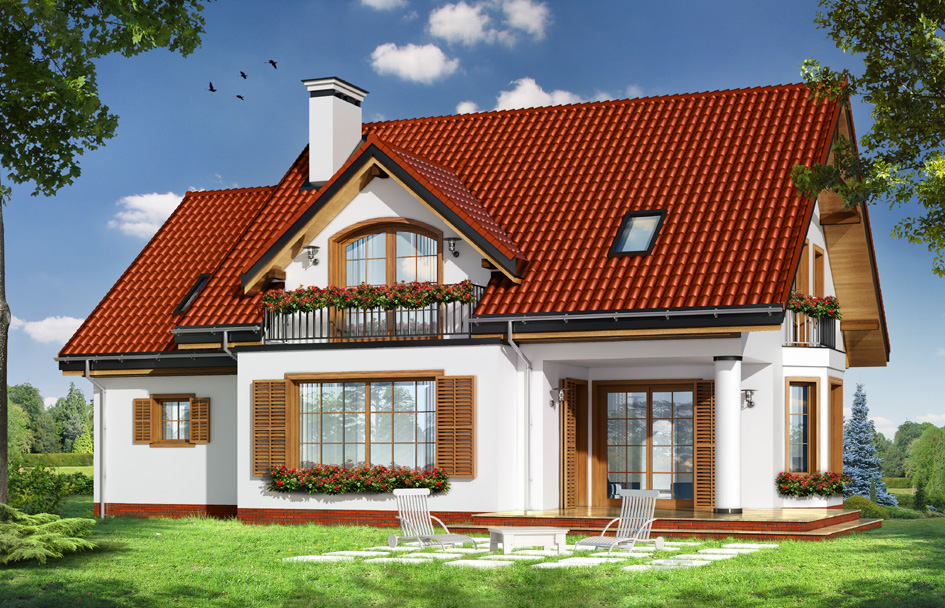

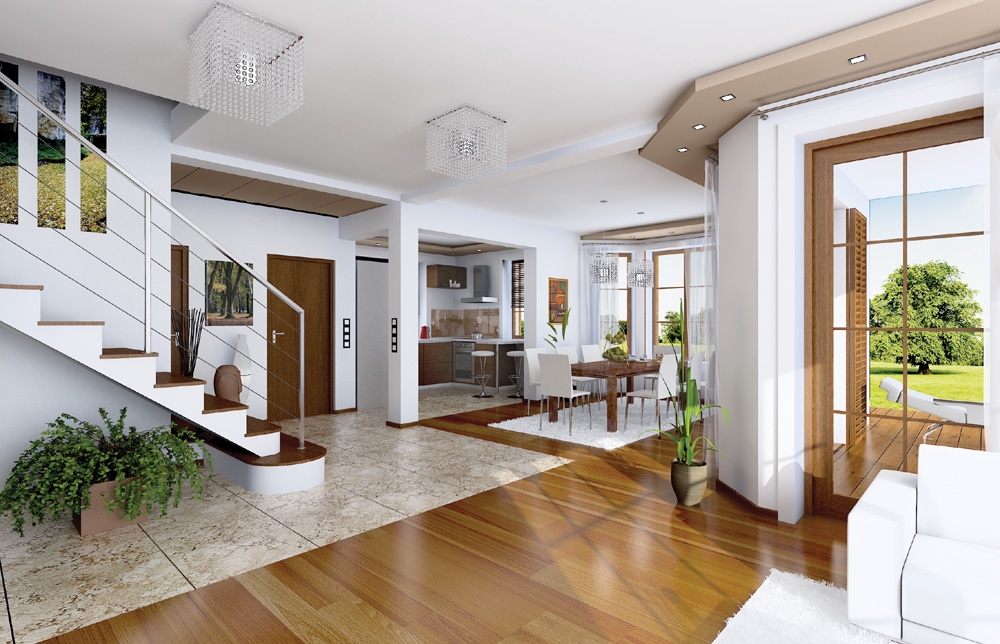

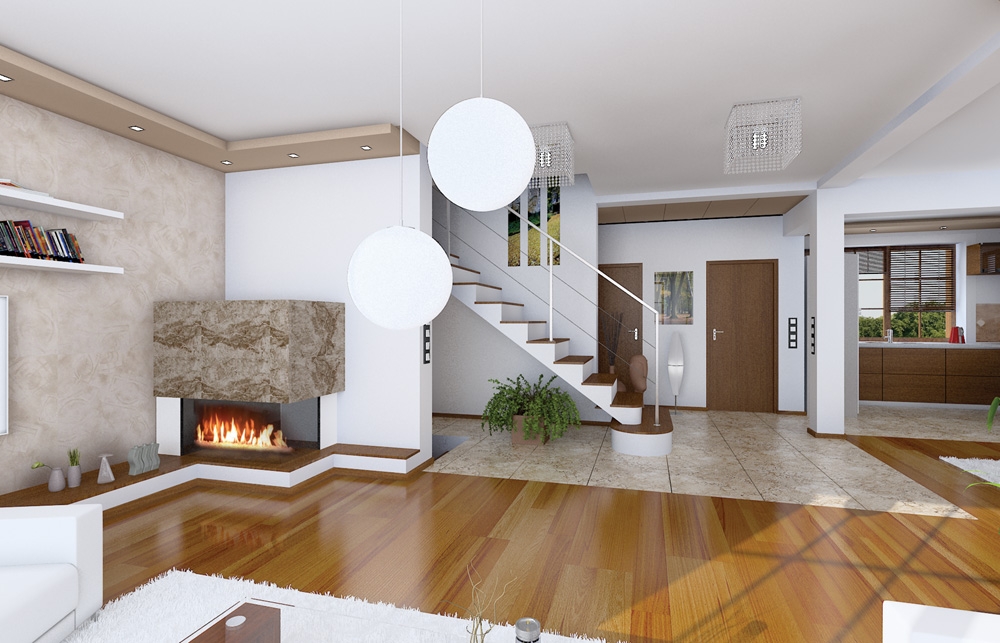

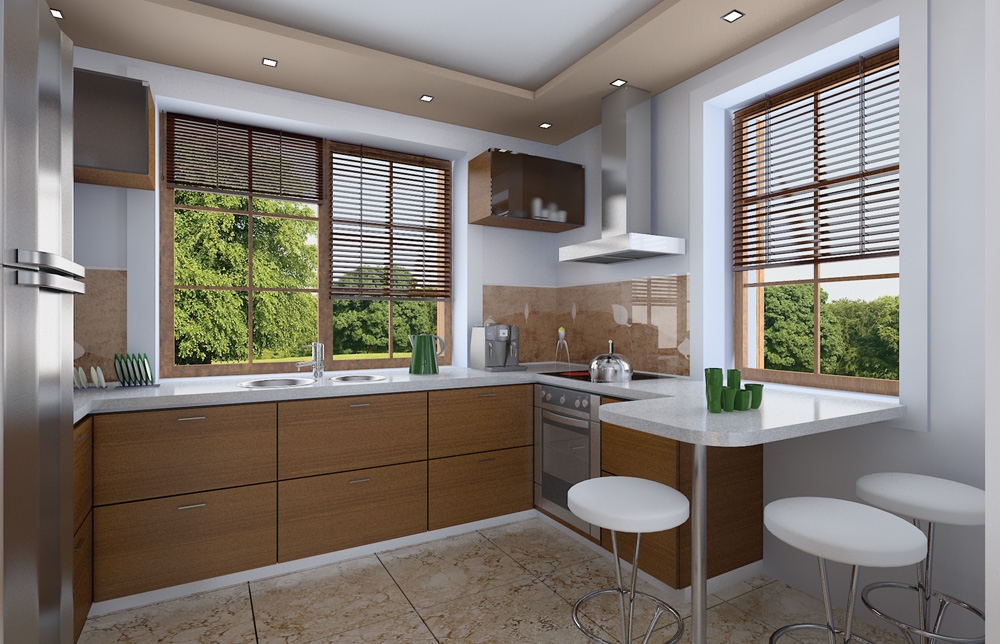

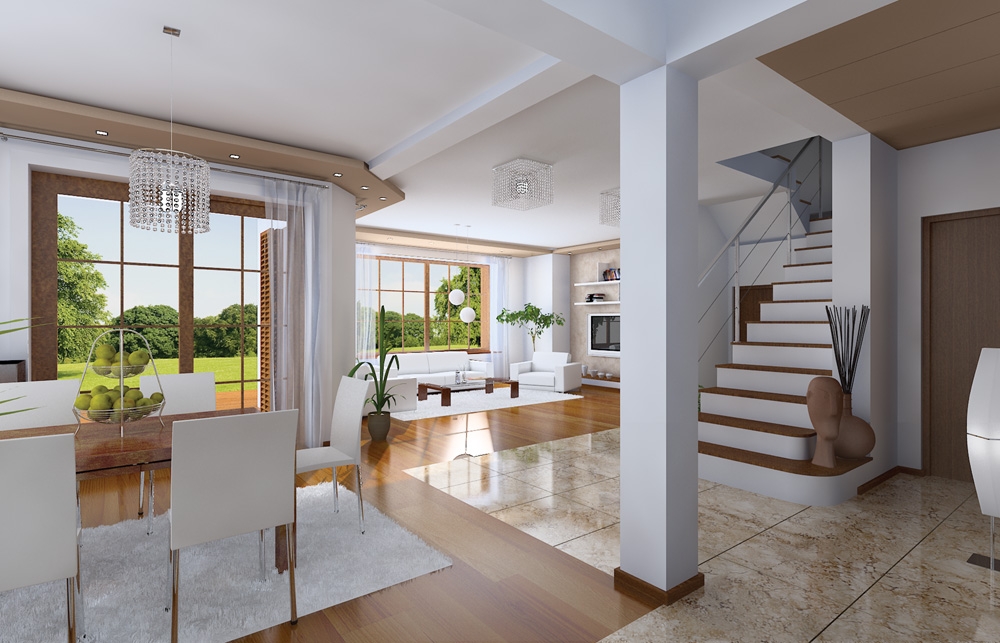

House plan Julka 4 is a variant version of the popular house plan Julka. The house plan is narrowed of the part of the width of the garage - changing it into a single garage, the attic was reduced, and the roofs was changed from the hipped to gable roofs. Thanks to this house can be located on plots where laws require gable roofs. House Julka 4, despite the simplification of the body looks very attractive. In the created side peaks were placed extra windows and little balcony over the bay window of the dining room. The front and rear dormer with balconies are more attractive then remaining facades. Built into the body of the house the garden arcade allows use of the terrace in a very sunny as well as rainy days. Inside the original layout is preserved - as in basic house plan - a breakdown for a living space on the ground floor including the living room, dining room, lobby with exposed stairs and partially open kitchen, and for the night space in the attic - bedrooms. In this version of the house plan, bedrooms and a bathroom can be a little bigger, because with a gable roof part of the "slant" was eliminated. In this house plan has an attic above the garage is also greater than in the Julka 2. Julka 4 house plan is available in a mirror version.


  • Cubature: 691 m3/ 24399,21 ft3
  • Built-up area: 129,68 m2/ 1395,36 ft2
  • Total area: 232,01 m2/ 2496,43 ft2
  • Net area : 145,82 m2 + garage + attic/ 1569,02 ft2  + garage + attic
  • Usable area: 139,29 m2/ 1498,76 ft2
  • Roof area: 234,25 m2/ 2520,53 ft2
  • Roof slope: 40 degrees
  • Height of the building: 8,39 m (8,74 m with foundation)/ 27,52 ft ( 28,67 ft with foundation)
  • Wide of the building: 14,51 m/ 47,59 ft
  • Length of the building: 10,81 m/ 35,46 ft
  • Minimum plot width: 21,51 m/ 70,55 ft
  • Minimum plot length: 18,96 m/ 62,19 ft
  • Height of rooms: 2,7 and 2,6 m/ 8,86 ft and 8,53 ft
  • Foundations - concrete benches and foundation walls with concrete blocks
  • Exterior walls - brick walls - airbricks porotherm 25 + polystyrene + plaster thin
  • Ceiling – TERIVA
  • Elevation - thin-layer plaster on polystyrene
  • Roof – tile



The costs of implementing:
The raw state open 42 700,00 EUR
The raw state closed 63 300,00 EUR
The cost of finishing works 63 000,00 EUR
Execution of turnkey home 126 300,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Julka 4 - detailed file

House plan Julka 4 - detailed file - mirror

Julka 4 house plan 1692 Natalla_40
2012.03.10 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.

Julka 4 house plan 1690 Martha L
2012.02.22 0 Pozytywny komentarz Negatywny komentarz

Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)

Julka 4 house plan 417 RickiL.
2012.02.07 0 Pozytywny komentarz Negatywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)
