Usable area: 93.35 m2 / The cost of the realization: 84 300 EUR
Show mirror image
Price: 890 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

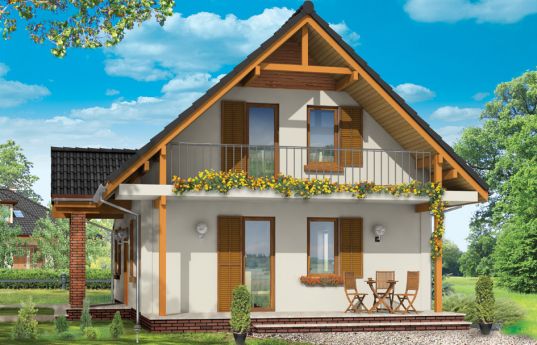

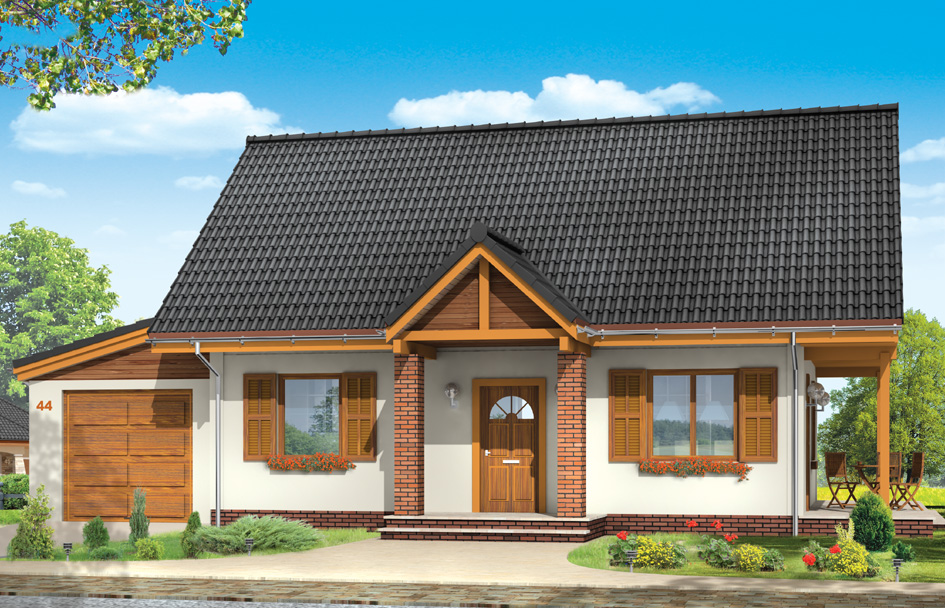

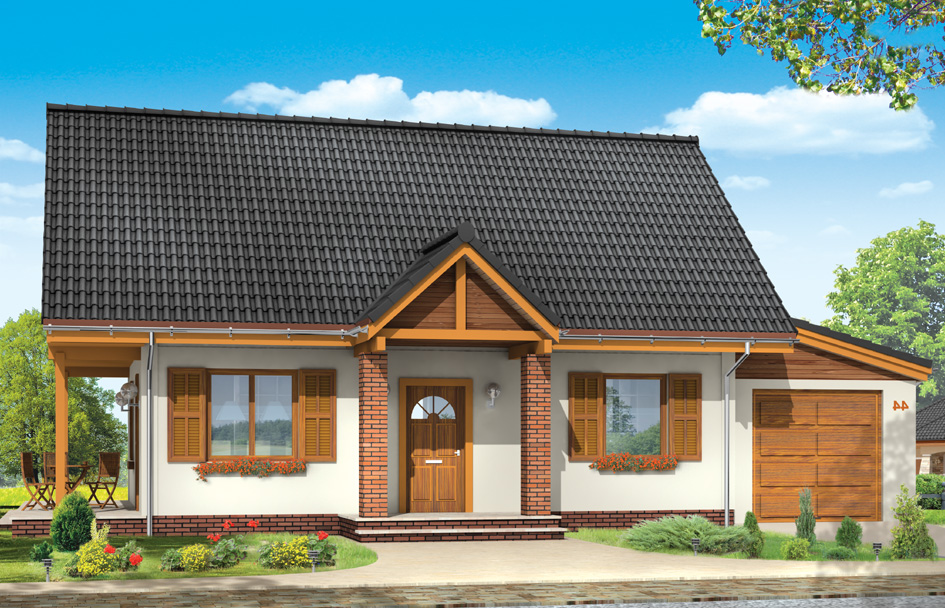

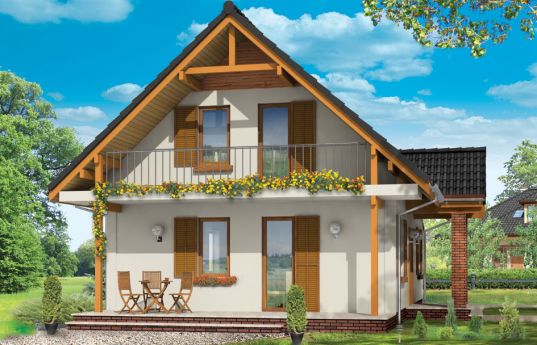

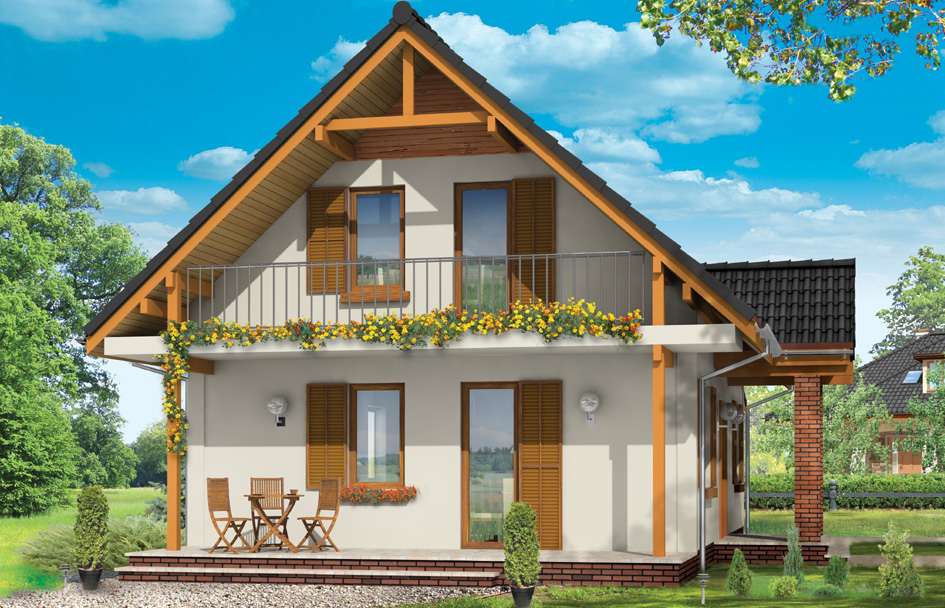

Joyful with garage house plan is a variant version the house Joyful. This house is a proposal for family of 4-5 people. The building is a small, simple in the construction, the same time very functional and full of charm. The interior has been very clearly divided - on the ground floor on one side of the entrance a salon - on the second side kitchen with dining area, or possibly an additional room. The center of plan are the communication, boiler room and toilet. In this project Joyful with a garage, in the attic there are three bedrooms and a bathroom. From the living room by on the ground floor there is a large roofed terrace and at the top - a balcony. There is also available mirror version of this house plan.
Specifications:
- Cubature: 380 m3 / 13417,8 ft3
- Built-up area: 97,1 m2 / 1044,80 ft2
- Total area: 144,9 m2 / 1559,12 ft2
- Net area: 112,99 m2 + garage / 1215,77 ft + garage
- Usable area: 93,35 m2 / 1004,45 ft2
- Roof area: 185,84 m2 / 1999,64 ft2
- Roof slope: 42 degrees
- Height of the building: 7,10 m (7,40 m with foundation) / 23,29 ft (24,27 ft with foundation)
- Wide of the building: 13,79 m / 45,23 ft
- Length of the building: 7,27 m / 23,85 ft
- Minimum plot width: 21,13 m / 69,31 ft
- Minimum plot lengthi: 15,87 m / 52,05 ft
- Height of rooms: 2,57 i 2,5 m / 8,43 and 8,2 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – bilayer walls –porotherm blocks + polystyrene
- Internal walls - porotherm
- Ceiling - Teriva
- Roof - tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 28 400,00 EUR |
| The raw state closed | 41 200,00 EUR |
| The cost of finishing works | 43 100,00 EUR |
| Execution of turnkey home | 84 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Joyful with garage - detailed file
House plan Joyful with garage - detailed file - mirror
