Larch house plan

Usable area: 116.67 m2   /   The cost of the realization: 83 300 EUR

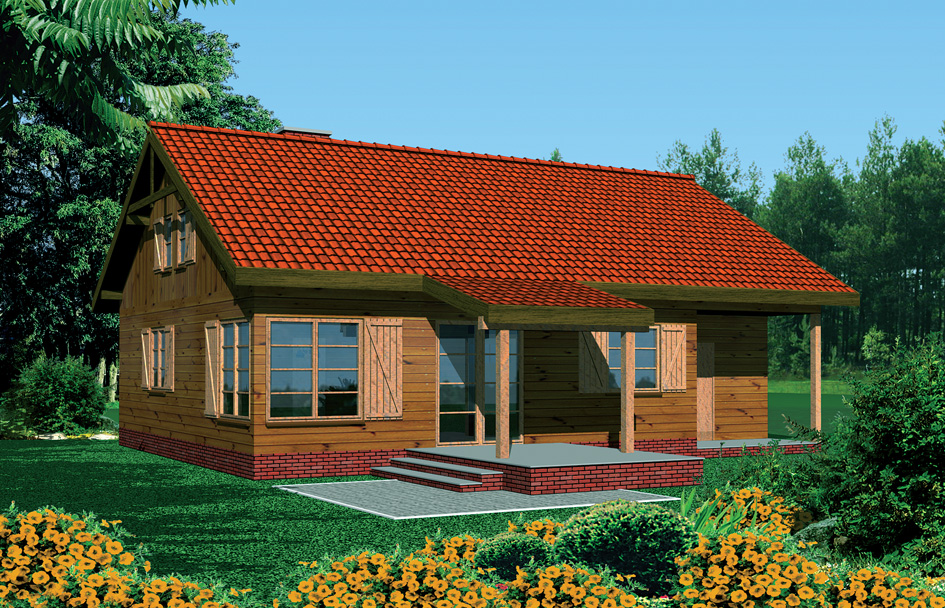

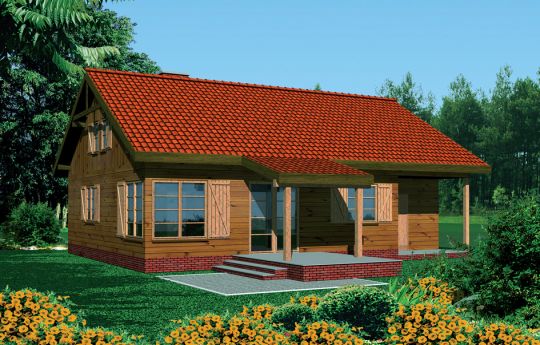

House plan Larch - front visualization

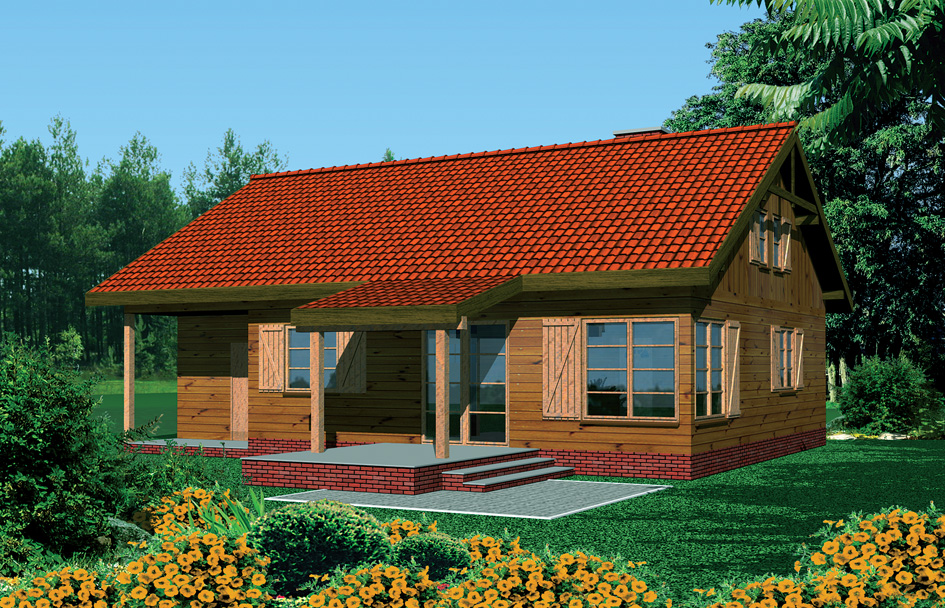

Show mirror image


Larch house is a wooden house, which could serve as a summer or year-round house. It has been designed for a comfortable rest and integrating with the surrounding nature. Silhouette building brings to mind the solidity and elegant simplicity. Functional interior with a large living room connects to the garden via a covered terrace. Larch house is also available in mirror version.



ATTENTION !!!

The term of realization of the project is 4 weeks - please take this into consideration when ordering. We apologies for any inconvenience!

Specifications:
  • Cubature: 311 m3 / 10981,41 ft3
  • Built-up area: 120,9 m2 / 1300,88 ft2
  • Total area: 185,2 m2 / 1992,75 ft2
  • Net area: 104,28 m2 / 1122,05 ft2
  • Usable area: 116,67 m2 / 1255,37 ft2
  • Roof area: 185,9 m2 / 2000,28 ft2
  • Roof slope: 40 degrees
  • Height of the building: 6,02 m (6,44 m with foundation) / 19,75 ft (21,12 ft with foundation)
  • Wide of the building: 12,33 m / 40,44 ft
  • Length of the building: 11,65 m / 38,21 ft
  • Minimum plot width: 19,33 m / 63,40 ft
  • Minimum plot length: 22,3 m / 73,14 ft
Materials:
  • External walls – wooden skeleton - thin- layer plaster on OSB
  • Ceiling -  wooden beams
  • Rafter - rafters supported by purlins
  • Roof -  tile or meatal roofing tile




The costs of implementing:
The raw state open 36 600,00 EUR
The raw state closed 47 300,00 EUR
The cost of finishing works 36 000,00 EUR
Execution of turnkey home 83 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Larch - detailed file

House plan Larch - detailed file - mirror
