By using this website you consent to the use of cookies, according to the current browser settings.Riviera 3 house plan
Usable area: 214.39 m2 / The cost of the realization: 181 300 EUR
Show mirror image
Price: 1280 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (4)
Realizations (22) Detailed drawings
List of materials
Comments (3)

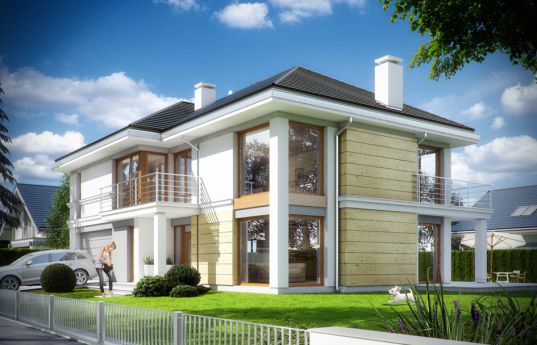

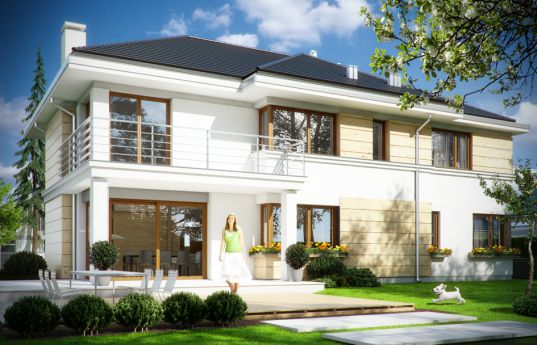

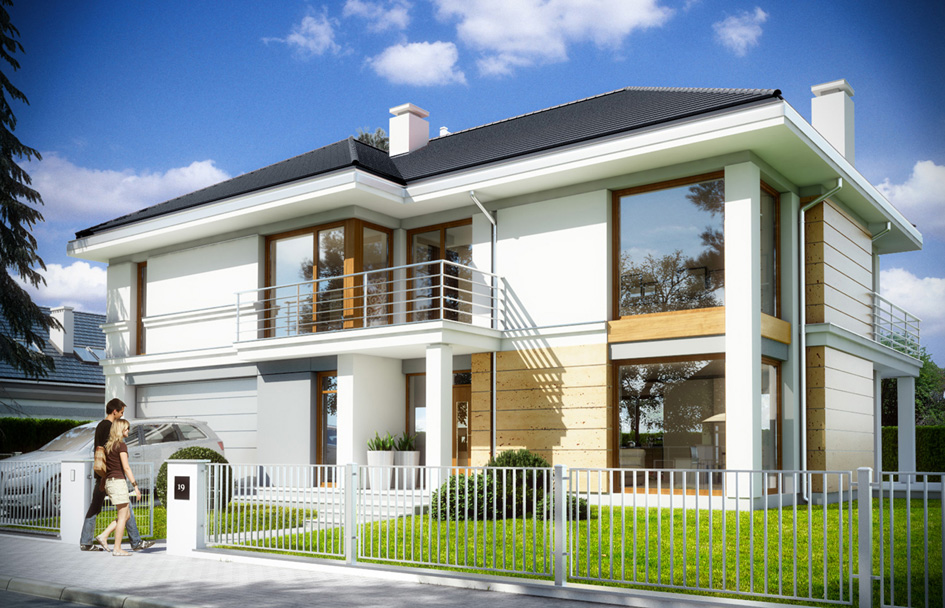

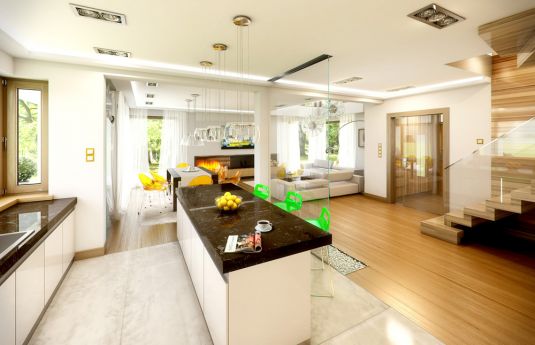

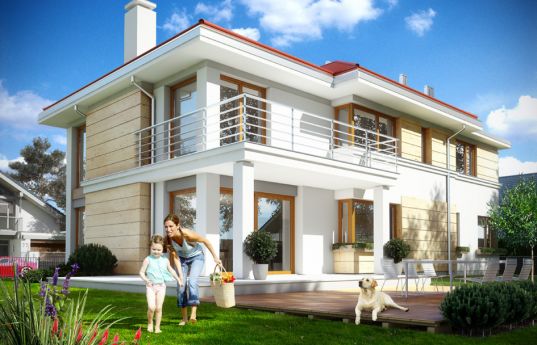

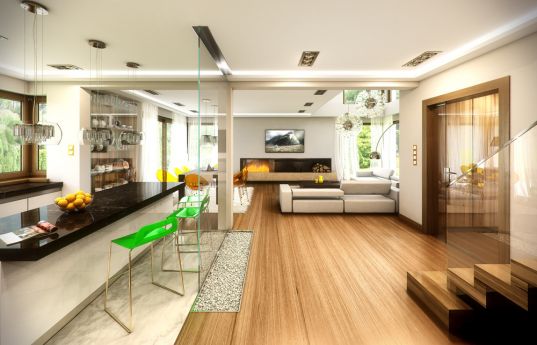

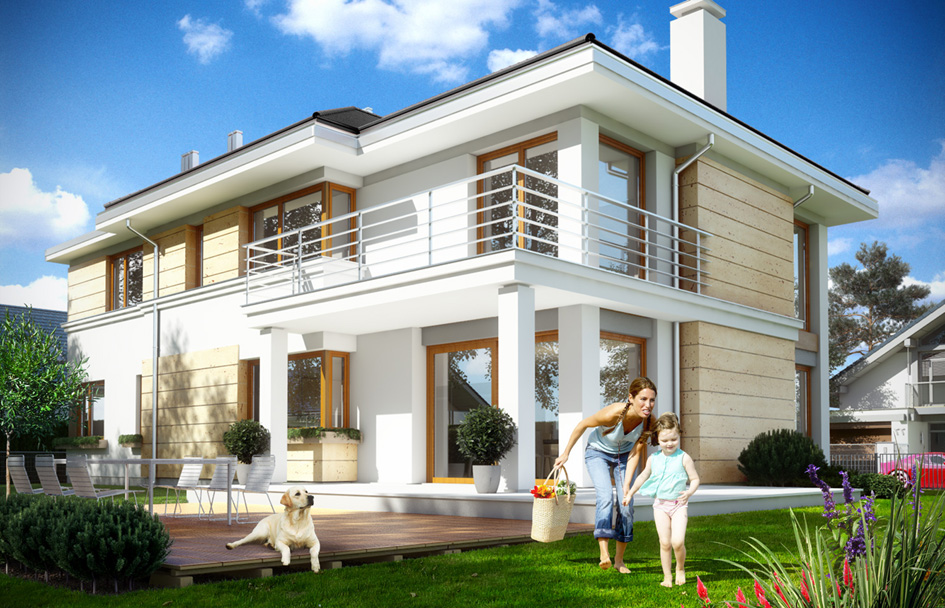

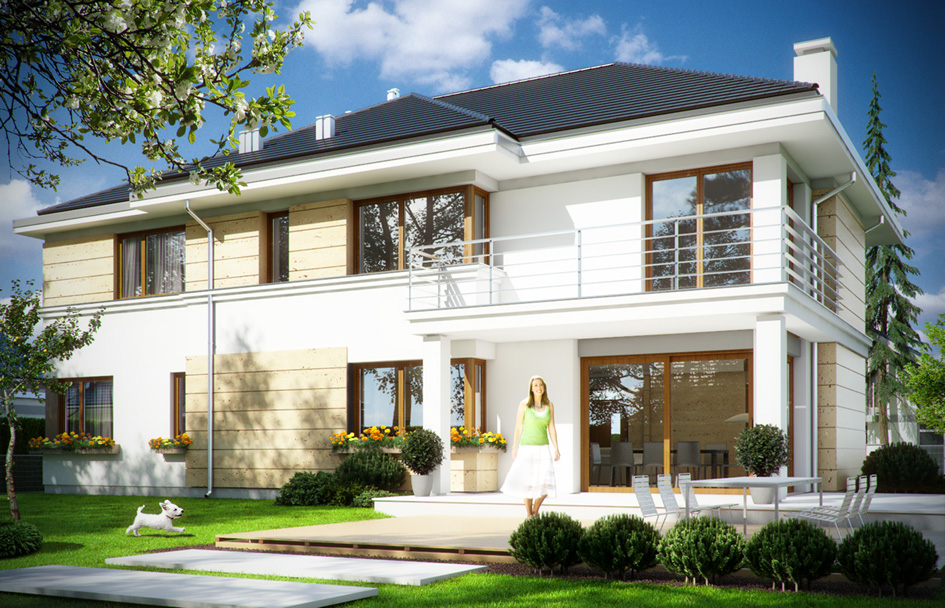

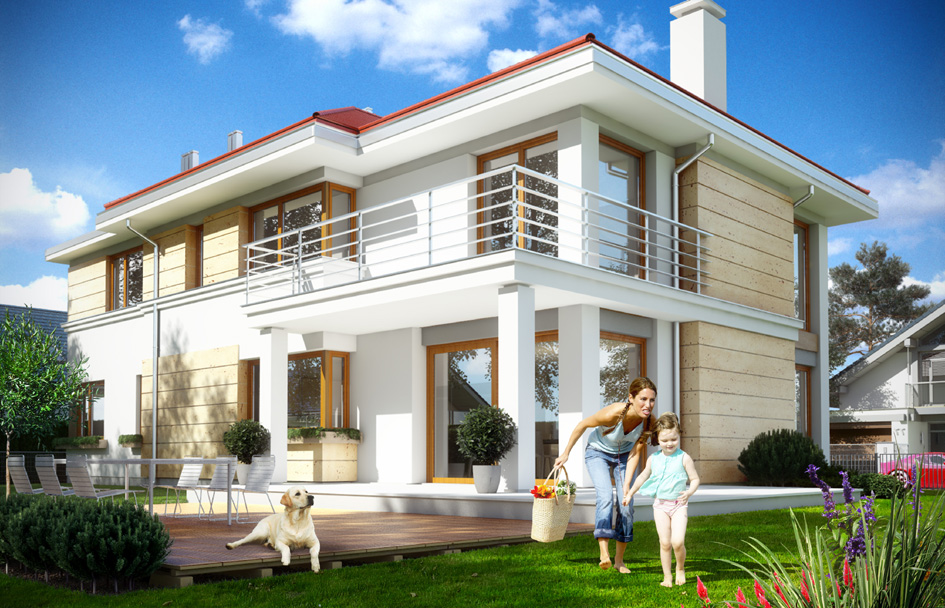

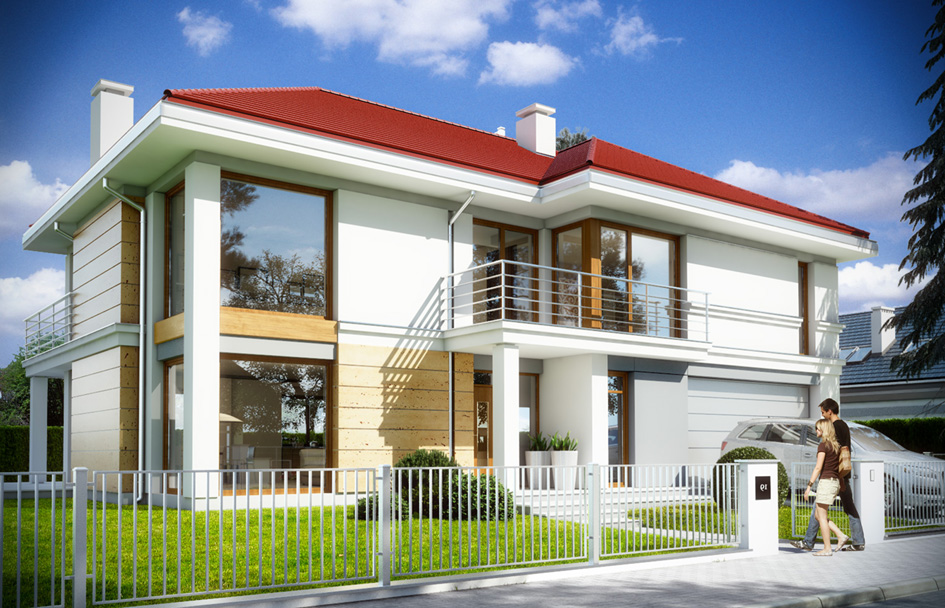

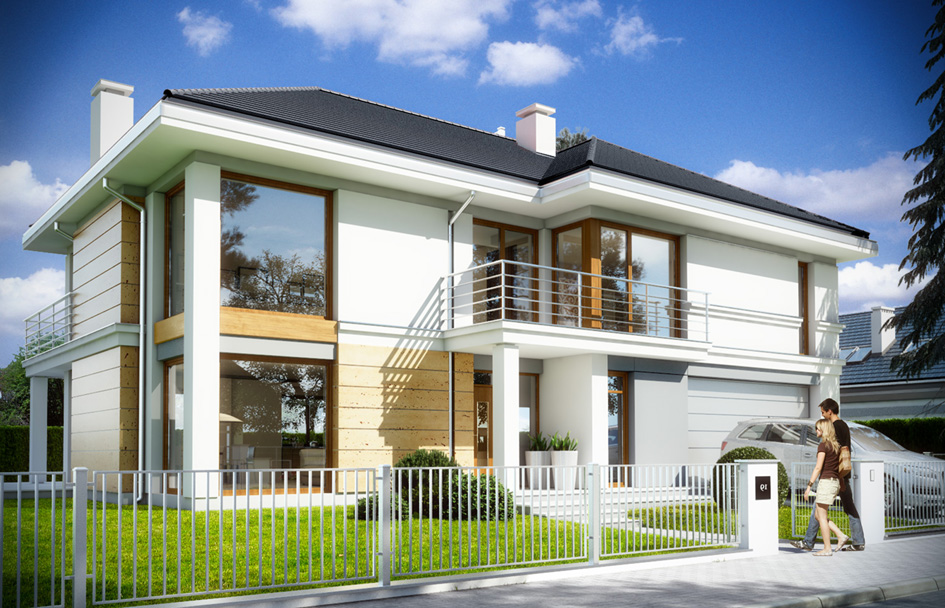

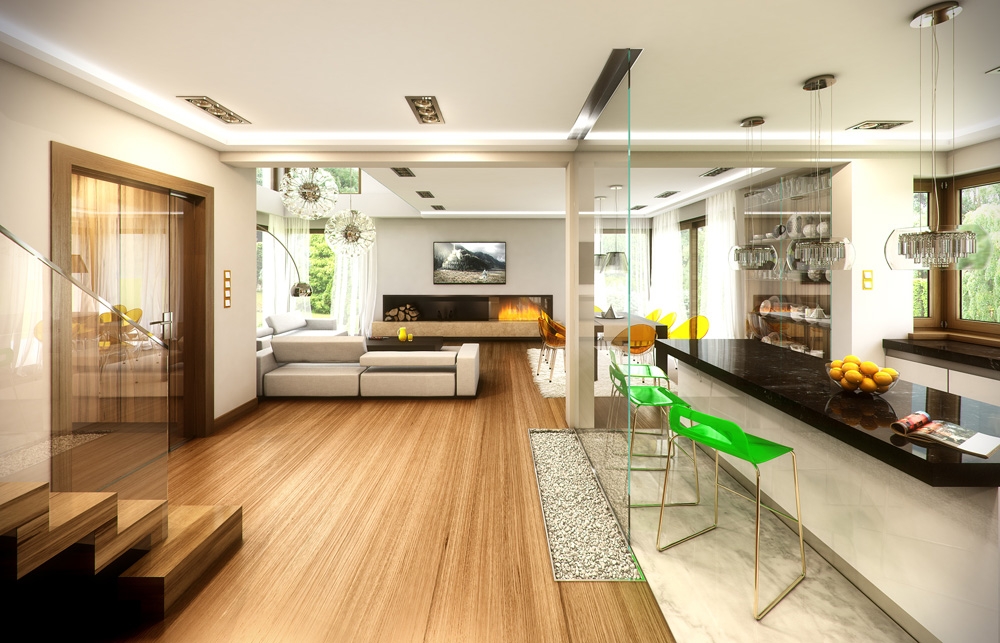

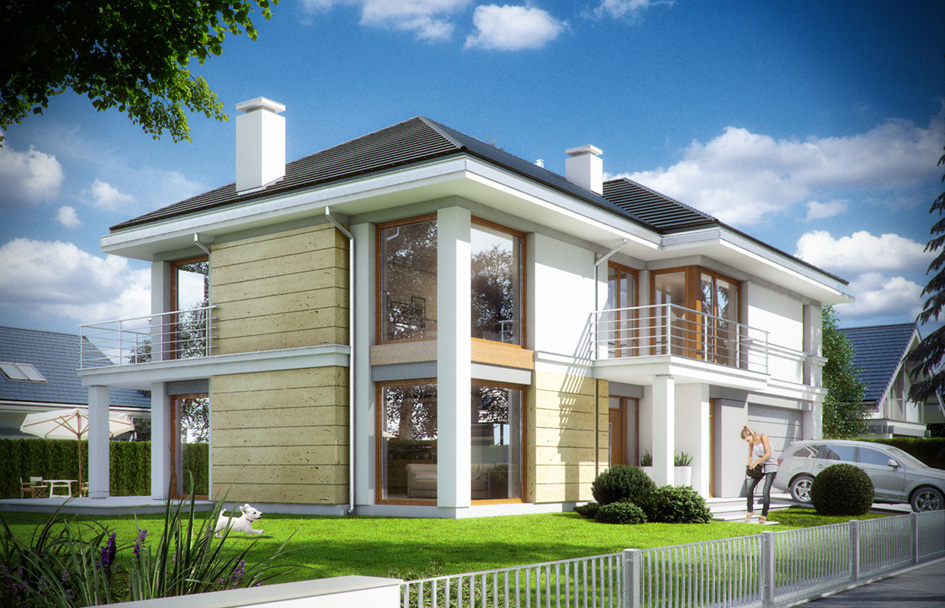

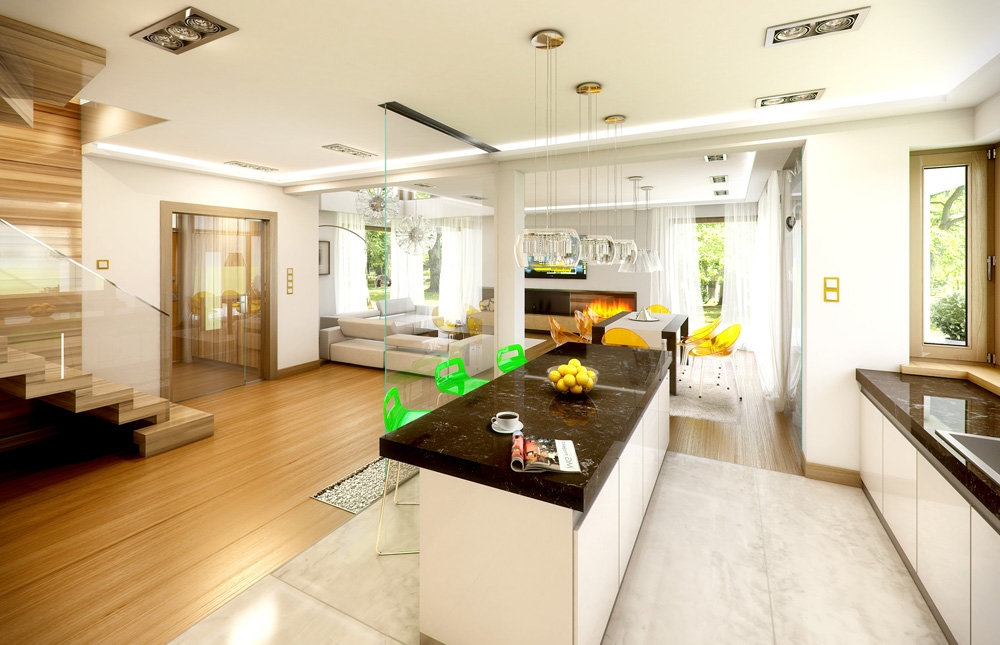

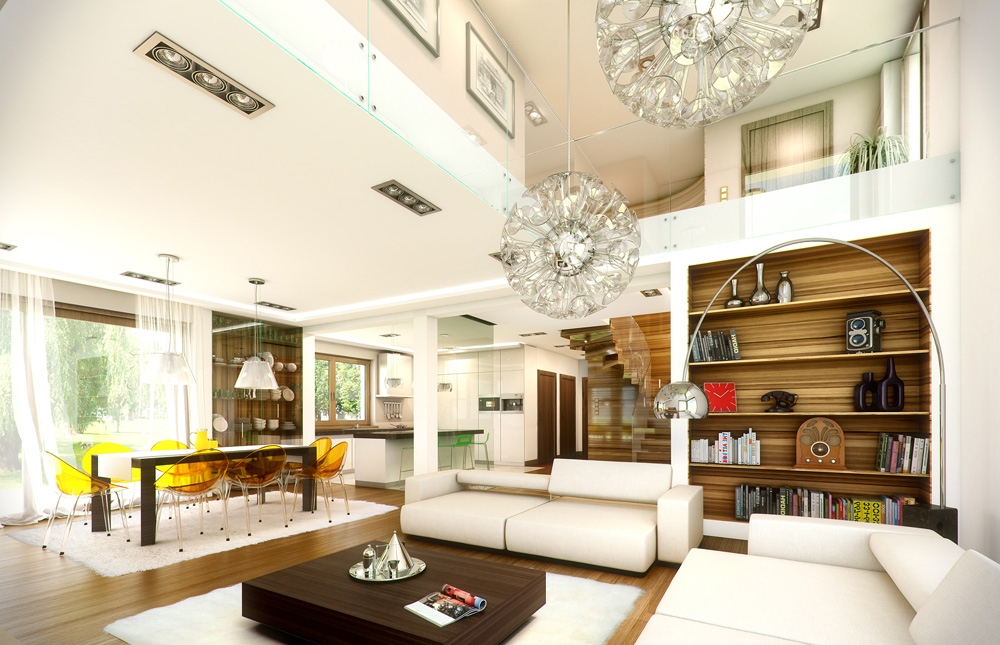

House Riviera 3 is another version of the popular house "Riviera" - this time house is extended, and is suitable for shallower and wider plot, with a garden in the back side of corner. Riviera 3 is a convenient comfortable house for a four-family of six. On the ground floor there is living space lounge, lobby with representational decorative staircase or kitchen and part of utility rooms with a garage and boiler room and extra room - office or bedroom guest's. On the first floor there are four bedrooms, and a separate parent’ apartment with bathroom and a large walk-in closet. Both floors combines an open emptiness above the living room and entresol of extensive lobby on the first floor. As a result, the interior of the house is very attractive and would be even greater. Exterior view of the building is a modern block covered with a hipped roof, with elevation separated by horizontal stripes of cornices, diversified by large glazed windows. The architecture of the house is both modern and unpretentious. The building especially will appeal to those who have a difficult plot - with road from the sunlit side. People who on the one hand must to let a lot of light into the living room and rooms from the south, on the other hand they do not want to have the terrace in front of the house, only the garden behind the house or on its side.
Specifications:
- Cubature: 1277,99 m3 / 45125,83 ft3
- Built-up area: 168,43 m2 (with arcades: 188,29 m2) / 1812,31 ft2 (with arcades: 2026,00 ft2)
- Total area 318,26 m2 / 3424,48 ft2
- Net area: 220,74 m2 + garage 32,73 m2 / 2375,16 ft2 + garage 352,17 ft2
-
Usable area:
- 214,39 m2 wg PN-70/B-02365 / 2306,84 ft2 wg PN-70/B-02365
- 220,74 m2 + garage wg PN-ISO 9836:1997 / 2375,16 ft2 + garage wg PN-ISO 9836:1997
- Roof area: 230,56 m2 / 2480,83 ft2
- Roof slope: 30 degrees
- Height of the building: 9,13 m (9,53 m with foundation) / 29,95 ft (31,26 ft with foundation)
- Wide of the building: 16,70 m / 54,78 ft
- Length of the building: 11,20 m / 36,73 ft
- Minimum plot width: 23,30 m / 76,42 ft
- Minimum plot length:: 19,20 m / 62,98 ft
- Height of rooms: 2,7 i 2,5 m / 8,86 and 8,2 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - ceramic tile
The costs of implementing:
| The raw state open | 66 400,00 EUR |
| The raw state closed | 95 800,00 EUR |
| The cost of finishing works | 85 600,00 EUR |
| Execution of turnkey home | 181 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Riviera 3 - detailed file
House plan Riviera 3 - detailed file - mirror
