Riviera 4 house plan

Usable area: 171.84 m2   /   The cost of the realization: 156 600 EUR

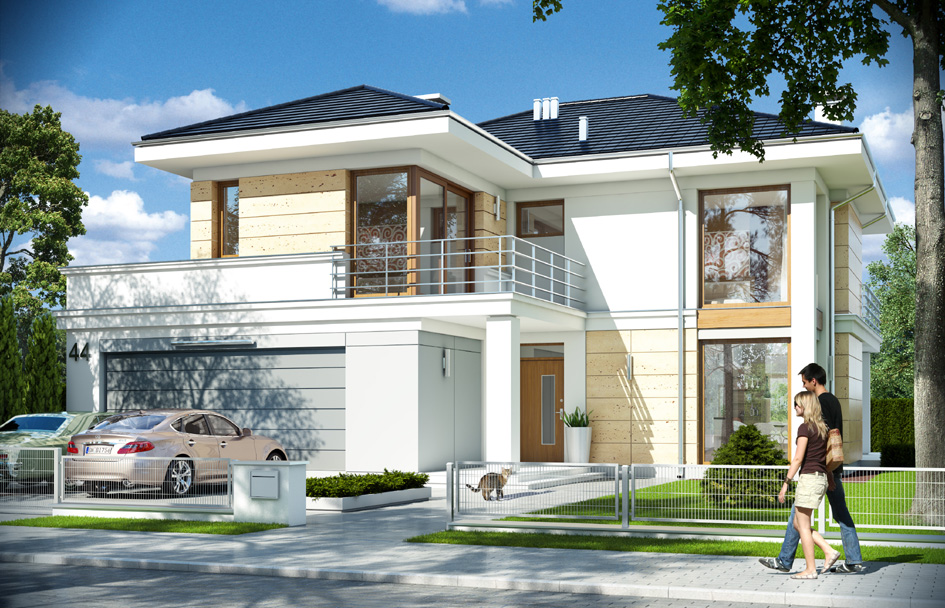

House plan Riviera 4 - front visualization

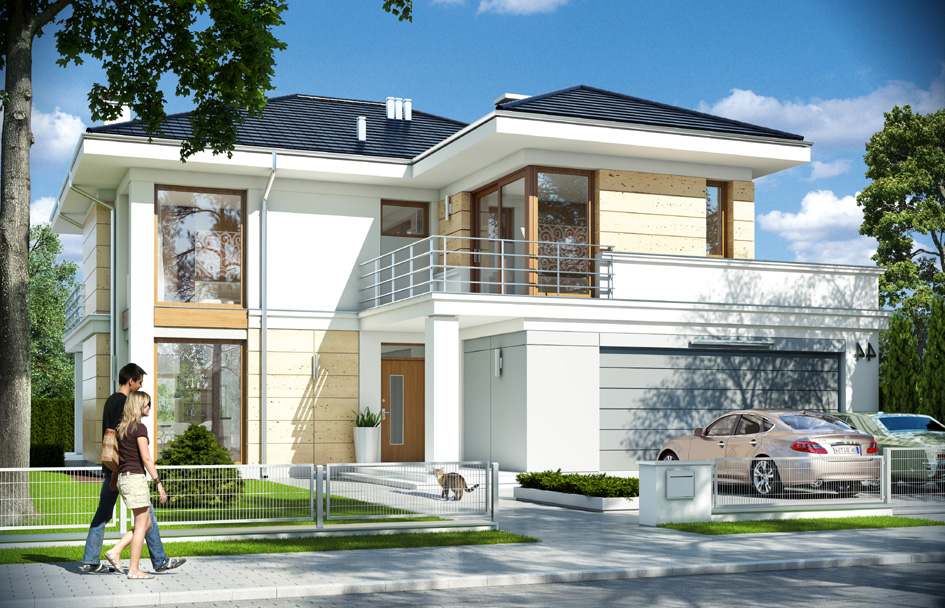

Show mirror image

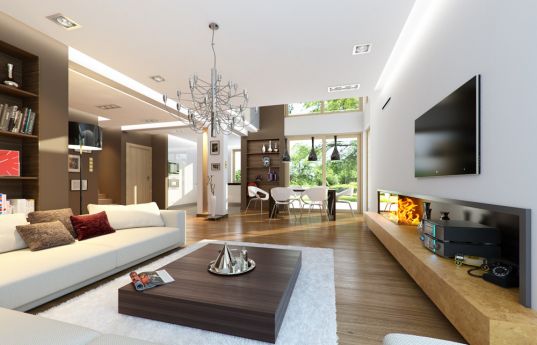

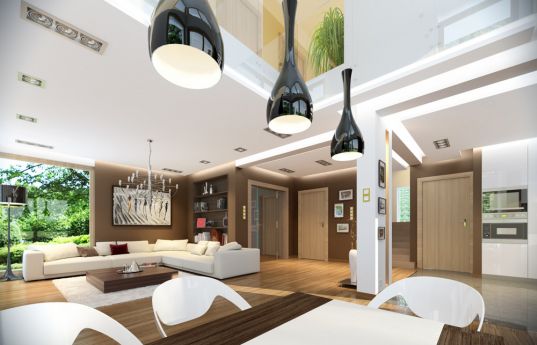

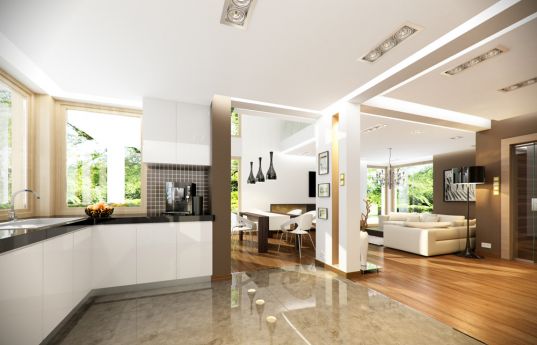

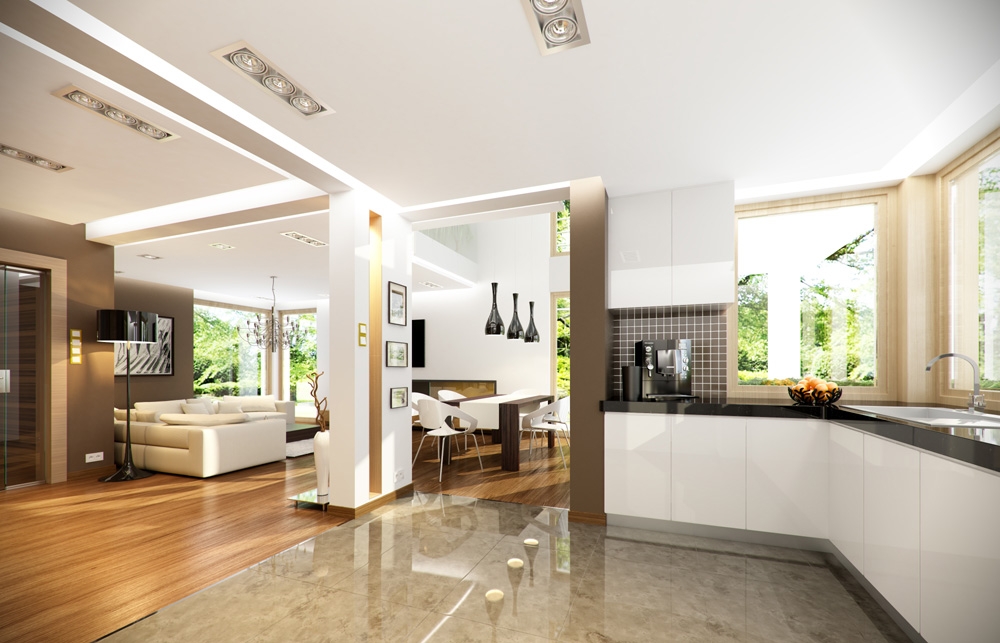

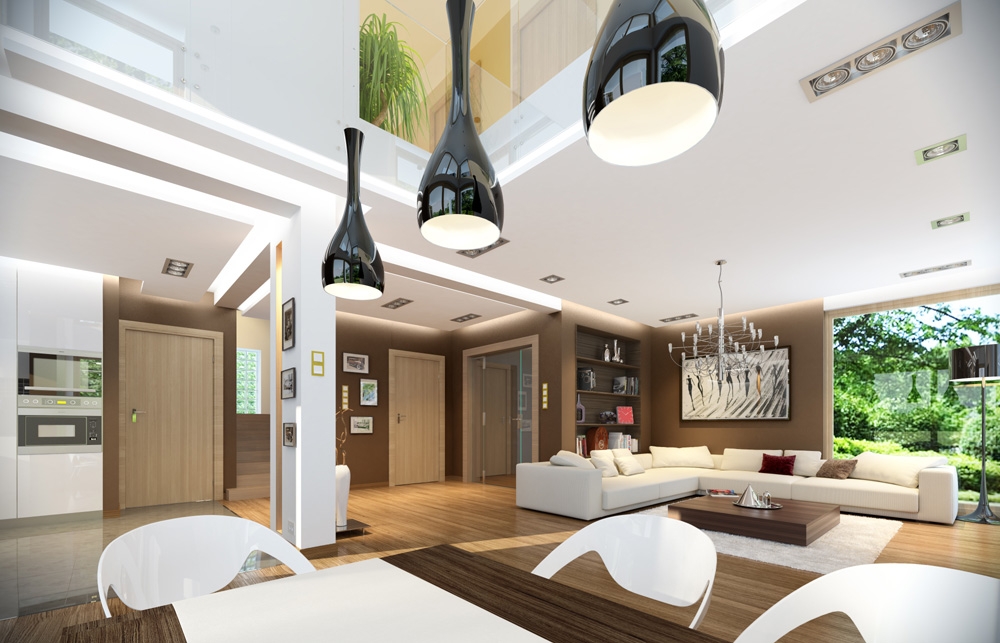

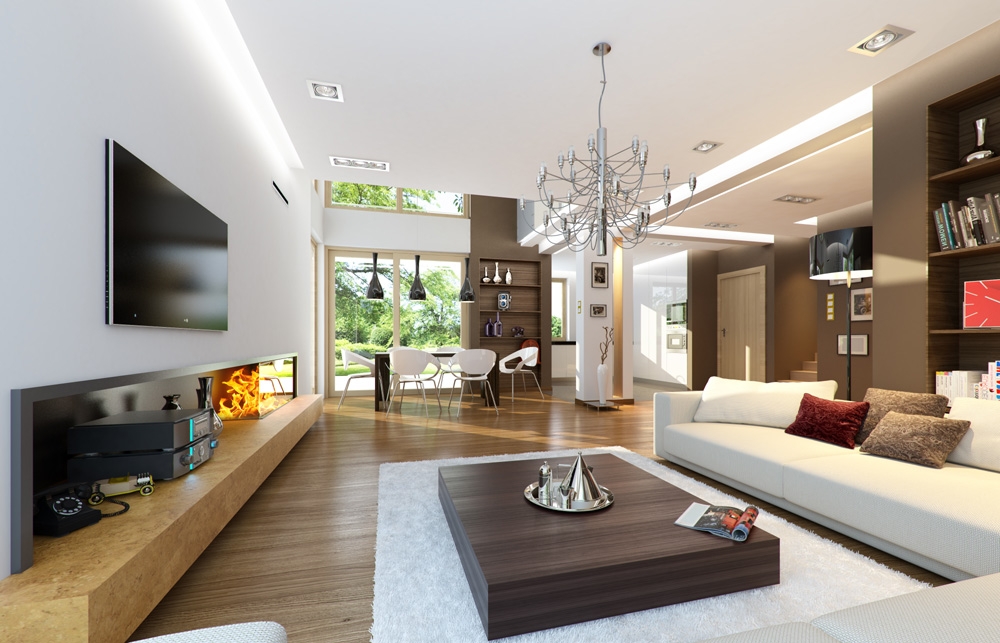

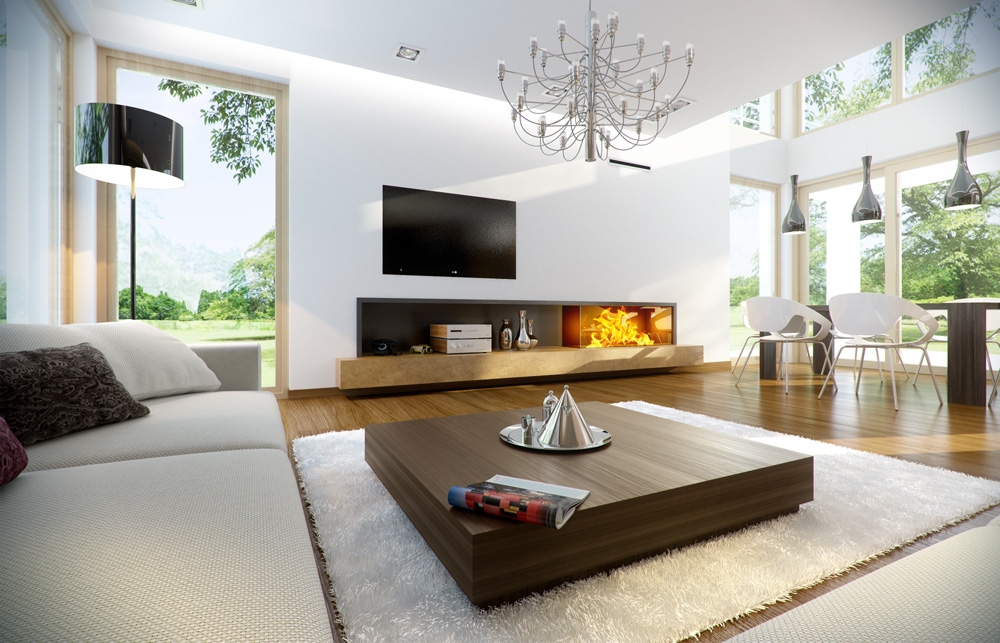

Riviera 4 house plan is a variant version of popular Riviera 2 house - this time with a garage for two cars. Riviera 4 is a storey building, suitable for a family of 4 to 5 people, covered by mild hipped roof with built in double garage partially protruding beyond the outline shape of the house. The building was designed in the style of a modern urban villa with mild roofs and large glass. Elevations are divided into horizontal stripes, and the walls varied in material's different facings. A characteristic element of house have beautiful large windows, some of which reaches from floor to ceiling, providing plenty of light and beautiful views of the garden with the living area. The building was designed in the style of a modern urban villa with mild roofs and large glass. Elevations are divided into horizontal stripes and the walls was varied by material cladding. A characteristic element of house are large beautiful windows which reaches from floor to ceiling, providing plenty of light and beautiful views of the garden. The interior of the house is divided into a living area on the ground floor and bedrooms upstairs. The ground floor is a large and open daily space with a living room, hall and kitchen with separate dining area . Open hall is the center of the house. From hall we get up by representational stairs or a through spacious vestibule outside, or to the utility part of the house - the boiler room and the garage. On the ground floor there is an extra room (office or guest bedroom) and wc with shower. Above the dining room there is the mezzanine , with windows of two floors high, overlooking the garden. From the living room we go out to the partially covered terrace and garden. On the first floor there are four bedrooms, including a parents bedroom in a separate part of the house, with its own bathroom and dressing room. Children's bedrooms have an extra bathroom - available from the hall. You can close the emptiness above the living room and design the fifth room on the floor!. Riviera 4 is a thoughtful, highly functional, energy-efficient family house. Its construction cost is beneficial with respect to the obtained surface (free of slant), and to the comfort and convenience of house. There is also available version with the monolithic ceiling above the ground floor and the first floor and a mirror version of this house plan.

Specifications:
  • Cubature: 1007,44 m3 / 35572,71 ft3
  • Built-up area: 160,32 m2 (with arcades: 180,71 m2) / 1725,04 ft2 (with arcades: 1944,44 ft2)
  • Total area: 278,19 m2 / 2993,32 ft2
  • Net area: 177,80 m2 + garage 38,77 m2 / 1913,13 ft2 + garage 417,17 ft2
  • Usable area:
    • 171,84 m2 wg PN-70/B-02365 / 1849,00 ft2 wg PN-70/B-02365
    • 177,80 m2 + garage wg PN-ISO 9836:1997 / 1913,13 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 182,42 m2 + flat roof 21,74 m2 / 1962,84 ft2 + flat roof 233,92 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,43 m (8,68 m with foundation) / 27,65 ft (28,47 ft with foundation)
  • Wide of the building: 14,36 m / 47,10 ft
  • Length of the building: 14,92 m / 48,94 ft
  • Minimum plot width: 21,00 m / 68,88 ft
  • Minimum plot length: 22,92 m / 75,18 ft
  • Height of rooms: 2,7 i 2,6 m / 8,86 and 8,53 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva or monolithic
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 58 100,00 EUR
The raw state closed 82 900,00 EUR
The cost of finishing works 73 800,00 EUR
Execution of turnkey home 156 600,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Riviera 4 - detailed file - mirror

House plan Riviera 4 - detailed file

Comment
Riviera 4 house plan 4705 Dorota W
2013.11.20 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.

Riviera 4 house plan 4685 Maruszka
2013.11.18 0 Pozytywny komentarz Negatywny komentarz

Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)

Riviera 4 house plan 4683 Magda Mazurek
2013.11.12 0 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.
