By using this website you consent to the use of cookies, according to the current browser settings.Family house plan
Usable area: 208.72 m2 / The cost of the realization: 182 400 EUR
Show mirror image
Price: 1100 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (8) Detailed drawings
List of materials
Comments (3)

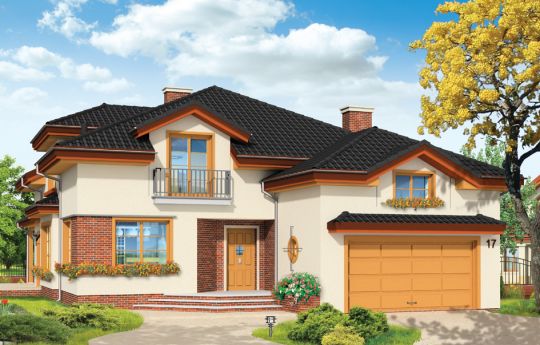

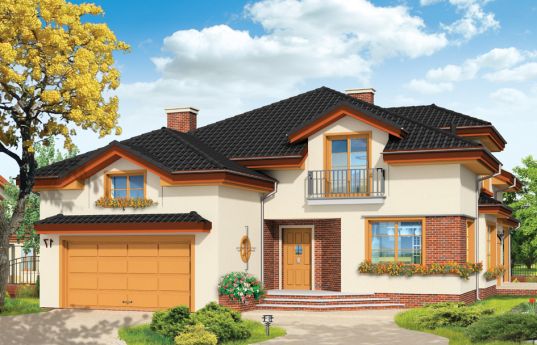

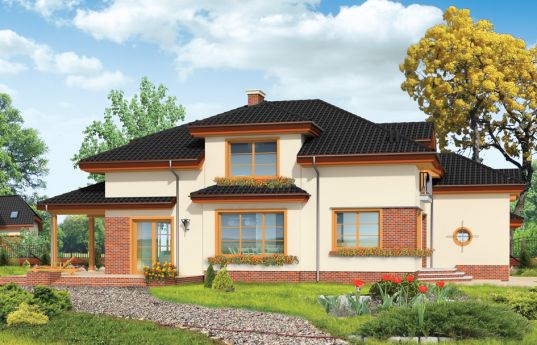

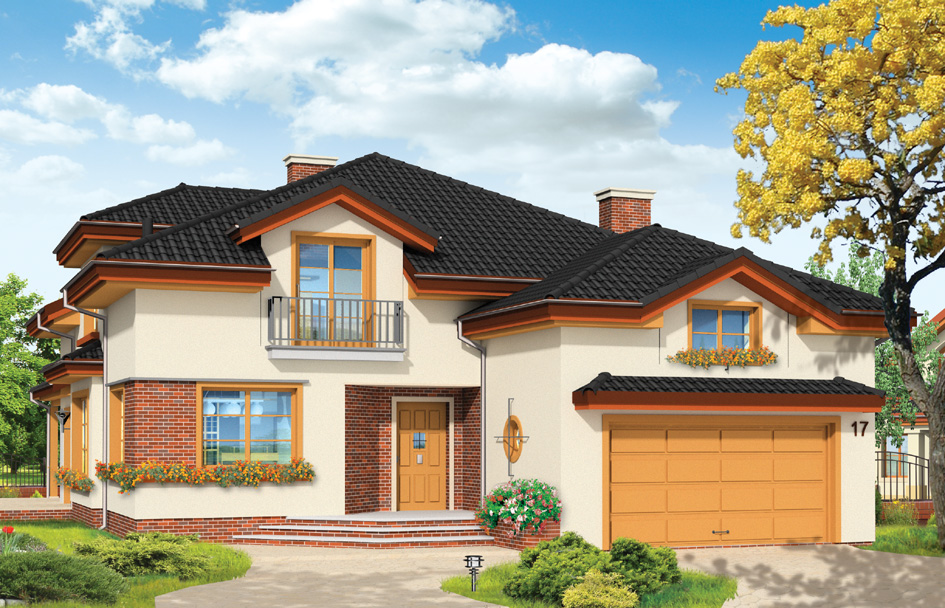

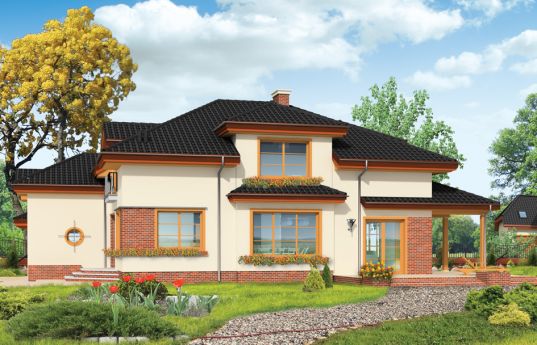

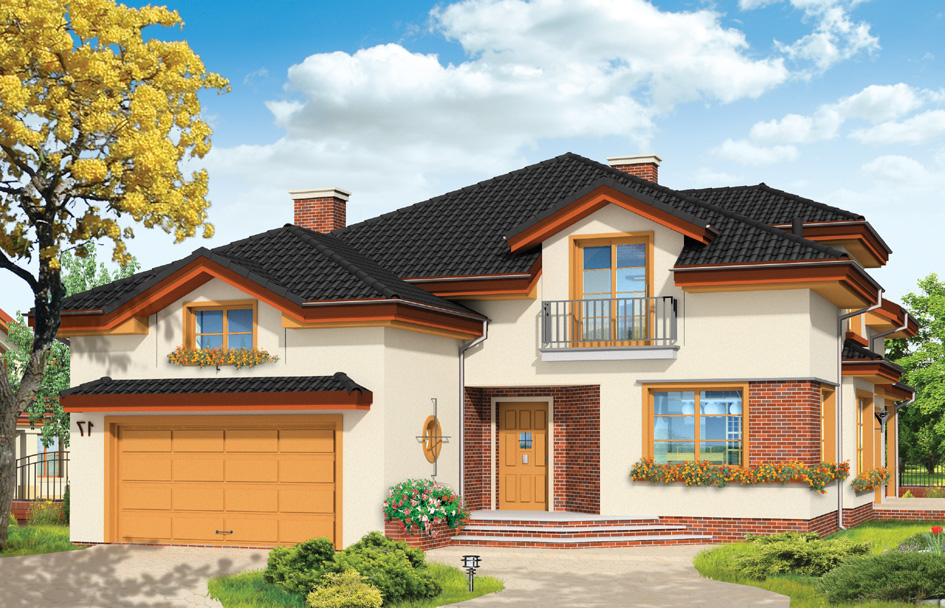

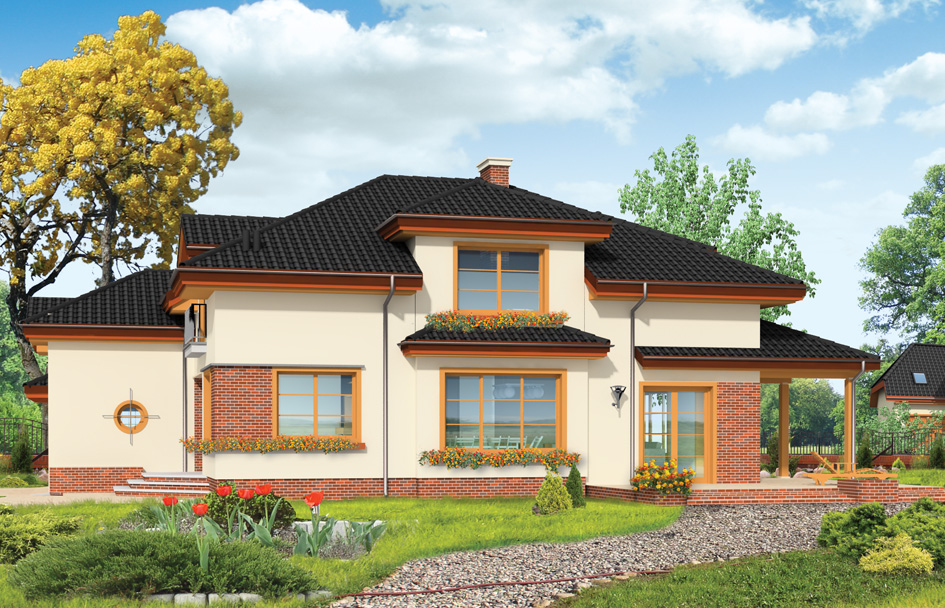

Family house plan is the perfect house for a family of 4 to 5 people, it is a bungalow with an attic. Attic has a very high elbow walls, making us the impression of almost storey building, and improves the functionality of the rooms in the attic. Architecture of house combines tradition and modernity. Large glass windows of living and dining room combined inside of house with a garden. The house can be built both on a plot with a garden at the back or the side. There is also available mirror version of this house plan.
Specifications:
- Cubature: 904 m3 / 31920,24 ft3
- Built-up area: 198,8 m2 / 2139,09 ft2
- Total area: 312,6 m2 / 3363,58 ft2
- Net area: 233,55 m2 + garage+ attic / 2513,00 ft2 + garage+ attic
- Usable area: 208,72 m2 / 2245,83 ft2
- Roof area: 319 m2 / 3432,44 ft3
- Roof slope: 30 and 26 degrees
- Height of the building: 7,96 m (8,48 m with foundation) / 26,11 ft (27,81 ft with foundation)
- Wide of the building: 13,5 m / 44,28 ft
- Length of the building: 16,8 (19,38) m / 55,10 (63,57) ft
- Minimum plot width: 21,5 m / 70,52 ft
- Minimum plot length: 26,38 m / 86,53 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – bilayer walls – blocks MAX
- Ceiling - Teriva
- Roof - tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 66 700,00 EUR |
| The raw state closed | 93 700,00 EUR |
| The cost of finishing works | 88 800,00 EUR |
| Execution of turnkey home | 182 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Family - detailed file
House plan Family - detailed file - mirror
