House plan Sophie 6

Usable area: 75.51 m2   /   The cost of the realization: 78 470 EUR

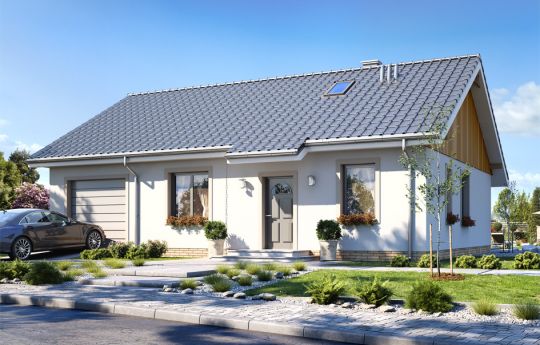

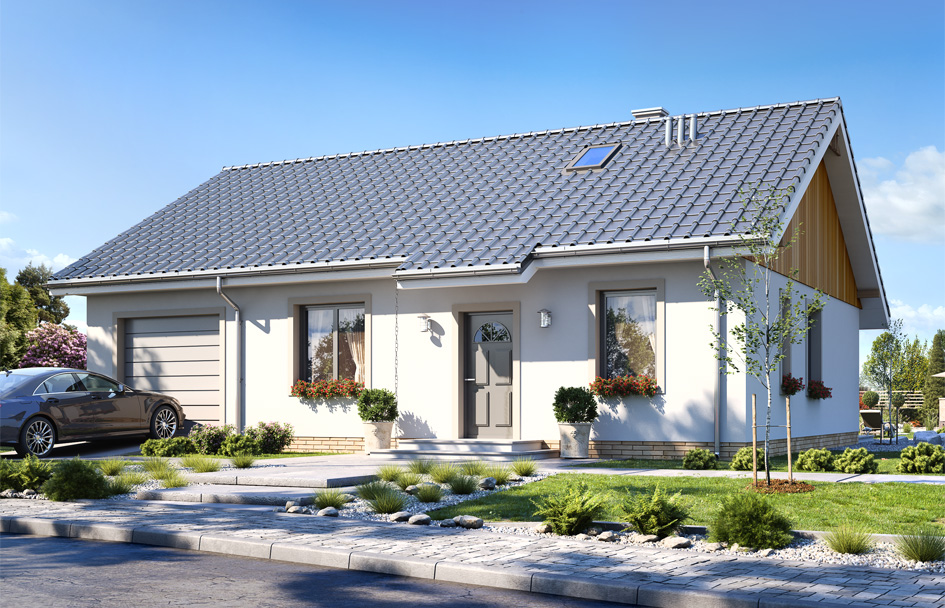

Projekt domu Zosia 6 - wizualizacja frontu

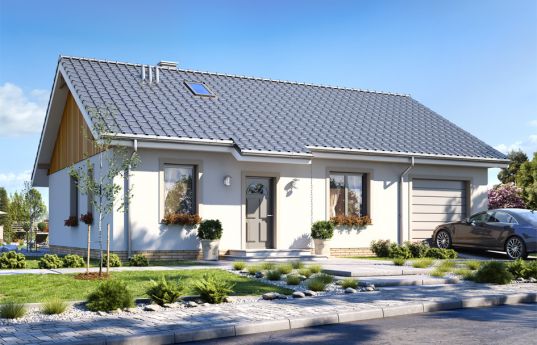

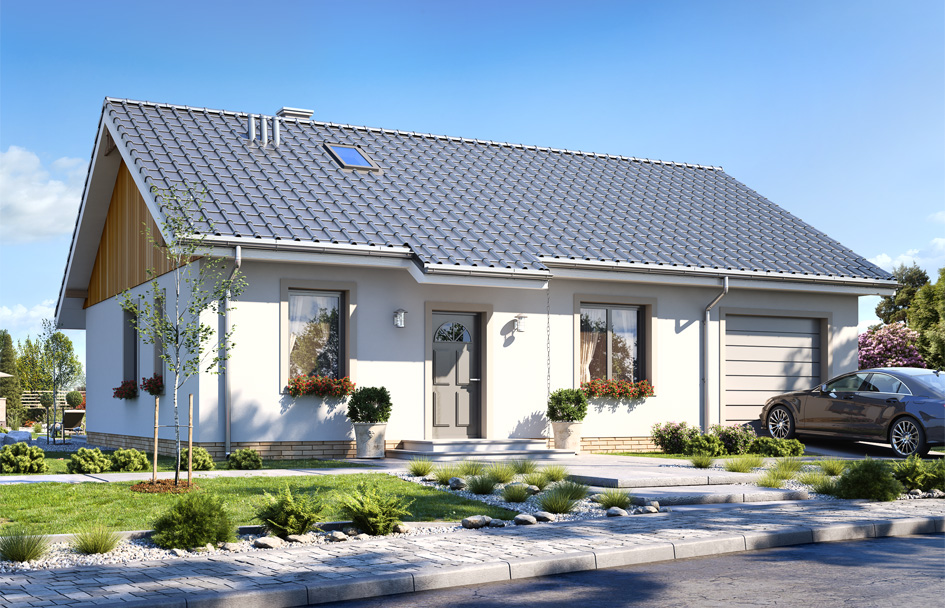

Show mirror image

Sophie 6 house plan is another variant version of the popular single-family house from the Sophie series - this time the version of the house with a garage in the block of the building and a boiler room behind the garage. It is a slightly larger version of the original design - its external dimensions are 13 x 9.7 meters. The house has a simple and uncomplicated shape and structure. Thanks to its cost-effective form and its simplicity, it is easy to build and therefore inexpensive. At the same time it is functional and one hundred percent meets the requirements of a comfortable flat for a family of four. The house was covered with a gable roof with an angle of 30 degrees. A truss from the truss girders is planned above the ground floor. In the attic you can store light items by climbing up the ladder stairs. A variant can be used to modify the roof truss to the wooden beam ceiling and roof truss from the rafters and turn the attic into a small attic. We enter the house through the vestibule with a large wardrobe to the lobby and the living room. On the sides near the entrance, children's bedrooms are designed, we have deeper living space - with a kitchen separated by a fireplace and TV wall, and a living room with a corner for lounge furniture and a place for a dining table. Next, the parents' bedroom is separated from the rest of the interior. From the hall there is a bathroom and toilet from the hallway, and further, behind a double door, a garage and boiler room. The boiler room in the project is planned as gas, but it can be easily converted into a solid fuel boiler. The house - taking into account a small usable area - is very functional and has an extensive program of rooms. There is no wasted space here - everything is logically and practically managed. The house has an unpretentious and pleasing to the eye style. The building will be well composed both in the suburbs and in the countryside, among loosely built-up buildings. The decisive advantage of the Sophie series houses is their simplicity and functionality, translating into the maximum investment effect obtained for little money. Each subsequent version of the house from this series we try to design even better and more sensibly. The house is designed as energy-saving, very well insulated. It will be cheap in later exploitation.

  • Cubature: 520 m3  / 18361,20 ft3
  • Built-up area: 127,47 m2 / 1371,58 ft2
  • Total area: 127,47 m2 / 1371,58 ft2
  • Net area: 81,94 m2 + garage 18,93 m2 / 881,67 ft2 + garage 203,69 ft2
  • Usable area: 75,51 m2 /  812,49 ft2
  • Roof area: 179,20 m2 / 1928,49 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,10 m (6,40 m with foundation) / 20,01 ft (20,99 ft with foundation)
  • Building dimensions: 13,06 x 9,76 m / 42,84 x 32,01 ft
  • Plot dimensions: 20,06 x 17,76 m / 65,80 x 58,25 ft
  • Height of rooms: 2,7 m / 8,86 ft
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls – aerated 24 blocks + polystyrene + thin-layer plaster
  •     Ceiling - monolithic reinforced concrete
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - ceramic tile



The costs of implementing:
The raw state open 23 940,00 EUR
The raw state closed 35 230,00 EUR
The cost of finishing works 43 250,00 EUR
Execution of turnkey home 78 470,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

Projekt domu Zosia 6 - pliki szczegółowe

Projekt domu Zosia 6 - pliki szczegółowe - odbicie lustrzane
