House plan Sophie 8

Usable area: 82.43 m2   /   The cost of the realization: 102 690 EUR

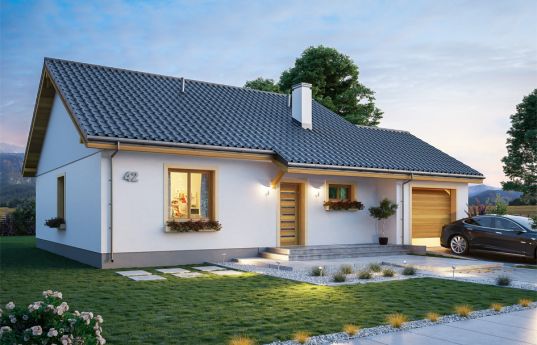

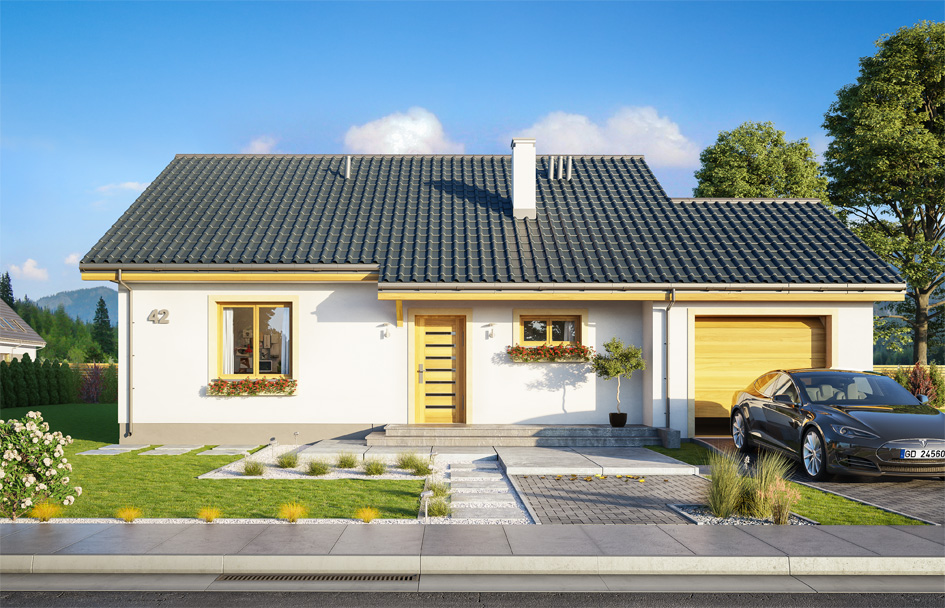

Projekt domu Zosia 8 - wizualizacja frontu

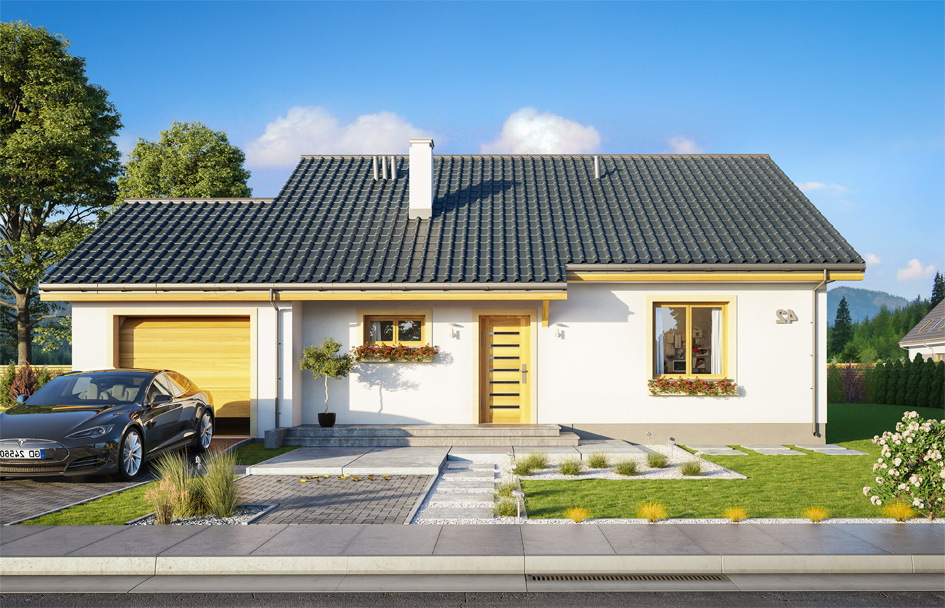

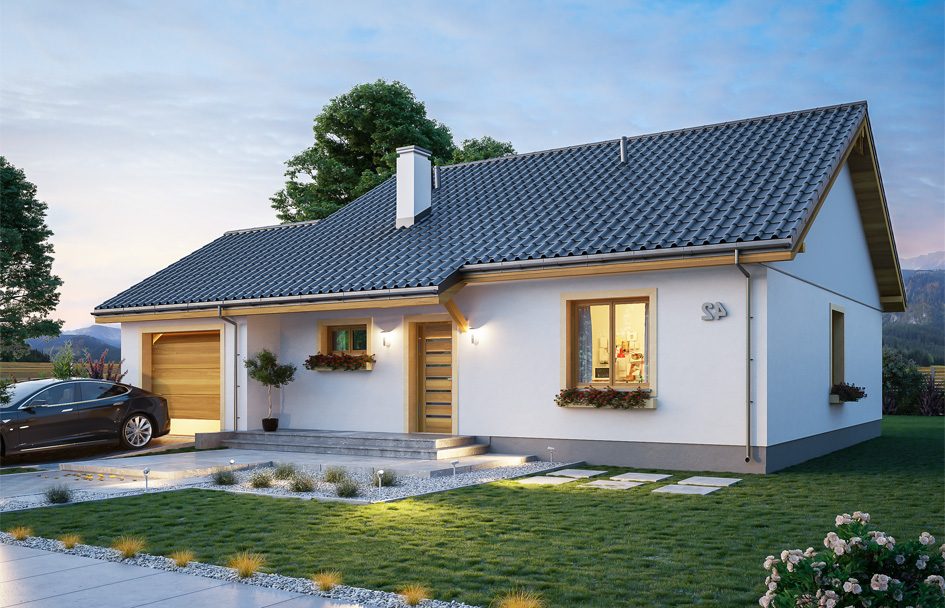

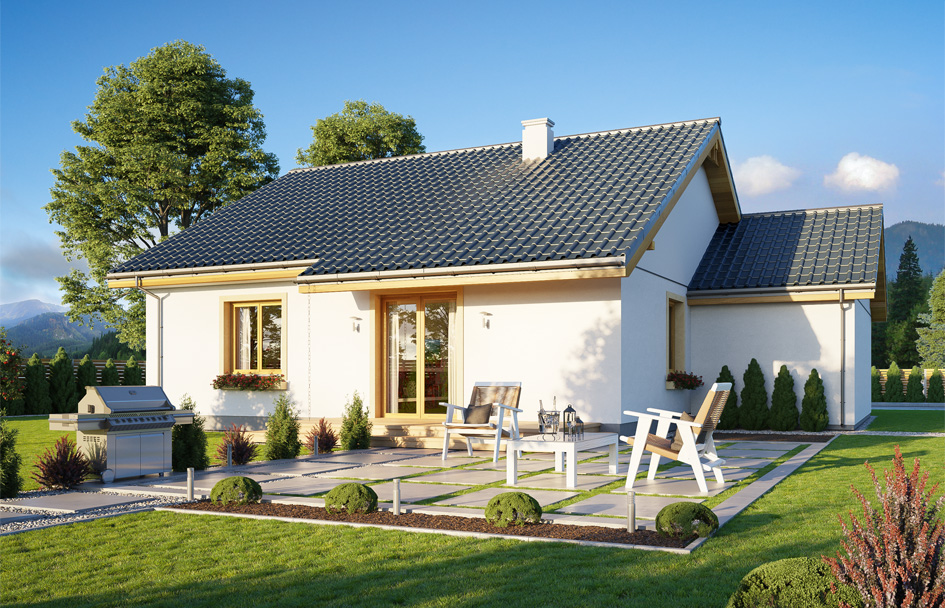

Show mirror image

Sophie 8 house plan is another project from the series Sophie houses - an enlarged version compared to the base project, built on a square plan with dimensions of 10.7 x 10.7 m, with an additional garage. The house has a simple shape and structure, and peaceful unpretentious architecture. Thanks to its simplicity, the building is easy to build and therefore inexpensive. At the same time, it meets the requirements of a comfortable flat for a family of four. The house is crowned with a gable roof with an angle of 30 degrees. Above the ground floor there is a wooden beam ceiling and rafter roof truss, which creates a large attic space, which we get by ladder stairs. We enter the house through the vestibule with a large wardrobe to the lobby and living room. On the side at the entrance, we go to the boiler room and then to the garage. The boiler room was designed as gas, but it can easily be converted into a solid fuel boiler. We have a bathroom and then a living space with a living room and kitchenette - a total area of about 35 m2. On the left we have three bedrooms, including a parents' bedroom with a dressing room. From the living room we get out to the garden and the terrace. Attic over the ground floor can be redesigned to the attic, adding stairs to the top. The house is very functional and has an extensive program of rooms. There is no wasted space here - everything is practically used. The house has an unpretentious and pleasing to the eye style. The decisive advantage of the Sophie series houses is their simplicity and functionality, translating into the maximum investment effect obtained for little money. Each subsequent version of the house from this series we try to design even better and more sensibly. The house is designed as energy-saving, very well insulated. It will be cheap in later exploitation

  • Cubature: 551 m3 / 19455,81 ft3
  • Built-up area: 139,57 m2 / 1501,77 ft2
  • Total area: 139,57 m2  / 1501,77 ft2
  • Net area: 87,48 m2 + garage 18,29 m2 / 941,28 ft2 + garage 196,80 ft2
  • Usable area: 82,43 m2 /  886,95 ft2
  • Roof area: 201,13 m2 / 2164,16 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,39 m (6,69 m with foundation) / 20,96 ft (21,94 ft with foundation)
  • Building dimensions: 14,10 x 11,76 m / 46,25 x 38,57 ft
  • Plot dimensions: 21,10 x 19,76 m / 69,21 x 64,81 ft
  • Height of rooms: 2,7 m / 8,86 ft
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls – aerated 24 blocks + polystyrene + thin-layer plaster
  •     Ceiling - monolithic reinforced concrete
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - ceramic tile



The costs of implementing:
The raw state open 31 540,00 EUR
The raw state closed 48 270,00 EUR
The cost of finishing works 54 420,00 EUR
Execution of turnkey home 102 690,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

Zosia 8 - pliki szczegółowe

Zosia 8 - pliki szczegółowe - odbicie lustrzane
