Usable area: 70.48 m2 / The cost of the realization: 52 300 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (1)
Realizations (69) Detailed drawings
List of materials
Comments (3)

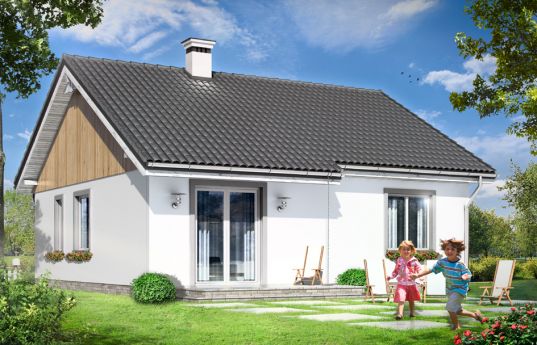

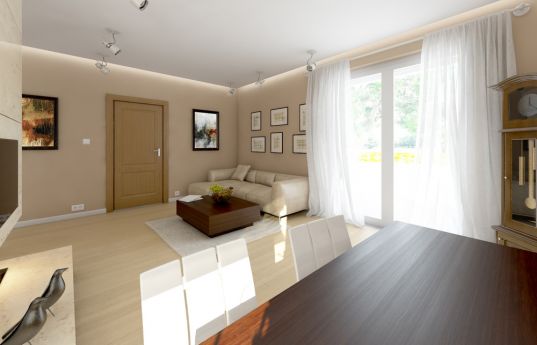

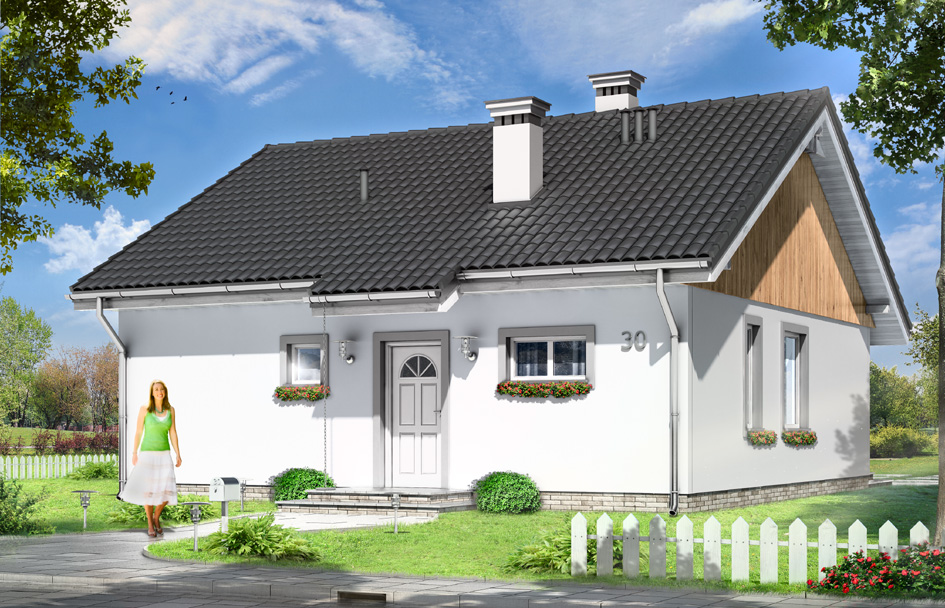

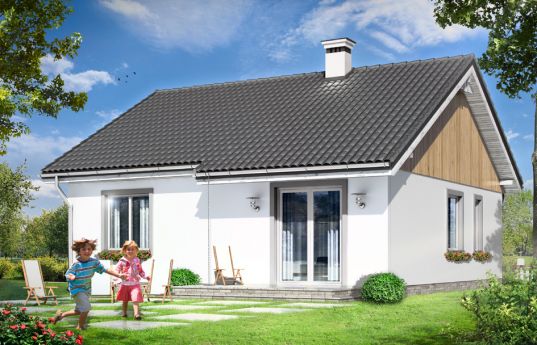

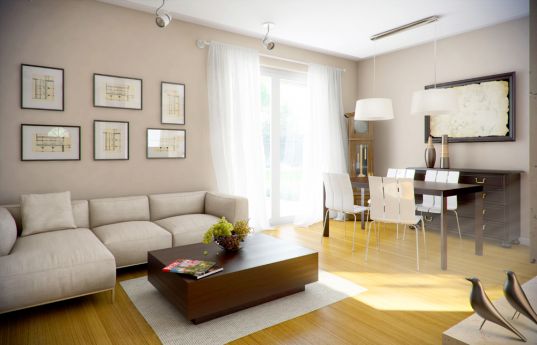

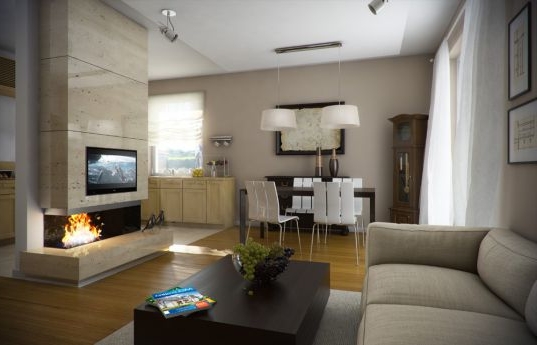

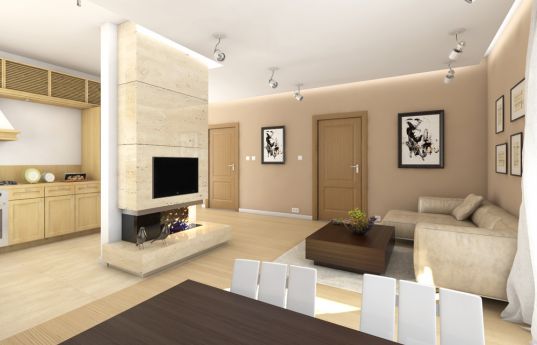

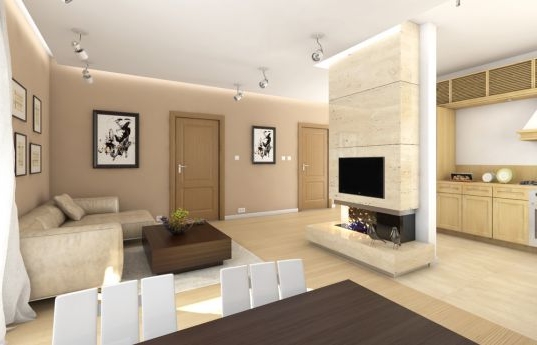

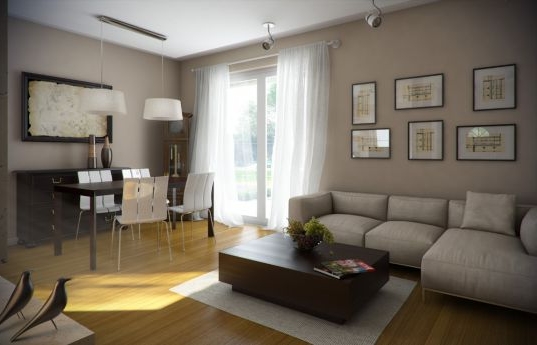

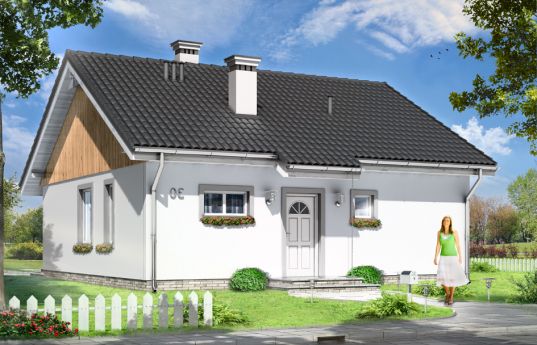

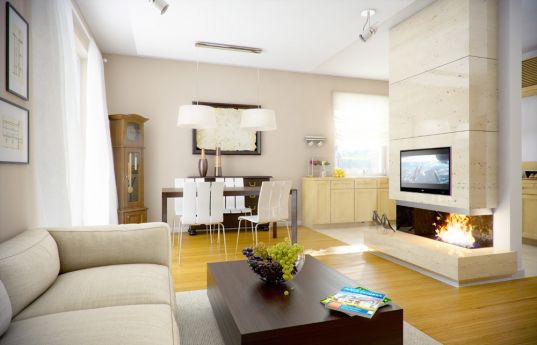

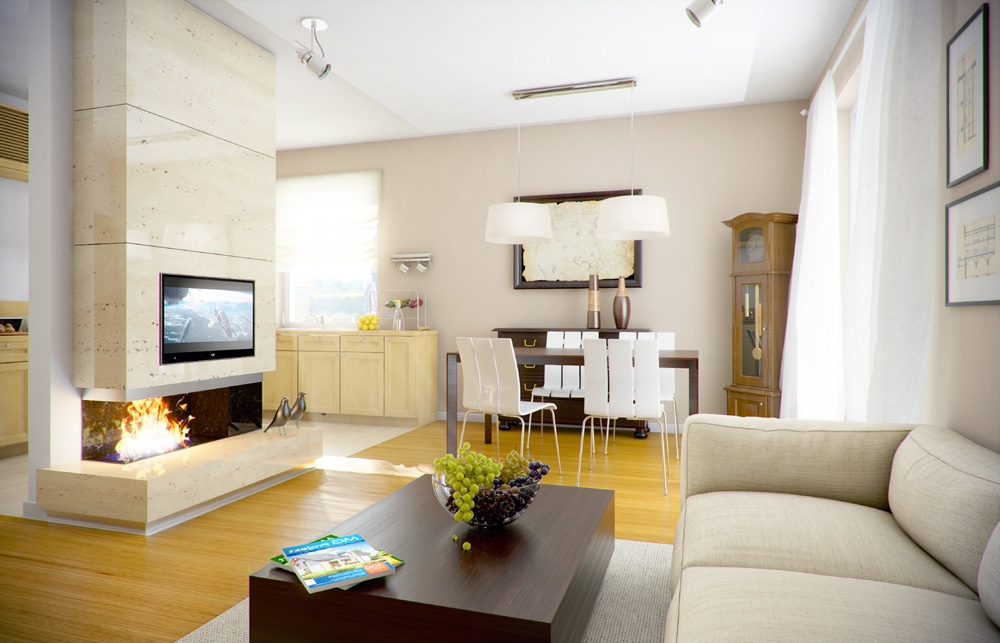

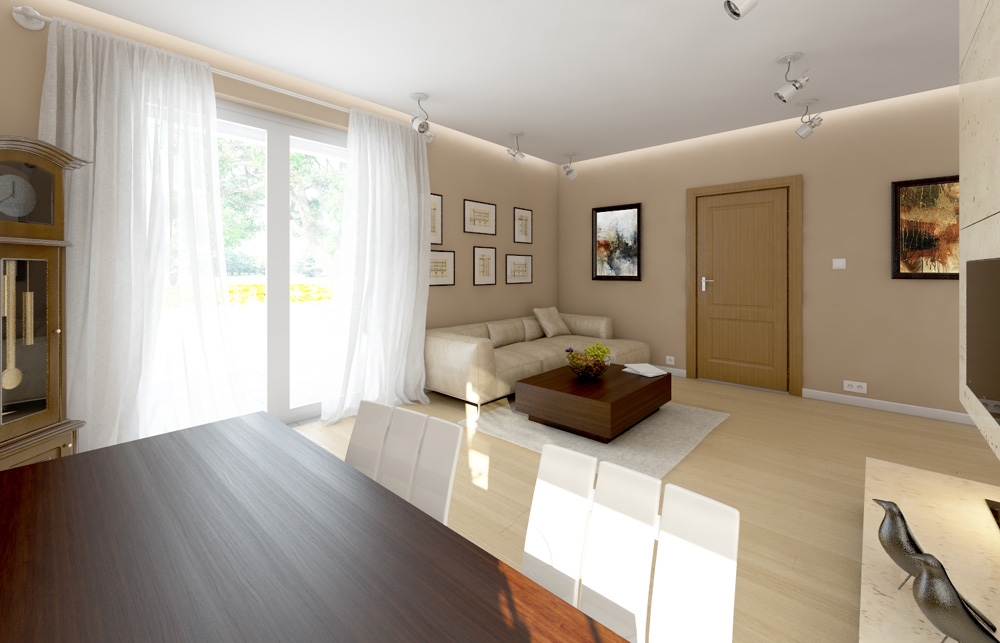

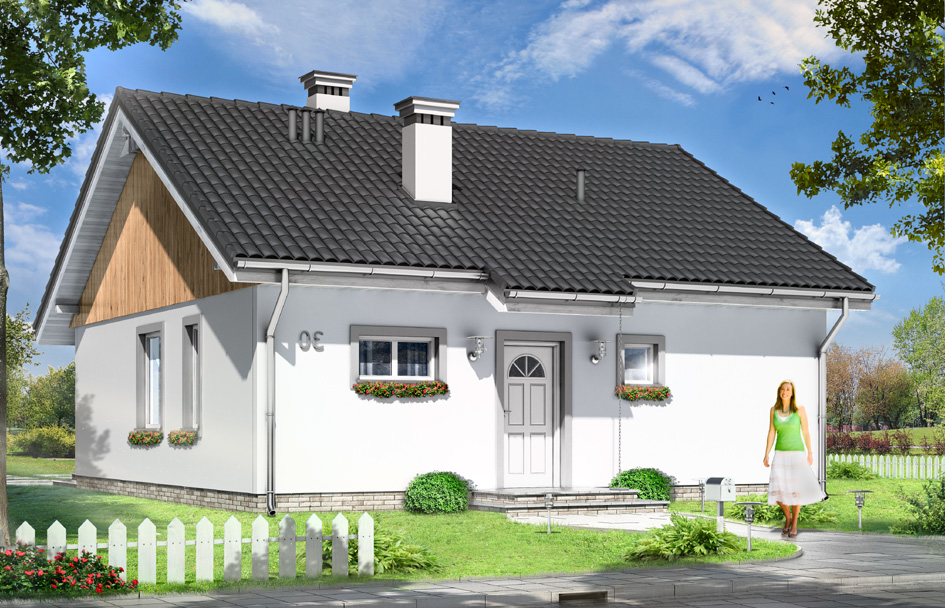

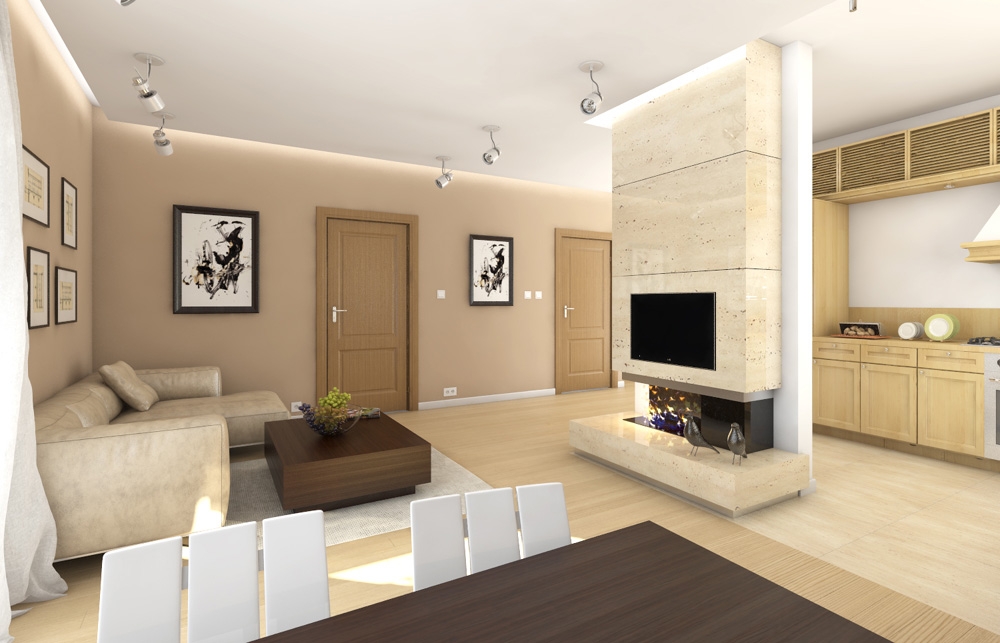

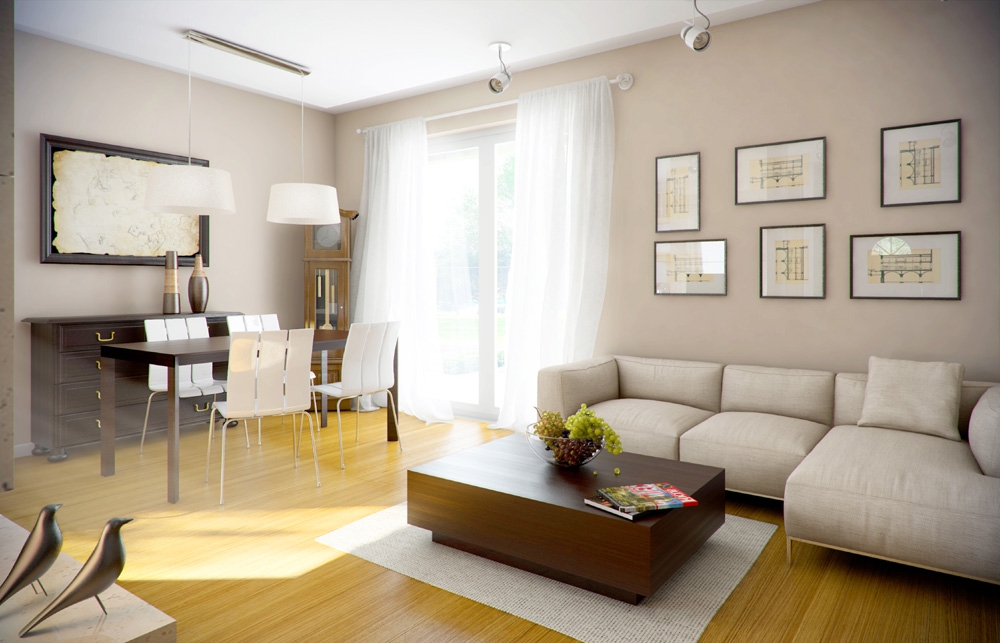

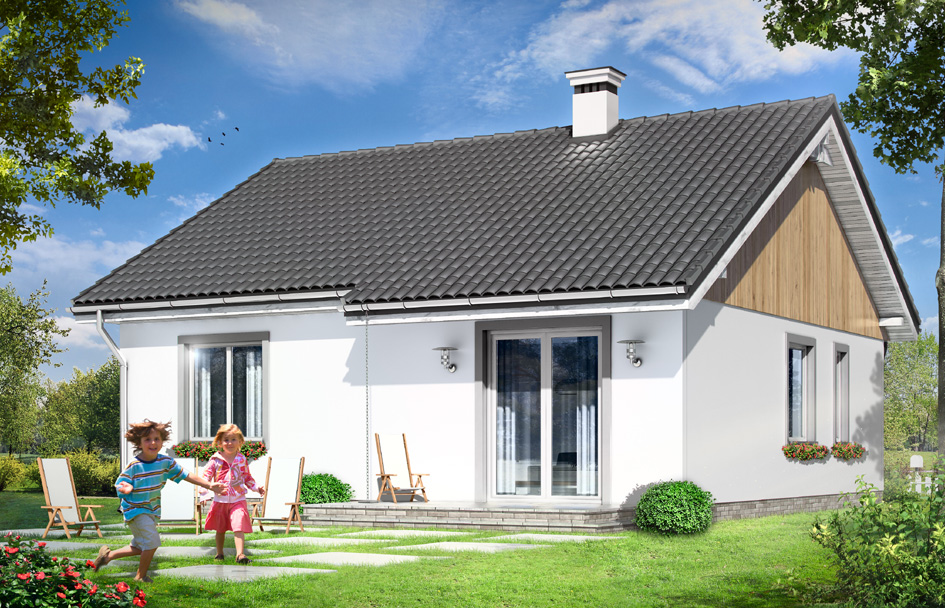

Sophie is a single-family bungalow for a family of four to five people. The building was built on a square plan 9,5x9,5 m, covered by a gable roof. The essence of this house plan is simplicity of solid in conjunction with a well-chosen proportions and an interesting detail. House is designed in two technologies - to choose from: traditional - brick or prefabricated - prefabricated imported from a factory and assembled on build place by crane. Depending on whether the investor decides to build a house Sophie on your own, or outsource the construction Mabudo company (www.mabudo.pl; (43) 823 41 41). Inside there are comfortable, four-room apartment with a technical background. Living room with central fireplace and television wall connected to the hall and kitchen gives a large undivided daily interior. Additionally, three bedrooms, bathroom and boiler room complete the interior. Sophie house is simple in structure, easy to build and is inexpensive in later use. We have also a mirror version of Sophie house plan.
Specifications:
- Cubature: 412 m3 / 14547,72 ft3
- Built-up area: 90,25 m2 / 971,09 ft2
- Total area: 90,25 m2 / 971,09 ft2
- Net area: 74,66 m2 / 803,34 ft2
- Usable area: 70,48 m2 / 758,36 ft2
- Roof area: 131,52 m2 / 1415,16 ft2
- Roof slope: 30 degrees
- Height of the building: 6,03 m (6,33 m with foundation) / 19,78 ft (20,76 ft with foundation)
- Wide of the building: 9,5 m / 31,16 ft
- Length of the building: 9,5 m / 31,16 ft
- Minimum plot width: 17,5 m / 57,4 ft
- Minimum plot length: 17,5 m / 57,4 ft
- Height of rooms: 2,7 m / 8,43 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls – silicate blocks + polystyrene + thin-layer plaster
- Ceiling - Wooden lattice trusses
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 15 300,00 EUR |
| The raw state closed | 23 900,00 EUR |
| The cost of finishing works | 28 500,00 EUR |
| Execution of turnkey home | 52 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Sophie - detailed file
House plan Sophie - detailed file - mirror
