Sophie 3 house plan

Usable area: 100.66 m² / The cost of the realization: 88 000 EUR

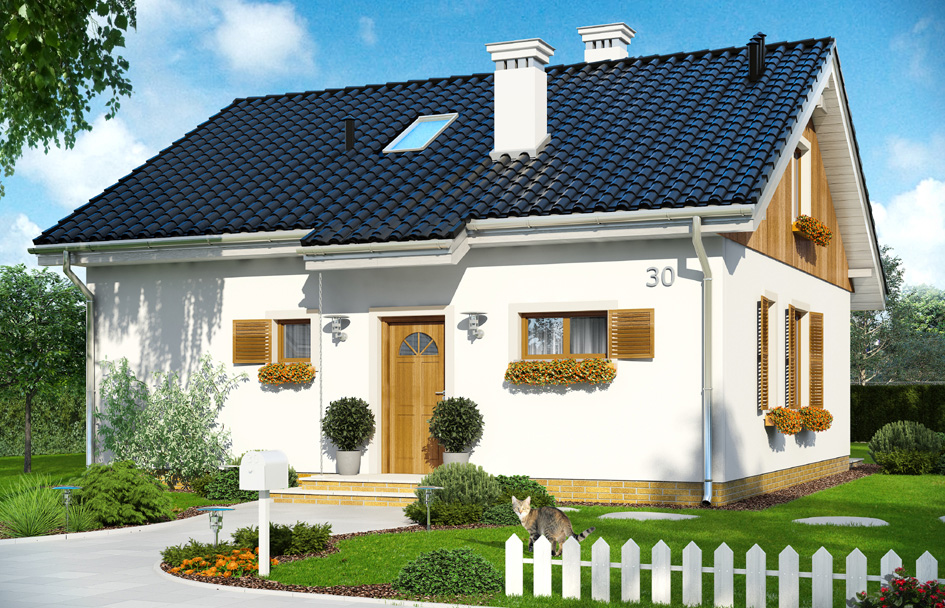

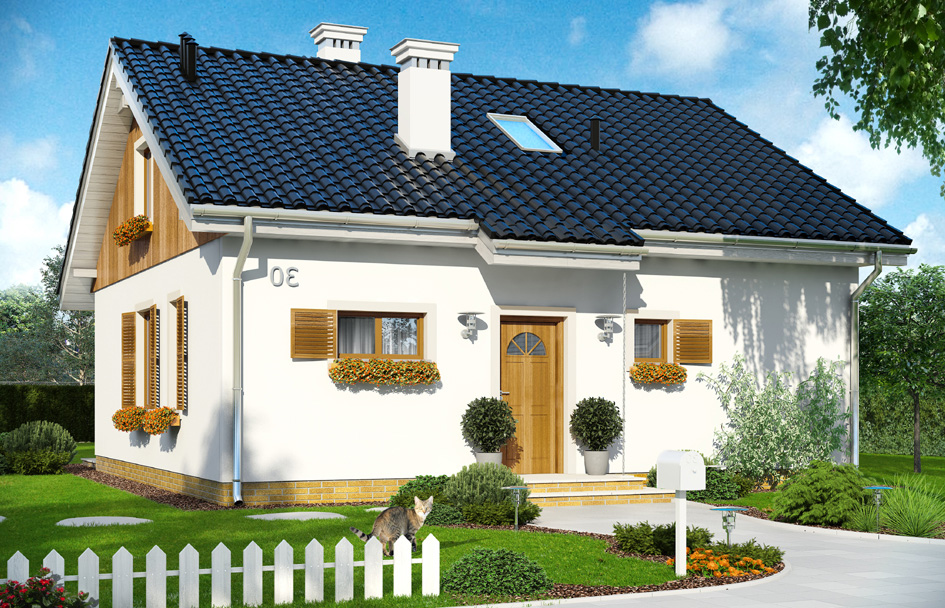

House plan Sophie 3 - front visualization

Show mirror image

Price: 970 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Interiors Variants (0) Detailed drawings List of materials Comments (3)

Sophie 3 is the next version of the popular project from the series of Sophie. This time we present you a bungalow with usable attic for utility purposes. Thanks functional arrangement of rooms in a small area of one hundred square meters we able to accommodate up to six rooms - living room, three rooms on the ground floor and two additional bedrooms in the attic. House is ideal for a large family wanting to to little cost build its headquarters. This house is also the perfect choice for those who need of extra - outside bedrooms - room (for example, to work). Sophia 3 is also a great proposition for summer house - thanks to the large number of rooms can accommodate many guests. The building has a simple, uncomplicated to build solid and construction. It is inexpensive in building and later use. Thanks to good isolation and compact body heating costs will be small. Exterior architecture is a graceful unassuming solid in the human scale, with gently sloping down tracts of roofs.

Specifications:

Cubature: 434 m³ / 15324,54 ft³
Built-up area: 90,25 m²/ 971,09 ft²
Total area: 125,92 m²/ 1354,90 ft²
Net area: 104,84 m² / 1128,08 ft²
• Usable area:
- 100,66 m² (wg PN-70/B-02365) / 1083,10 ft² (wg PN-70/B-02365)
- 104,84 m² (wg PN-ISO 9836:1997) / 1128,08 ft² (wg PN-ISO 9836:1997)
Roof area: 131,52 m² / 1415,16 ft²
Roof slope: 30 degreesi/ 30 degress
Height of the building: 6,27 m (6,57 m with foundation) / 20,56 ft (21,55 ft with foundation)
Wide of the building: 9,50 m / 31,16 ft
Length of the building: 9,50 m / 31,16 ft
Minimum plot width: 17,50 m / 57,4 ft
Minimum plot length: 17,50 m / 57,4 ft
Height of rooms: 2,57 m / 8,43 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – brick walls – silicate blocks + polystyrene + thin-layer plaster
Ceiling - wood
Elevation - thin-layer plaster on polystyrene
Roof - tile

The costs of implementing:

The raw state open	24 200,00 EUR
The raw state closed	34 800,00 EUR
The cost of finishing works	53 200,00 EUR
Execution of turnkey home	88 000,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

House plan Zosia 3 - bill of materials

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Sophie 3 - detailed file

House plan Sophie 3 - detailed file - mirror
