Usable area: 63.32 m2 / The cost of the realization: 54 000 EUR
Show mirror image
Price: 830 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (31) Detailed drawings
List of materials
Comments (3)

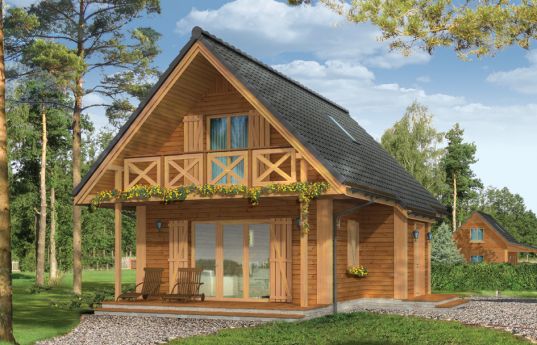

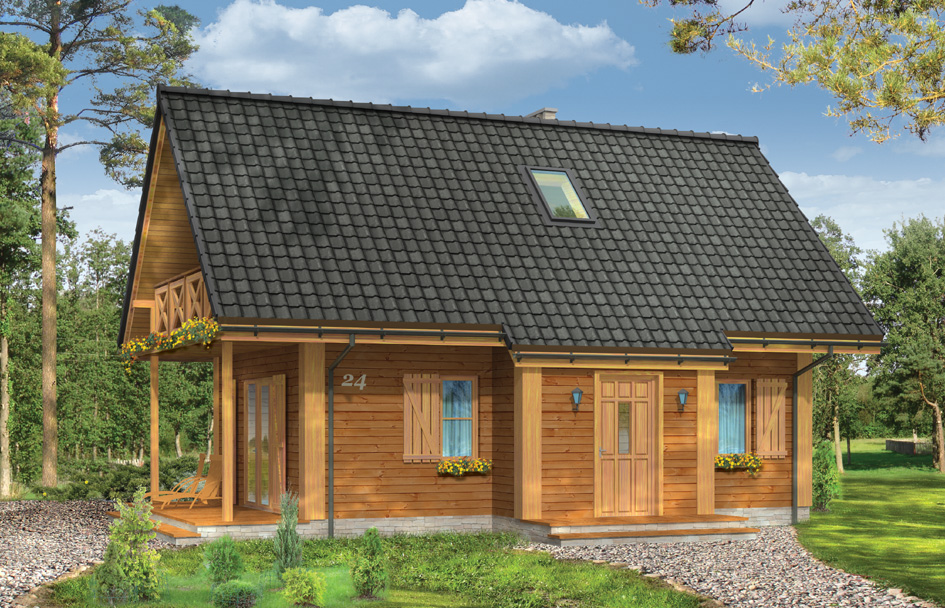

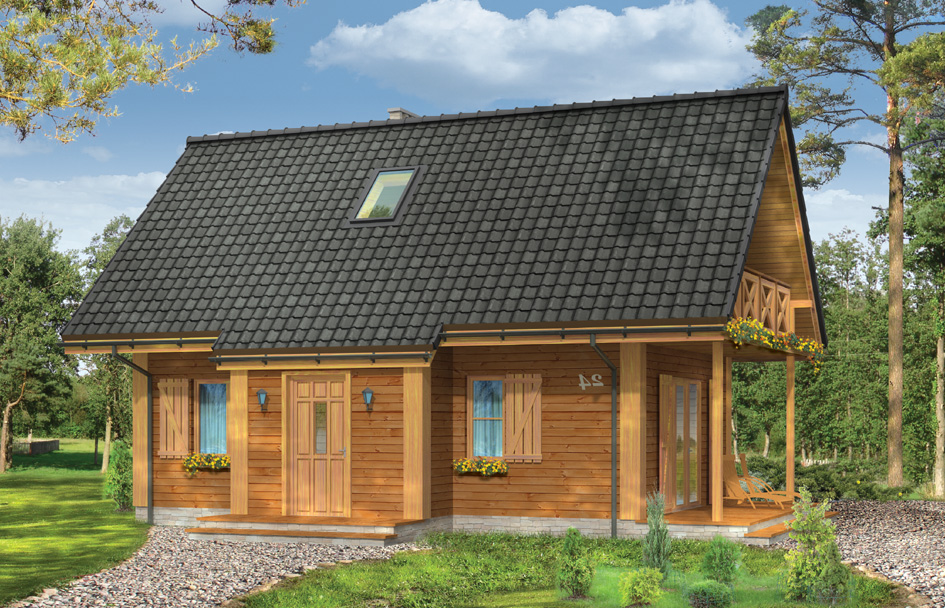

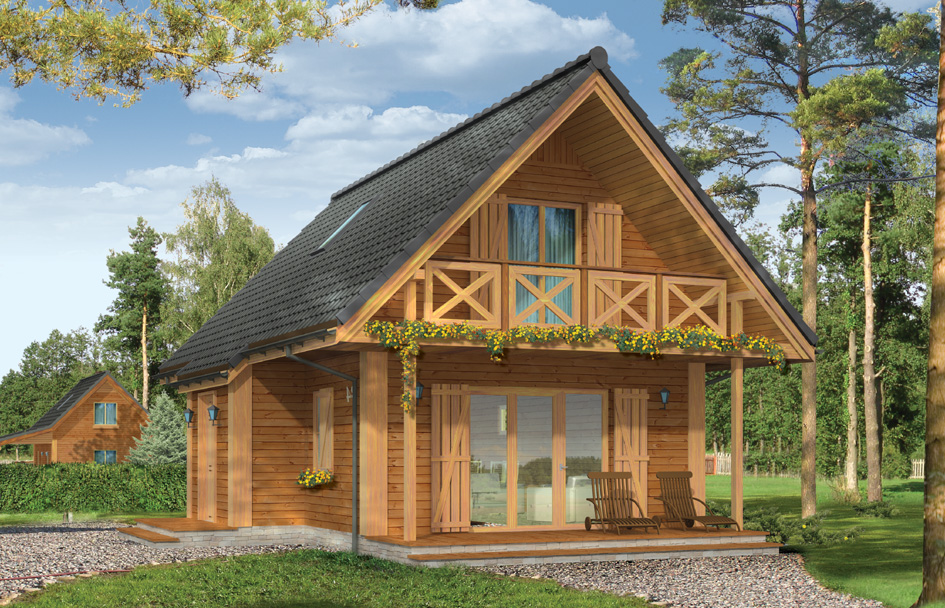

Pine house plan 4, this is a variant version of the house Pine. The building may serve as a year-round or holiday house. The house was designed in the construction of a wooden frame. Its simple shape provides a fast and economical construction. House consists of a daily space on the ground floor with kitchen, bathroom, entrance porch and utility room. And a night space on the attic where you can find two bedrooms. Fireplace and wooden staircase in the living room are a decorative element of the interior. Covered terrace and balcony supported by pillars will certainly perfect place to relax. There is also available a mirror version of this house plan.
Specifications:
- Cubature: 253,5 m3 / 8951,08 ft3
- Built-up area: 51,28 m2 / 551,77 ft2
- Total area: 78,52 m2 / 78,52 ft2
- Net area: 63,32 m2 / 681,32 ft2
- Usable area: 63,32 m2 / 681,32 ft2
- Roof area: 111,71 m2 / 111,71 ft2
- Roof slope: 45 degrees
- Height of the building: 6,68 m (7,00 m with foundation) /21,91 ft (22,96 ft with foundation)
- Wide of the building: 8,66 m / 28,40 ft
- Length of the building: 6,63 m / 21,75 ft
- Minimum plot width: 16,66 m / 54,64 ft
- Minimum plot length: 14,63 m / 47,99 ft
- Height of rooms: 2,54 m / 8,33 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls - wooden skeleton
- Ceiling - wooden beams
- Roof - tile
- Elevation - facade boards
The costs of implementing:
| The raw state open | 13 200,00 EUR |
| The raw state closed | 23 000,00 EUR |
| The cost of finishing works | 31 100,00 EUR |
| Execution of turnkey home | 54 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Pine 4 - detailed file
House plan Pine 4 - detailed file - mirror
