Usable area: 63.32 m2 / The cost of the realization: 47 800 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Realizations (14) Detailed drawings
List of materials
Comments (3)

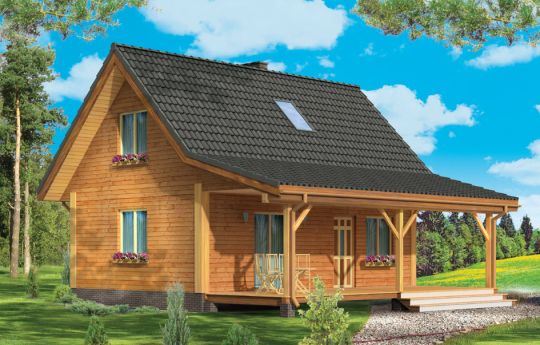

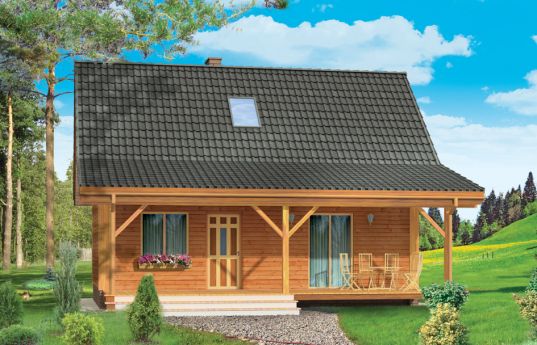

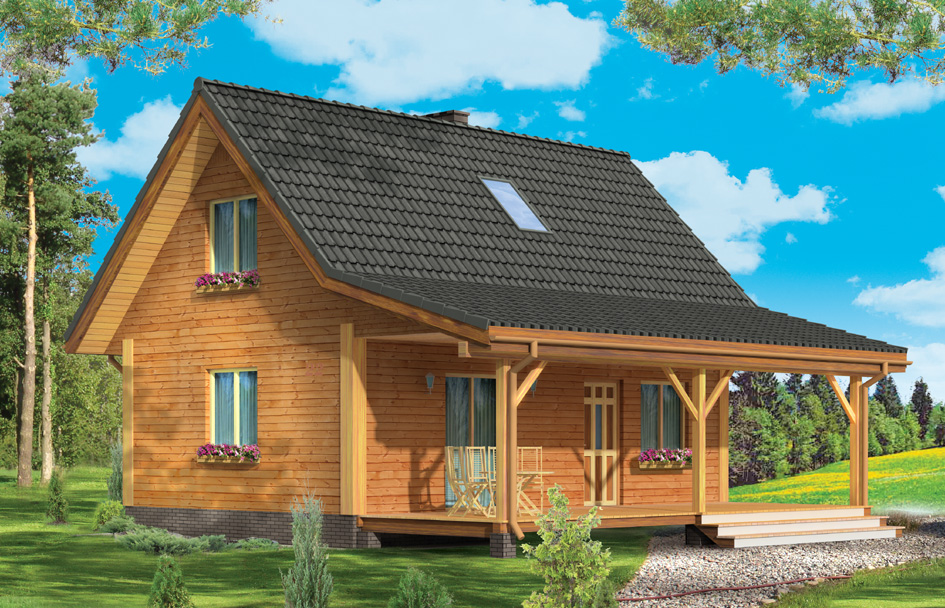

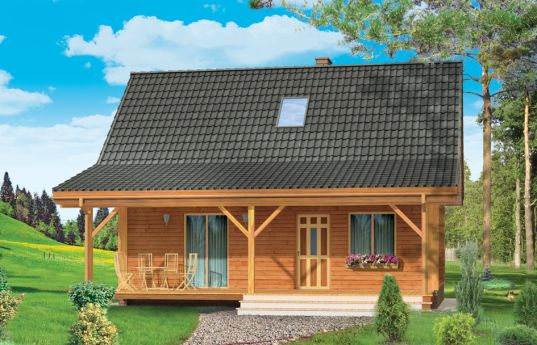

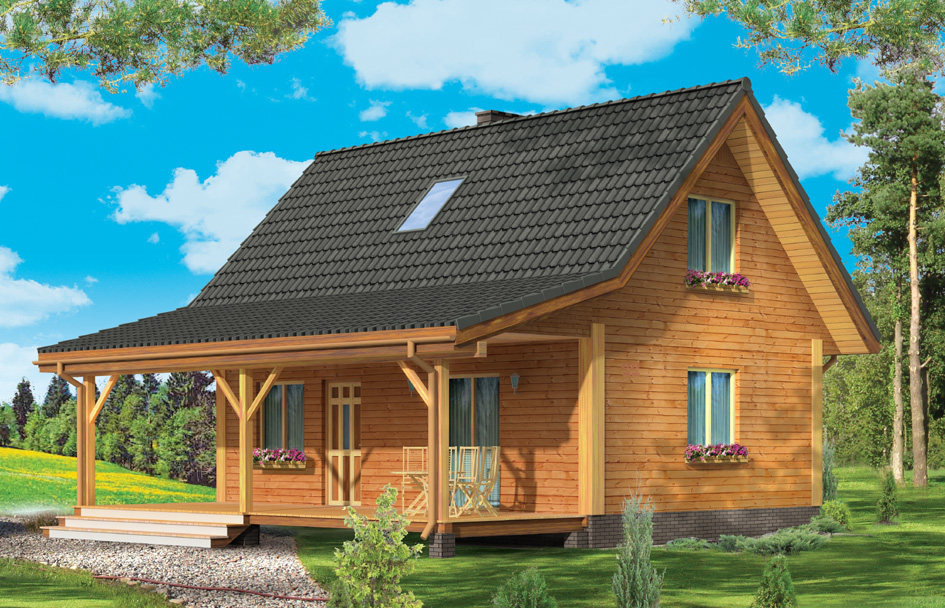

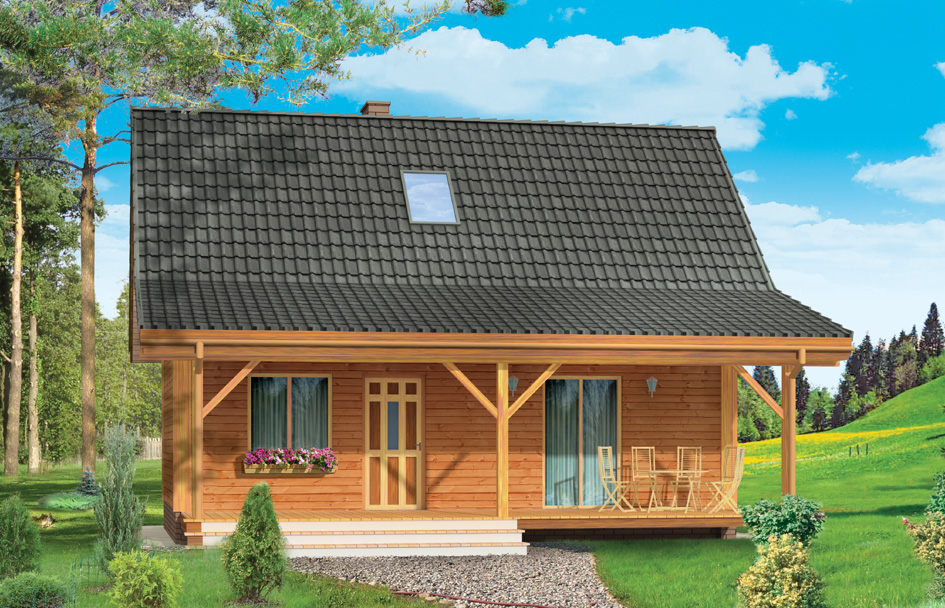

Quail house plan is a detached house that could also be used as summer house. Small building, with a simple construction is cheap to build and economical at a later exploitation. House consists of a living room on the ground floor and a bathroom, utility room and kitchen. In the attic there are two bedrooms. Advantage of the house is a big covered veranda where you can shelter from the sun or rain. It is connected to the living room double patio doors and entry door. House has been designed in the construction of a wooden frame. Its counterpart is the brick house Pine 2. There is also available mirror version of this house plan
Specifications:
- Cubature: 196 m3 / 6920,76 ft3
- Built-up area: 47,63 m2 / 512,50 ft2
- Total area: 74,65 m2 / 803,23 ft2
- Net area: 65,49 m2 / 704,67 ft2
- Usable area: 63,32 m2 / 681,32 ft2
- Roof area: 128,60 m2 / 1383,74 ft2
- Roof slope: 45 and 16 degrees
- Height of the building: 6,68 m (7,10 m with foundation) / 21,91 ft (23,29 ft with foundation)
- Wide of the building: 8,66 m / 28,40 ft
- Length of the building: 5,51 m / 18,07 ft
- Minimum plot width: 16,66 m / 54,64 ft
- Minimum plot lengthi: 15,39 m / 50,48 ft
- Height of rooms: 2,54 m / 8,33 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – wooden skeleton
- Ceiling - wooden beams
- Roof - tile
- Elevation - plank
The costs of implementing:
| The raw state open | 13 800,00 EUR |
| The raw state closed | 21 700,00 EUR |
| The cost of finishing works | 26 100,00 EUR |
| Execution of turnkey home | 47 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Quail - detailed file - mirror
House plan Quail - detailed file
