Usable area: 121.78 m2 / The cost of the realization: 106 400 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

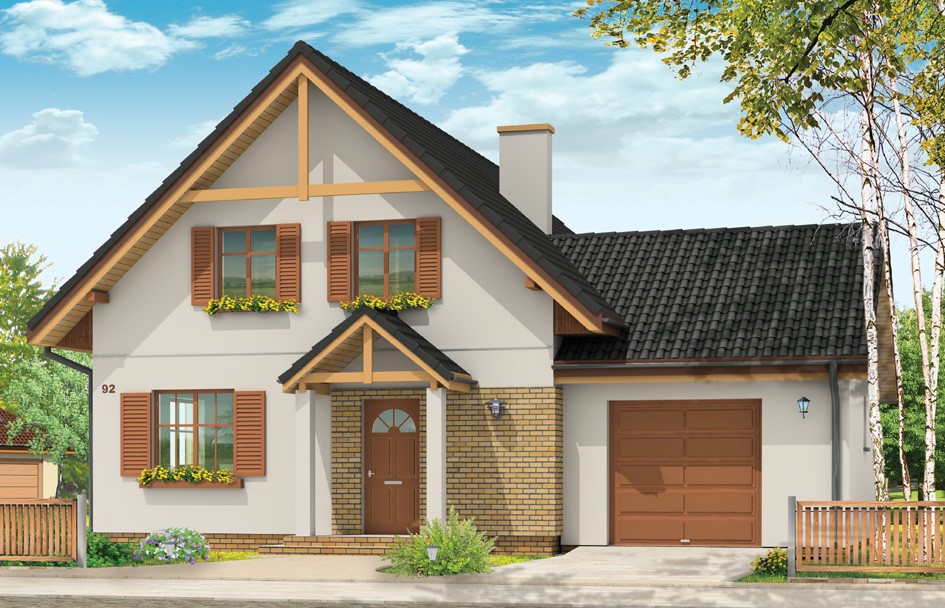

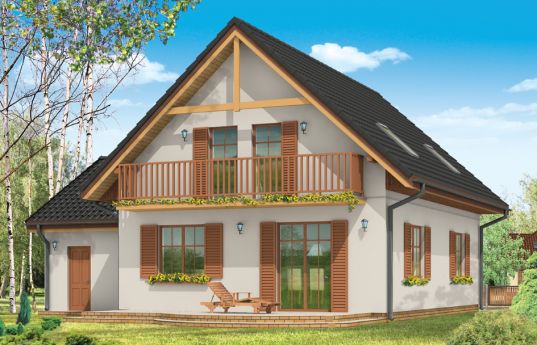

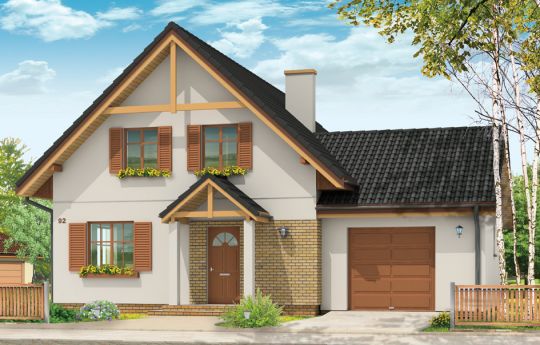

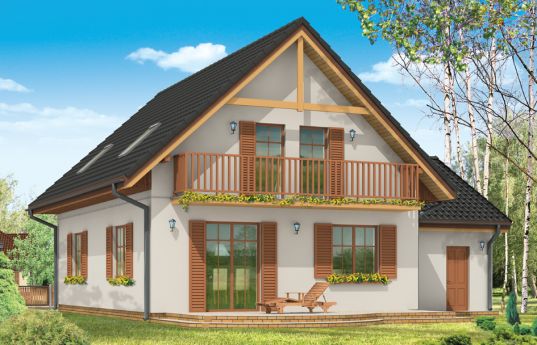

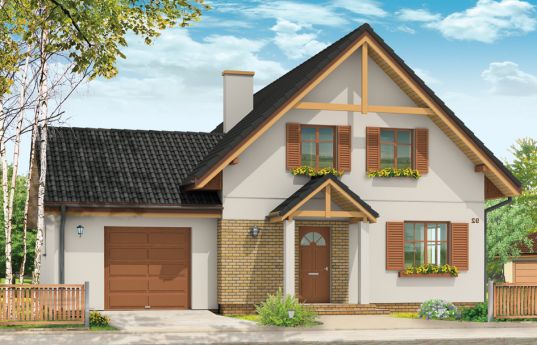

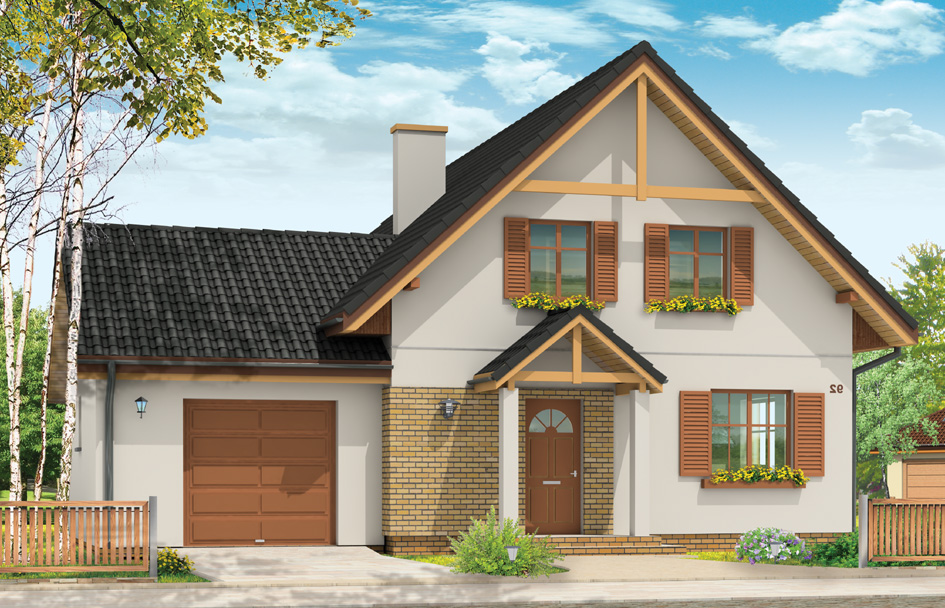

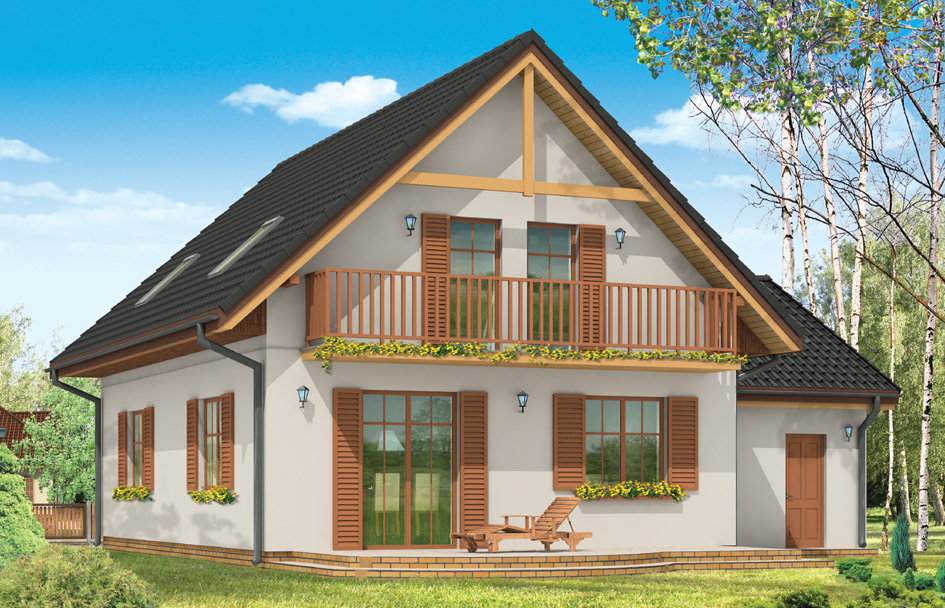

Sylvia includes is a storey building with usable attic, covered by a gable roof, with build another garage. This detached house is perfect for a family of 4-6 people. The building combines unpretentiousness of the solid and functionally planned interior. On the ground floor there was designed a single-space of living room connected with dining area and kitchen, in the attic there are three bedrooms. Large garage was added to the main body, you can easily enlarge it to double garage. The attic above the garage is a storage space in the house. Terrace and balcony open up the interior to the garden. The façade was decorated with an entrance porch with roofed. There is also available mirror version of this house plan.
Specifications:
- Cubature: 524 m3 / 18502,44 ft3
- Built-up area: 123,46 m2 / 1328,43 ft2
- Total area: 184,4 m2 / 1984,14 ft2
- Net area: 154,83 m2 / 1665,97 ft2
- Usable area: 121,78 m2 / 1310,35 ft2
- Roof area: 216 m2 / 2324,16 ft2
- Roof slope: 42 and 30 degrees
- Height of the building: 7,85 m (8,15 m with foundation) /25,75 ft (26,73 ft with foundation)
- Wide of the building: 12,50 m / 41 ft
- Length of the building: 11,00 m / 36,08 ft
- Minimum plot width: 19,50 m / 63,96 ft
- Minimum plot length: 19,05 m / 62,48 ft
- Height of rooms: 2,63 i 2,5 m / 8,63 and 8,2 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls - aerated concrete + polystyrene + thin-layer plaster
- Internal walls - aerated concrete
- Ceiling - Teriva
- Roof - ceramic tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 35 300,00 EUR |
| The raw state closed | 53 200,00 EUR |
| The cost of finishing works | 53 200,00 EUR |
| Execution of turnkey home | 106 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Sylwia - detailed file
House plan Sylwia - detailed file - mirror
