Amelia house plan

Usable area: 104.56 m2   /   The cost of the realization: 94 800 EUR

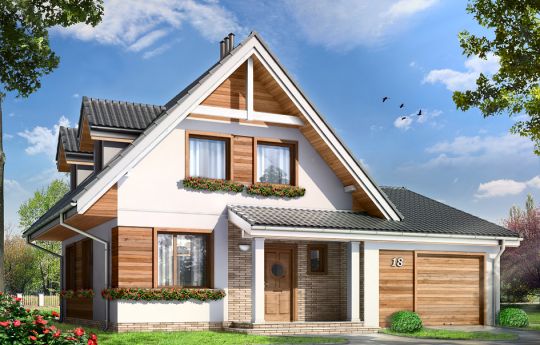

House plan Amelia - front visualization

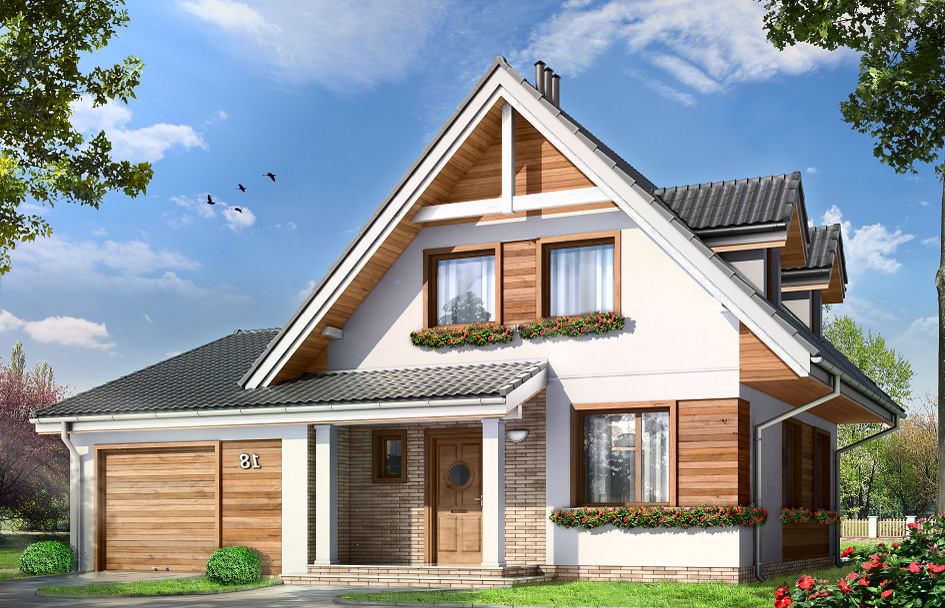

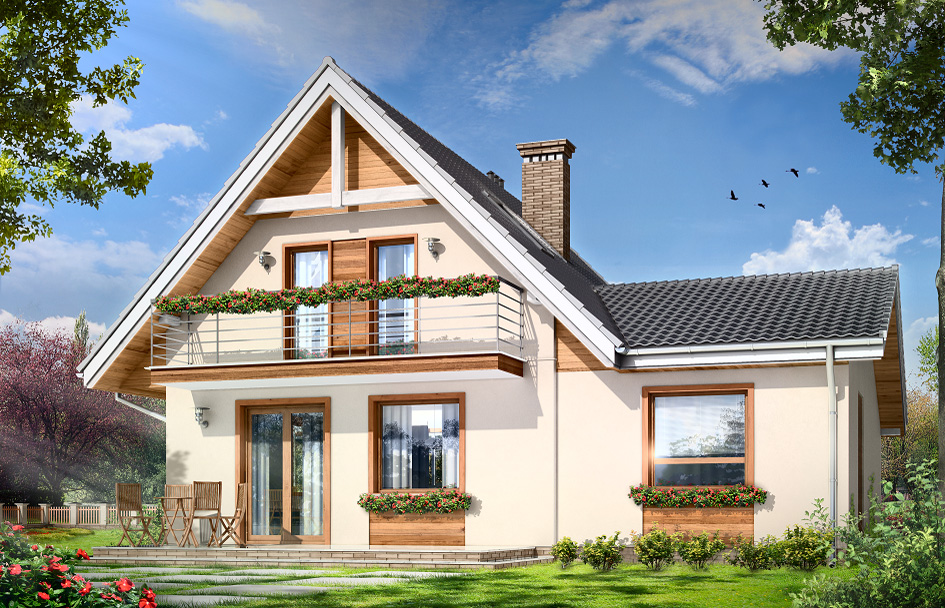

Show mirror image


Amelia house plan is a small one storey house with attic for family of 4 - 5 people. The house was covered by gable roofs, in this house plan a garage has been also foresees. The simple, unpretentious body of the building was confronted with a modern, economical detail, which adds elegance to the house. Additional the decoration of the house are pieces of the facade finished with wooden Elevation and clinker. On the ground floor, besides to the one space of living area, with living room, hall, open plan kitchen and centrally located stairs, extra room (e.g. a bedroom or study), a garage and a private bathroom with a place on the central heating boiler was designed. There are also design three bedrooms with private bathrooms at the attic. Despite the small area this house has a number of functions - in a few house plan of this size you can find four bedrooms and a living room, two bathrooms and a spacious garage. There is also a mirror version of the this house plan.

Specifications:
  • Cubature: 453 m3/ 15995,43 ft3
  • Built-up area: 104,91 m2/ 1128,83 ft2
  • Total area: 149,96 m2/ 1613,57 ft2
  • Net area: 104,56 m2 + garage / 1125,07 ft2 + garage
  • Usable area: 104,56 m2/ 1125,07 ft2
  • Roof area: 183,47 m2/ 1974,14 ft2
  • Roof slope: 45 and 20 degrees
  • Height of the building: 7,76 m (8,06 m with foundation) / 25,45 ft ( 26,44 ft with foundation)
  • Wide of the building: 11,39 m / 37,36 ft
  • Length of the building: 10,04 m / 32,93 ft
  • Minimum plot width: 18,39 m / 60,32 ft
  • Minimum plot length: 18,04 m / 59,17 ft
  • Height of rooms:  2,65 i 2,5 m / 8,69 ft and 8,2 ft
Materials:

• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - autoclaved aerated concrete blocks + polystyrene + thin-layer plaster
• Ceiling -  Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof -  tile




The costs of implementing:
The raw state open 31 100,00 EUR
The raw state closed 45 600,00 EUR
The cost of finishing works 49 200,00 EUR
Execution of turnkey home 94 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Amelia - detailed file

House plan Amelia - detailed file - mirror

Comment
Amelia house plan 5038 Wittoll
2013.12.16 0 Pozytywny komentarz Negatywny komentarz

I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.

Amelia house plan 5040 Wanne
2013.11.18 3 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build body of curiously designed interior.?

Amelia house plan 4883 TomasZ
2013.09.21 1 Pozytywny komentarz Negatywny komentarz

This house is terrific and turned out to be the fulfillment of our needs in 100%.
