Usable area: 93.84 m2 / The cost of the realization: 87 600 EUR
Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (17) Detailed drawings
List of materials
Comments (3)

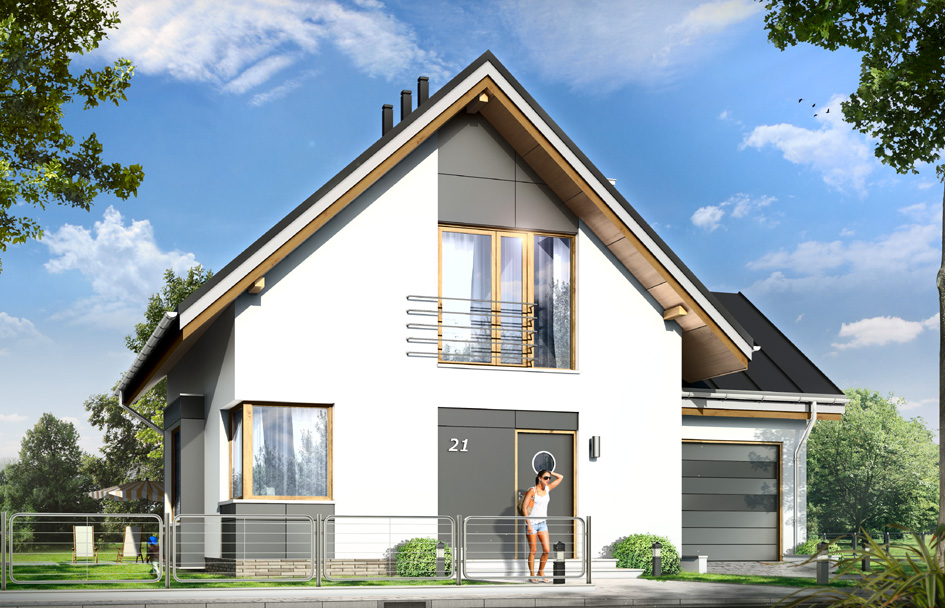

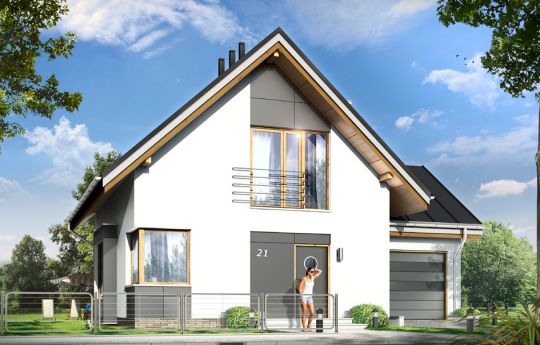

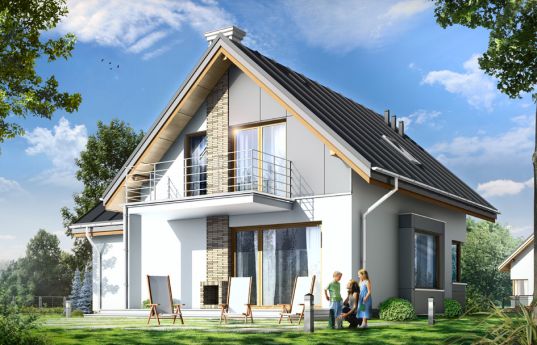

Gucio 2 house plan is a family bungalow with usable attic for a family of 4 – 5 people. One story house covered by gable roof with a garage extended to the main body of house. The house is designed to give maximum comfort for future residents, creating an open living space, characteristic for large houses. Living room with hall, dining area with bay window, exposed stately staircase will be a great place to live for future household .The fireplace is located on an outside wall, you can enjoy with views of the garden at the same time. Large glass doors lead from the living room to the partially covered terrace. On the ground floor there is also a comfortable kitchen, hall, boiler room, wc with a shower and a garage. In the attic there is in addition three comfortable bedrooms with small "slants" and fitted wardrobes. There is also designed a nice bathroom. Above the garage is located an attic available from the garage. The architecture of house emphasizes simplicity of forms, modernity in the selection of materials, all this things creates a successful composition. The house is simple in construction and inexpensive to maintain later. 2 There is also available a mirror version of Gucio 2 house plan.
Specifications:
- Cubature: 467 m3/ 16489,77 ft2
- Built-up area: 94,21 m2/ 1013,70 ft2
- Total area: 144,07 m2/ 1550,19 ft
- Net area : 96,58 m2 + garage/ 1039,20 ft2 + garage
- Usable area: 93,84 m2/ 1009,72 ft2
- Roof area: 163,93 m2/ 1763,89 ft2
- Roof slope: 42 and 35 degrees
- Height of the building: 7,80 m (8,10 m with foundation)/ 25,58 ft (26,59 ft with foundation)
- Wide of the building: 11,59 m/ 38,02 ft
- Length of the building: 9,2 m/ 30,18 ft
- Minimum plot width: 18,59 m/ 60,98 ft
- Minimum plot length: 18,1 m/ 59,37 ft
- Height of rooms: 2,7 m/ 8,86 ft
Materials:
- Foundations: concrete benches and foundation walls of concrete blocks
- External walls: brick walls - airbrick porotherm 25 + polystyrene + thin-layer plaster
- Ceiling: Teriva
- Elevations: thin-layer plaster on polystyrene
- Roofing: ceramic tile
The costs of implementing:
| The raw state open | 29 300,00 EUR |
| The raw state closed | 44 200,00 EUR |
| The cost of finishing works | 43 500,00 EUR |
| Execution of turnkey home | 87 600,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Gucio 2 - detailed file
House plan Gucio 2 - detailed file - mirror
