Usable area: 81.21 m2 / The cost of the realization: 59 900 EUR
Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (4) Detailed drawings
List of materials
Comments (3)

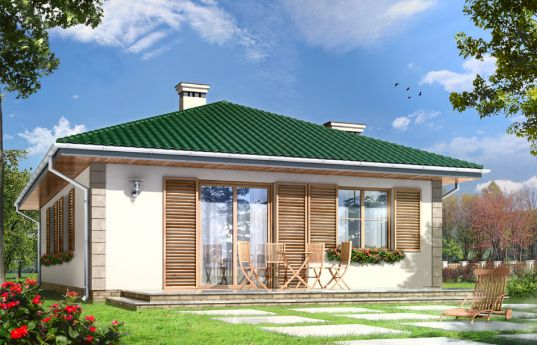

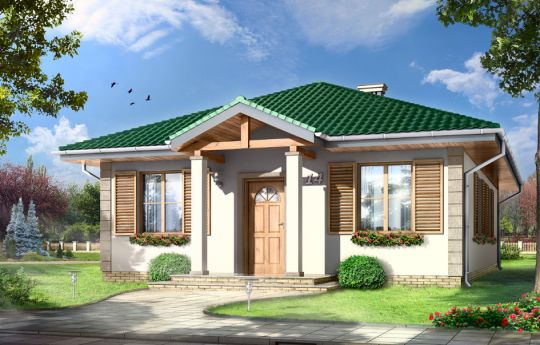

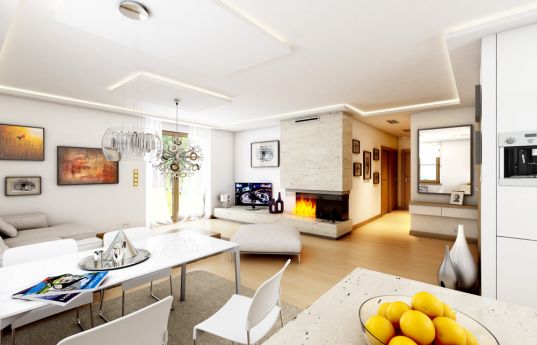

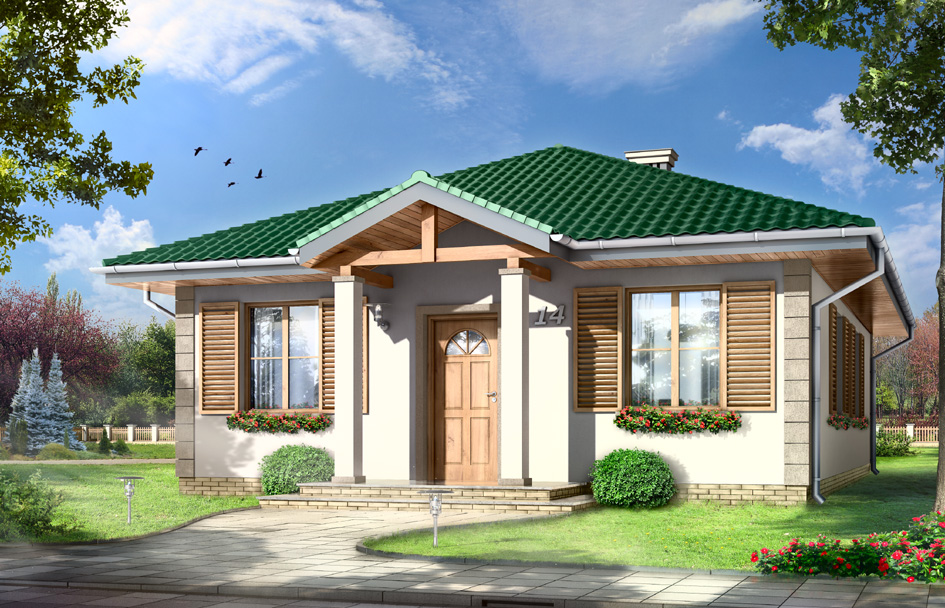

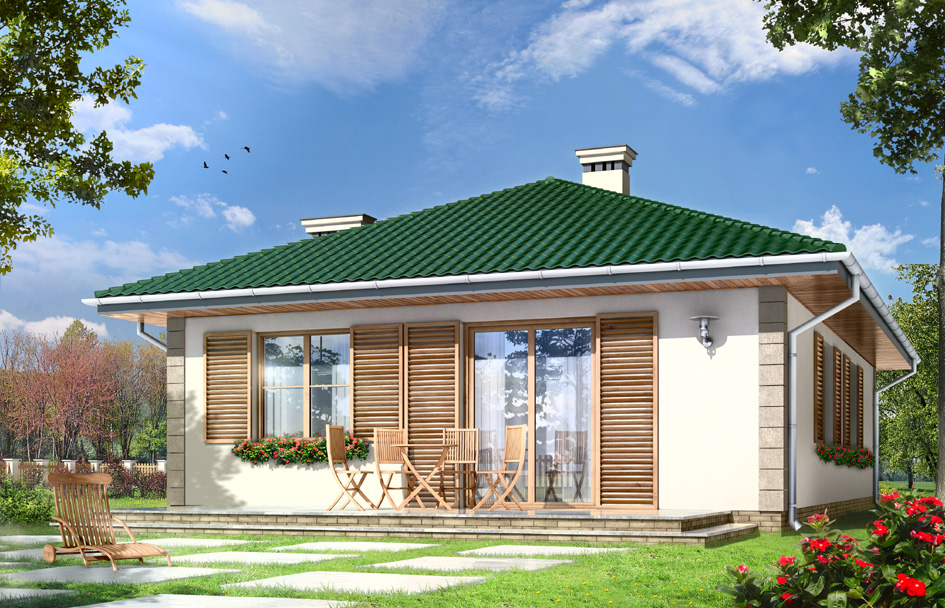

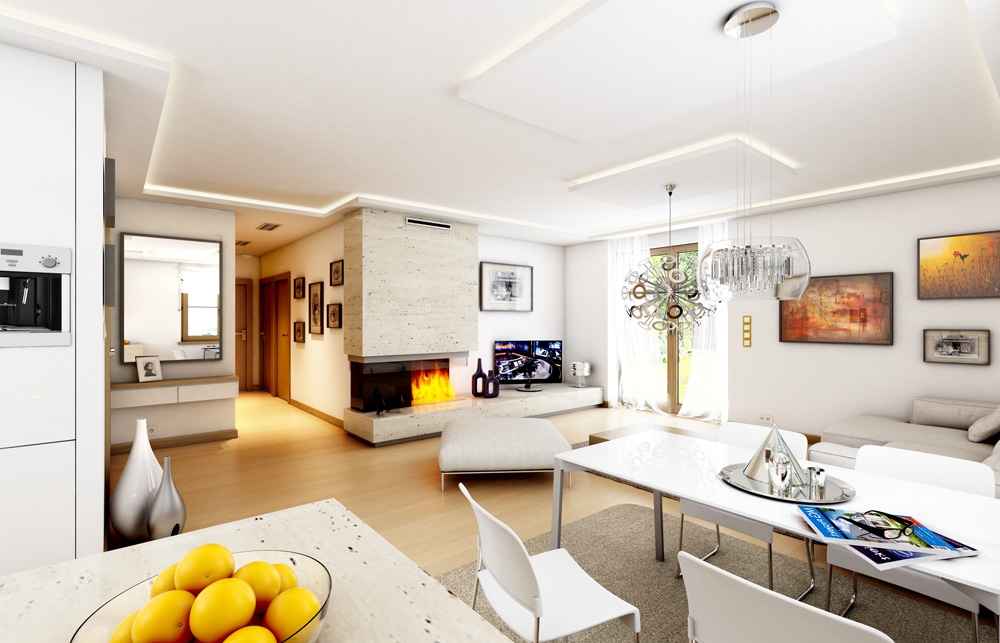

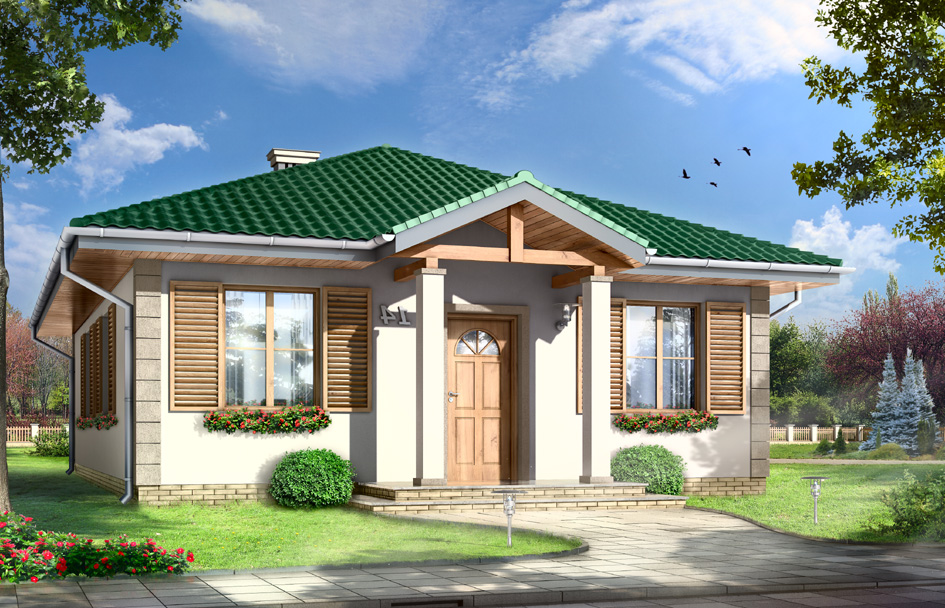

Tyke house plan is suitable house for a family of four people. House is covered by a hipped roof and built on a rectangular plan. Building is suitable for on a narrow plot. With the entrance to from the narrow end. House has a width of just over 8 meters and will fit to the 15 meters plot. Inside house on a small area managed to design a comfortable, four-room apartment with a technical background, consisting of: a spacious living room with kitchen, three bedrooms, bathroom, toilet and boiler room. In the living room were designed central fireplace and wide glass door to the garden terrace. From the kitchen window you can also enjoy the garden and terrace. From the outside, tasteful house refers to the architecture of mansions, in the modern sense. Entrance porch on small columns, window shutters, or rusticated corners - all these elements fit perfectly into the gentle hipped roof. There is also available mirror version of this house plan.
Specifications:
- Cubature: 339 m3 / 11970,09 ft3
- Built-up area: 102,08 m2 / 1098,38 ft2
- Total area: 102,08 m2 / 1098,38 ft2
- Net area: 84,07 m2 / 904,59 ft2
- Usable area: 81,21 m2 / 873,82 ft2
- Roof area: 148,19 m2 / 1594,52 ft2
- Roof slope: 24 degrees
- Height of the building: 5,08 (5,38 m with foundation) / 16,66 ft (17,65 ft with foundation)
- Wide of the building: 8,34 m / 27,36 ft
- Length of the building: 12,24 m / 40,15 ft
- Minimum plot width: 15,54 m / 50,97 ft
- Minimum plot lengthi: 20,57 m / 67,47 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls - aerated concrete 24 cm + foamed polystyrene, thin-layer plaster
- Ceiling - wooden beams
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 17 200,00 EUR |
| The raw state closed | 28 600,00 EUR |
| The cost of finishing works | 31 400,00 EUR |
| Execution of turnkey home | 59 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Tyke - detailed file - mirror
House plan Tyke - detailed file
