Dot house plan

Usable area: 81.49 m2   /   The cost of the realization: 64 700 EUR

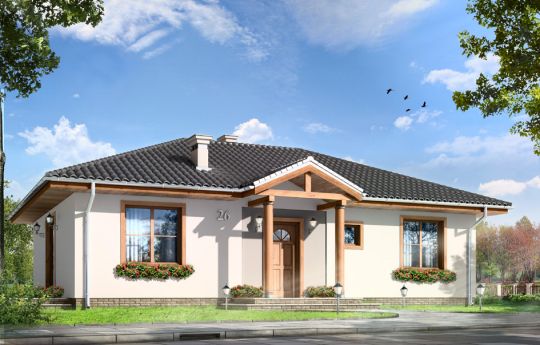

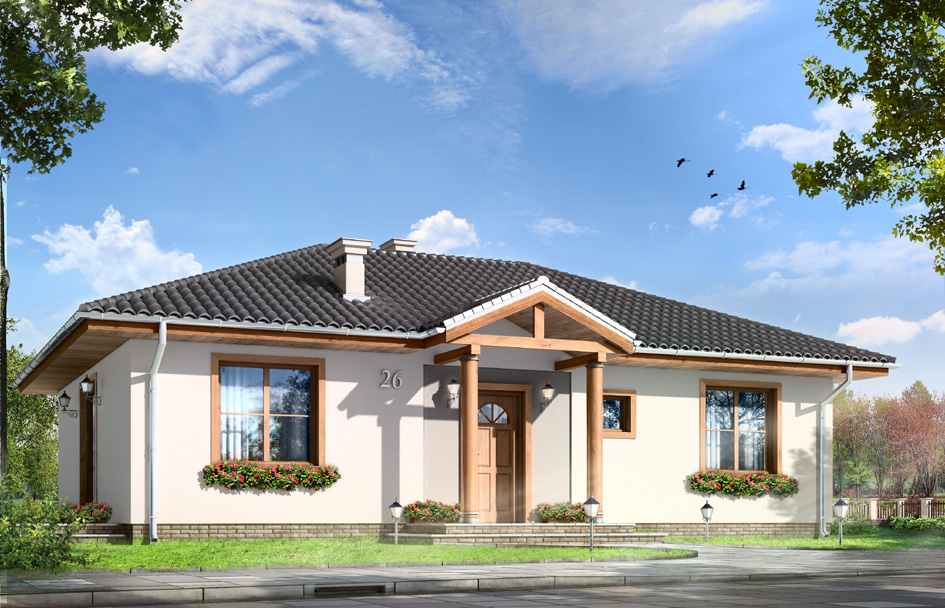

House plan Dot - front visualization

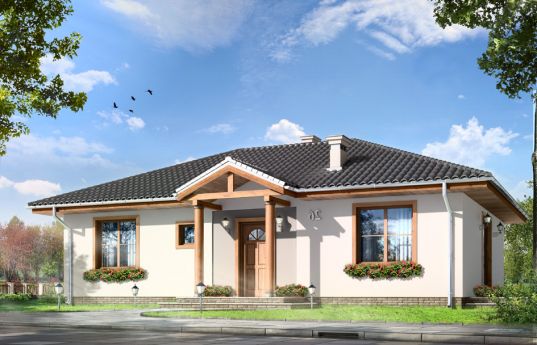

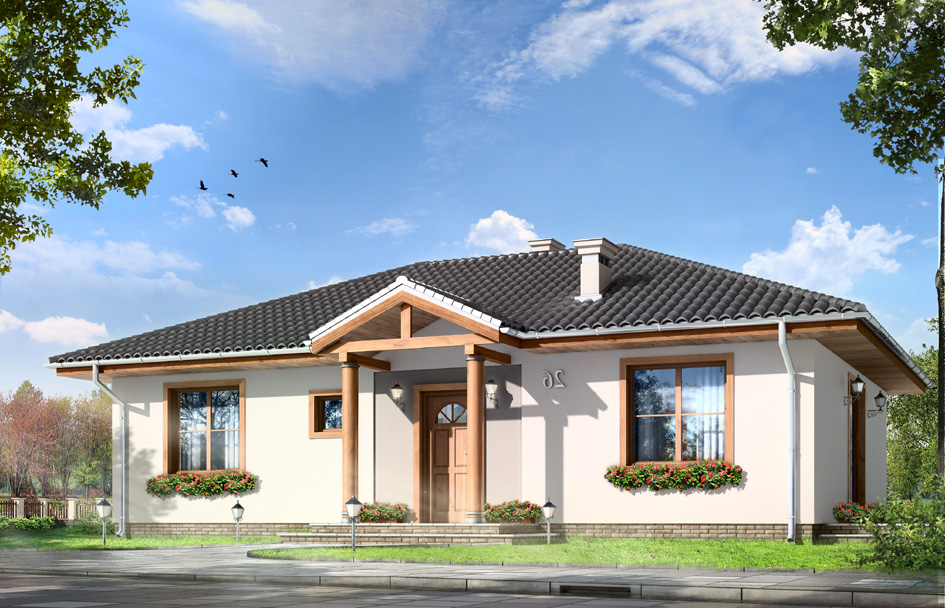

Show mirror image

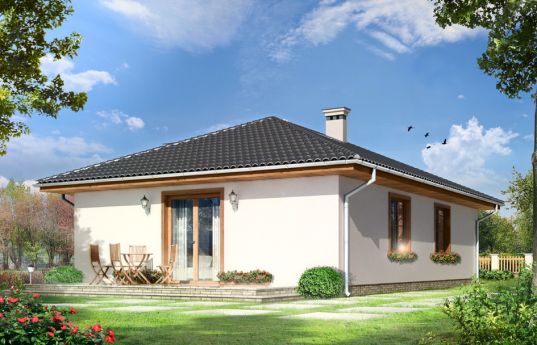

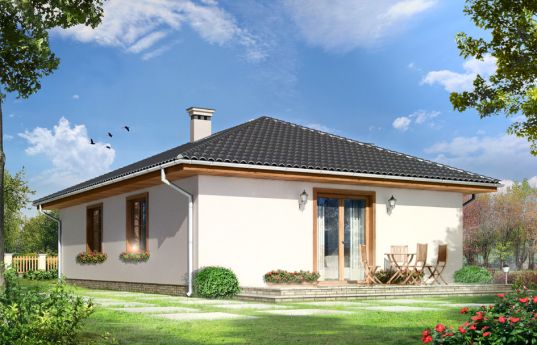

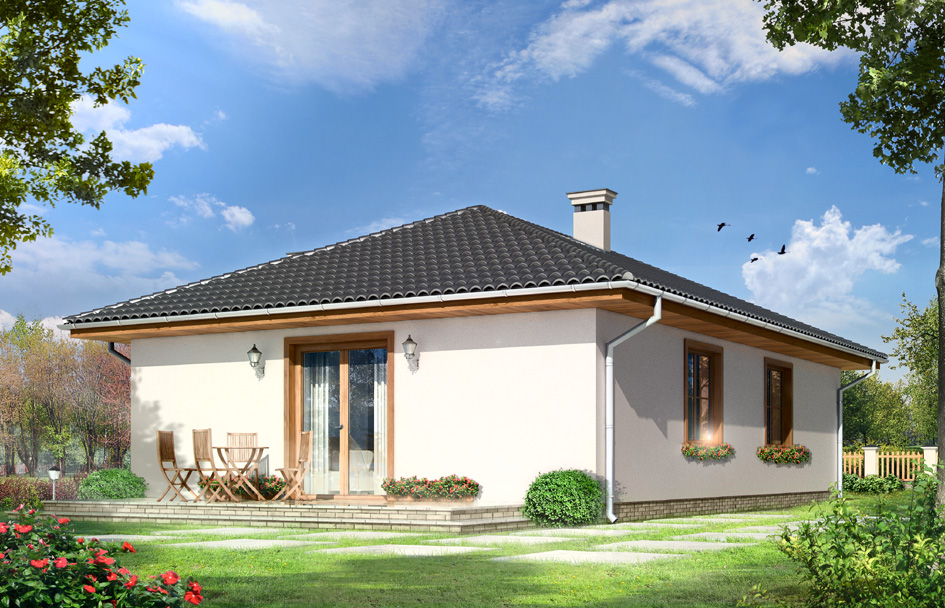

Dot house plan is a small family house for a family of four. It is bungalow, built on a rectangular plan, covered by a hipped roof. The front of the house adorns entrance porch supported by two columns. External appearance refers to the architecture of Polish manor house, but in the modern sense. This house plan was designed to plot with a garden on the side - exit by the balcony door from the living room and terrace are from the side elevation. Inside the house is a spacious living room, with a partially open kitchen, three bedrooms, bathroom and utility room - boiler room accessible from the entrance vestibule. On a small area we managed to design a comfortable four-room apartment with a technical background. Walls inside can be freely adjusted - neither of is a construction wall. The construction of the roof was designed with wooden trusses. Dot house plan is also available in mirror image.

Specifications:
  • Cubature: 331 m3 / 11687,61 ft3
  • Built-up area: 102,08 m2 / 1098,38 ft2
  • Total area: 102,08 m2 / 1098,38 ft2
  • Net area: 84,03 m2 / 904,16 ft2
  • Usable area: 81,49 m2 / 876,83 ft2
  • Roof area: 148,19 m2 / 1594,52 ft2
  • Roof slope: 24 degrees
  • Height of the building: 5,08 m (5,38 m with foundation) / 16,66 ft (17,65 ft with foundation)
  • Wide of the building: 12,24 m / 40,15 ft
  • Length of the building: 8,34 m / 27,36 ft
  • Minimum plot width: 20,24 m / 66,39 ft
  • Minimum plot length: 16,67 m / 54,68 ft
  • Height of rooms:  2,61 m / 8,56 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls – aerated concrete  blocks 24 + polystyrene + thin-layer plaster
  • Ceiling - wooden truss
  • Elevation - thin-layer plaster on polystyrene
  • Roof - tile






The costs of implementing:
The raw state open 17 200,00 EUR
The raw state closed 28 100,00 EUR
The cost of finishing works 36 600,00 EUR
Execution of turnkey home 64 700,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Dot - detailed file

House plan Dot - detailed file - mirror

Comment
Dot house plan 1793 Iffcia
2012.03.09 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.

Dot house plan 466 izabella_witkowska
2012.02.08 0 Pozytywny komentarz Negatywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)

Dot house plan 467 Marek_62Brzozowski
2012.02.08 0 Pozytywny komentarz Negatywny komentarz

I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.
