Usable area: 103.53 m2 / The cost of the realization: 96 500 EUR
Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

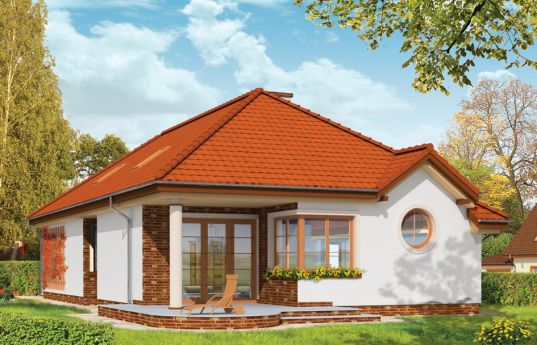

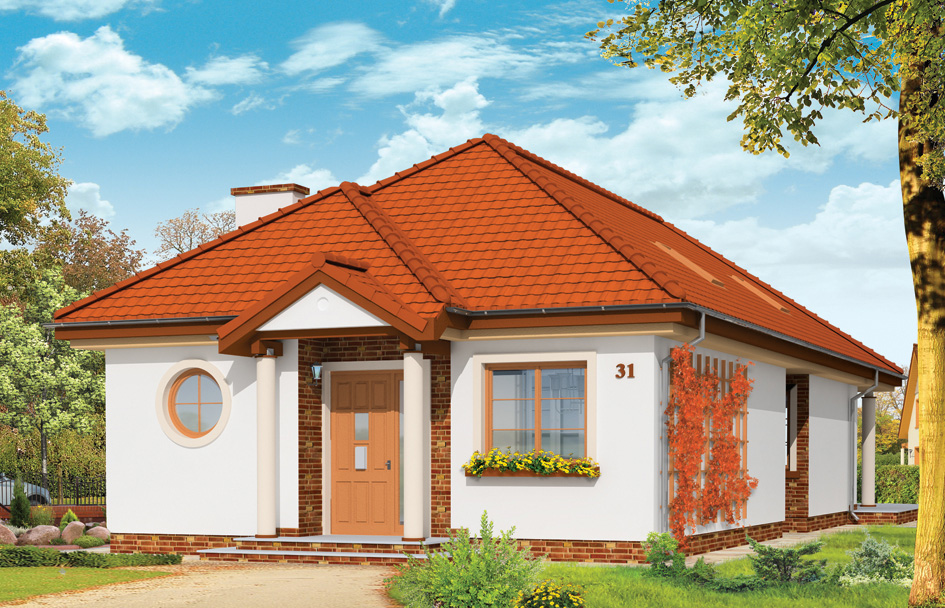

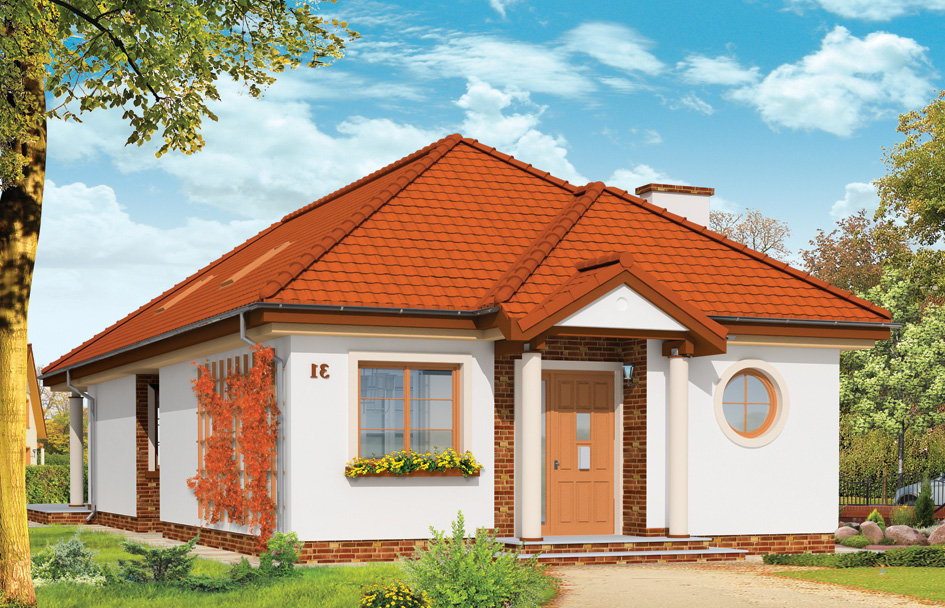

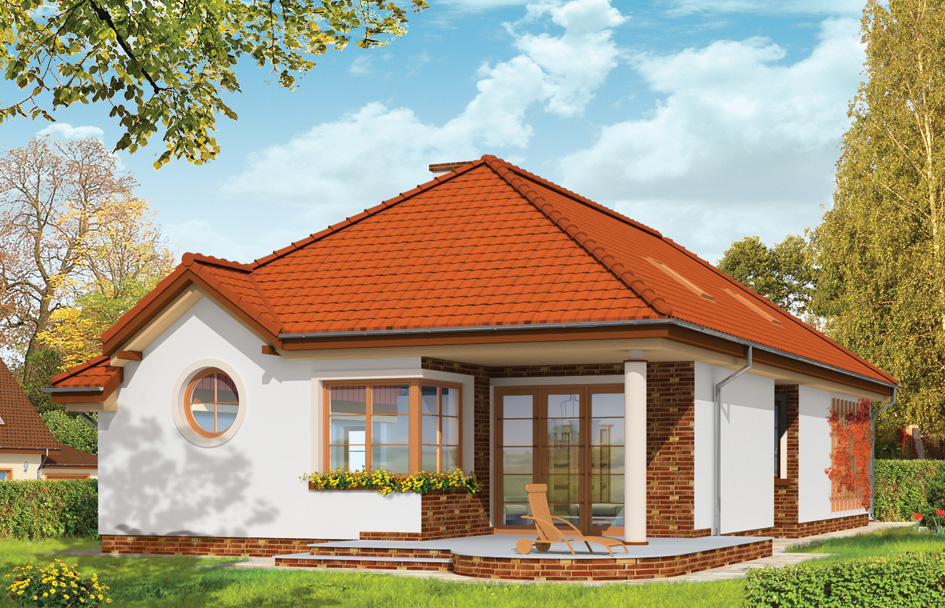

Dachshund house plan is a convenient building on a very narrow plot - even a 15-meter. The solid of the house and a garage is covered by the hipped roof. The interior of the house is planned is such way to be able to live on the ground floor in the first stage of building. The attic can be exploited for utility rooms. Interior of living room, dining room and lobby creates a large open space. From the living room you can go out to the covered terrace. This house plan is also available in mirror version.
Specifications:
- Cubature: 430 m3/ 15183,3 ft3
- Built-up area: 139,99 m2/ 1506,29 ft2
- Total area: 139,99 m2/ 1506,29 ft2
- Net area: 111,33 m2/ 1197,91 ft2
- Usable area: 103,53 m2/ 1113,98 ft2
- Roof area: 221 m2/ 2377,96 ft2
- Roof slope: 35 degrees (variant 24 degrees)
- Height of the building: 6,20 m (6,50 m with foundation)/ 20,34 ft (21,32 ft with foundation)
- Wide of the building: 9 m/ 29,52 ft
- Length of the building: 18,27 m/ 59,93 ft
- Minimum plot width: 15 m/ 49,2 ft
- Minimum plot length: 26,27 m/ 86,17 ft
- Height of rooms: 2,61 m/ 8,56 ft
Materials:
- Foundations - concrete
- Walls - aerated concrete + polystyrene
- Elevations - thin-layer plaster
- Roofing - ceramic or concrete tile
The costs of implementing:
| The raw state open | 29 300,00 EUR |
| The raw state closed | 43 700,00 EUR |
| The cost of finishing works | 52 900,00 EUR |
| Execution of turnkey home | 96 500,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Dachshund - detailed file - mirror
House plan Dachshund - detailed file
