House plan Villa Park 5

Usable area: 173.6 m2   /   The cost of the realization: 204 640 EUR

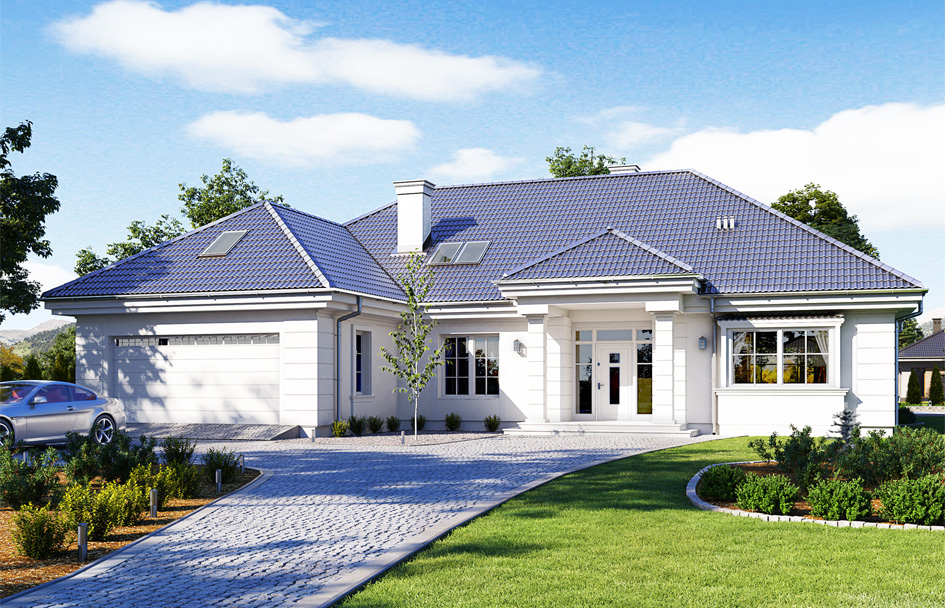

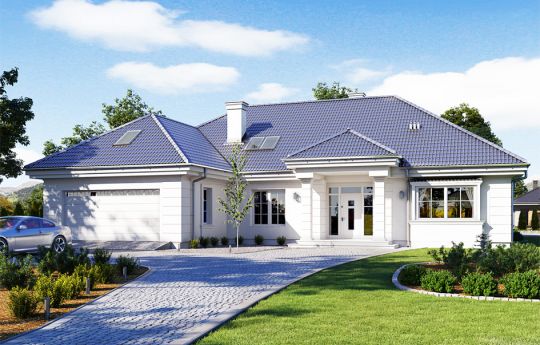

Projekt domu Willa parkowa 5 - wizualizacja frontu

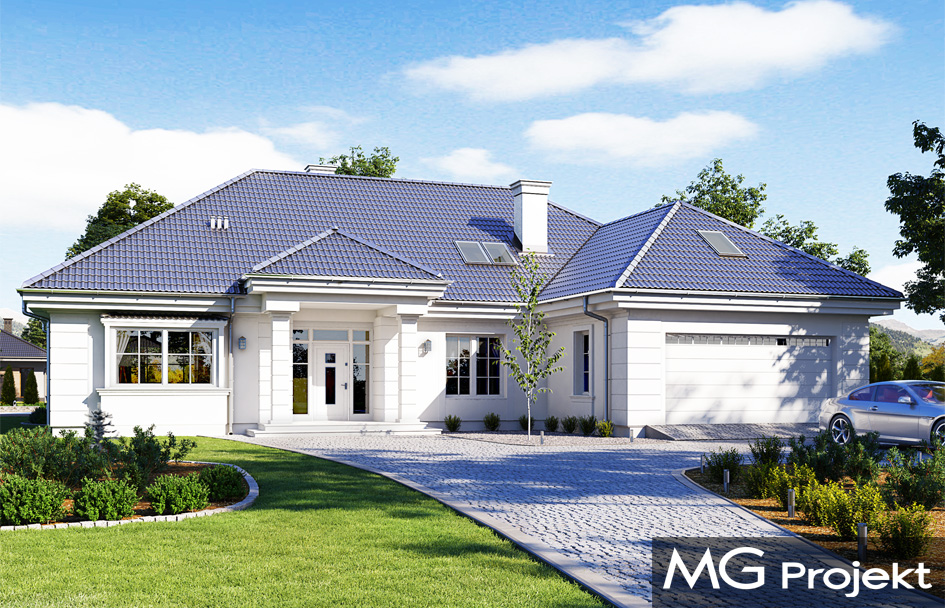

Show mirror image

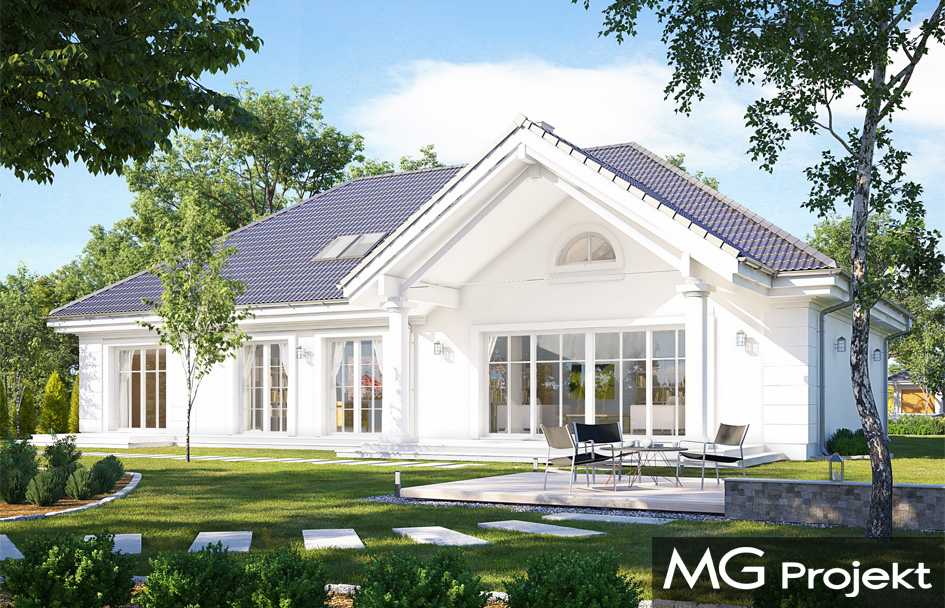

The house plan Villa Park 5 is another project from the popular series of houses "Villa Park - Park Residence". A one-storey house, with an attic, built on a rectangular block covered with a hipped roof, with a built-in garage part. The house was designed in reference to the traditional residential style, with details emphasizing the representative character, giving comfort and the impression of luxury. The architecture of the house is attractive, but also toned down and discreet. The house refers to tradition, but in a more modern contemporary perspective. The front of the house is decorated with a beautiful entrance portico, with side glazing of the entrance door and an arched window. The representative entrance door invites us to the interior of the villa. From the garden side, large glazing of individual rooms - including the largest wide glazed living room, open to the terrace and garden. The interior of the ground floor is functionally divided into three parts: daily part: living room with dining room, kitchen and hall, next to the utility and garage part: garage and boiler room available from the vestibule, and the night part consisting of three bedrooms on the ground floor, and attic with up to three additional rooms upstairs. Attic can be freely used or adapt. On the ground floor, we have two bathrooms and an additional toilet, and a laundry room next to the bedrooms. The parents' apartment has its own bathroom and a dressing room. The house is functionally designed, practically, it has all the rooms needed for the functioning of the whole family. Thanks to the attic, we have space for additional use. The building has a simple construction, it is not difficult to build. Thanks to the use of energy-saving materials and installations, the building will be inexpensive to operate.

Specifications:
  • Cubature: 1026 m3 /  36228,06 ft3
  • Built-up area: 254,32 m2 / 2736,48 ft2
  • Total area: 348,88 m2 / 3753,95 ft2
  • Net area: 179,80 m2 / 1934,95 ft2 + garage 36,30 m2 / 390,59 ft2+ attic 76,32 m2 / 821,20 ft2
  • Usable area:173,60 m2 /  1867,94 ft2
  • Roof area: 387,20 m2 / 4166,27 ft2
  • Roof slope: 35 degrees
  • Height of the building: 7,56 m (7,86 m with foundation) / 24,80 ft (25,78 ft with foundation)
  • Size of the building: 19,86 m x 18,64 m / 65,14 x 61,14 ft
  • Minimum size of the plot: 27,86 x 25,54 m / 91,38 x 83,77 ft
  • Height of rooms: 2,8 m / 9,18 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  monolithic
  • Elevation - thin-layer plaster on polystyrene
  • Roof -  tile or metal roofing tile




The costs of implementing:
The raw state open 79 370,00 EUR
The raw state closed 119 030,00 EUR
The cost of finishing works 85 610,00 EUR
Execution of turnkey home 204 640,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Willa parkowa 5 - pliki szczegółowe

Willa parkowa 5 - pliki szczegółowe - odbicie lustrzane
