Lily of the valley house plan

Usable area: 114.28 m² / The cost of the realization: 107 700 EUR

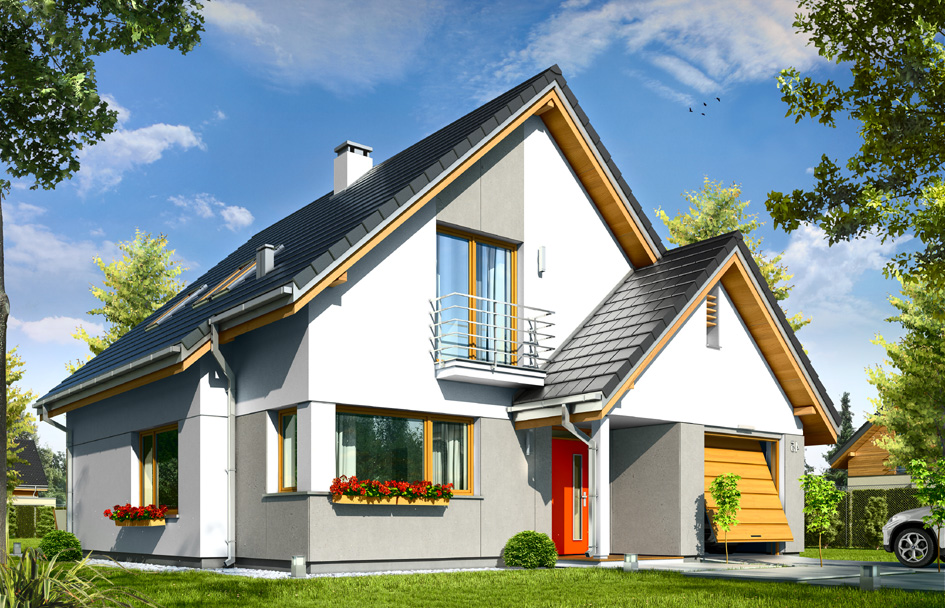

House plan Lily of the valley - front visualization

Show mirror image

Price: 1000 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Variants (0) Detailed drawings List of materials Comments (0)

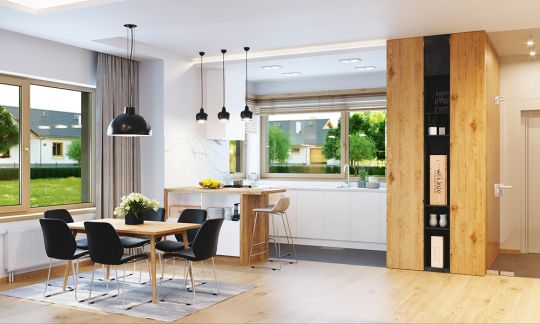

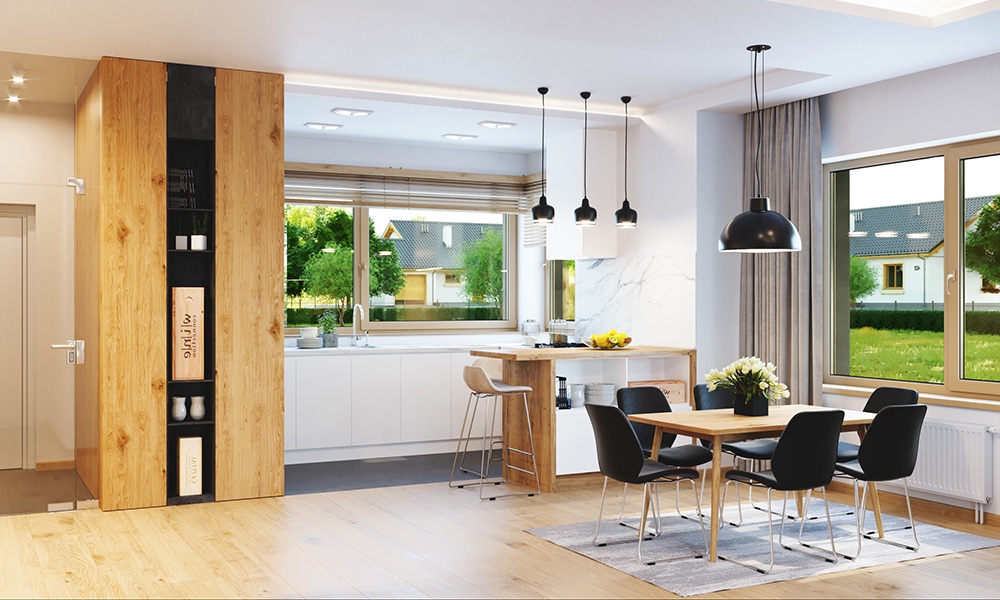

Lily of the valley house plan is a detached house for a family of 4 to 5 people. It is a house with usable attic covered by a gable roof, built on a rectangular plan with a built-in garage. The architectural form, materials, details, highlight the modern style of the building. Despite the small space house has everything that should be found in a detached house. On the ground floor, we have an open space with living room with fireplace and TV wall, dining area and open kitchen and hall. We also have an extra room - a bedroom or office, and garage with boiler room - accessible from the entrance vestibule. Nice glazing and opening to the terrace and garden illuminate the interior and open house on the surrounding nature. In the attic there are three bedrooms, a large bathroom and dressing room accessible from the parents' bedroom. The interiors are functional and easy to arrange. The house was designed in energy-saving technology. Excellent thermal insulation of external walls. Compact shape and simple design of the building will allow for a quick and inexpensive construction, and subsequent economical exploitations of the building.

Specifications:

Cubature: 541 m³ / 19102,71 ft³
Built-up area:
- without arcades 112,69 m² / 1212,54 ft²
- with arcades 115,57 m² / 1243,53 ft²
Total area: 172,53 m² / 1856,42 ft²
Net area: 118,90 m² + garage 18,09 ft² / 1279,36 m2 + garage 194,65 ft²
Usable area:
- 114,28 m² wg PN-70/B-02365 / 1229,65 ft² wg PN-70/B-02365
- 118,90 m² + garage wg PN-ISO 9836:1997 / 1279,36 ft² + garage wg PN-ISO 9836:1997
Roof area: 181,71 m² / 1955,20 ft²
Roof slope: 42 degrees
Height of the building: 8,17 m (8,37 m with foundation) / 26,780 ft (27,45 ft with foundation)
Wide of the building: 10,73 m / 35,19 ft
Length of the building 12,03 m / 39,46 ft
Minimum plot width: 17,73 m / 58,15 ft
Minimum plot length: 20,03 m / 65,70 ft
Height of rooms: 3,0 m / 9,84 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
Ceiling - monolithic reinforced concrete
Elevation - thin-layer plaster on polystyrene
Roof - ceramic tile

The costs of implementing:

The raw state open	40 200,00 EUR
The raw state closed	56 900,00 EUR
The cost of finishing works	50 900,00 EUR
Execution of turnkey home	107 700,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

House plan Lily of the valley - bill of materials

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Lily of the valley - detailed file - mirror

House plan Lily of the valley - detailed file
