Usable area: 85.02 m2 / The cost of the realization: 72 500 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Realizations (44) Detailed drawings
List of materials
Comments (3)

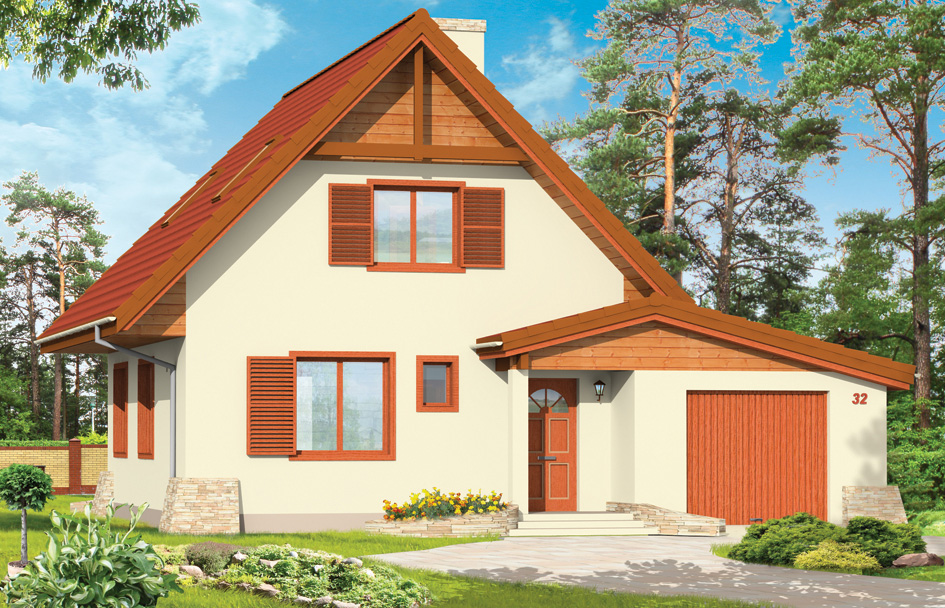

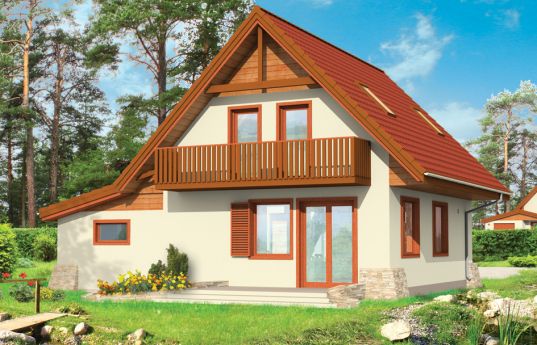

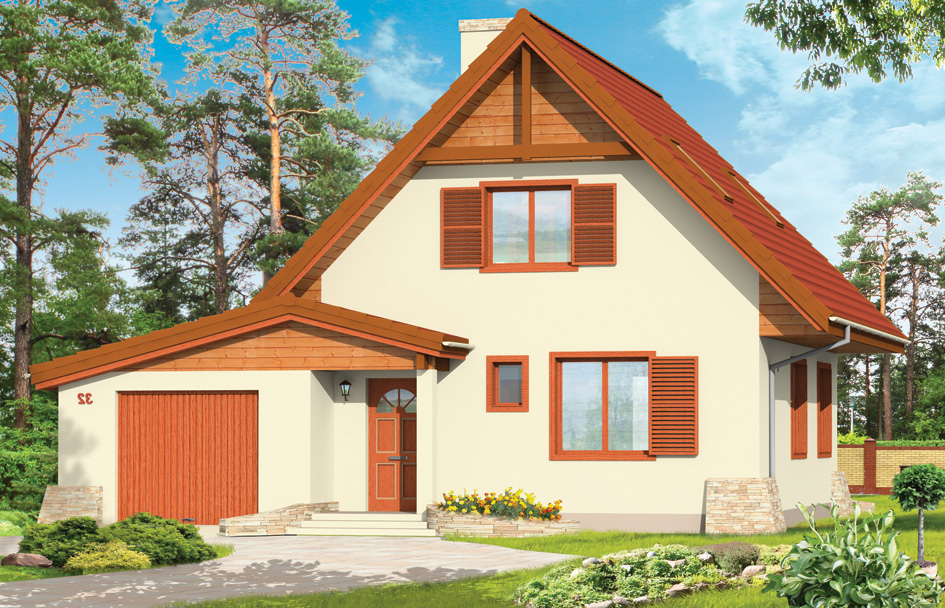

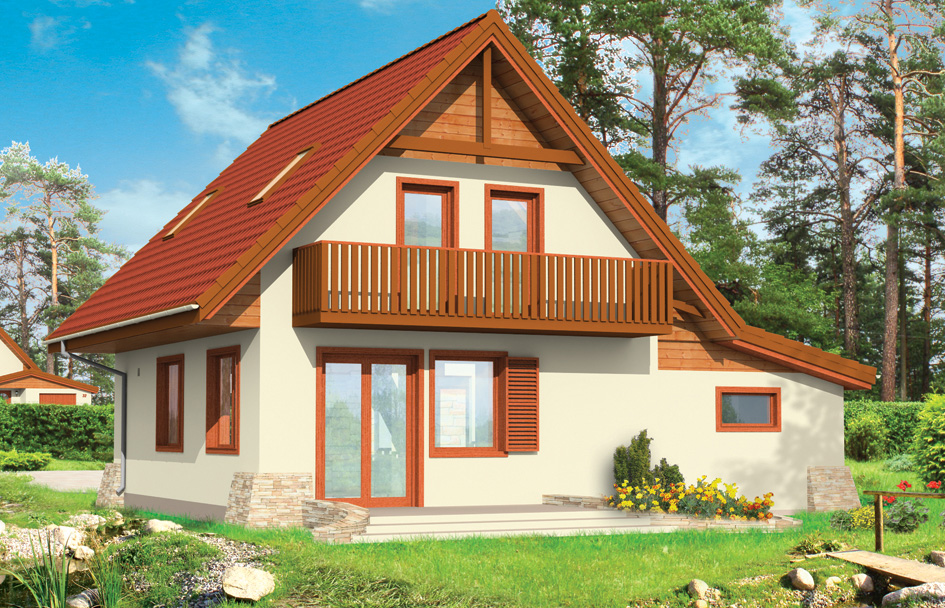

D03 with garage house plan is the expanded version of the D03. To the original house plan the garage and utility room which could serve as a boiler room was added. On the ground floor is a large living room with fireplace and open kitchen. On the attic three bedrooms was planned. There are two versions of heating - gas boiler and solid fuel. There is also a mirror version of this house plan and a variant of the utility room behind the garage and dormer windows in the roof.
Specifications:
- Cubature: 466 m3/ 16454,46 ft3
- Built-up area: 102,41 m2/ 1101,93 ft2
- Total area: 145,17 m2/ 1562,03 ft2
- Net area: 119,47 m2/ 1285,50 ft2
- Usable area: 85,02 m2/ 914,82 ft2
- Roof area: 196,44 m2/ 2113,69 ft2
- Roof slope: 45 and 14 degrees
- Height of the building: 7,67 m (7,99 m with foundation) 25,16 ft (26,21 ft with foundation)
- Wide of the building: 11 m / 36,08 ft
- Length of the building: 9,85 m / 32,31 ft
- Minimum plot width: 18 m / 59,04 ft
- Minimum plot length: 17,85 m / 58,55 ft
- Height of rooms: 2,58 m / 8,46 ft
Materials:
• Foundations - concrete
• Walls - aerated concrete + polystyrene
• Elevation - thin-layer plaster
• Roof - ceramic tile or metal roofing tile
The costs of implementing:
| The raw state open | 24 000,00 EUR |
| The raw state closed | 37 200,00 EUR |
| The cost of finishing works | 35 300,00 EUR |
| Execution of turnkey home | 72 500,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan D03 with garage - detailed file
House plan D03 with garage - detailed file - mirror
