Usable area: 89.86 m2 / The cost of the realization: 88 500 EUR

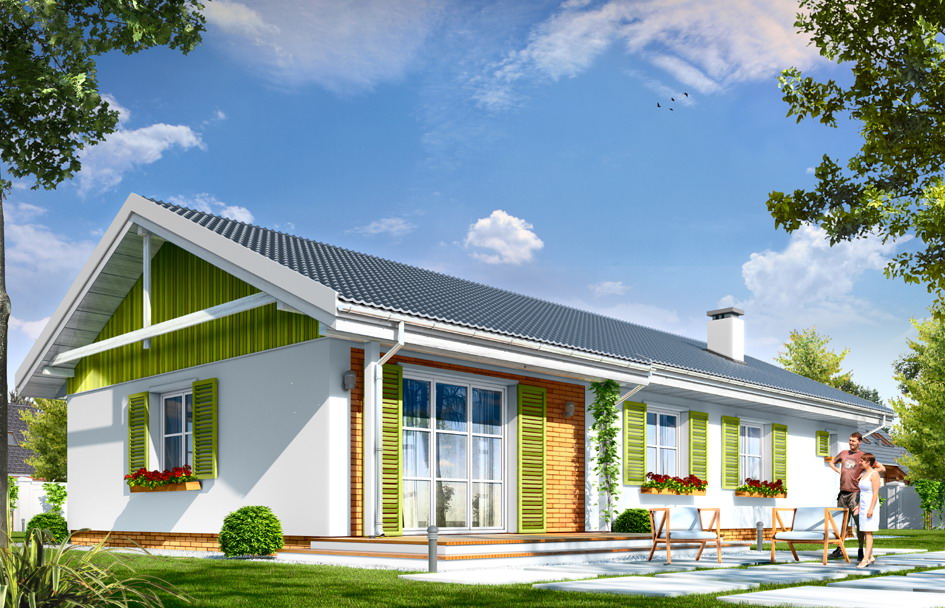

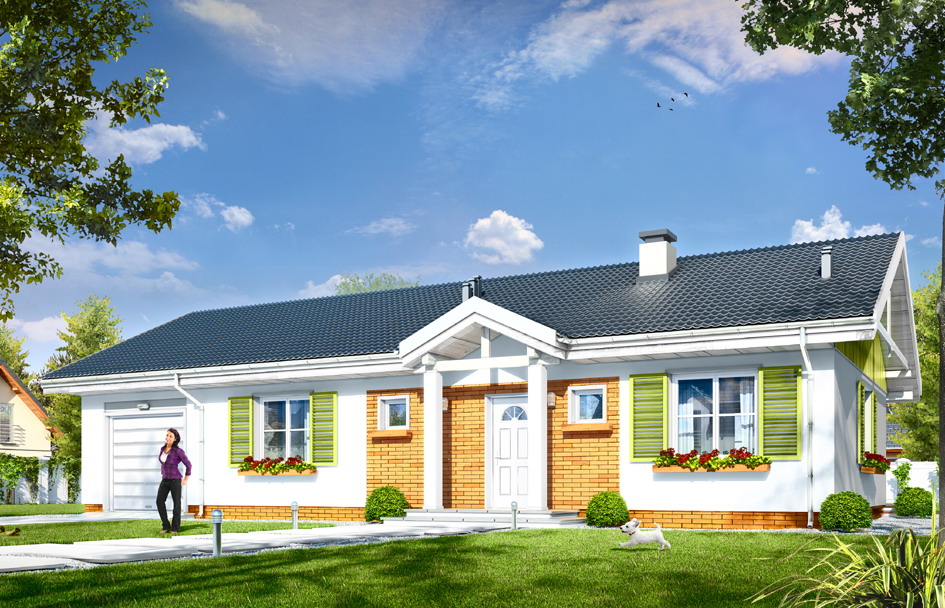

Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

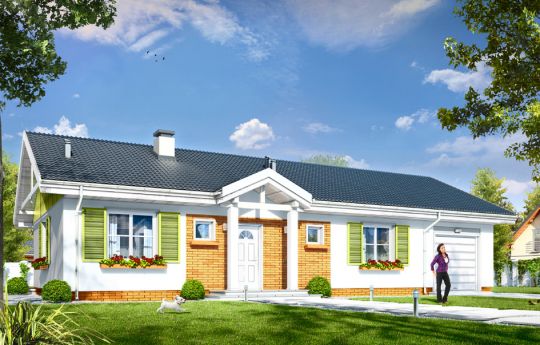

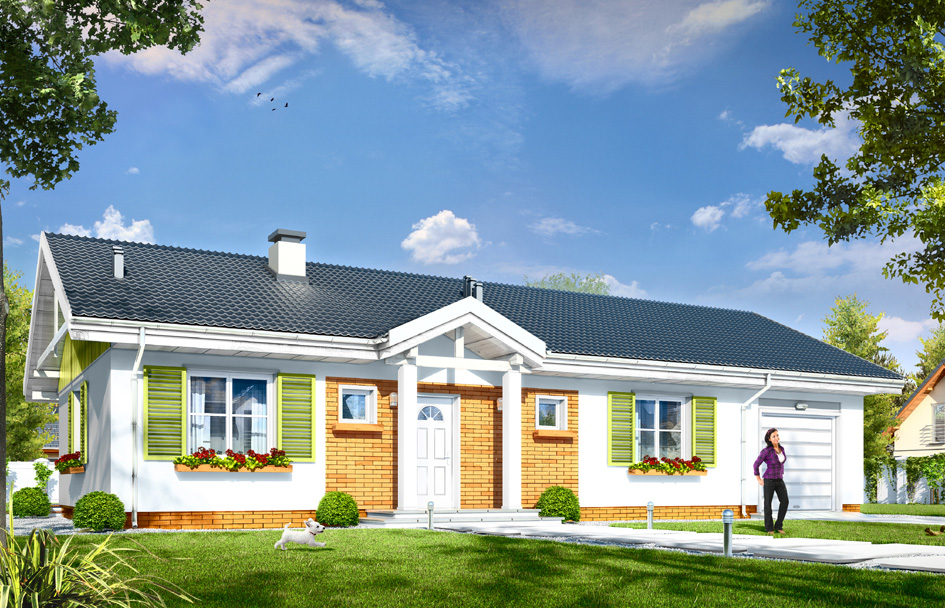

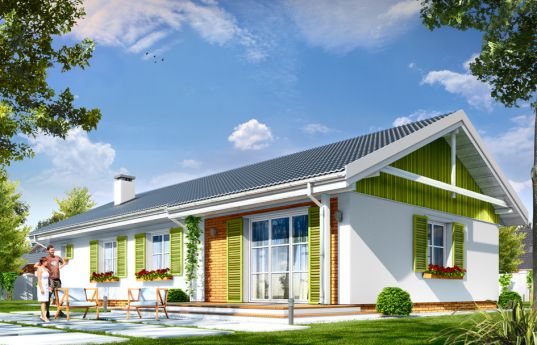

Sunny house with garage 2 is story building for a family of four-five. Sunny with a garage 2 is the next version of the popular series of Sunny. This is bungalow, built on a rectangular plan, covered by a gable roof. The basic advantage of the building is its simple design, allowing for inexpensive and hassle-free implementation. Each foreman easily take to build such a simple building. Thanks to the right proportions and carefully selected materials and details Sunny with a garage 2 it is both neat and has a sympathetic look. The windows decorated with shutters, cladding clinker tiles on the walls, and the entrance porch and roof garden terrace - diversified elevations of the house. Large balcony doors open a beautiful view from the living room to the terrace and garden surrounding the house. The interior of house is divided into living area - living room, hall and kitchen, bedrooms, and utility part - with a garage and boiler room. Entering the house from the atrium we can enter the utility room - pantry and warehouse near the kitchen (very useful). Connected interior of the living room, hall and kitchen creates a nice stop the common living area. Next to the hall we go down to three bedrooms with a bathroom and toilet. Finally, through this a separate hall we can go to the garage and placed behind the boiler room. Boiler room can be powered by gas, but also it can be easily adapted to fuel. Sunny with a garage 2 is a house energy efficient, designed using modern materials and technology, a simple and inexpensive construction. In the further operation cheap and easy to maintain. Just in time for reasonably minded and economical investors. There is also available mirror version of this house plan.
Specifications:
- Cubature: 560 m3 / 19773,6 ft3
- Built-up area: 144,82 m2 (with arcades: 151,73 m2) /1558,26 ft2 (with arcades: 1632,61 ft2)
- Total area: 144,82 m2 / 1558,26 ft2
- Net area: 95,82 m2 + garage 19,14 m2 / 1031,02 ft2 + garage 205,95 ft2
-
Usable area:
- 89,86 m2 wg PN-70/B-02365 / 966,89 ft2 wg PN-70/B-02365
- 95,14 m2 + garage wg PN-ISO 9836:1997 / 1023,71 ft2 + garage wg PN-ISO 9836:1997
- Roof area: 205,22 m2 / 2208,17 ft2
- Roof slope: 25 degrees
- Height of the building: 5,31 m (5,61 m with foundation) / 17,42 ft (18,40 ft with foundation)
- Wide of the building: 17,20 m / 56,42 ft
- Length of the building: 8,42 m / 27,62 ft
- Minimum plot width: 24,2 m / 79,38 ft
- Minimum plot length: 16,42 m / 53,86 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
- Ceiling - wooden beams
- Roof - ceramic tile
- Elevation - thin-layer plaster on polystyrene
The costs of implementing:
| The raw state open | 30 400,00 EUR |
| The raw state closed | 44 400,00 EUR |
| The cost of finishing works | 44 200,00 EUR |
| Execution of turnkey home | 88 500,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Sunny with garage 2 - detailed file
House plan Sunny with garage 2 - detailed file - mirror
