Boxwood house plan

Usable area: 101.96 m2   /   The cost of the realization: 101 200 EUR

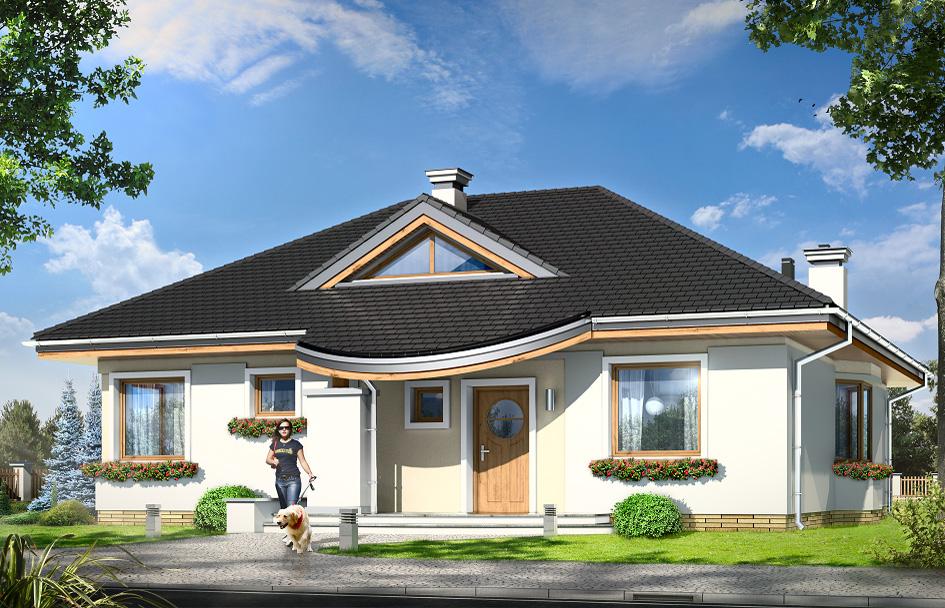

House plan Boxwood - front visualization

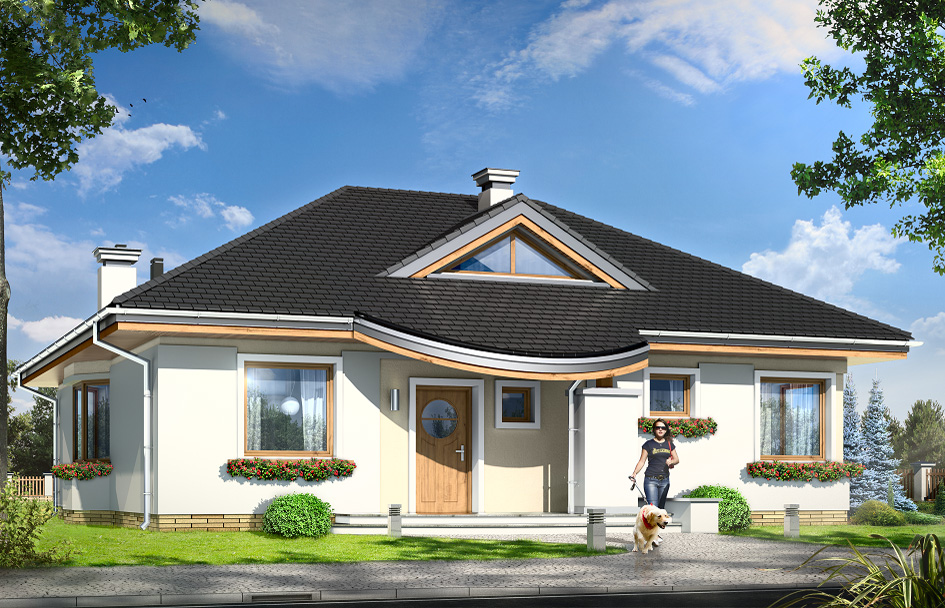

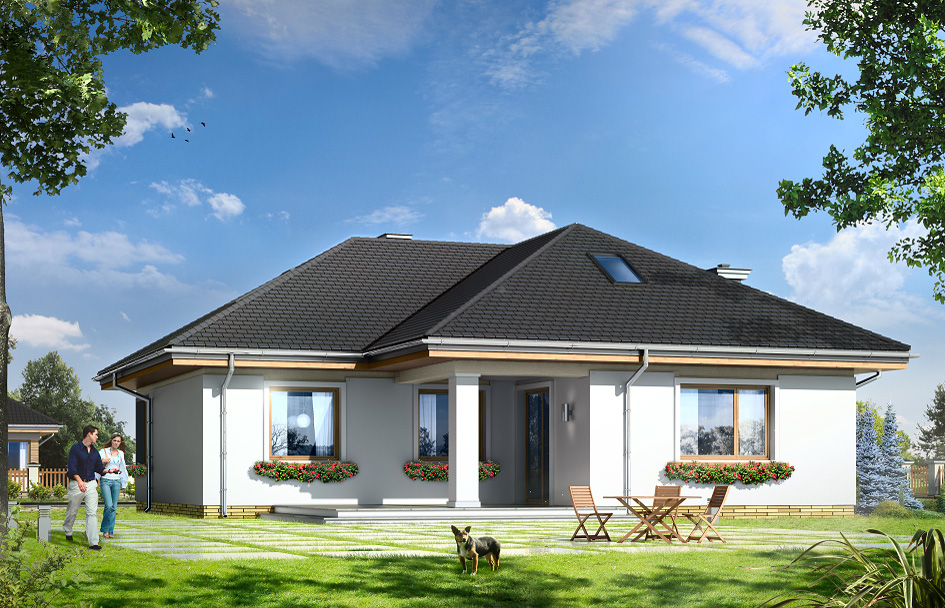

Show mirror image


Boxwood house plan is a proposal of a storey detached house this is a proposal for the a family of four people. The house has been design on the set of the letter L. The walls of the ground floor are completed with a concrete ceiling covered by a traditional hip roof with rafter construction, with an interesting wide dormer over the entrance and a triangular window lightening spacious attic. The simple body of the building was decorated with modern architectural details. The arcade entrance was covered by original roof with an arched eaves. Unpretentious, and very contemporary external appearance of the house makes the building fits perfectly in any surroundings. Inside there is a definite division on an open living area with a living room, and on the night part with the bedroom. In this house plan living room was connected to a dining hall and a partially open kitchen. Design space in this manner allows the creation of large undivided day interior. Beautiful glass - from the living room to the terrace, arcade, and a bay window in the dining room open the center of house at the surrounding garden. The night part of the house plan provides three bedrooms, bathroom and wardrobe in the master bedroom. The boiler room is designed with the entrance from porch, there is also a pantry located next to the kitchen. There is also a possibility of adapting the attic to a usable attic, which can be reached by a representation staircase from the living room. There is a mirror version of this house plan.

Specifications:
  • Cubature: 561 m3/19808,91 ft2
  • Built-up area: 132,87 m2 (with arcades)/ 1429,68 ft2 (with arcades)
  • Total area: 153,54 m2 (with attic1652,09 ft2 (with attic)
  • Net area: 105,49 m2 + attic/ 1135,07 ft2
  • Usable area: 101,96 m2/ 1097,09 ft2
  • Roof area: 216,46 m2/ 2329,11 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,03 m (6,33 m with foundation)/ 19,78 ft (20,76 ft with foundation)
  • Wide of the building: 13,16 m / 43,16 ft
  • Length of the building: 12,46 m / 40,87 ft
  • Minimum plot width: 21,16 m / 69,40 ft
  • Minimum plot length: 21,03 m / 68,98 ft
  • Height of rooms:  2,7 m / 8,86 ft
Materials:

• Foundations - Concrete benches and walls of concrete blocks
• External walls – bilayer double layer of ceramic bricks MAX + polystyrene
• Ceiling -  wooden truss girders
• Elevation - thin-layer plaster on polystyrene
• Roof -  tile




The costs of implementing:
The raw state open 37 900,00 EUR
The raw state closed 53 900,00 EUR
The cost of finishing works 47 300,00 EUR
Execution of turnkey home 101 200,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Boxwood - detailed file - mirror

House plan Boxwood - detailed file

Comment
Boxwood house plan 5260 Jule M.
2013.12.30 0 Pozytywny komentarz Negatywny komentarz

Despite the small area this house has a number of functions and is very nice. I have just order this house plan.

Boxwood house plan 5259 Alic_J
2013.12.14 3 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build body of curiously designed interior.

Boxwood house plan 1415 Uluu
2012.03.01 1 Pozytywny komentarz Negatywny komentarz

Nice house plan, we really like it, we will not make any changes.
