Usable area: 67.83 m2 / The cost of the realization: 84 000 EUR
Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

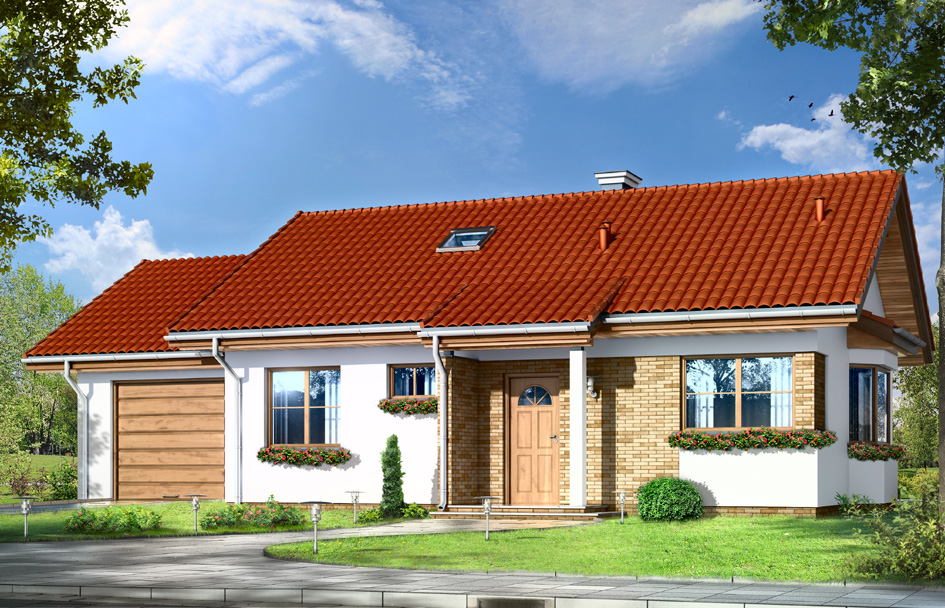

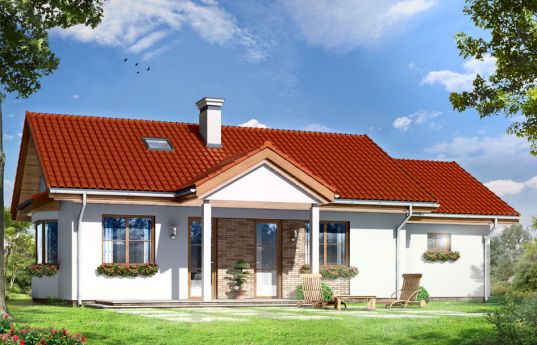

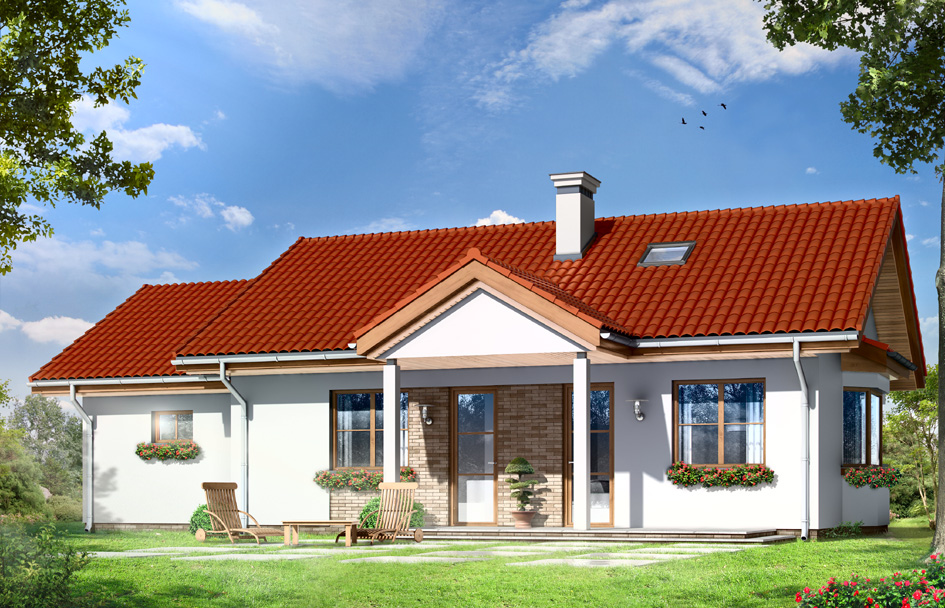

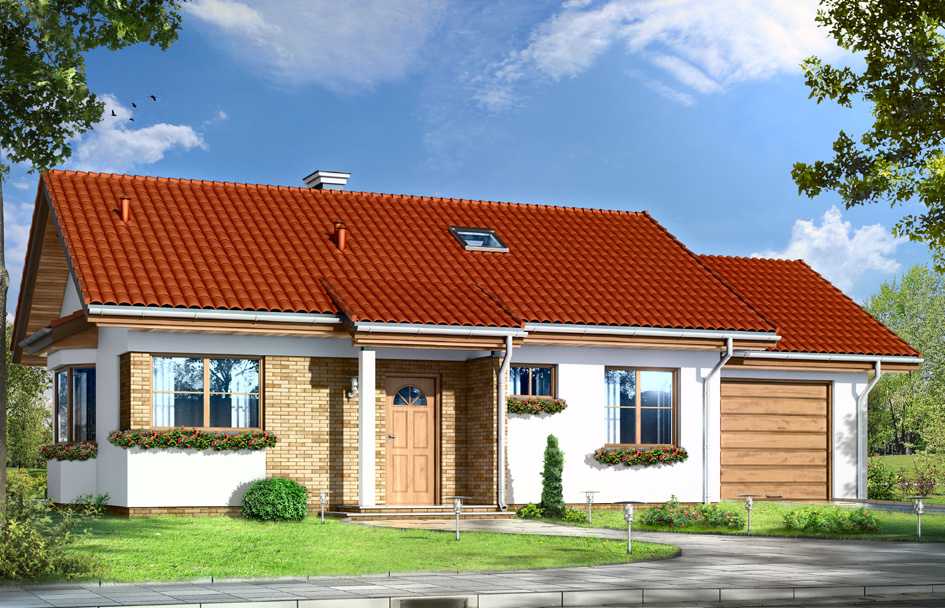

House plan Pearl 2 is a twin house similar to the popular house plan Jewel. This time the house is covered with a simple gable roof. This story house is designed for a family of three-four people. Shape of the building was built on a rectangular plan with a garage add to the house, and enriched by entrance porch, bay window in the side elevation and garden veranda, which is a roof over the part of the terrace. Large nice glazing with divisions, fragments of elevations clad by the clinker tiles, modern materials - all these elements create a successful whole with the traditional shape of the house. The interior of the house Pearl 2 is a comfortable three-room apartment with technical background. A representative living room with fireplace, connected spatially with kitchen and hall. Two bedrooms with private bathrooms are located in the opposite wing of the house, in the night part. Stairs leading from the atrium get into the attic - in the house plan Pearl 2 attic is, non-usable, however, can be easily adapted for additional attic. On the side of the house one car garage was built. There is also available a variant in a mirror version.
Specifications:
- Cubature: 434 m3 / 15324,54 ft3
- Built-up area: 108,32 m2 / 1165,52 ft2
- Total area: 108,32 m2 / 1165,52 ft2
- Net area 67,83 m2 + garage + attic / 729,85 ft2 + garage + attic
- Usable area: 67,83 m2 / 729,85 ft2
- Roof area: 175,47 m2 / 1888,06 ft2
- Roof slope: 30 degrees
- Height of the building: 5,67 m (5,87 m with foundation) / 18,60 ft (19,25 ft with foundation)
- Wide of the building: 14,5 m / 47,56 ft
- Length of the building: 8 m / 26,24 ft
- Minimum plot width: 21,5 m / 70,52 ft
- Minimum plot length: 17,23 m / 56,51 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls - aerated concrete 24 cm + polystyrene
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 27 200,00 EUR |
| The raw state closed | 39 900,00 EUR |
| The cost of finishing works | 44 200,00 EUR |
| Execution of turnkey home | 84 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Pearl 2 - detailed file
House plan Pearl 2 - detailed file - mirror
