Ideal house plan

Usable area: 121.93 m2   /   The cost of the realization: 92 900 EUR

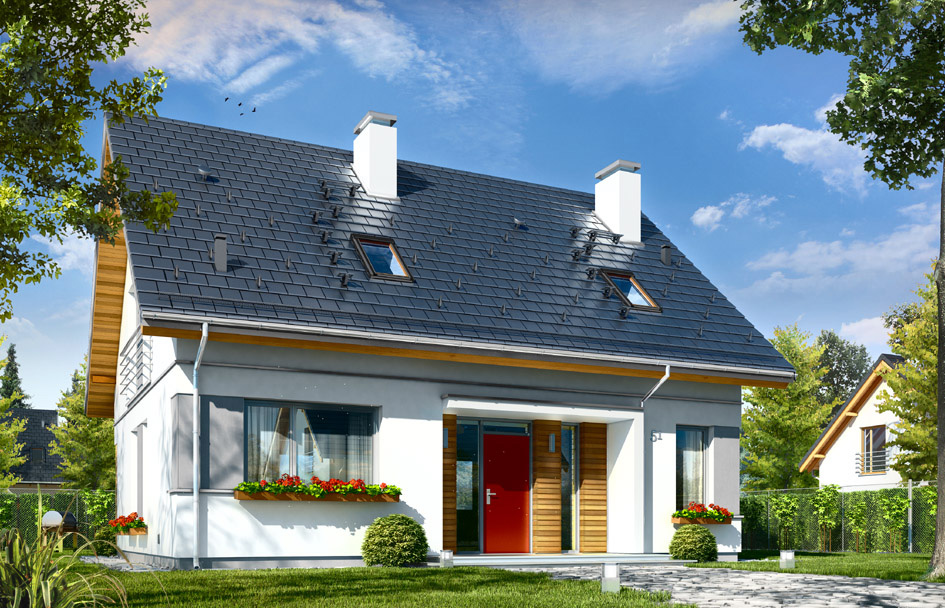

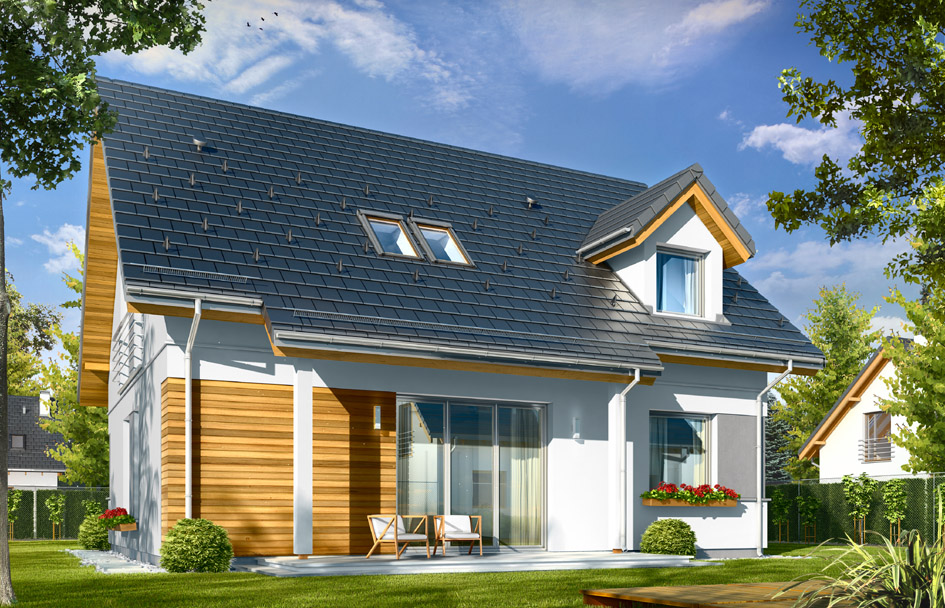

House plan Ideal - front visualization

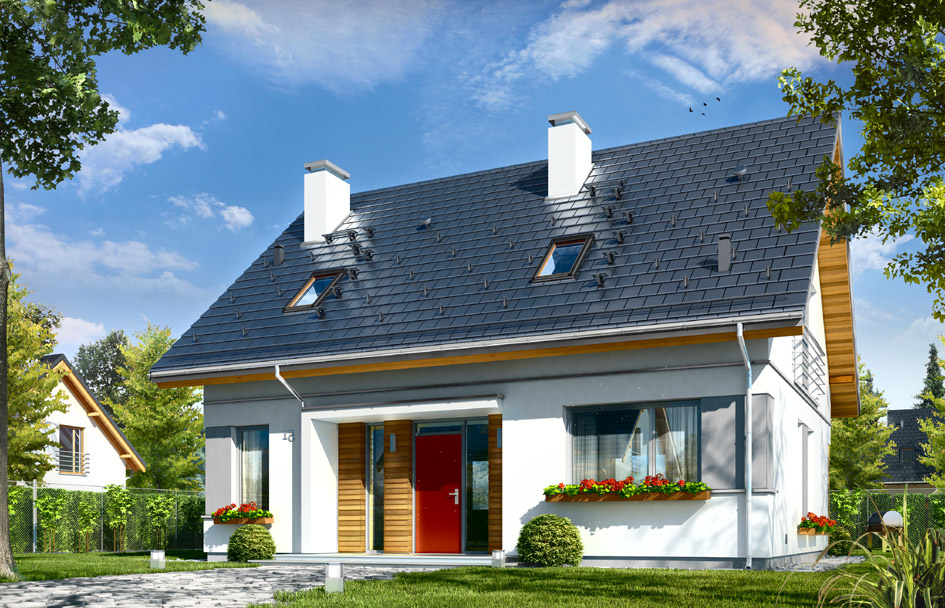

Show mirror image

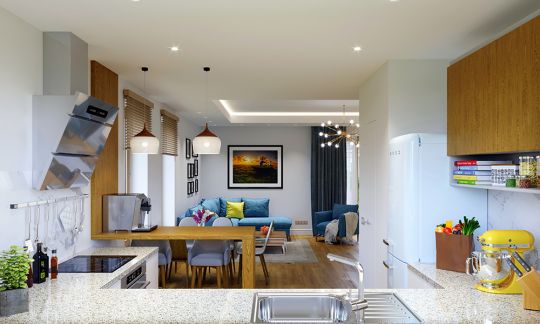

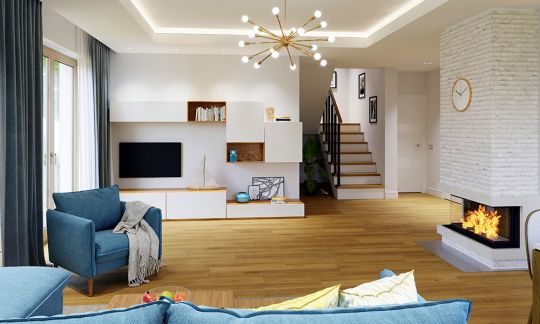

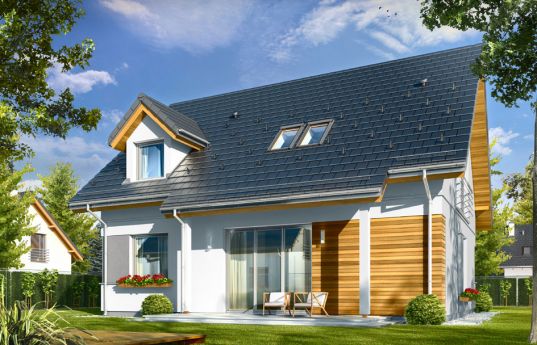

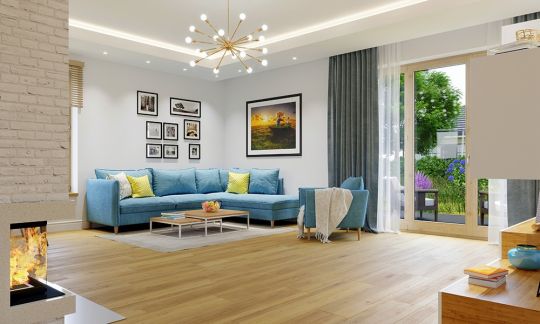

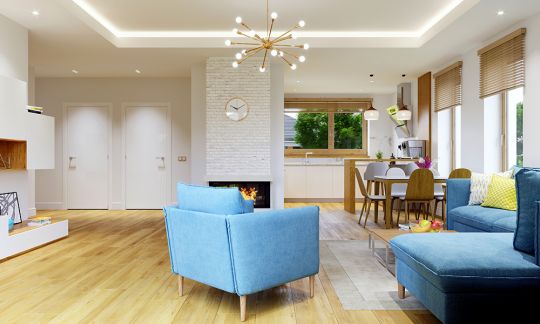

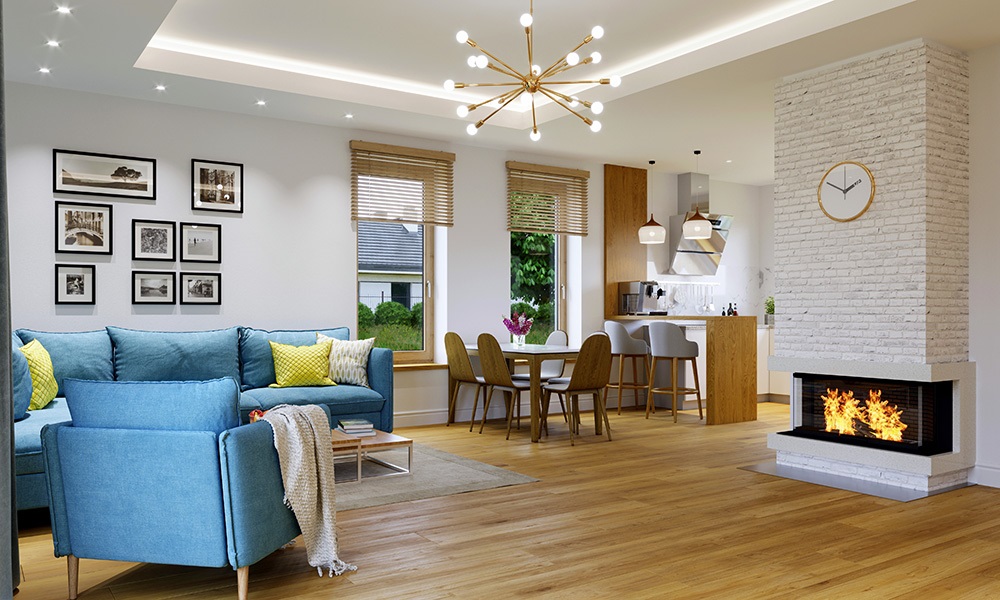

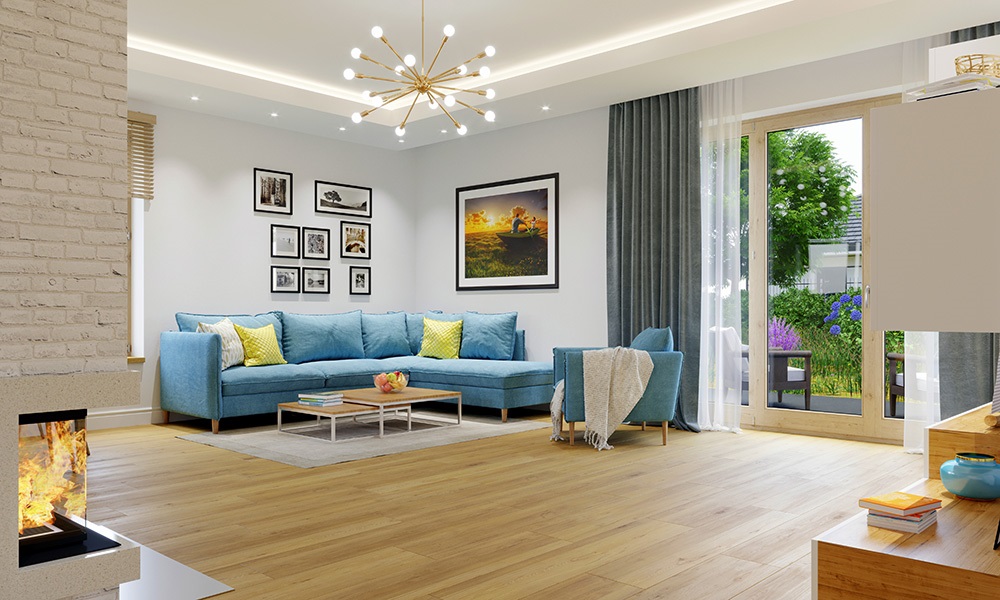

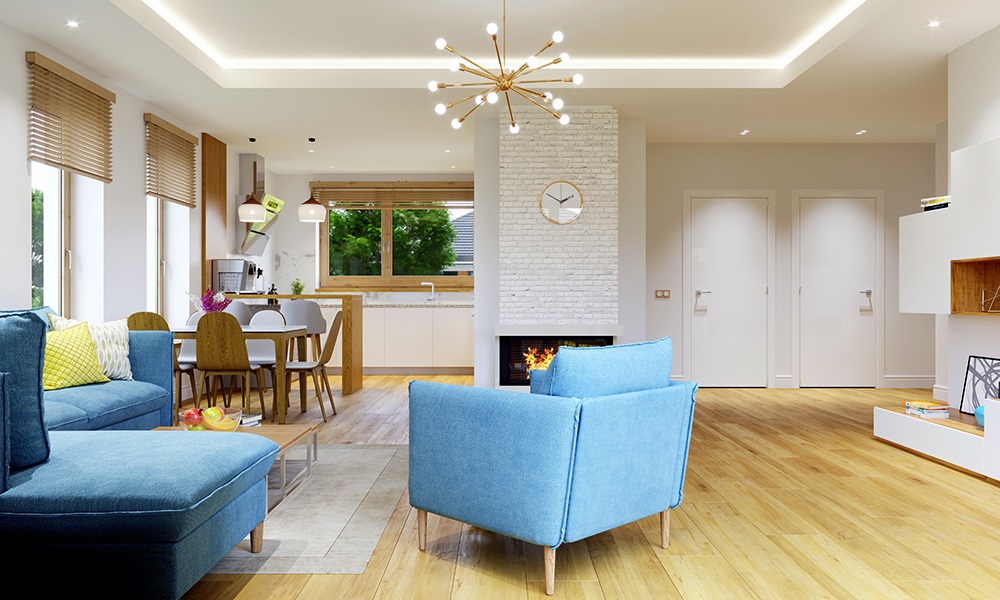

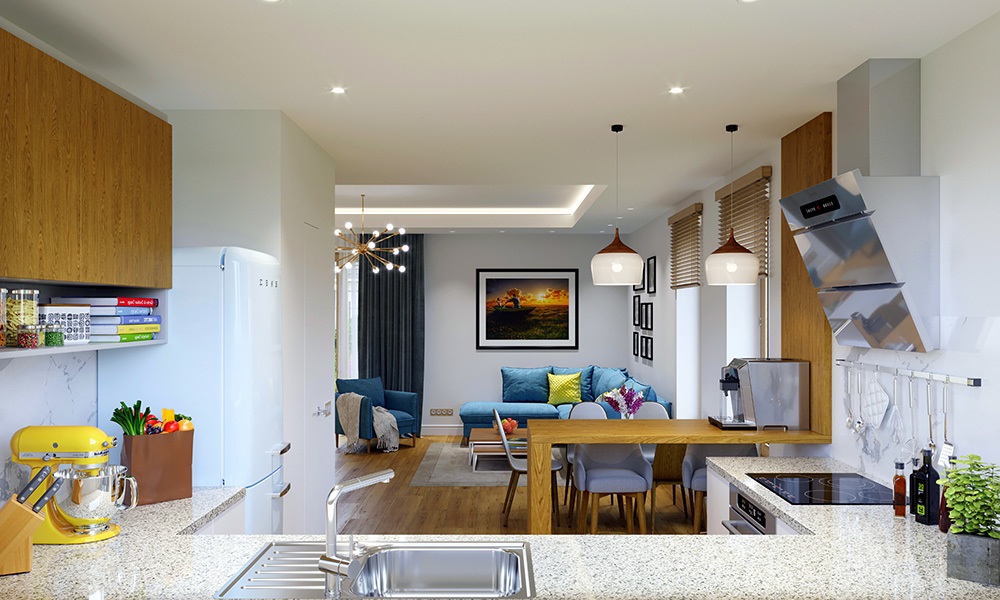

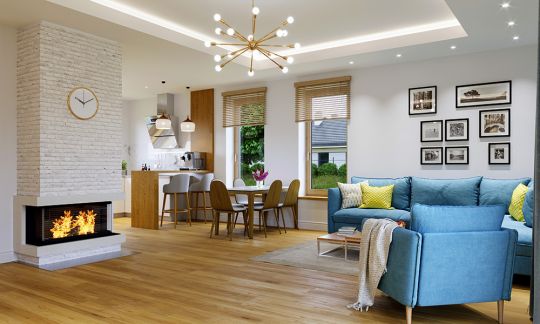

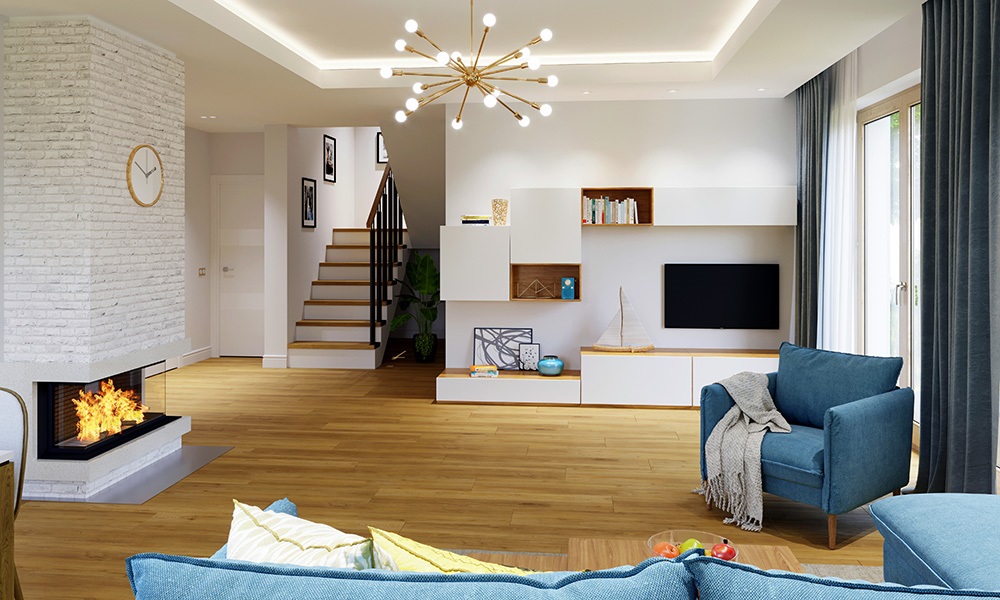

Ideal house plan is a detached house for a family of four to five people, bungalow with an attic, covered by symmetrical gable roof. The ideal, as the name suggests, has in itself everything you would expect from a comfortable home: comfortable, spacious and functionally interior designed, and a modern and aesthetic external solid. Simple construction, built on a rectangular plan, with a gable roof - no additional roofs and dormers make the construction is easy and inexpensive. Unpretentious architecture of the building fit into any environment. Modern details and materials used in facades are combined with the traditional form of the house with an attic. Interior of this house is divided into a living area on the ground floor and bedrooms on the attic. Living room with a hall and kitchen creates a large living space with dining area, fireplace wall and TV wall, and with the angle for a leisure furniture. Comfortable hall with representative staircase will create more spacious interior. On the ground floor there is an extra room - office or guest bedroom, bathroom with a shower, a large boiler room – on gas or solid fuel. In the kitchen is additionally provided a small pantry. On the attic designed three nice bedrooms, with dressing rooms and built-in wardrobes, and a bathroom was planned. The interior can be freely shaped and shared. This house plan occurs in a version without a garage, but it is very easy to plan a single or double garage on the side of the house – you can get to the garage through the utility room. Very good thermal insulation, modern technologies used and facilities make the house is energy efficient. Thanks to this makes it not only cheap and easy to build, but also affordable at a later use. We have a mirror version of this house plan.

Specifications:
  • Cubature: 532 m3/ 18784,92 ft3
  • Built-up area: 94,48 m2 (with arcades : 102,50 m2)/1016,60 ft2 (1102,90 ft2 with arcades)
  • Total area: 158,59 m2/ 1706,43 ft2
  • Net area: 127,00 m2/ 1366,52 ft2
  • Usable area:
    • 121,93 m2 by PN-70/B-02365/ 1311,97 ft2 by PN-70/B-02365/
    • 127,00 m2 by PN-ISO 9836:1997/ 1366,52 ft2 by PN-ISO 9836:1997/
  • Roof area: 171,33 m2/ 1843,51 ft2
  • Roof slope: 42 degrees
  • Height of the building: 8,20 m (8,40 m with foundation )/26,90 ft (27,55 ft with foundation)
  • Wide of the building: 10,50 m/ 34,44 ft
  • Length of the building: 9,20 m/ 30,18 ft
  • Minimum plot width: 18,50 m/ 60,68 ft
  • Minimum plot length: 17,20 m/ 56,42 ft
  • Height of rooms: 2,6 m/ 8,53 ft
Materials:

• Foundations: concrete benches and foundation walls of concrete blocks
• External walls: brick walls - airbrick porotherm 25 + polystyrene + thin-layer plaster
• Ceiling: Teriva
• Elevations: thin-layer plaster on polystyrene
• Roofing: ceramic tile






The costs of implementing:
The raw state open 32 900,00 EUR
The raw state closed 48 400,00 EUR
The cost of finishing works 44 500,00 EUR
Execution of turnkey home 92 900,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Ideal - detailed file

House plan Ideal - detailed file - mirror

Comment
Ideal house plan 6398 Frya Lu
2015.08.26 1 Pozytywny komentarz Negatywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)

Ideal house plan 6399 Olloa
2015.08.26 1 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.

Ideal house plan 6400 Mijja Mazo
2015.08.26 1 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.
