Villa Julia 2 house plan

Usable area: 153.78 m2   /   The cost of the realization: 145 220 EUR

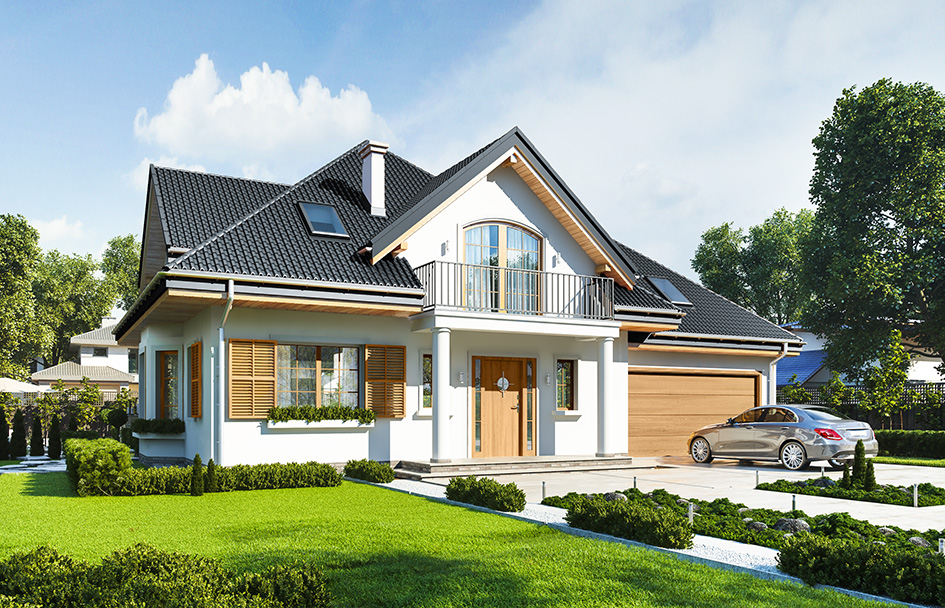

House plan Villa Julia - front visualization 2

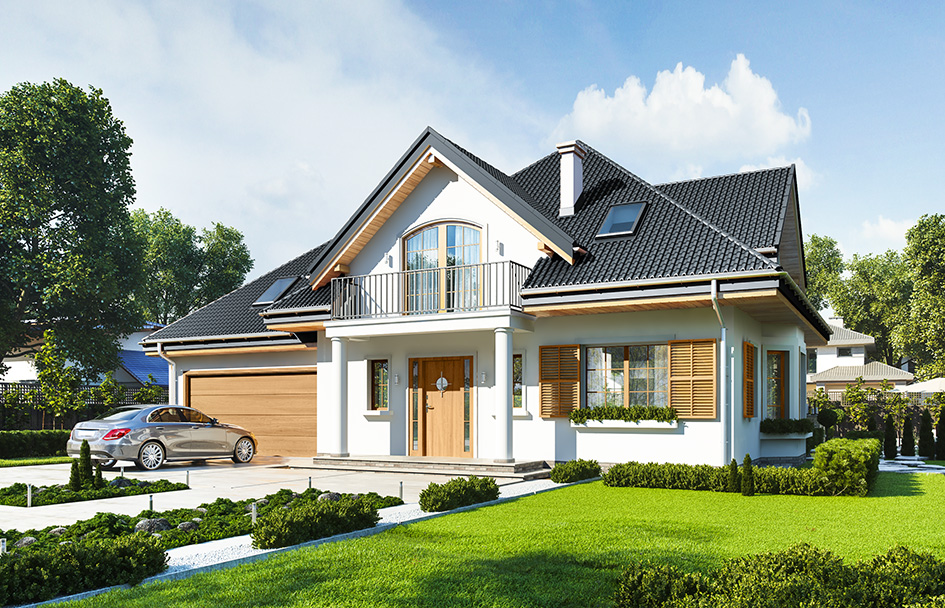

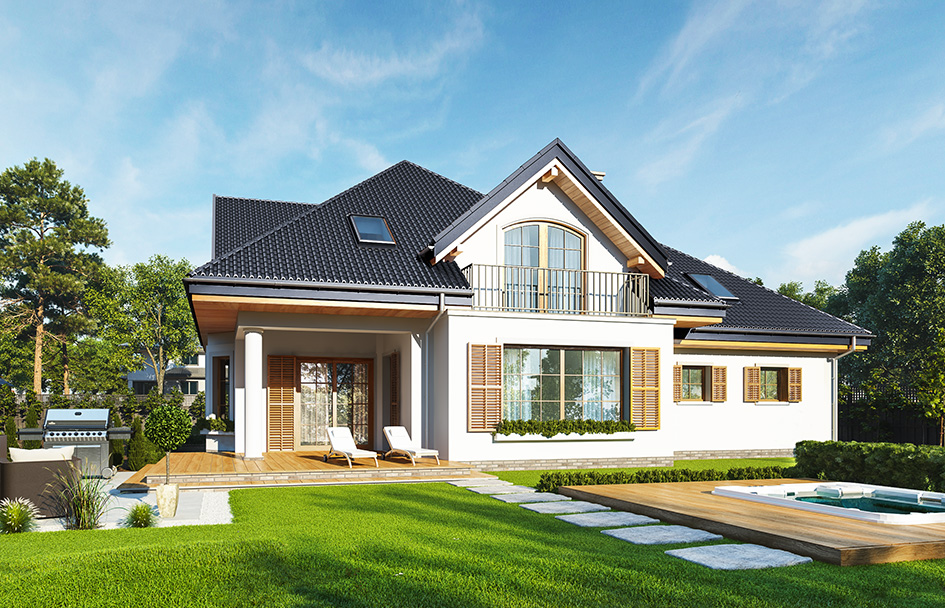

Show mirror image

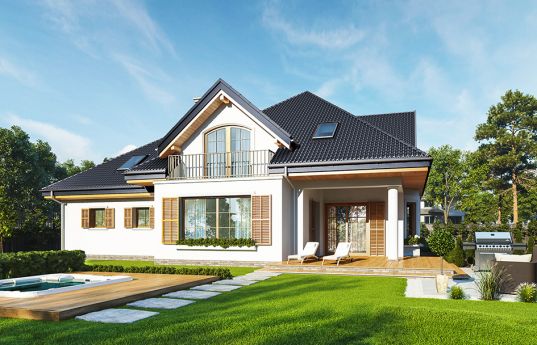

House plan villa Julia 2 is one of the two most recent versions of more popular house plan Julka. The houses are very similar to the original, we changed them a little bit, and improved some things, introducing solutions Investors building earlier Julka. Villa Julia 2 is a house with usable attic, with build another part of the garage with a large double garage. The house combines modern materials, details and technologies, from classic traditional form. Hipped roof varied by wide dormer windows, combined with the walls creates a proportional building with appropriate scale. We enter to the building through the entrance arcade with a balcony on the top floor, with columns at the sides. Through the wide doors we pass to the interior. Garden elevation is decorated by dormers with balcony, living room bay window with a beautiful large window, arcades in corner of the building and roofed part of the terrace. Black roof and white elevations give the building a clean and modern expression. The interior is designed on the ground floor a large open living space, with a living room, dining room, lobby with exposed staircase and a kitchen. Next to the vestibule was placed useful cloakroom, and on the other side of the extra room on the ground floor - a home office or a guest bedroom. Under the stairs we go to a large double garage with extra utility space and boiler room. In the attic we have four rooms, including parents' bedroom with dressing room, large bathroom, and a laundry with dryer. Villa Julia 2 is energy efficient building, very well insulated, with a compact bod. The house will be easy to build and inexpensive to use later.

Specifications:
  • Cubature: 711 m3/25105 ft3
  • Built-up area: 150,15 m2/1615,61 ft2
  • Total area: 237,52 m2/2555,72 ft2
  • Net area: 159,18 m2 + garage /1712,78 ft2 + garage
  • Usable area: 153,78 m2/1654,67 ft2
  • Roof area: 251,60 m2/2707,22 ft2
  • Roof slope: 40 degrees
  • Height of the building: 8,39 m (8,74 m with foundation)/27,52 ft (28,67 ft with foundation)
  • Building dimensions: 16,69 m/54,74 ft x 10,89 m/35,72 ft
  • Plot dimensions: 24,12 m/79,11 ft x 19,00 m/62,32 ft
  • Height of rooms: 2,7 m/8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls – brick walls – porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling - Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile




The costs of implementing:
The raw state open 47 670,00 EUR
The raw state closed 72 470,00 EUR
The cost of finishing works 72 760,00 EUR
Execution of turnkey home 145 220,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Villa Julia 2 - detail drawings

House plan Villa Julia 2 - detail drawings mirror
