Usable area: 127.88 m2 / The cost of the realization: 119 300 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (12) Detailed drawings
List of materials
Comments (3)

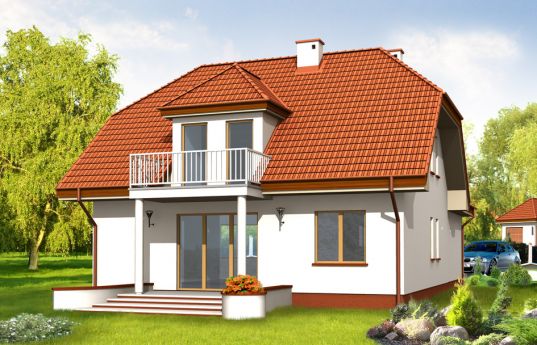

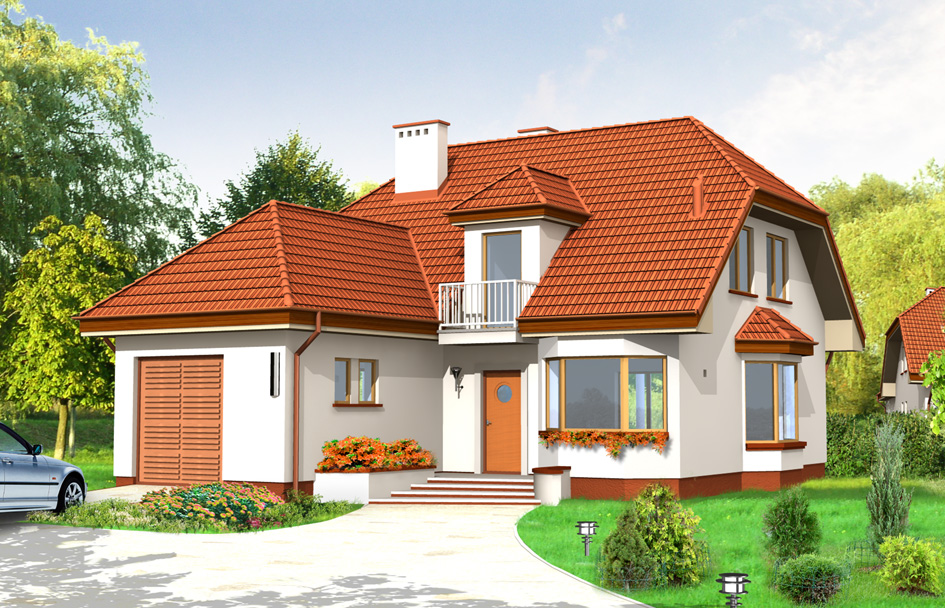

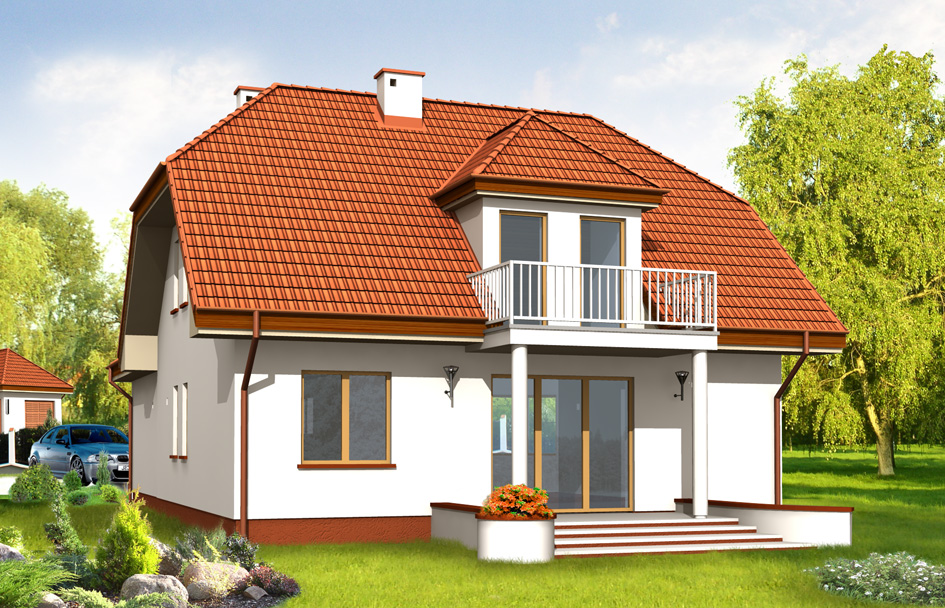

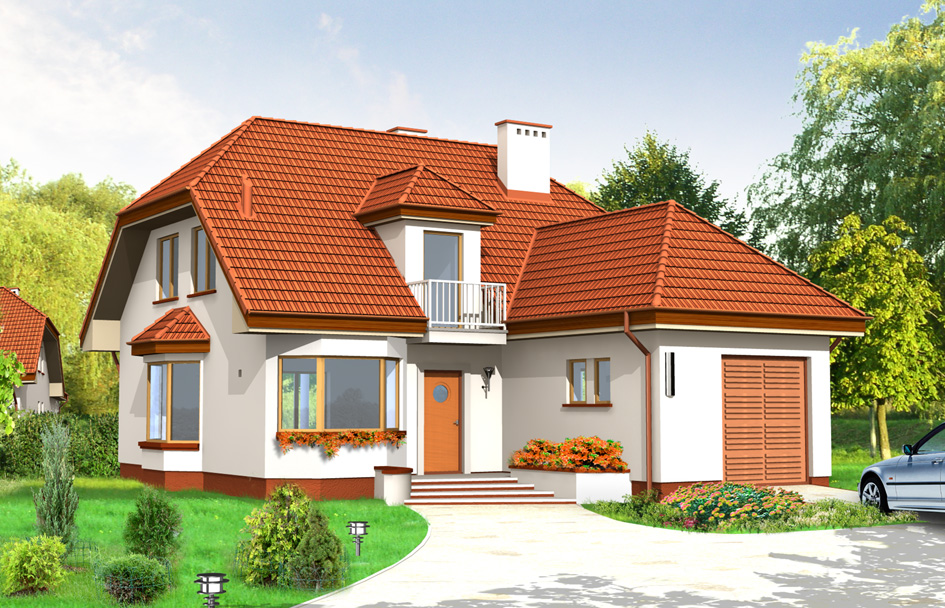

Cozy is a real suburban house, the seat of the happy family. The house emanates peace, stability, but also the joy and energy - all thanks to the combination of traditional elements with modern architecture. Body of the building with protruding garage perfectly blends into narrow plot. The interior of house was planned by separating the living area on the ground floor (where in addition to living room there is also a technical room and office and bathroom) from the bedroom in the attic. On the first floor there are three comfortable bedrooms, dressing room and bathroom. In this project each bedroom has a balcony. There is also available mirror version of this house plan.
Specifications:
- Cubature: 516 m3 / 18219,96 ft3
- Built-up area: 118,46 m2 / 1274,63 ft2
- Total area: 190,36 m2 / 2048,27 ft2
- Net area: 134,18 m2 + garage 21,37 m2 / 1443,78 ft2 + garage 229,94 ft2
-
Usable area:
- 127,88 m2 wg PN-70/B-02365 / 1375,99 ft2 wg PN-70/B-02365
- 134,18 m2 + garage wg PN-ISO 9836:1997 / 1443,78 ft2 + garage wg PN-ISO 9836:1997
- Roof area: 210,64 m2 / 2266,49 ft2
- Roof slope: 42 degrees
- Height of the building: 8,10 m (8,42 m with foundation) / 26,57 ft (27,62 ft with foundation)
- Wide of the building: 10,67 m / 34,99 ft
- Length of the building: 14,46 m / 47,43 ft
- Minimum plot width: 18,67 m / 61,24 ft
- Minimum plot lengthi: 23,36 m / 76,62 ft
- Height of rooms: 2,68 m / 8,79 ft
Materials:
- Foundations – poured reinforced concrete
- External walls – brick walls - aerated concrete + polystyrene or ceramic bricks + polystyrene
- Ceiling - reinforced concrete Teriva
- Elevation - thin-layer plaster
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 37 500,00 EUR |
| The raw state closed | 55 400,00 EUR |
| The cost of finishing works | 63 900,00 EUR |
| Execution of turnkey home | 119 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Cozy - detailed file
House plan Cozy - detailed file - mirror
