Usable area: 158.83 m2 / The cost of the realization: 118 700 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (19) Detailed drawings
List of materials
Comments (3)

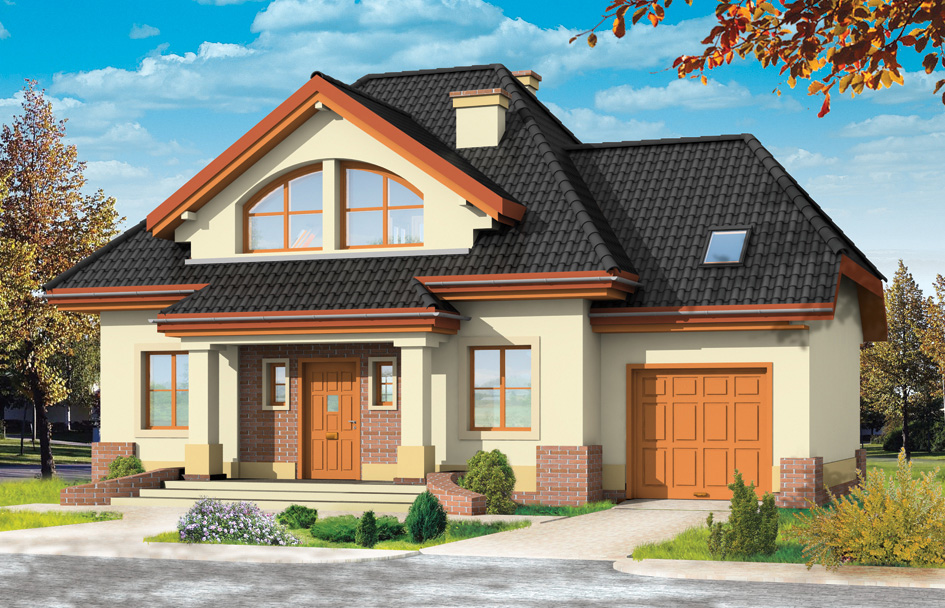

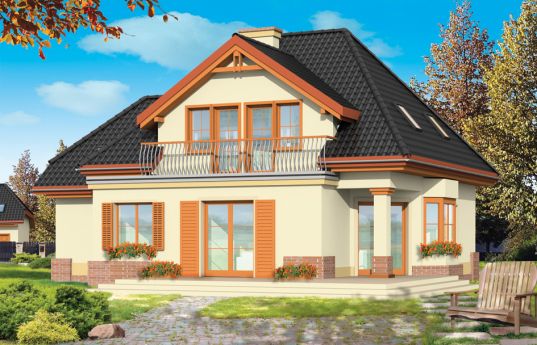

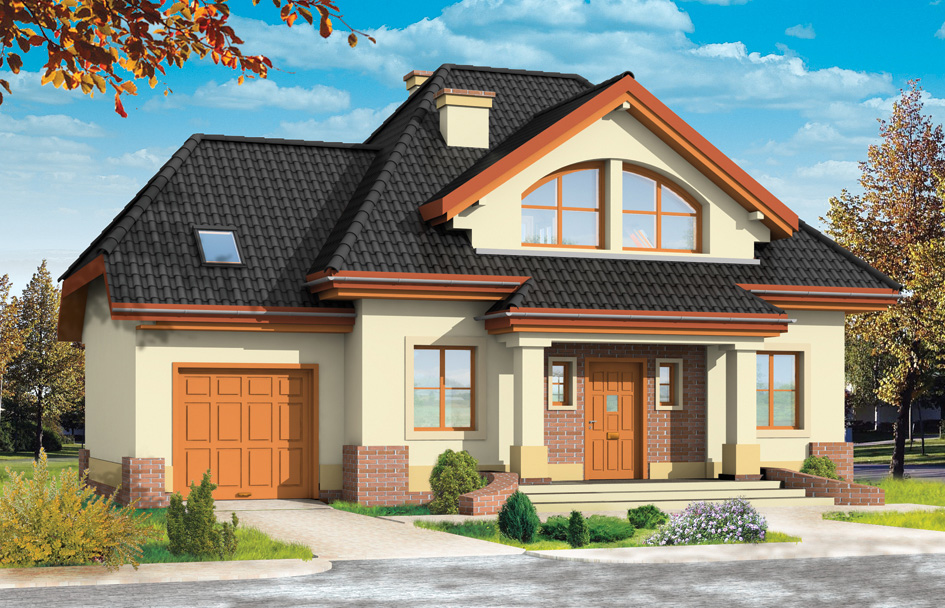

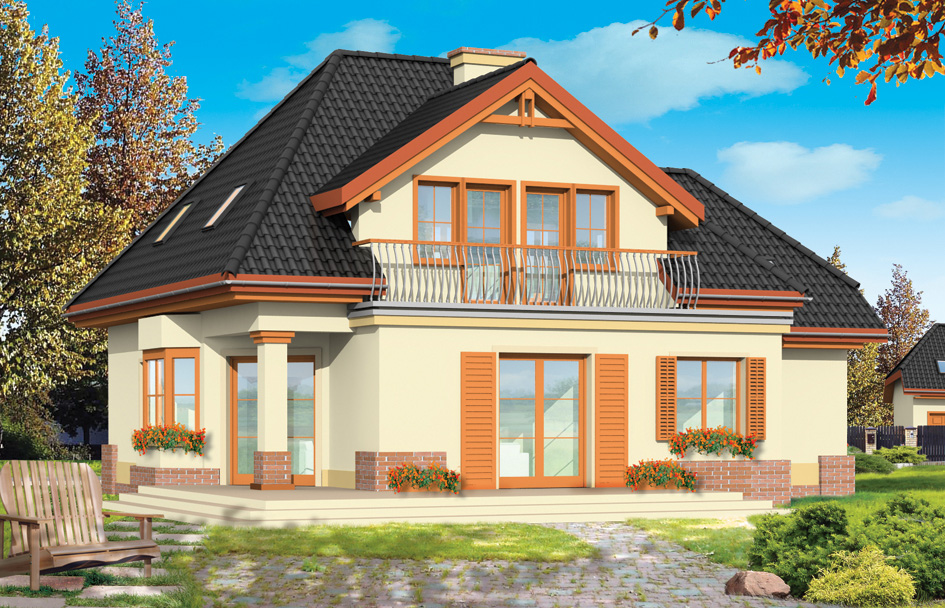

House on a medal 2 is a single version of the House on a medal, with a roof ended by pediment over the garage part. This is house plan is perfect for a family of 4 - 5 people. This house can be built even on a fairly narrow plot. Undivided interior of living room with dining area and lobby, and an extra room with a bathroom on the ground floor, and with three comfortable bedrooms on the attic (with minimal slants), create a comfortable place to live. In addition, the interior there are several auxiliary rooms - dressing rooms and lockers. The attic above the garage can be used as an attic or living space. There is also a mirror version of House on a medal 2.
Specifications:
- Cubature: 749 m3/ 26447,19 ft3
- Built-up area: 130,86 m2/ 1408,05 ft2
- Total area: 224,65 m2/ 2417,23 ft2
- Net area: 175,3 m2 + garage/ 1886,23 ft2
- Usable area: 158,83 m2/ 1709,01 ft2
- Roof area: 225,6 m2/ 2427,46 ft2
- Roof slope: 50, 40 and 34 degrees
- Height of the building: 8,42 m (8,73 m with foundation)/ 26,62 ft (28,63 ft with foundation)
- Wide of the building: 14,13 m / 46,35 ft
- Length of the building: 11,35 m / 37,26 ft
- Minimum plot width: 21,13 m / 69,30 ft
- Minimum plot length: 19,35 m / 63,47 ft
- Height of rooms: 2,70 i 2,60 m / 8,86 and 8,53 ft
Materials:
• Foundations - Concrete benches, walls of concrete blocks
• External walls - bilayer walls with porothermu
• Ceiling - Teriva
• Elevation - thin-layer plaste
• Roof - tile
The costs of implementing:
| The raw state open | 38 400,00 EUR |
| The raw state closed | 60 000,00 EUR |
| The cost of finishing works | 58 700,00 EUR |
| Execution of turnkey home | 118 700,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan House on a medal 2 - detailed file
House plan House on a medal 2 - detailed file - mirror
