Usable area: 150.21 m2 / The cost of the realization: 140 200 EUR
Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (2)
Realizations (54) Detailed drawings
List of materials
Comments (3)

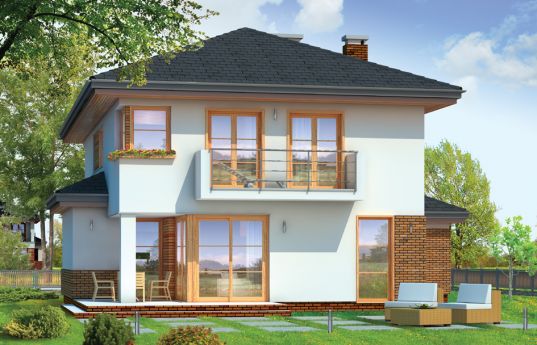

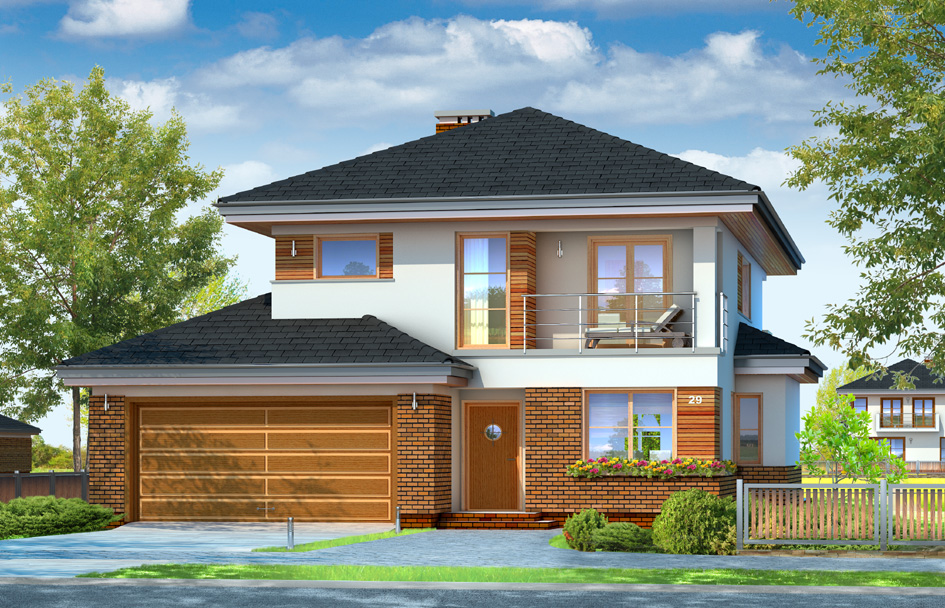

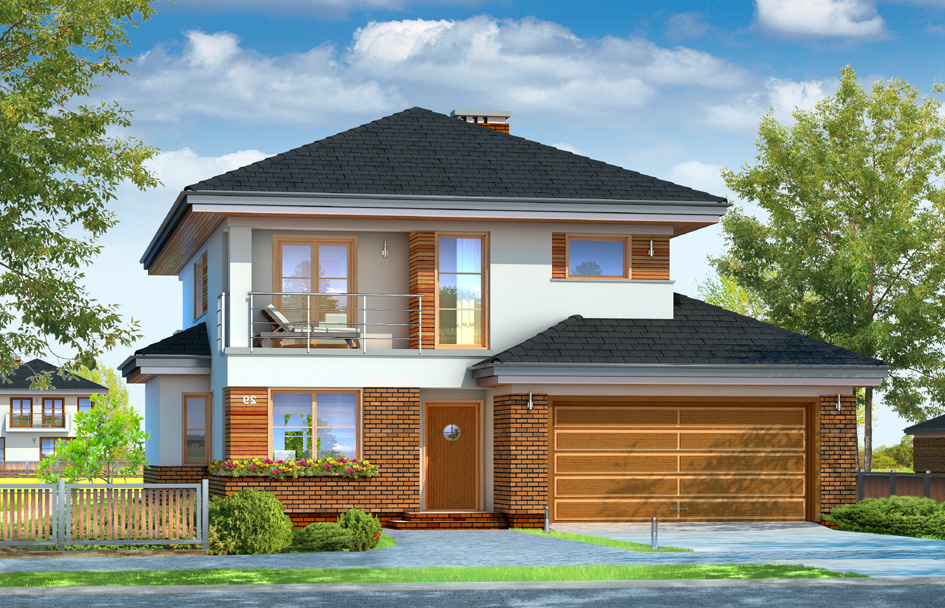

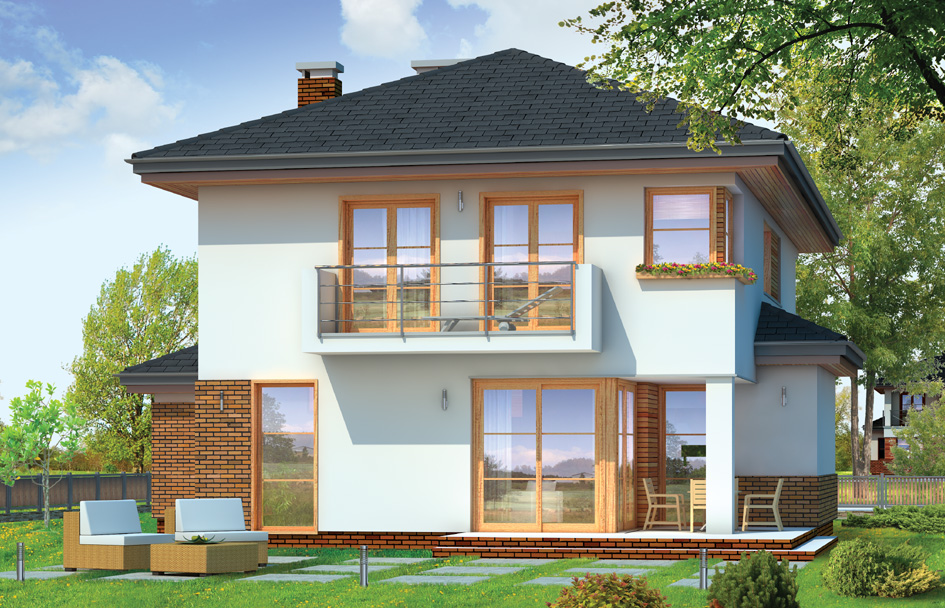

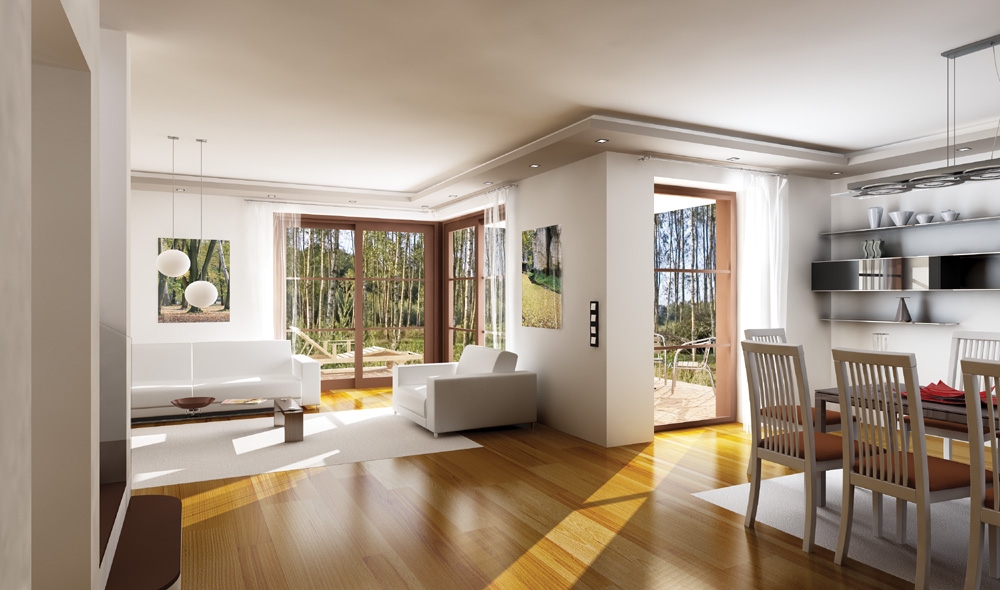

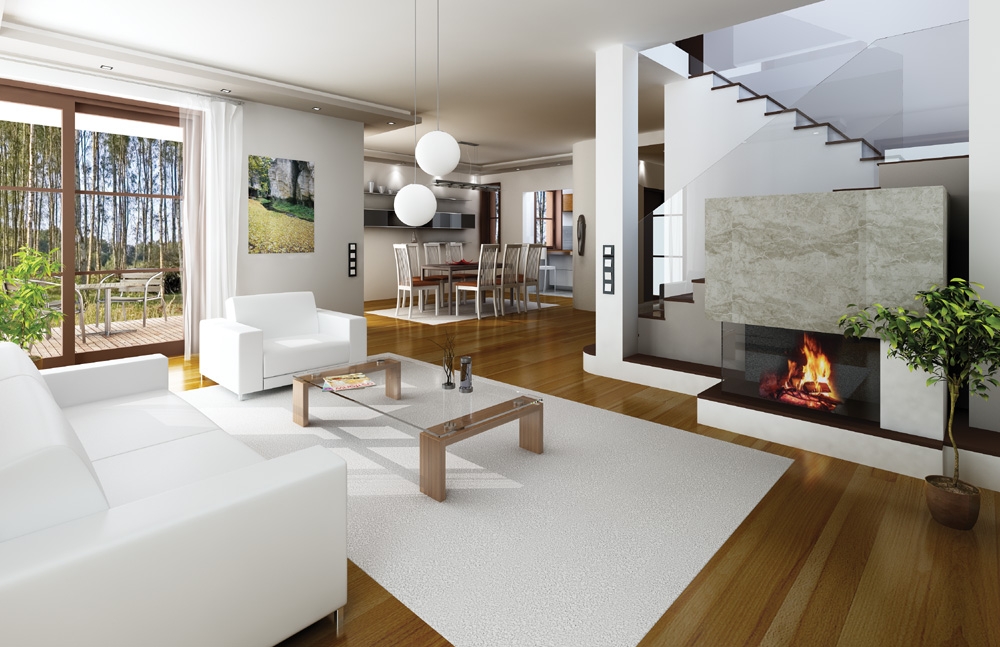

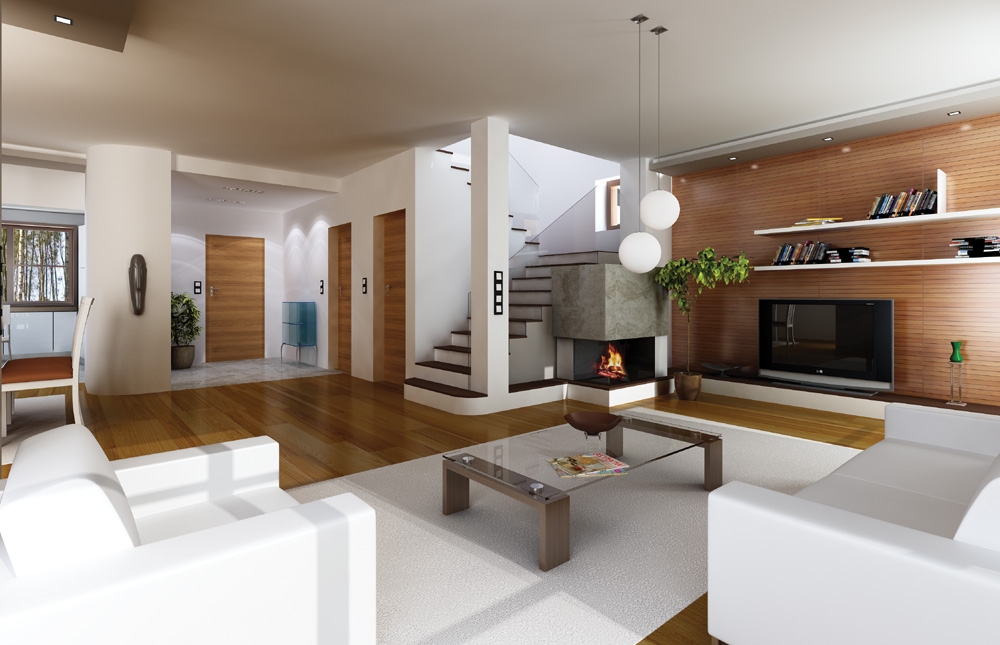

Cassiopeia 4 house plan is a variant version of the house plan Cassiopeia with an enlarged to two positions garage. The building is two-story, a bay window dining room, arcades, balconies and loggias. Modern architecture of the building is also toned, not overdo, what adds elegance to the house. The interior of the villa is divided into a living area on the ground floor - with a combined living and dining room, lounge and partially open kitchen, and bedrooms upstairs. On the ground floor there is also a garage and a boiler room. On the first floor has managed to save a separate apartment for parents, with its own bathroom and dressing room, and children's bedrooms with a bathroom accessible from the hall. Additionally, a fourth room, can be freely arranged - a bedroom, office, or, for example laundry and drying room. The house is full of light, has a lot of glass from floor to ceiling - especially in the open to the garden living room. Partly covered terrace is a real extension of the house Cassiopeia 4 house plan has also a mirror version.
Specifications:
- Cubature: 736 m3 / 25988,16 ft3
- Built-up area: 144,83 m2 / 1558,37 ft2
- Total area: 255,87 m2 / 2753,16 ft2
- Net area: 163,95 m2 + garage / 1764,10 ft2 + garage
- Usable area: 150,21 m2 / 1616,26 ft2
- Roof area: 221,19 m2 / 2380,00 ft2
- Roof slope: 25 degrees
- Height of the building: 8,25 m (8,55 m with foundation) / 27,06 ft (28,04 ft with foundation)
- Wide of the building: 12,65 m / 41,49 ft
- Length of the building: 14,94 m / 49,00 ft
- Minimum plot width: 18,65 m / 61,17 ft
- Minimum plot length: 22,94 m / 75,24 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
- Foundations - concrete benches and foundation walls with concrete blocks
- Exterior walls - brick walls - airbricks porotherm 25 + polystyrene + plaster thin
- Ceiling – TERIVA
- Elevation - thin-layer plaster on polystyrene
- Roof – tile
The costs of implementing:
| The raw state open | 43 500,00 EUR |
| The raw state closed | 67 300,00 EUR |
| The cost of finishing works | 72 900,00 EUR |
| Execution of turnkey home | 140 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Cassiopeia 4 - detailed file
House plan Cassiopeia 4 - detailed file - mirror
Related Projects
2013.12.11 0
I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
2012.02.07 0
Hi all, I see that this house plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.
2012.02.07 0
I must admit that the area the house is fantastic and every functional. This is a very shapely and interesting house plan.
