Cassiopeia house plan

Usable area: 153.8 m2   /   The cost of the realization: 130 700 EUR

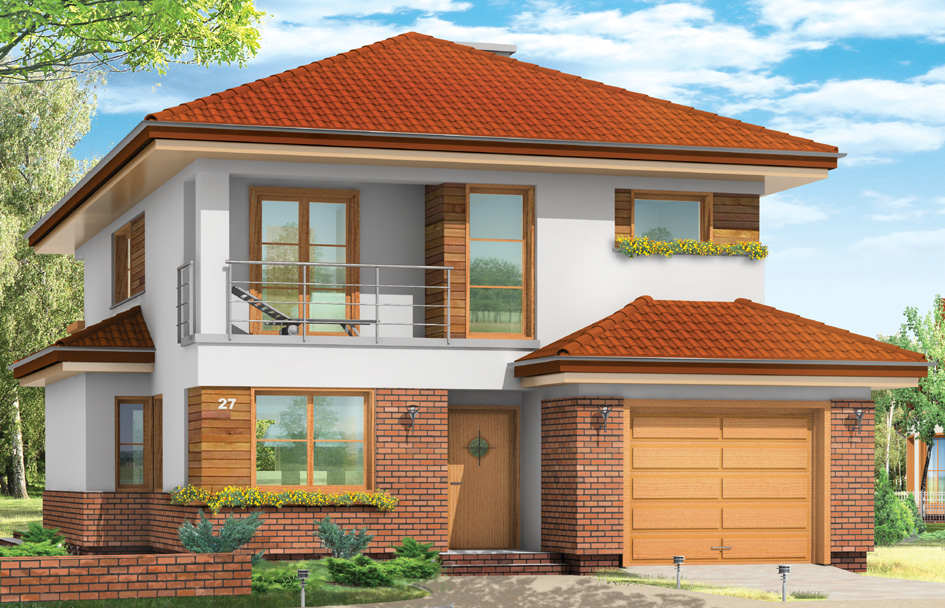

House plan  Cassiopeia - front visualization

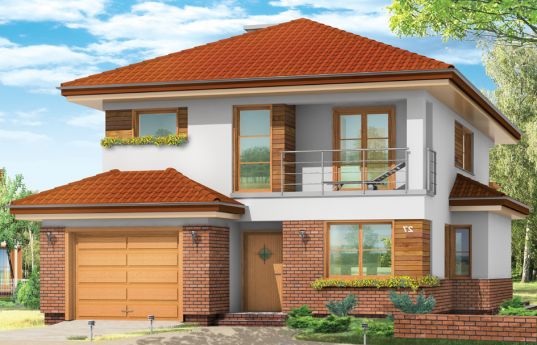

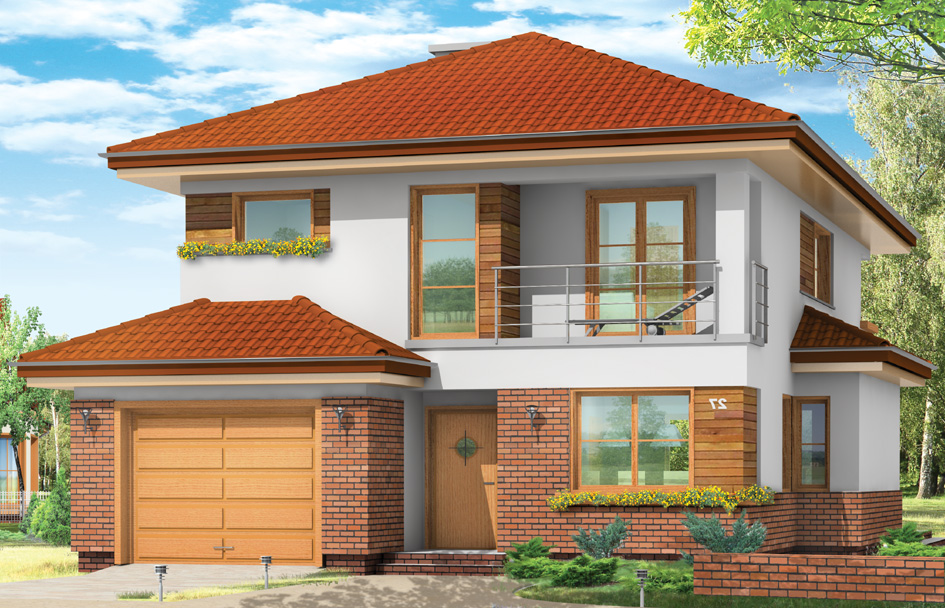

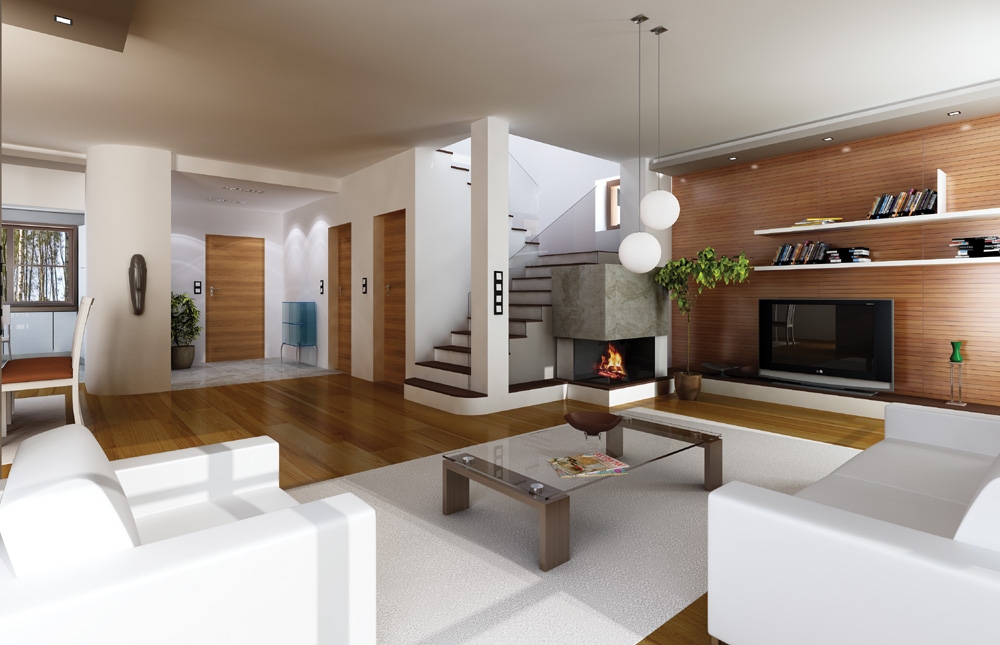

Show mirror image

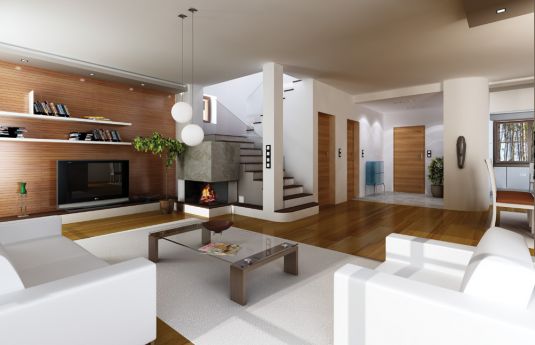

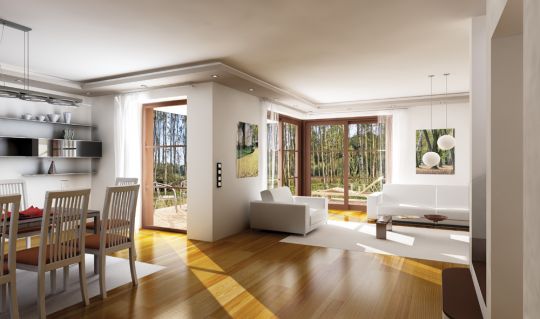

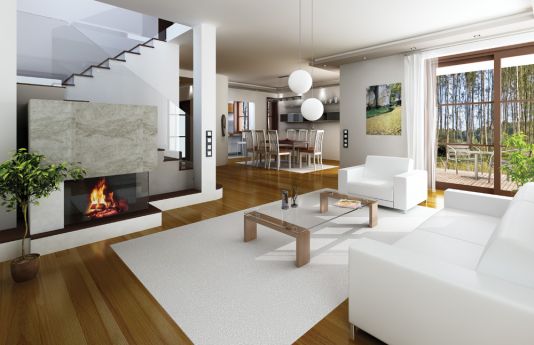

Cassiopeia is house suitable for a family of 4-5 people. The building was designed as a storey house, covered with a hipped roof with the garage partly embedded in the main body of house. A simple form of home in the form of a rectangular prism was varied protruding bay windows and roofs, as well as arcades, balconies and loggia. House undoubtedly will appeal to customers who take delight in modern architectural forms, but with a degree of conservatism. The shape of Cassiopeia house allows also place the house plan on a narrow plot. The interior of the ground floor are: living area consisting of a living room with dining area, lounge area, partly open kitchen and utility room and garage. On the first floor are: parent’s apartment with bathroom, dressing room and balcony, two children’s bedrooms with a  bathroom. Additionally there is a room that can be used as an office to work, or possibly a guest bedroom or large dressing room. Cassiopeia house plan has also a mirror version.

  • Cubature: 736 m3 / 25988,16 ft3
  • Built-up area: 126,99 m2 / 1366,41 ft2
  • Total area: 237,92 m2 / 2560,02 ft2
  • Net area: 160,37 m2 + garage  / 1725,58 ft2 + garage
  • Usable area: 153,8 m2 / 1654,89 ft2
  • Roof area: 205,79 m2 / 2214,30 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,25 m (8,55 m with foundation) / 27,06 ft (28,04 ft with foundation)
  • Wide of the building: 10,57 m / 34,67 ft
  • Length of the building: 14,94 m / 49,00 ft
  • Minimum plot width: 16,57 m / 54,35 ft
  • Minimum plot length: 22,94 m / 75,24 ft
  • Height of rooms: 2,70 m / 8,86 ft
  • Foundations - poured concrete
  • External walls - bilayer porotherm 25 + 20 polystyrene (or mineral wool)
  • Ceiling – TERIVA
  • Elevation - thin-layer plaster on polystyrene
  • Roof – tile or metal tile



The costs of implementing:
The raw state open 46 200,00 EUR
The raw state closed 67 200,00 EUR
The cost of finishing works 63 600,00 EUR
Execution of turnkey home 130 700,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Cassiopeia - detailed file - mirror

House plan Cassiopeia - detailed file

Cassiopeia house plan 1705 sarenkA
2012.03.01 0 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Cassiopeia house plan 1703 RafiW
2012.02.10 0 Pozytywny komentarz Negatywny komentarz

Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.

Cassiopeia house plan 431 Quizer
2012.02.07 1 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.
