Cassiopeia 3 house plan

Usable area: 172.7 m2   /   The cost of the realization: 148 300 EUR

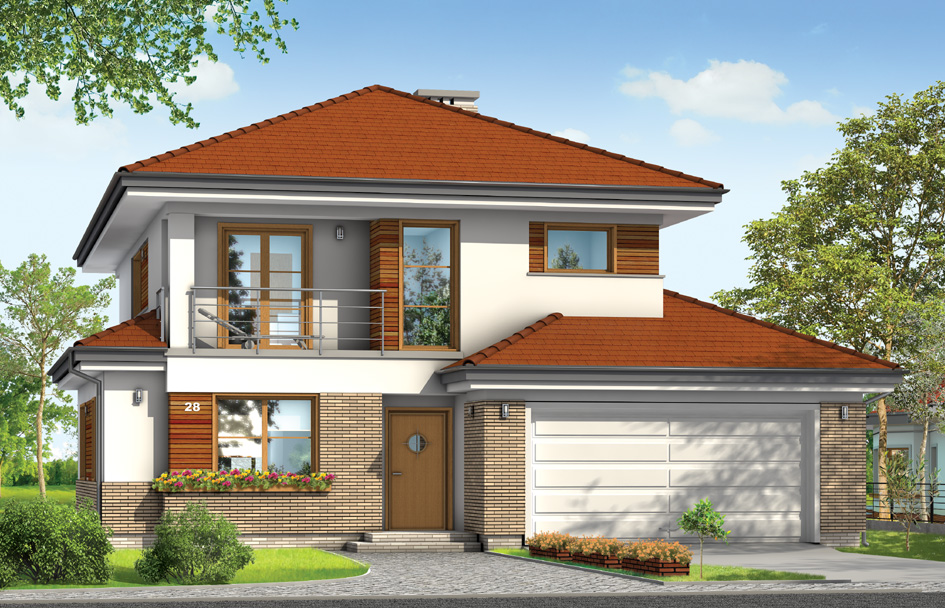

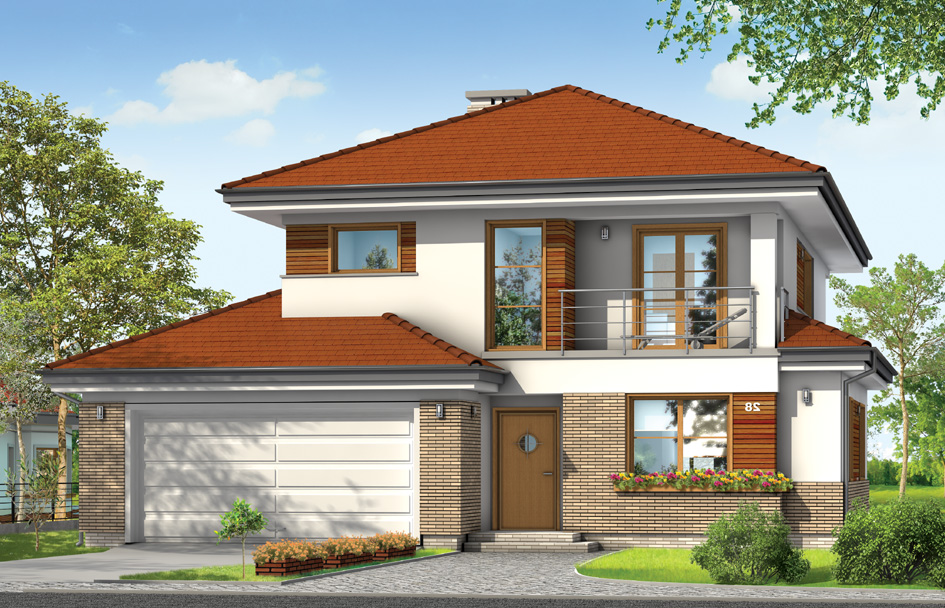

House plan Cassiopeia 3 - front visualization

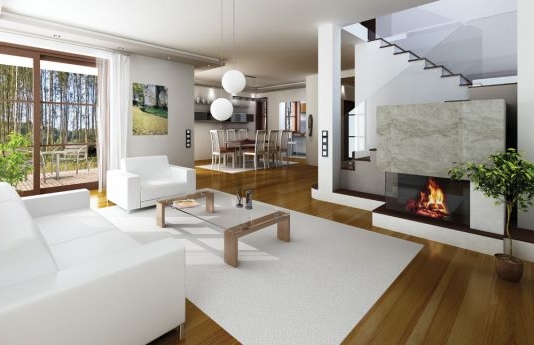

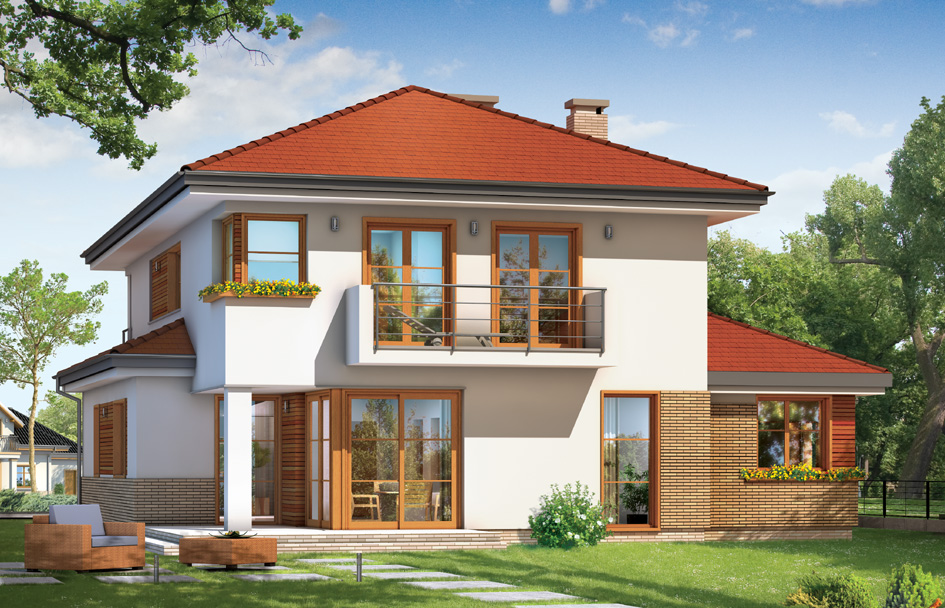

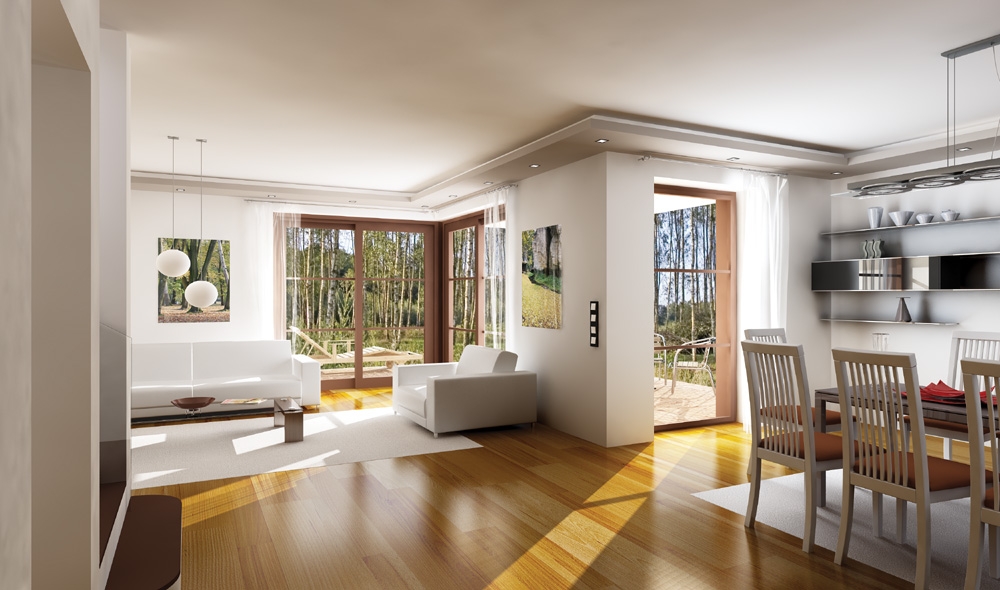

Show mirror image

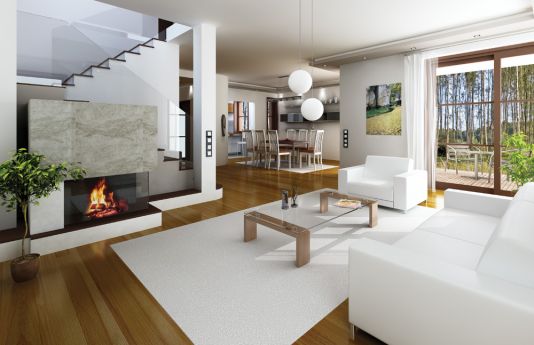

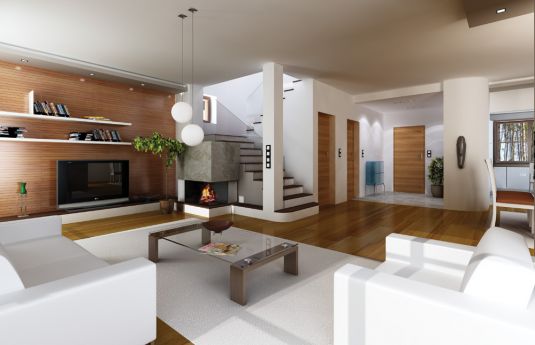

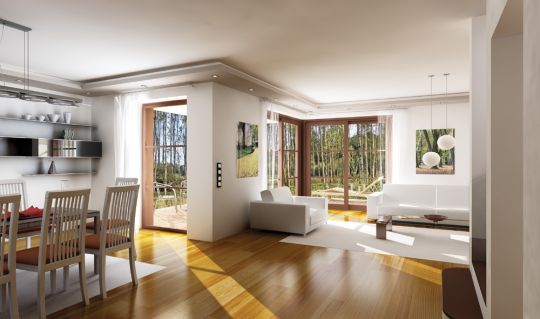

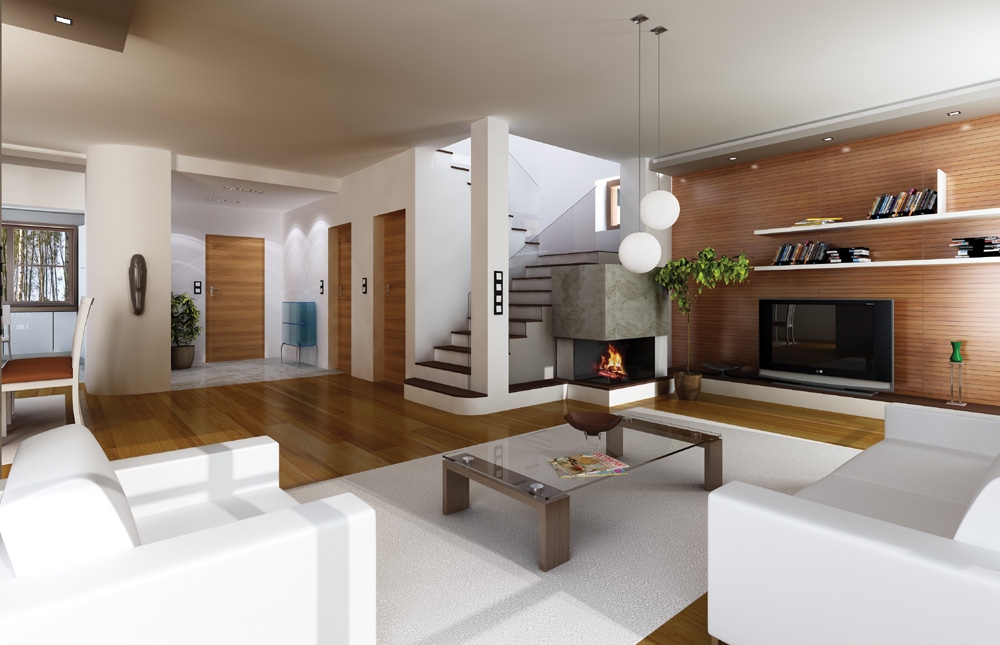

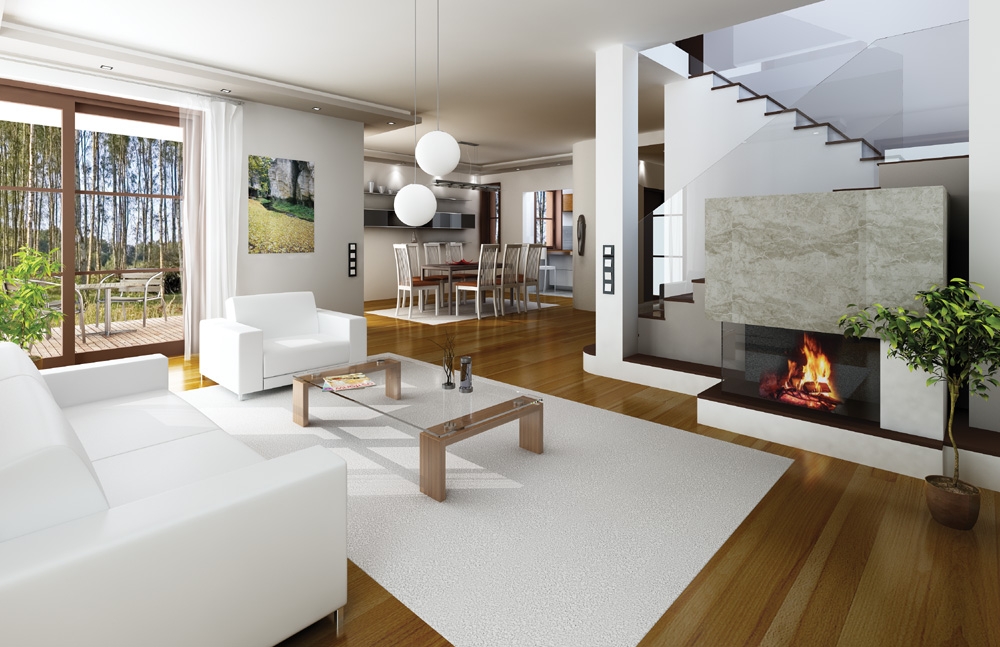

Cassiopeia 3 is house suitable for a family of 4-6 people. Two-storey house was covered by hipped roof.  A  compact and a simple form of house with the garage built in was varied by clinker facing and arcades - the entrance and garden. The project house we put special emphasis on the purity and simplicity of form building. Frugal detail block adds elegance. The interior is also planned so that the rooms were clear divisions - no corridors, and the rooms themselves were spacious and had optimal shape. The interior of the ground floor are: living area consisting of a living room with dining area, lounge area, partly open kitchen and utility room and garage. On the first floor are: three bedrooms with dressing rooms and built in wardrobes and the large bathroom. Additionally there is a possibility to economize an additional fourth room on the first floor by delated a dressing room. Cassiopeia 3 house plan has also a mirror version.

  • Cubature: 792 m3 / 27965,52 ft3
  • Built-up area: 166,24 m2 / 1788,74 ft2
  • Total area: 277,35 m2 / 2984,29 ft2
  • Net area: 183,89 m2 + garage / 1978,66 ft2 + garage
  • Usable area: 172,7 m2 / 1858,25 ft2
  • Roof area: 250,68 m2 / 2697,32 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,25 m (8,55 m with foundation) / 27,06 ft (28,044 ft with foundation)
  • Wide of the building: 12,65 m / 41,49 ft
  • Length of the building: 14,94 m / 49,00 ft
  • Minimum plot width: 20,65 m / 67,73 ft
  • Minimum plot length: 22,94 m / 75,24 ft
  • Height of rooms: 2,7 m / 8,86 ft
  • Foundations - concrete benches and foundation walls with concrete blocks
  • Exterior walls - brick walls - airbricks porotherm 25 + polystyrene + plaster thin
  • Ceiling – TERIVA
  • Elevation - thin-layer plaster on polystyrene
  • Roof – tile



The costs of implementing:
The raw state open 45 400,00 EUR
The raw state closed 71 100,00 EUR
The cost of finishing works 77 300,00 EUR
Execution of turnkey home 148 300,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Cassiopeia 3 - detailed file

House plan Cassiopeia 3 - detailed file - mirror

Cassiopeia 3 house plan 3055 Sebastian Zatruty
2012.10.01 4 Pozytywny komentarz Negatywny komentarz

This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)

Cassiopeia 3 house plan 1716 Patysia
2012.03.05 0 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.

Cassiopeia 3 house plan 437 Wacek_Nikodem
2012.02.07 0 Pozytywny komentarz Negatywny komentarz

I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.
