Helios house plan

Usable area: 157.19 m2   /   The cost of the realization: 143 300 EUR

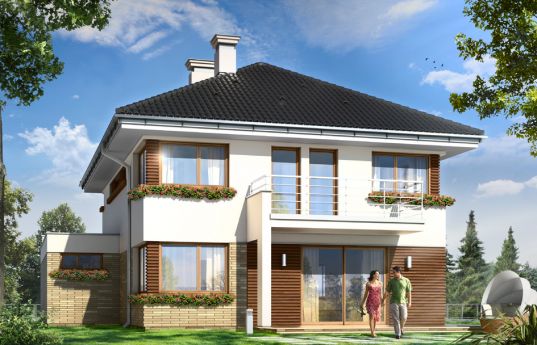

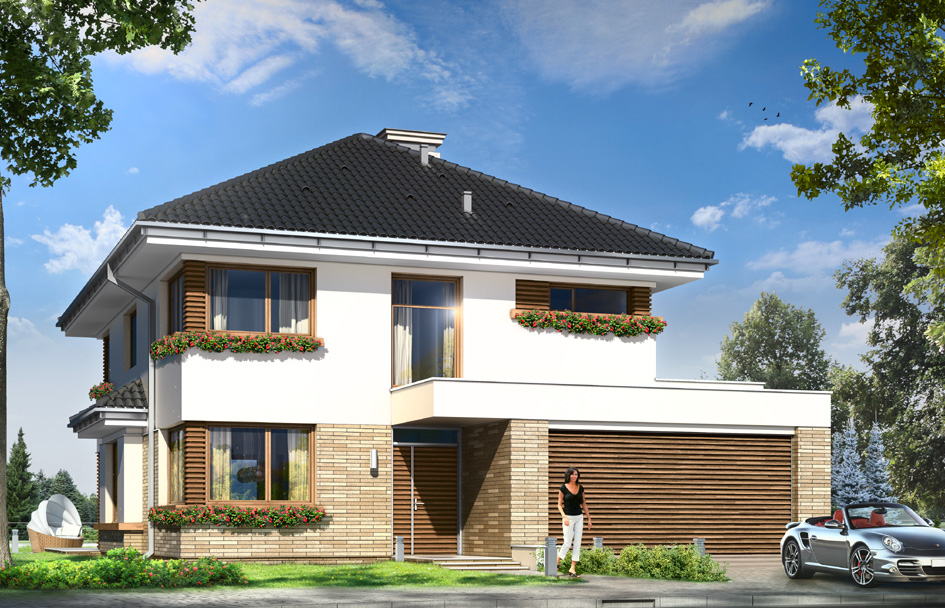

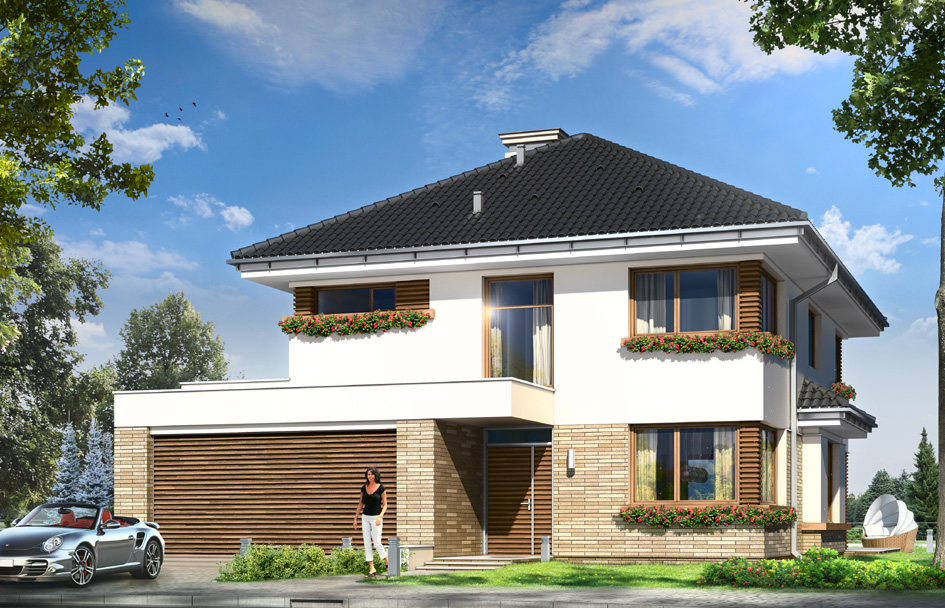

House plan Helios - front visualization

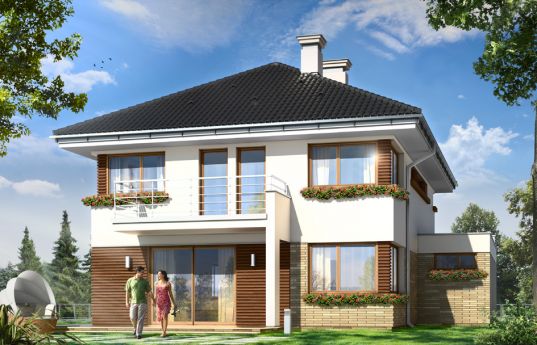

Show mirror image

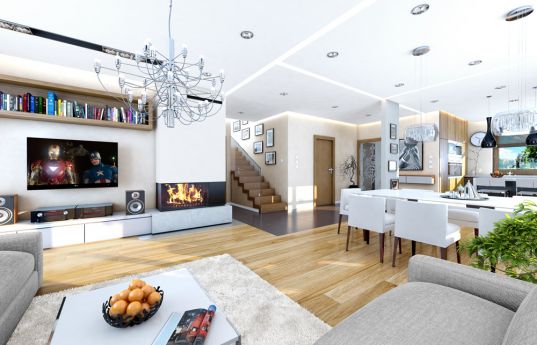

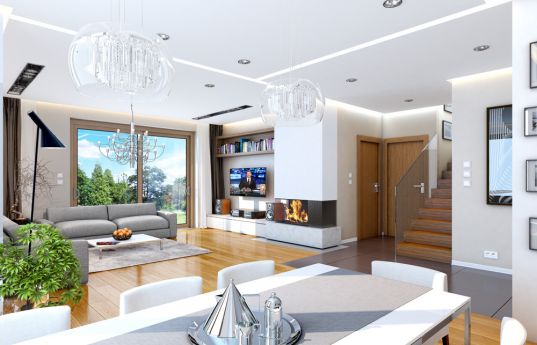

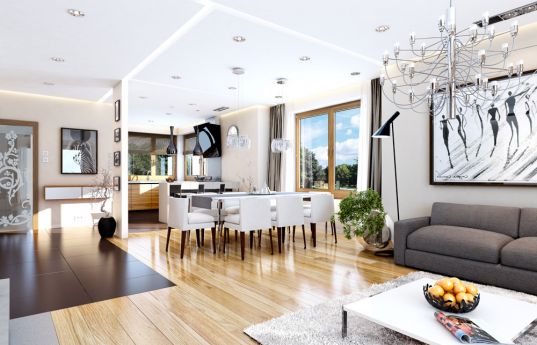

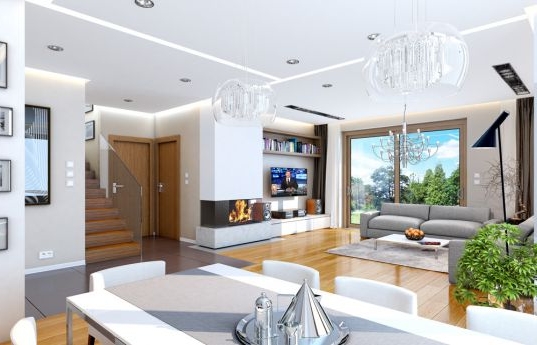

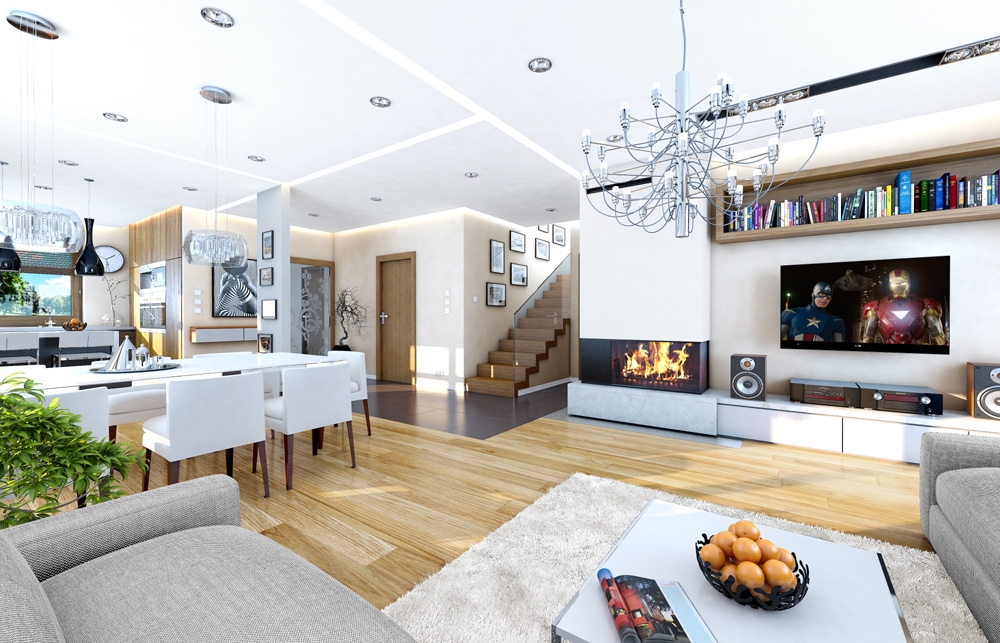

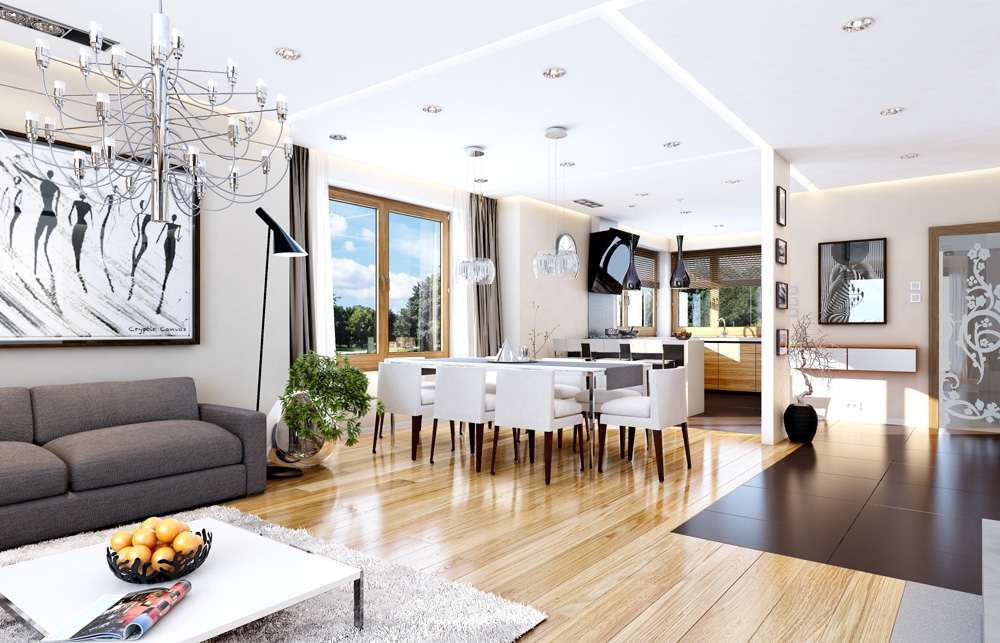

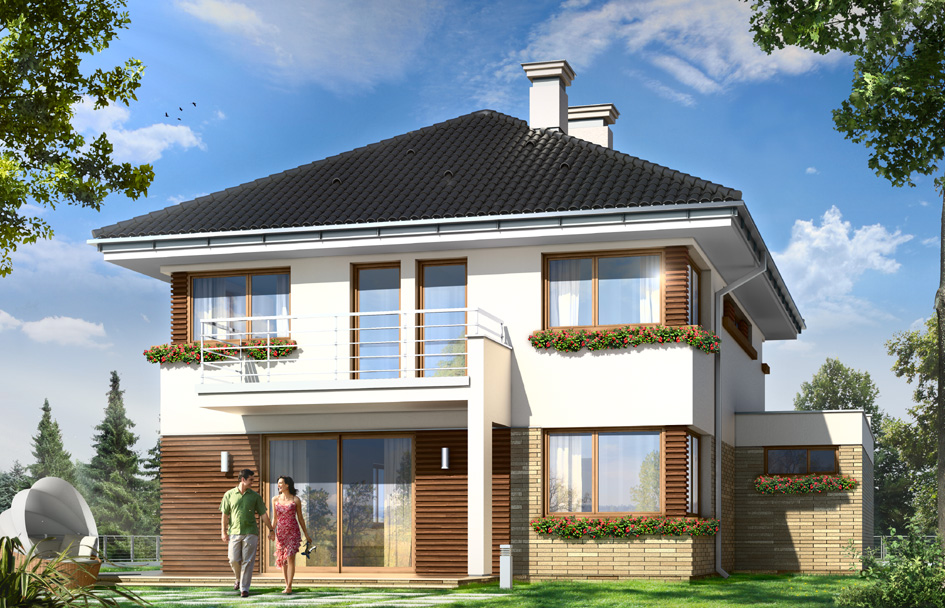

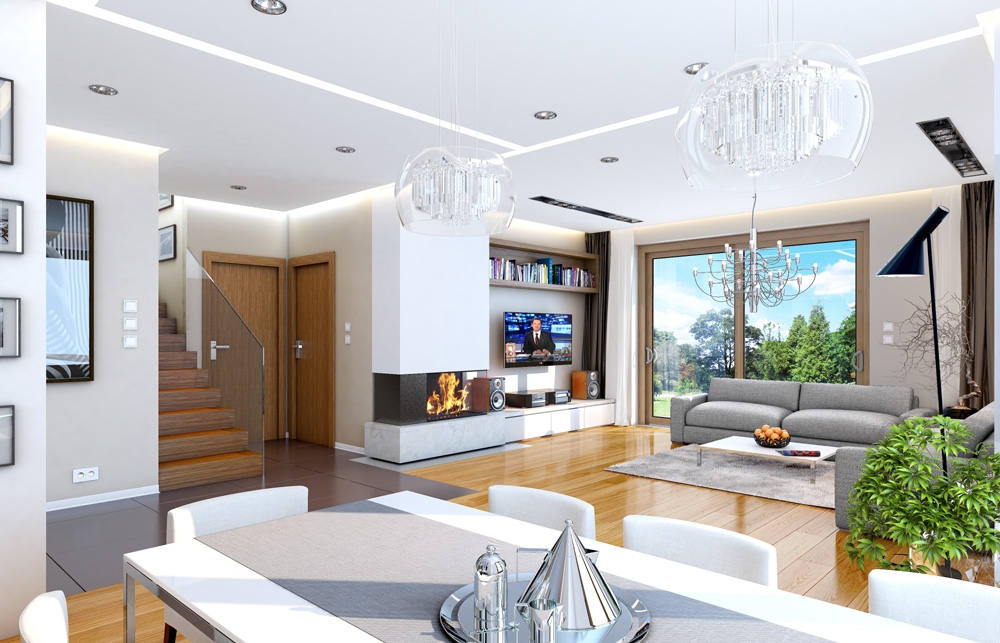

Helios house plan is a charming storey house for a family of 4 – 5 people. This is a proposal for investors who like modern architecture, who did not give up the functionality and comfort of your house. Storeyed building block was covered with a hipped roof and partly built garage was crowned with a flat roof. Well-chosen architectural details, nicely spaced windows, wooden and brick cladding on the walls - all this creates an attractive appearance of the house. The interior is an open living area on the ground floor, with a living room, a hall with nicely harmoniously placed stairs, dining area and kitchen, and bedrooms on the floor of the house. On the ground floor of the house an extra room - office or guest bedroom, and a garage with a boiler room was designed. On the first floor there is an parent’s apartment with bathroom and dressing room, children's bedroom with a private bathroom, and an extra room. Helios house plan is also available in the mirror version.

  • Cubature: 907 m3/32026,17 ft3
  • Built-up area: 145,98 m2/ 1570,74 ft2
  • Total area: 259,08 m2/ 2787,70 ft2
  • Net area: 168,21 m2 + garage/ 1809,94 ft2+ garage
  • Usable area: 157,19 m2/ 1691,36 ft2
  • Roof area: 175,48 m2 + 34,12 m2 (flat roof)/ 1885,04 ft2 + 367,13 ft2 (flat roof)
  • Roof slope: 30 degrees
  • Height of the building: 8,80 m (9,00 m with foundation)/ 28,86 ft (29,52 ft with foundation)
  • Wide of the building: 12,02 m/ 39,43 ft
  • Length of the building: 14,72 m/ 48,28 ft
  • Minimum plot width: 19,02 m/ 62,39 ft
  • Minimum plot length: 23,4 m/ 76,75 ft
  • Height of rooms:  2,7 and 2,5 m/ 8,86 ft and 8,2 ft
  • Foundations: concrete benches and foundation walls of concrete blocks
  • External walls: brick walls - airbrick porotherm 25 + polystyrene + thin-layer plaster
  • Ceiling: Teriva
  • Elevations: thin-layer plaster on polystyrene
  • Roofing: ceramic tile


The costs of implementing:
The raw state open 47 200,00 EUR
The raw state closed 69 100,00 EUR
The cost of finishing works 74 200,00 EUR
Execution of turnkey home 143 300,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Helios - detailed file

House plan Helios - detailed file - mirror

Helios house plan 3024 Mimii Lu
2012.09.30 1 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Helios house plan 1546 Gaomi
2012.03.03 0 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Helios house plan 1544 Biobill
2012.03.02 0 Pozytywny komentarz Negatywny komentarz

This is a hit project. I appeal to people who have already built it or are during the building of the opportunity to see it in live. Thank you in advance!
