Opal house plan

Usable area: 181.39 m2   /   The cost of the realization: 162 600 EUR

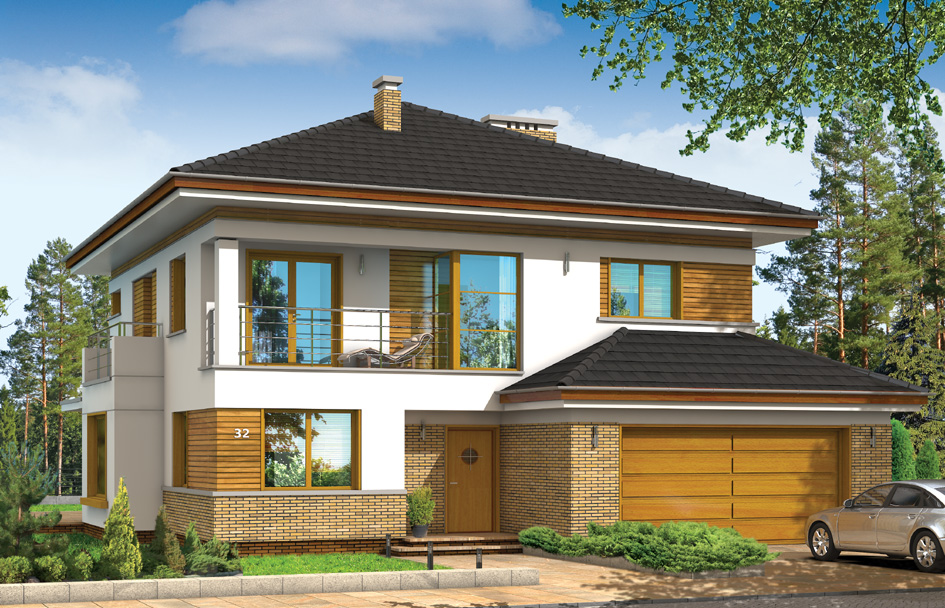

House plan Opal - front visualization

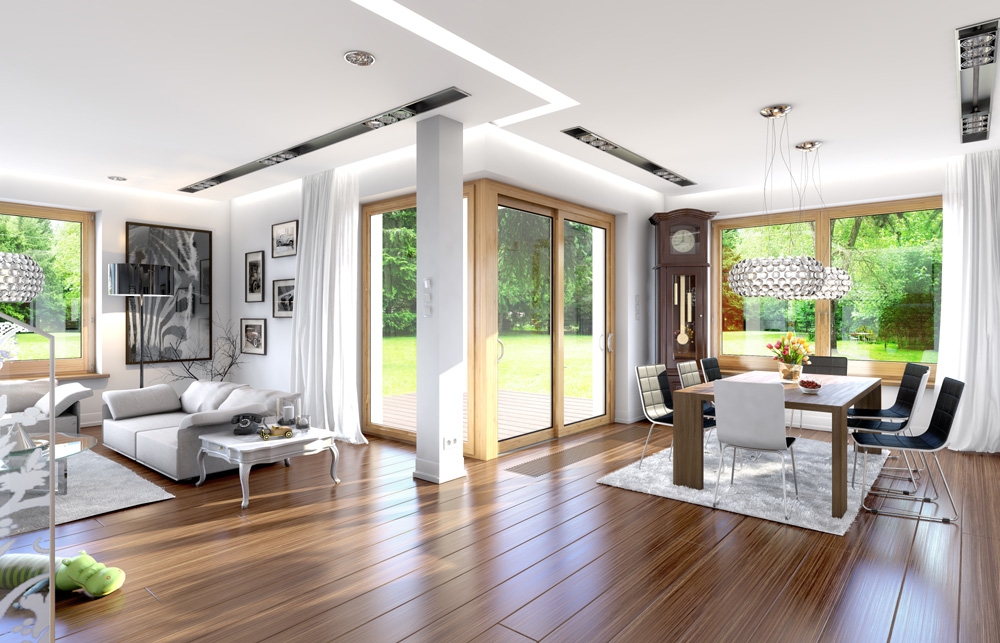

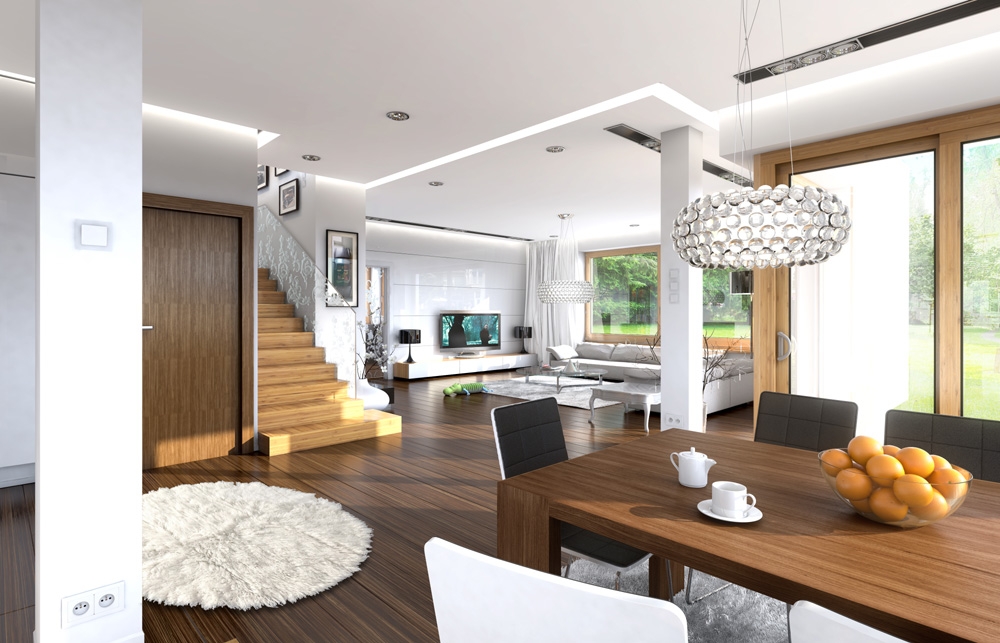

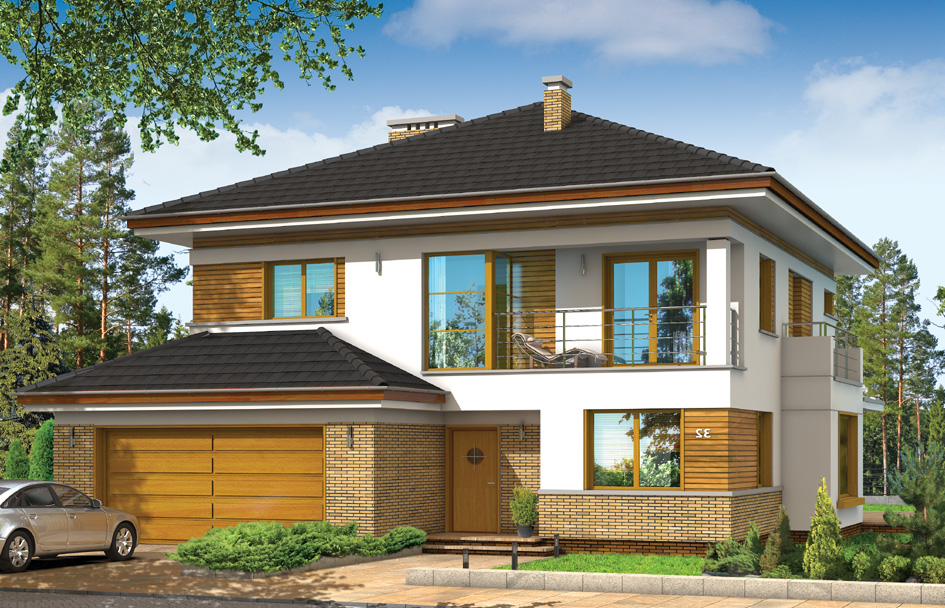

Show mirror image

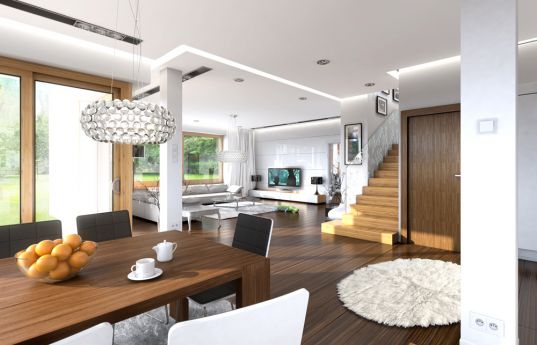

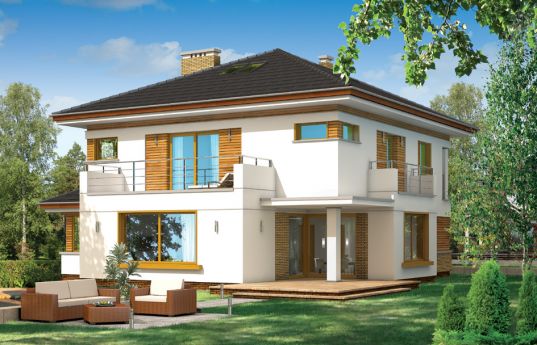

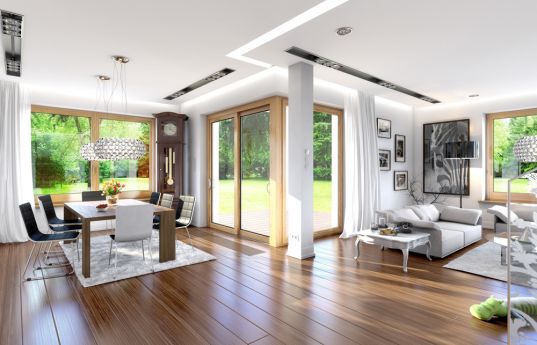

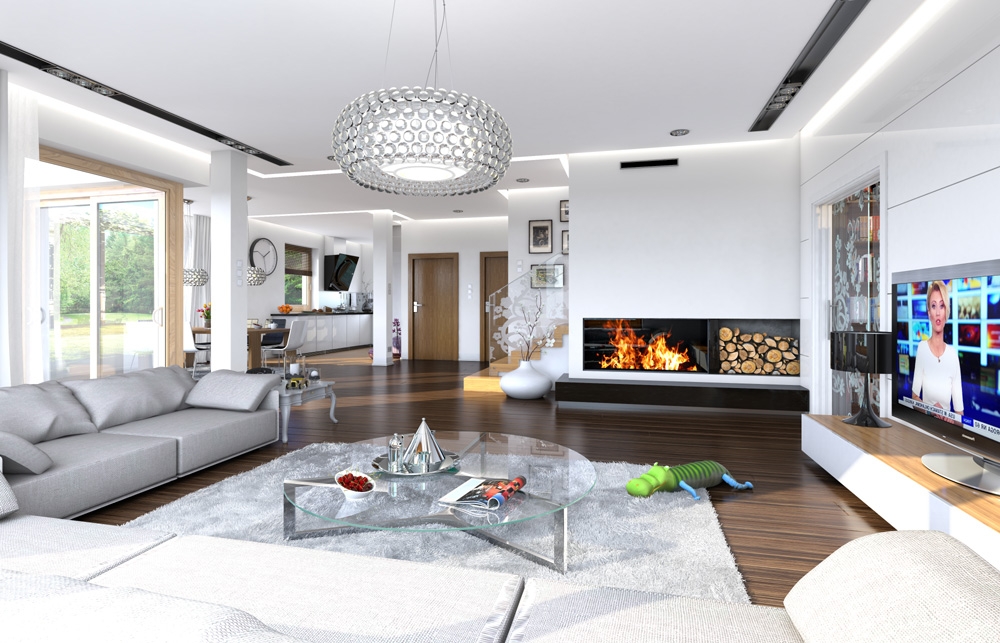

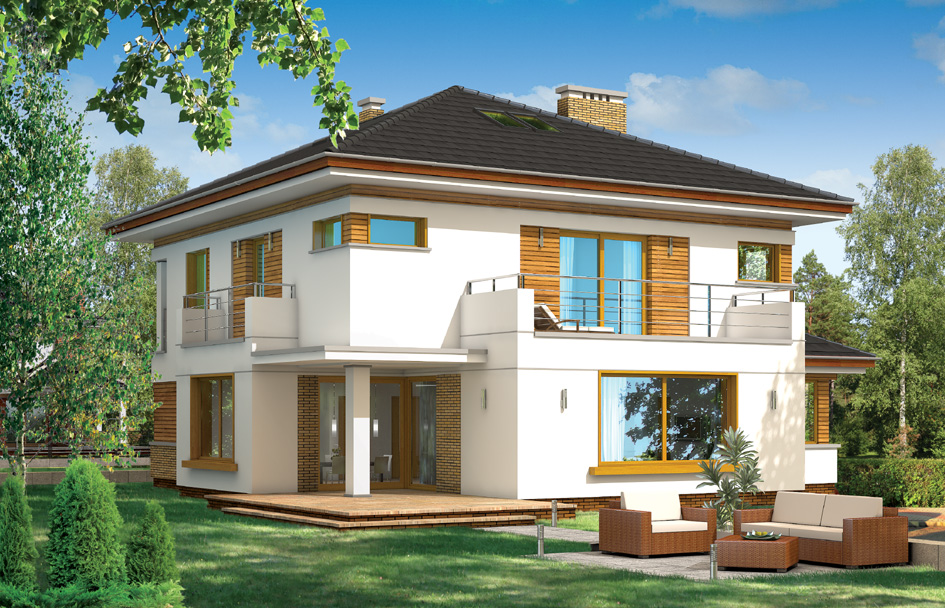

Opal house plan has been created for a family of four to five people. House is storey urban villa with modern architecture, covered by a hipped roof. The compact body of the building with a built garage and an arcade from the garden, was curiously decorated with clinker and wooden cladding façade and loggias, arcade entrance and large balcony behind the house. All elements form a coherent and calm whole. On the ground floor there was designed a large room in a shape similar to a square, with dining room and hall, with a partially open kitchen and an extra room - study or a guest bedroom. The location of the stairs in a central place will provide additional interior decoration of open ground.  On the first floor there are bedrooms with a separate apartment parents, with its own bathroom, dressing room and large balcony-terrace overlooking the garden. On the first floor, if necessary, you can save an additional fourth bedroom - instead laundry and wardrobe. There is also available a mirror version of this house plan.

  • Cubature: 851 m3 / 30048,81 ft3
  • Built-up area: 170,95 m2 / 1839,42 ft2
  • Total area: 293,78 m2 / 3161,07 ft2
  • Net area: 190,68 m2 + garage / 2051,72 ft2 + garage
  • Usable area: 181,39 m2 / 1951,76 ft2
  • Roof area: 235,98 m2 / 2539,14 ft2
  • Roof slope: 25 degrees
  • Height of the building: 9,45 m (9,75 m with foundation) / 30,99 ft (31,98 ft  with foundation)
  • Wide of the building: 14 m / 45,92 ft
  • Length of the building: 15,6 m / 51,17 ft
  • Minimum plot width: 21,6 m / 70,85 ft
  • Minimum plot length: 23,6 m / 77,41 ft
  • Height of rooms: 2,8 i 2,6 m / 9,18 and 8,53 ft
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Roof - tile
  • Elevation - thin-layer plaster on polystyrene



The costs of implementing:
The raw state open 60 000,00 EUR
The raw state closed 86 600,00 EUR
The cost of finishing works 76 000,00 EUR
Execution of turnkey home 162 600,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Opal - detailed file

House plan Opal - detailed file - mirror

Opal house plan 2035 Wojciech_Marek
2012.03.02 0 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.

Opal house plan 2034 Skalska Anna
2012.02.23 0 Pozytywny komentarz Negatywny komentarz

I was looking for a simple, functional home, and reviewing the offers of various architectural studios. This house is quite ok. The area of the house and the layout of the rooms perfectly suits us. I think that will be just right for my family.

Opal house plan 572 Miecio
2012.02.09 0 Pozytywny komentarz Negatywny komentarz

Nice house plan, we really like it, we will not make any changes.
