Usable area: 93.3 m2 / The cost of the realization: 71 800 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (11) Detailed drawings
List of materials
Comments (3)

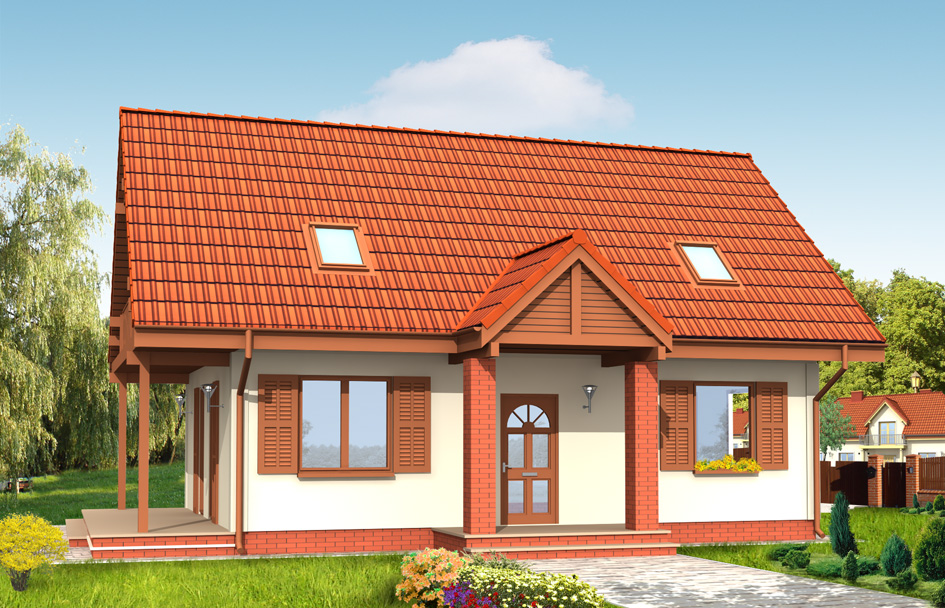

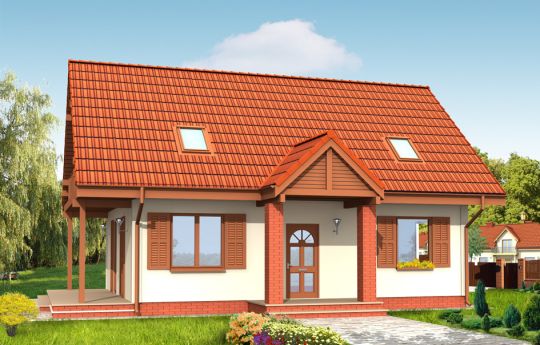

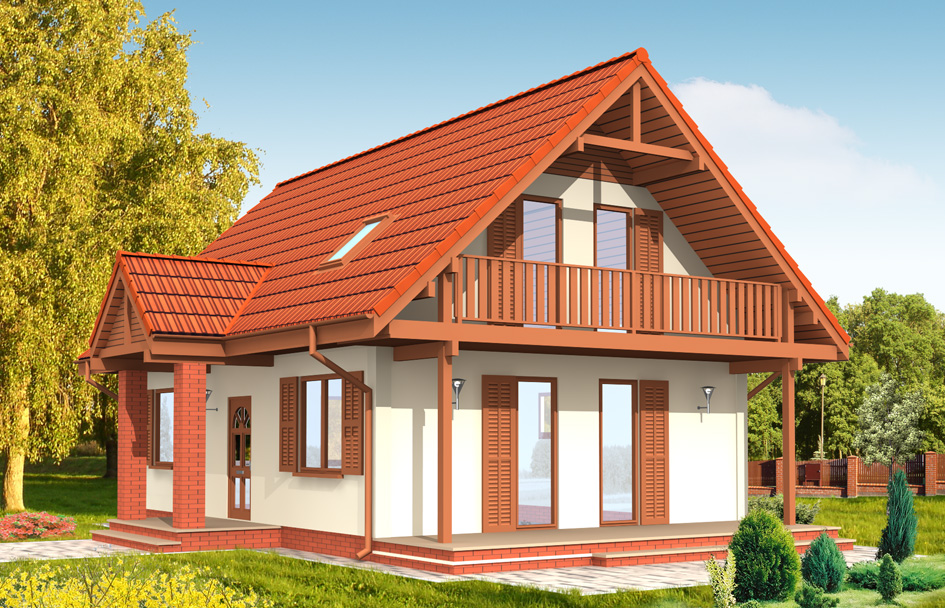

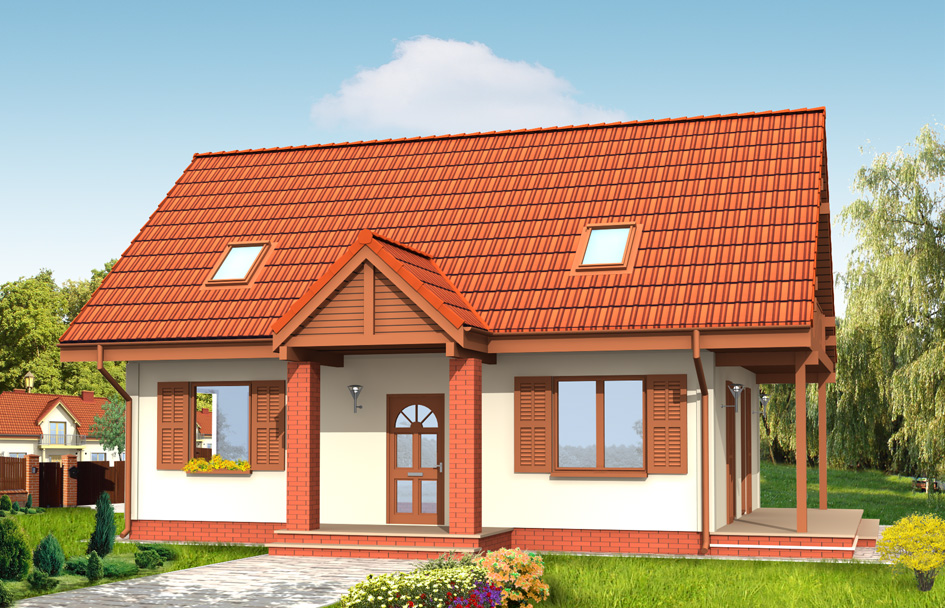

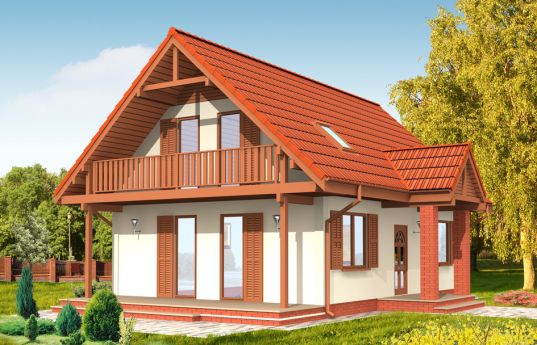

Joyful is a house for a happy family. It can serve as a single family - can also be a holiday house. The simple shape of the building with a gable roof is decorated with a entrance porch and roofed balcony on pillars. On the ground floor is designed as a single space , with a large kitchen-dining area and a living room. On the ground floor you can save an extra room by moving the dining room to the living room. In the attic there are planned three bedrooms. There is also available mirror version of this house plan.
Specifications:
- Cubature: 322 m3 / 11369,82 ft3
- Built-up area: 72,9 m2 / 784,40 ft2
- Total area: 120,7 m2 / 1298,73 ft2
- Net area: 96,5 m2 / 1038,34 ft2
- Usable area: 93,3 m2 / 1003,91 ft2
- Roof area: 157,87 m2 / 1698,68 ft2
- Roof slope: 42 degrees
- Height of the building: 7,10 m (7,40 m with foundation) / 23,29 ft (24,27 ft with foundation)
- Wide of the building: 10,04 m / 32,93 ft
- Length of the building: 7,27 m / 23,85 ft
- Minimum plot width: 18,39 m / 60,32 ft
- Minimum plot lengthi: 15,86 m / 52,02 ft
- Height of rooms: 2,57 m / 8,43 ft
Materials:
- Foundations – concrete
- Walls - aerated concrete + polystyrene
- Ceiling - Teriva
- Elevation - thin-layer plaster
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 23 700,00 EUR |
| The raw state closed | 34 500,00 EUR |
| The cost of finishing works | 37 400,00 EUR |
| Execution of turnkey home | 71 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Joyful - detailed file - mirror
House plan Joyful - detailed file
Related Projects
2012.03.22 0
Hi all, I see that this hause plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.
2012.03.16 0
Despite the small area this house has a number of functions and is very nice. I have just order this house plan.
2012.02.29 0
I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
