Usable area: 58.33 m2 / The cost of the realization: 51 900 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (17) Detailed drawings
List of materials
Comments (3)

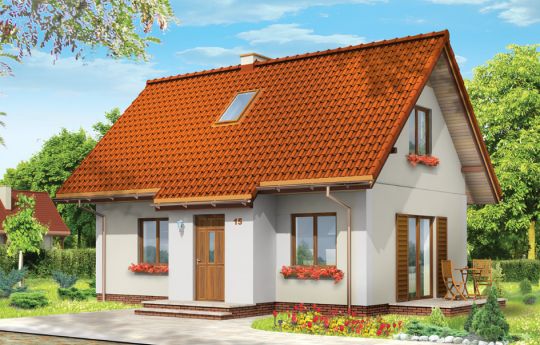

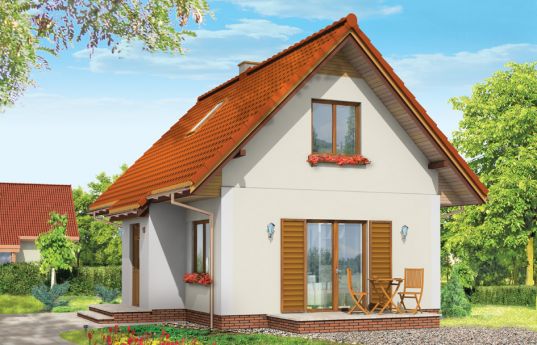

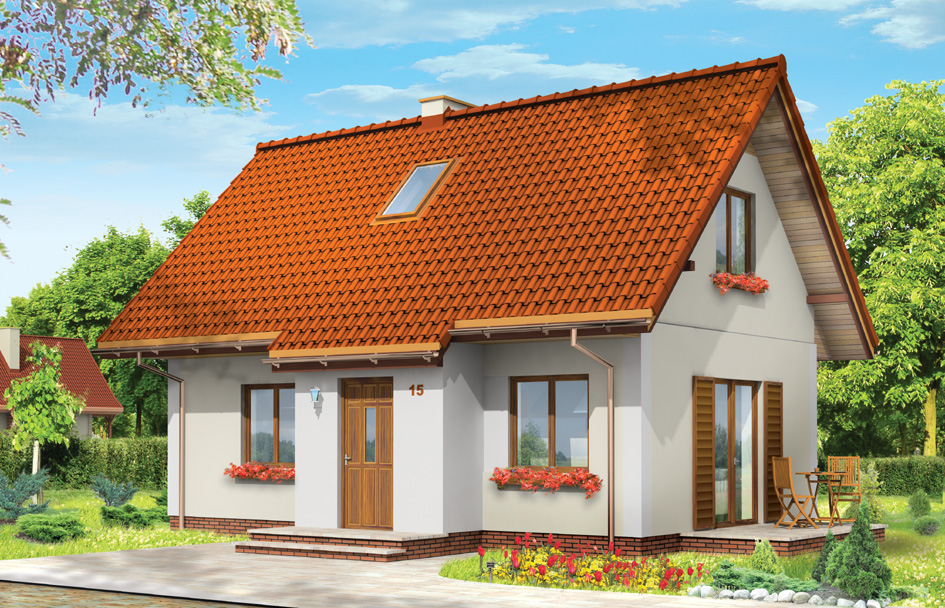

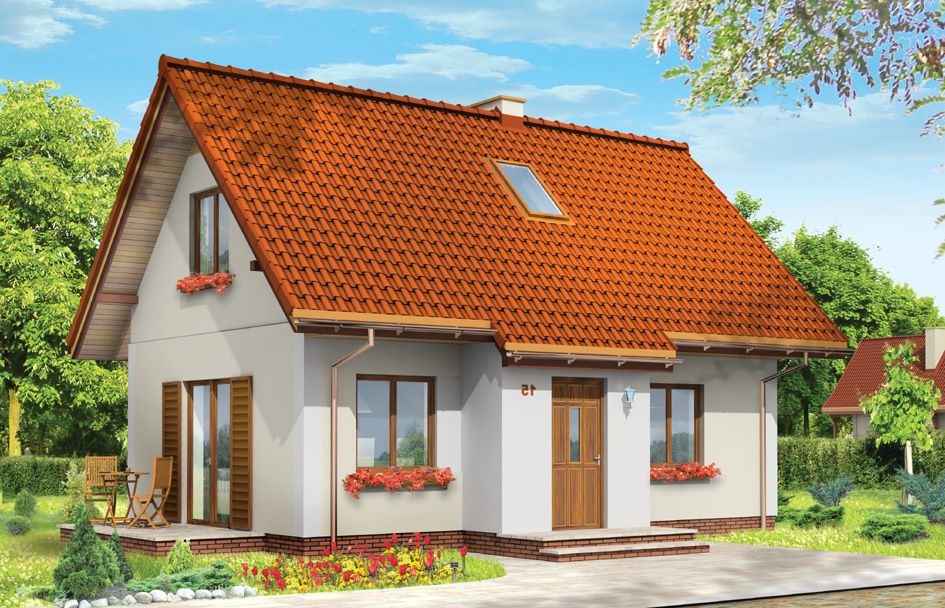

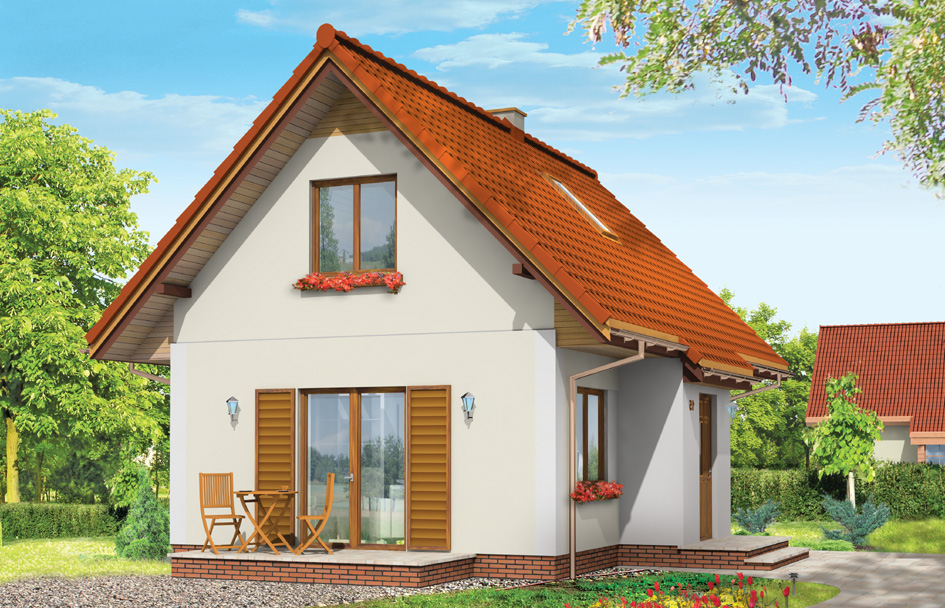

Pine 3 house plan is the next version of the Pine house. This is single-family house can be a holiday or year-round house. This time, we present a house with a porch entrance, and a utility room with a separate entrance. Pine 3 house is suitable for heating boiler or fireplace. On the ground floor there is a living room with stairs, fireplace, exit to the terrace, a kitchen and a bathroom. On the top floor there are two bedrooms of similar size. Thanks to the simple construction house is easy and inexpensive to build. House will perfectly fulfill the role of holiday house or a small family house. We have a mirror version of the Pine 3 house plan.
Specifications:
- Cubature: 259 m3 / 9145,29 ft3
- Built-up area: 52,39 m2 / 563,72 ft2
- Total area: 80,22 m2 / 863,17 ft2
- Net area: 63,51 m2 / 683,37 ft2
- Usable area: 58,33 m2 / 627,63 ft2
- Roof area: 106,6 m2 / 1147,02 ft2
- Roof slope: 45 degrees
- Height of the building: 6,68 m (7,00 m with foundation) / 21,91 ft (22,96 ft with foundation)
- Wide of the building: 8,8 m / 28,86 ft
- Length of the building: 6,65 m / 21,81 ft
- Minimum plot width: 16,8 m / 55,10 ft
- Minimum plot length: 14,65 m / 48,05 ft
- Height of rooms: 2,54 m / 8,33 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls - aerated concrete + foamed polystyrene
- Interior walls - aerated concrete
- Ceiling - wooden beams
- Roof - tile
- Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 12 300,00 EUR |
| The raw state closed | 21 200,00 EUR |
| The cost of finishing works | 30 700,00 EUR |
| Execution of turnkey home | 51 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Pine 3 - detailed file
House plan Pine 3 - detailed file - mirror
