Usable area: 197.59 m2 / The cost of the realization: 162 100 EUR

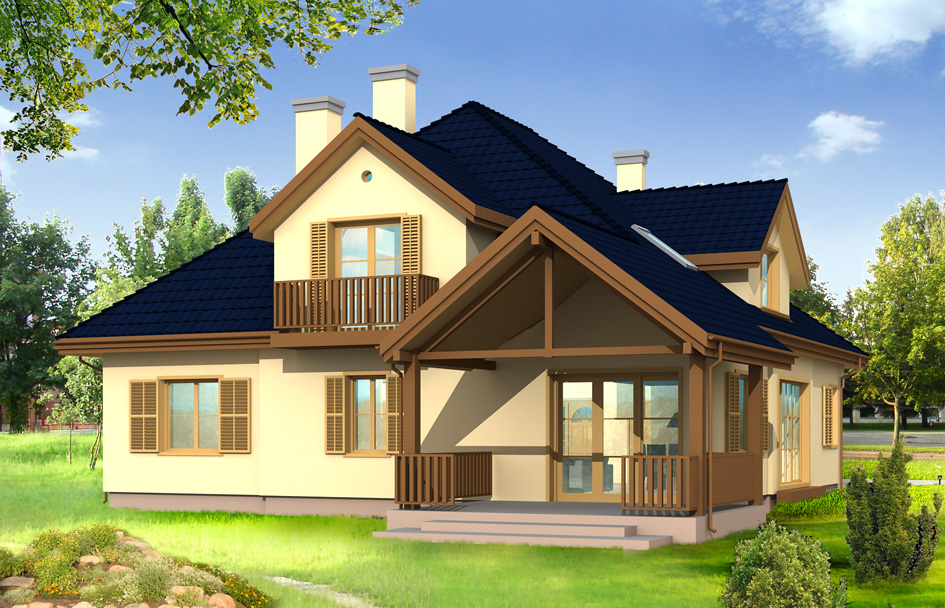

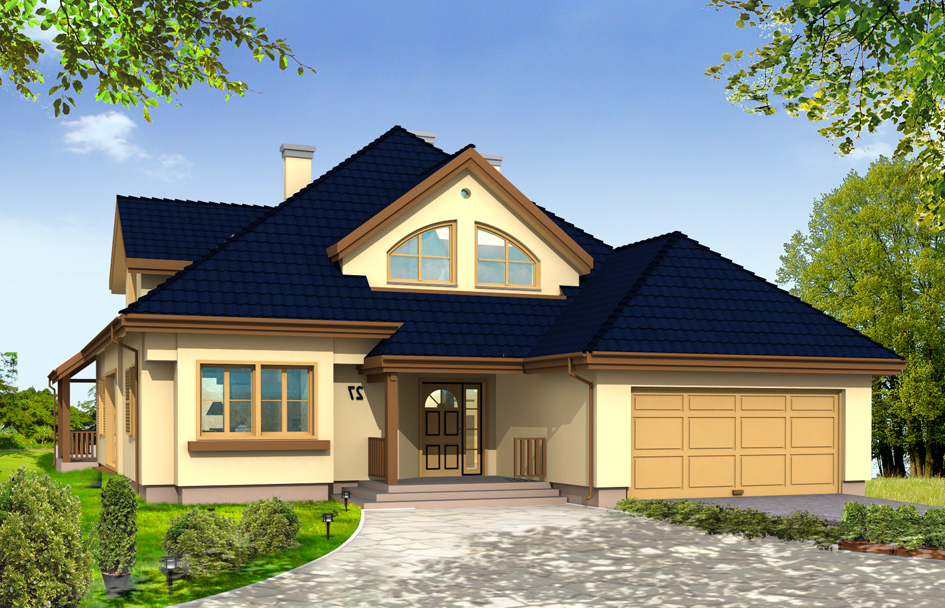

Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (54) Detailed drawings
List of materials
Comments (3)

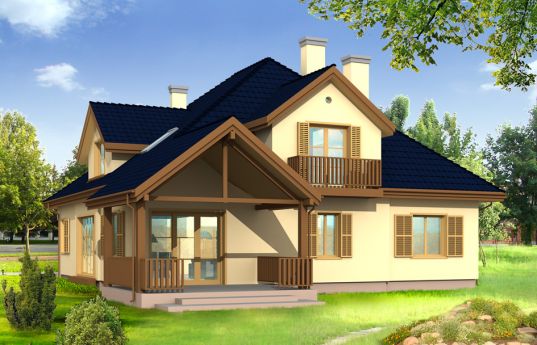

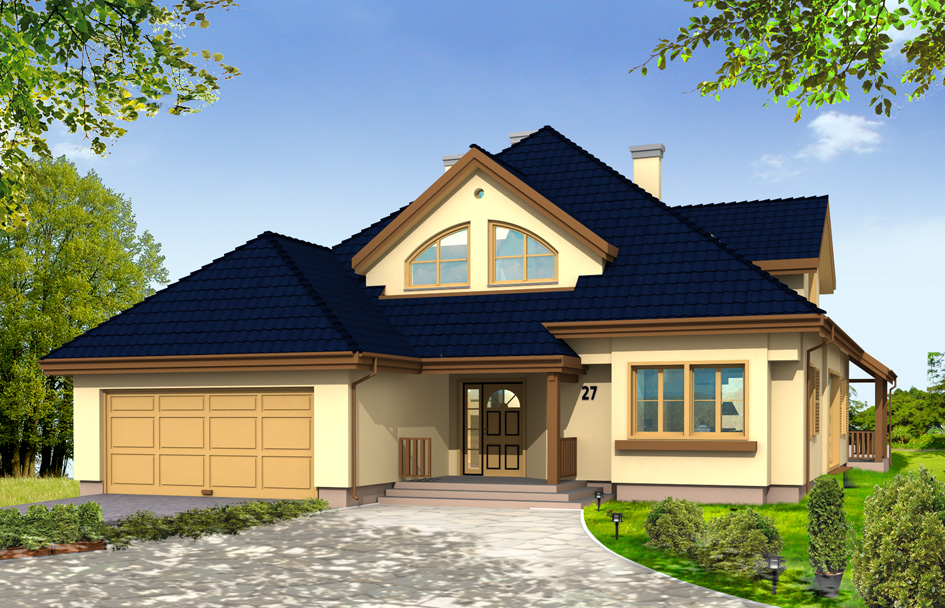

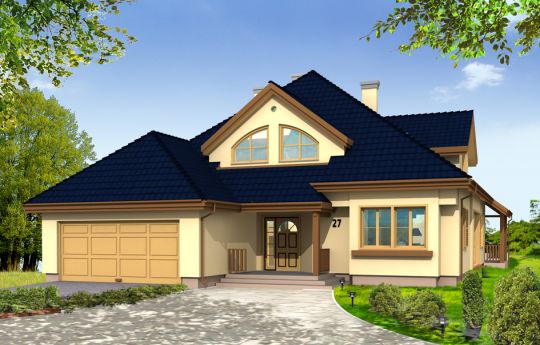

Hornówek house plan is a detached house for a family of 4 – 5 people. It is distinguished by attractive, spreading shape with a gentle hipped roof, in which large dormers was adorned. The extensive front arcade and porch from the garden side protect against rain or too harsh sun. The interior is division for a living - an open and undivided space, communicating through the wide glass with a garden, and an utility part with double garage. In a side wing of the house an extra room on the ground floor - office or guest bedroom is designed. The whole interior connect a representative hall with comfortable stairs to the attic. On the first floor three bedrooms is scheduled: in this one with a separate bathroom and dressing room, with a balcony overlooking the garden. On the attic has been posted additional fourth room. There is available a mirror version of this house plan.
Specifications:
- Cubature: 904 m3/ 31920,24 ft3
- Built-up area: 197,81 m2/ 2128,44 ft2
- Total area: 303,37 m2/ 3264,26 ft2
- Net area: 211,59 m2 + garage/ 2276,60 ft2 + garage
- Usable area: 197,59 m2/ 2126,07 ft2
- Roof area: 330 m2/ 355,80 ft2
- Roof slope: 37 and 45 degrees
- Height of the building: 8,70 m (9,10 m with foundation)/ 25,54 ft (29,85 ft with foundation)
- Wide of the building: 14,40 m/ 47,23 ft
- Length of the building: 16,87 m/ 55,33 ft
- Minimum plot width: 21,4 m/ 70,19 ft
- Minimum plot length: 27,17 m/ 89,12 ft
- Height of rooms: 2,80 m/ 9,18 ft
Materials:
- Foundations - poured reinforced concrete
- External walls - bilayer porotherm 30 + 12 wool (or polystyrene) + thin-layer plaster or aerated concrete + polystyrene
- External walls: brick walls - airbrick porotherm 25 + polystyrene + thin-layer plaster
- Ceiling: reinforced concrete Teriva
- Elevations: thin-layer plaster on polystyrene
- Roofing: ceramic or metal tile
The costs of implementing:
| The raw state open | 57 400,00 EUR |
| The raw state closed | 87 600,00 EUR |
| The cost of finishing works | 74 600,00 EUR |
| Execution of turnkey home | 162 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Hornówek - detailed file
House plan Hornówek - detailed file - mirror
