Emerald 3 house plan

Usable area: 148.86 m2   /   The cost of the realization: 131 500 EUR

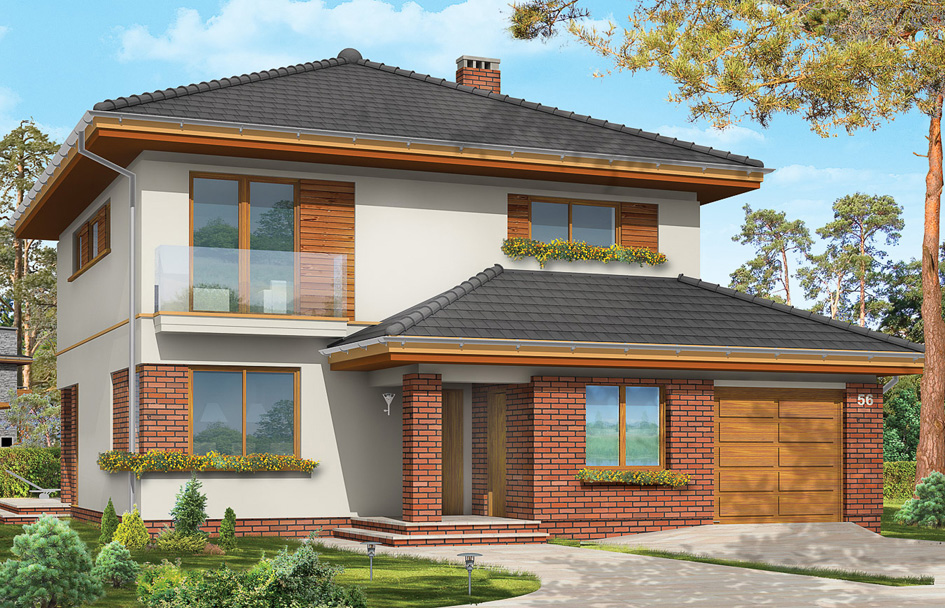

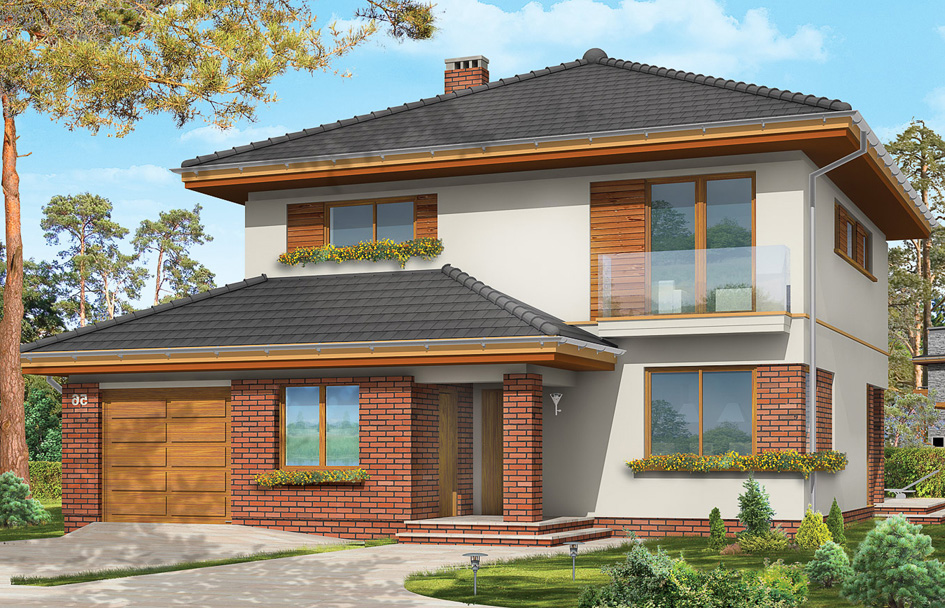

House plan Emerald 3 - front visualization
Show mirror image

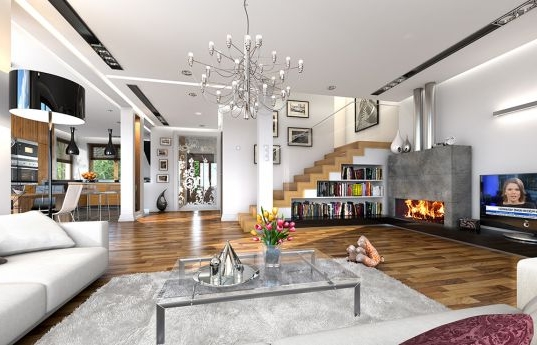

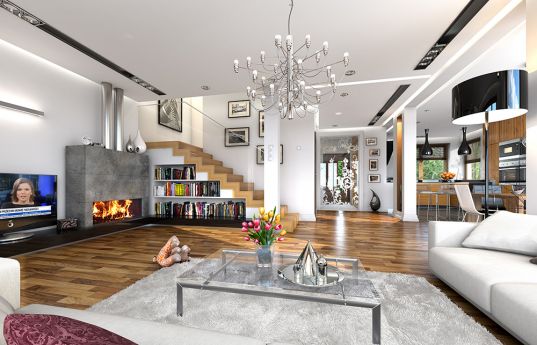

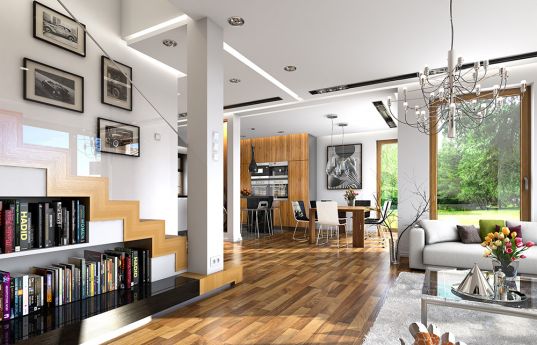

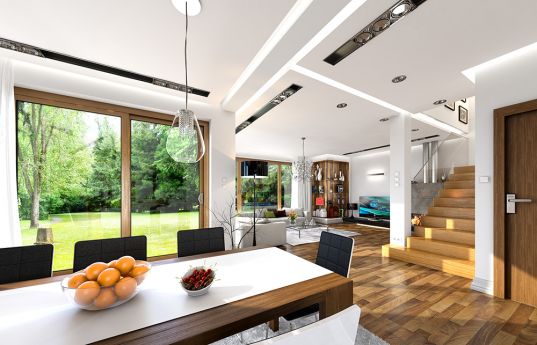

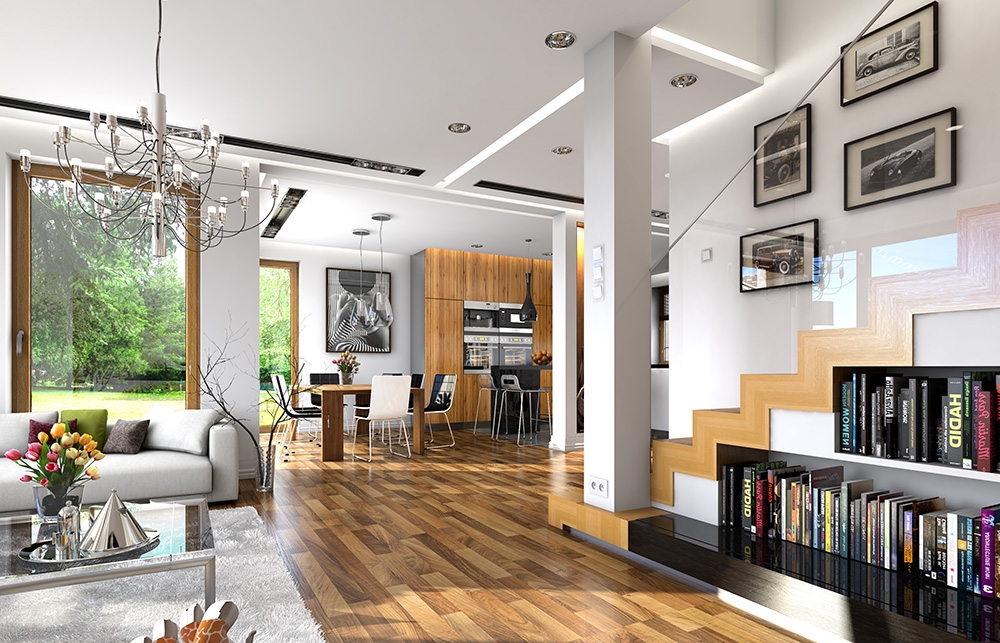

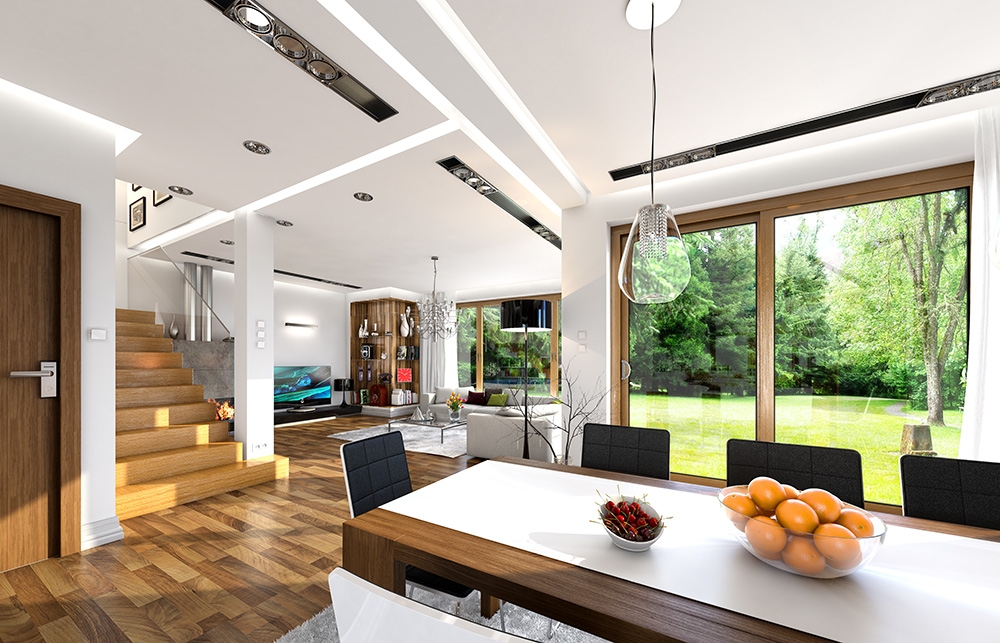

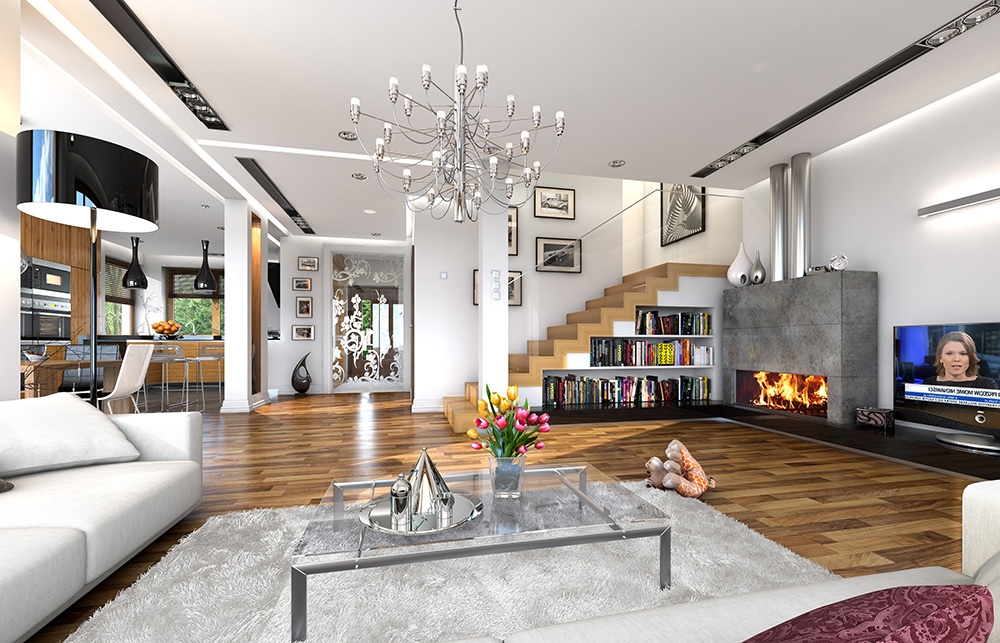

Emerald 3 house plan is a variant version of Emerald house plan. Emerald 3, as a whole, creates a coherent, clear composition. In Emerald 3 house plan instead of the second station garage there is an extra room. House is a modern form of the detached house with attractive details harmonizes with the simple form, built on a square body, covered by envelope roof. Emerald, as a whole, creates a coherent, clear composition. The modern appearance of the building in a harmonious way corresponds to the interior, where on the ground floor is a single, open, daily space: hall, dining room and living room, with large glazed to garden. Dining room is partially combined with the kitchen. On the ground floor there is also a boiler room, with the possibility of installing a solid fuel boiler and instate of second place for car room that could serve as an study, guest bedroom or dressing room was designed. In an apartment on the first floor there are three bedrooms and a bathroom and an extra room. Emerald house is available in mirror version or in some other versions: standard version (Emerald), twinned version (Emerald 2) and comfortable version (Emerald 4).

Specifications:
  • Cubature: 683 m3 / 24116,73 ft3
  • Built-up area: 130,3 m2 / 1402,03 ft2
  • Total area: 227,52 m2 / 2448,12 ft2
  • Net area: 156,44 m2 + garage 19,15 m2 / 1683,29 ft2 + garage 206,05 ft2
  • Usable area: 148,86 m2 / 1601,73 ft2
  • Roof area: 201,89 m2 / 2172,34 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,75 m (9,10 m with foundation) / 28,7 ft (29,85 ft with foundation)
  • Wide of the building: 11,93 m / 39,13 ft
  • Length of the building: 13,31 m / 43,66 ft
  • Minimum plot width: 18,93 m / 62,09 ft
  • Minimum plot length: 21,31 m / 69,90 ft
  • Height of rooms: 2,80 m / 9,18 ft
Materials:
  • Foundations – poured concrete
  • Ściany zewnętrzne - bilayer porotherm 25 + 18 polystyrene (or mineral wool)
  • Ceiling -  reinforced concrete  Teriva
  • Roof -  tile or meatal roofing tile
  • Elevation - thin-layer plaster






The costs of implementing:
The raw state open 43 000,00 EUR
The raw state closed 64 900,00 EUR
The cost of finishing works 66 600,00 EUR
Execution of turnkey home 131 500,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Szmaragd 3 - plik szczegółowy

Projekt domu Szmaragd 3 - plik szczegółowy - odbicie lustrzane
