Emerald 5 house plan

Usable area: 162.08 m² / The cost of the realization: 129 170 EUR

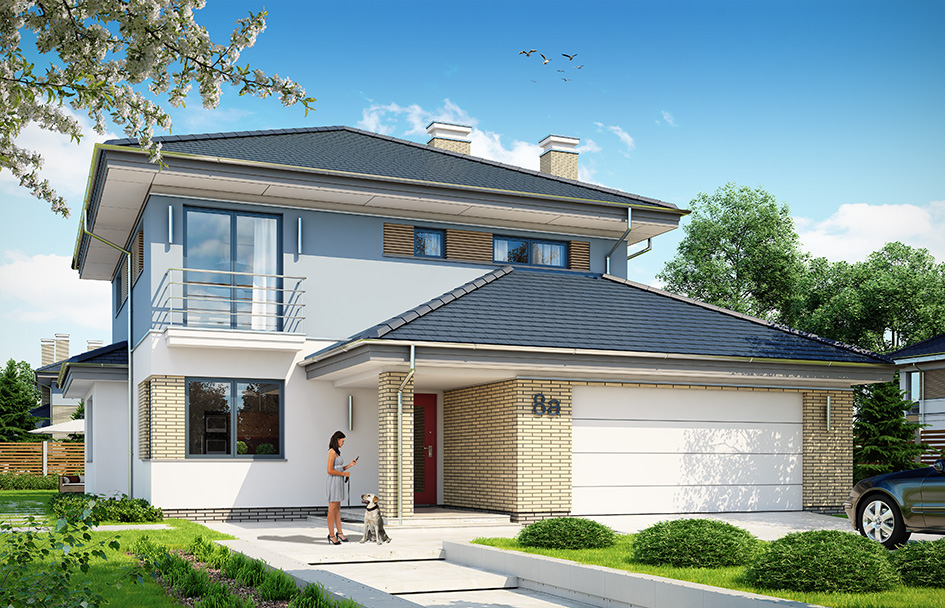

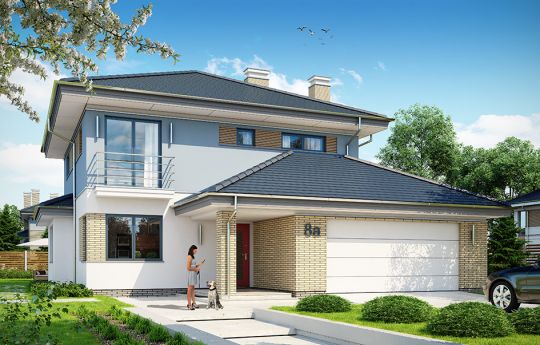

House plan Emerald 5 - front visualization

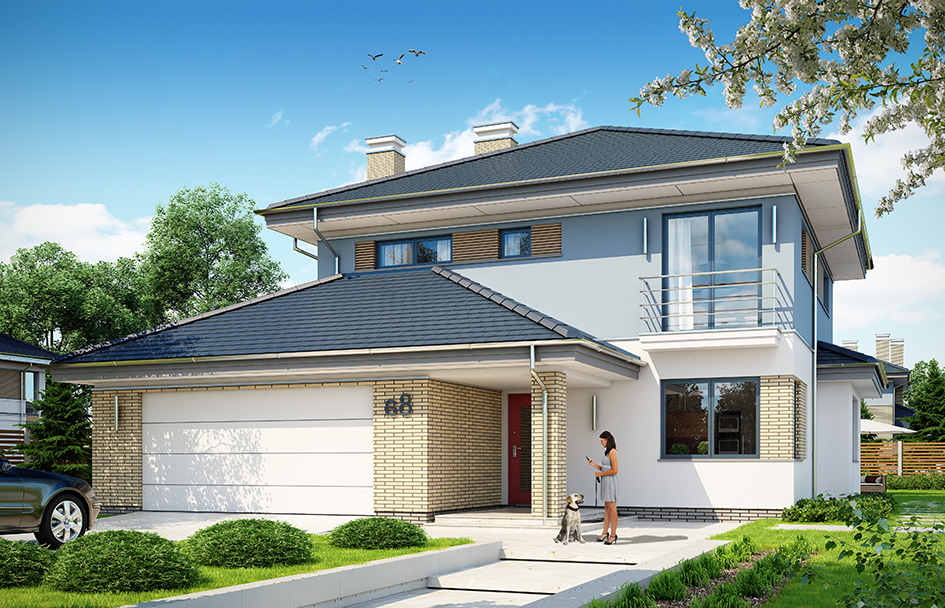

Show mirror image

Price: 1070 EUR

Description Plans Elevations Situations Animation Variants (0) Detailed drawings List of materials Comments (0)

Emerald 5 is a variant version of house with series of Emerald. This is the storeyed, detached house, with a garage partially built into the body, designed for a family of 4 -5 people. House is modern, but does not have aggressive architecture. Body of the building is compact and covered with an envelope roof. Thanks to that, house is both easy and inexpensive in construction and subsequent maintenance. Ground floor is an open living area with a living room, hall, dining room and open kitchen. Together rooms form a large common space. In addition, on the ground floor is provided room - study or a guest bedroom, bathroom, and large garage and boiler room. Near the kitchen is a small pantry. On the first floor we have three nice bedrooms (master bedroom with dressing room), and a very nice bathroom. There is also an additional room that can serve as a room or a home office or laundry - dressing room. Over the floor we still have quite large attic - storage. Emerald 5 is a comfortable, convenient house. It's got everything you need from a real house. The modern appearance of the house, colors and materials create a coherent whole with a spacious interior. House is energy efficient.

Specifications:

Cubature: 749 m³/26447 ft³
Built-up area: 165,48 m²/1780,56 ft²
Total area: 258,77 m²/2784,37 ft²
Net area: 168,32 m² + garage/1811,12 ft² + garage
Usable area: 162,08 m²/1743,98 ft²
Roof area: 240,70 m²/2589,93 ft²
Roof slope: 25 degrees
Height of the building: 8,75 m (9,10 m with foundation)/28,70 ft (29,85 ft with foundation)
Building dimensions: 13,64 m/44,74 ft x 14,39 m/47,20 ft
Plot dimensions: 21,64 m/70,98 ft x 22,39 m/73,44 ft
Height of rooms: 2,80 & 2,65 m/9,02 & 8,53 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
Ceiling - Teriva
Elevation - thin-layer plaster on polystyrene
Roof - ceramic tile

The costs of implementing:

The raw state open	46 500,00 EUR
The raw state closed	70 040,00 EUR
The cost of finishing works	59 130,00 EUR
Execution of turnkey home	129 170,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

House plan Emerald 5 - bill of materials

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Emerald 5 - detailed drawings

House plan Emerald 5 - detailed drawings - mirror
