Usable area: 177.79 m2 / The cost of the realization: 150 100 EUR

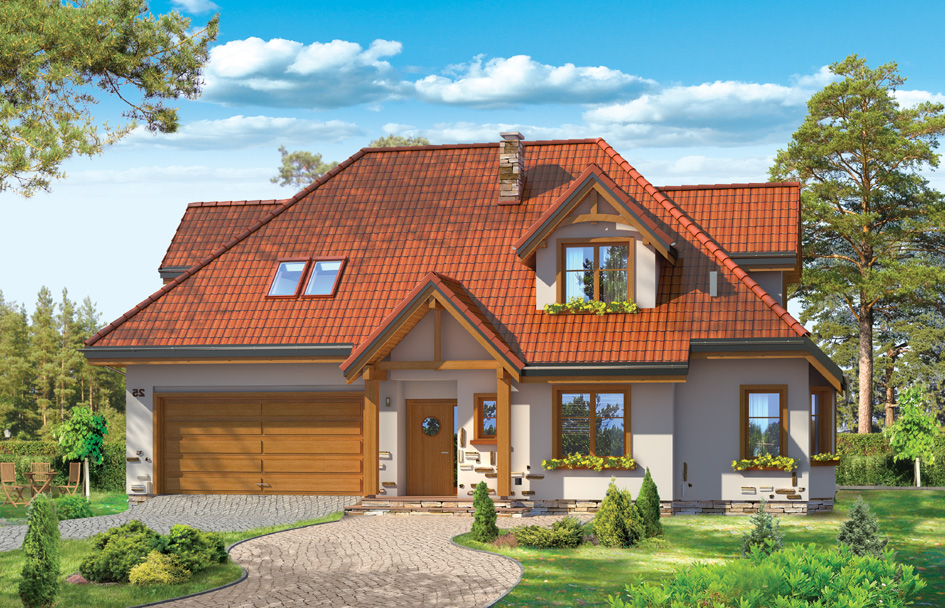

Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

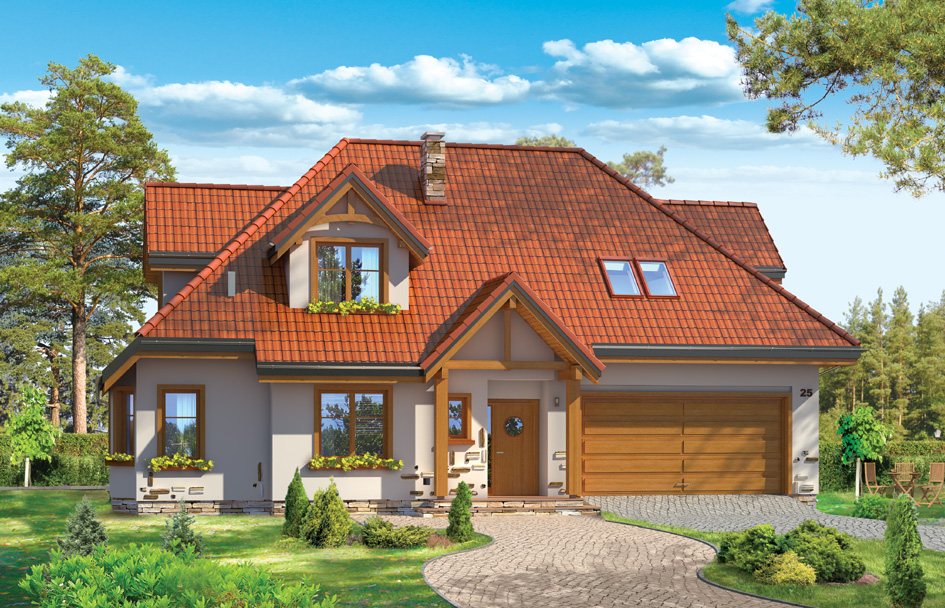

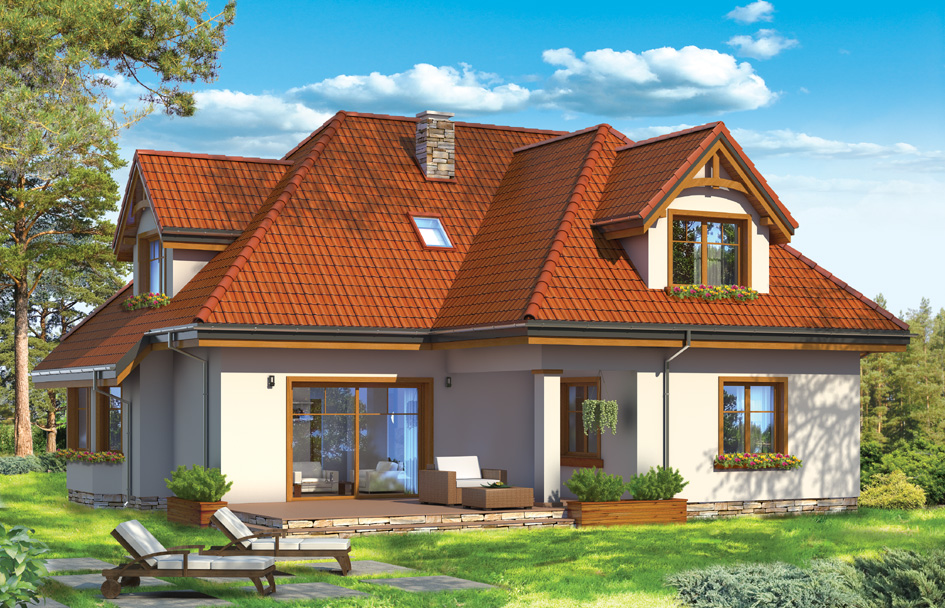

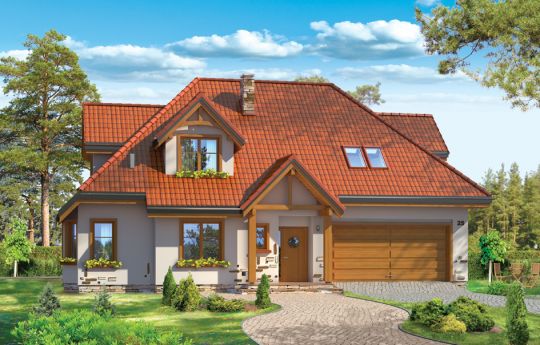

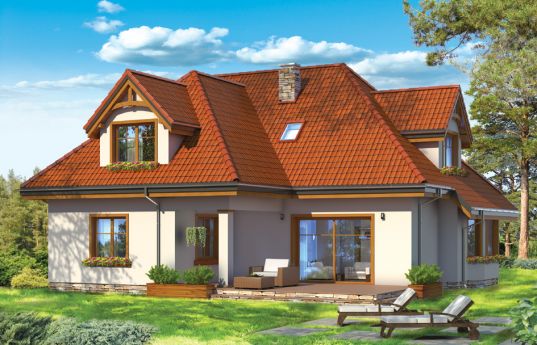

Ash tree 2 house plan is a variant version of the house Ash tree. In response to the customers suggestions who likes the original house plan but looking for a smaller, more economical home MgProjekt create Ash tree 2 house plan. Ash tree 2 house is almost a third less than the basic version, but has the same beautiful and comfortable interior. Ash tree 2 is a one-storey building, with an attic, provided for a family of four-five people. The built plan based on a "T" letter is covered by a hipped roof. Just as in the original house plan in the inner corner of the building is a peaceful terrace, and an arcade, where you can relax on the covered terrace. Architecturally, the house is a classic Polish "roofers", does not aspire to the image of modern, extravagant forms. The building is suburban and its function is to connect residents with the surrounding nature and other similar houses. In the interior of the house on the ground floor there is a living room combined with lounge and dining area, and semi-open kitchen. From the living room you can see a centrally located staircase and fireplace wall, from the living room there is also the entrance into a terrace. From the lobby we go to the extra room - office or extra bedroom. On the other side there is the entry garage and boiler room. On the attic there are three large bedrooms with a dressing rooms and cabinets and a large bathroom - bath room. Ash tree 2 house plan is also available in a mirror version.
Specifications:
- Cubature: 788 m3/ 27824,28 ft3
- Built-up area: 161,38 m2/ 1736,45 ft2
- Total area: 264,9 m2/ 2850,32 ft2
- Net area : 184,89 m2 + garage/ 1989,42 ft2
- Usable area: 177,79 m2/ 1913,02 ft
- Roof area: 304,68 m2/ 3278,36 ft2
- Roof slope: 45 degrees
- Height of the building: 8,56 m (8,91 m with foundation)/ 28,08 ft ( 29,23 ft with foundation)
- Wide of the building: 16,05 m/ 52,64 ft
- Length of the building: 13,26 m/ 43,49 ft
- Minimum plot width: 24,05 m/ 78,88 ft
- Minimum plot length: 21,26 m/ 69,74 ft
- Height of rooms: 2,8 and 2,6 m/ 9,18 ft and 8,53 ft
Materials:
- Foundations - concrete benches and foundation walls with concrete blocks
- Exterior walls - brick walls - airbricks porotherm 25 + polystyrene + plaster thin
- Ceiling – TERIVA
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 60 100,00 EUR |
| The raw state closed | 85 600,00 EUR |
| The cost of finishing works | 64 600,00 EUR |
| Execution of turnkey home | 150 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Ash tree 2 - detailed file - mirror
House plan Ash tree 2 - detailed file
Related Projects
2012.03.08 0
This house is terrific. More than six months we were looking for a home that would meet while in 80% our expectations, this project turned out to be the fulfillment of our needs in 100%, we cannot believe it :)
2012.02.06 0
I'll also build this house, in my case decided minimalism: simple and easy to build solid of curiously designed interior.
2012.01.29 0
I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
