Maja 3 house plan

Usable area: 207 m² / The cost of the realization: 157 000 EUR

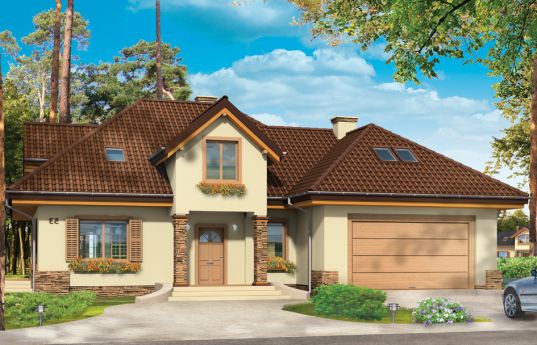

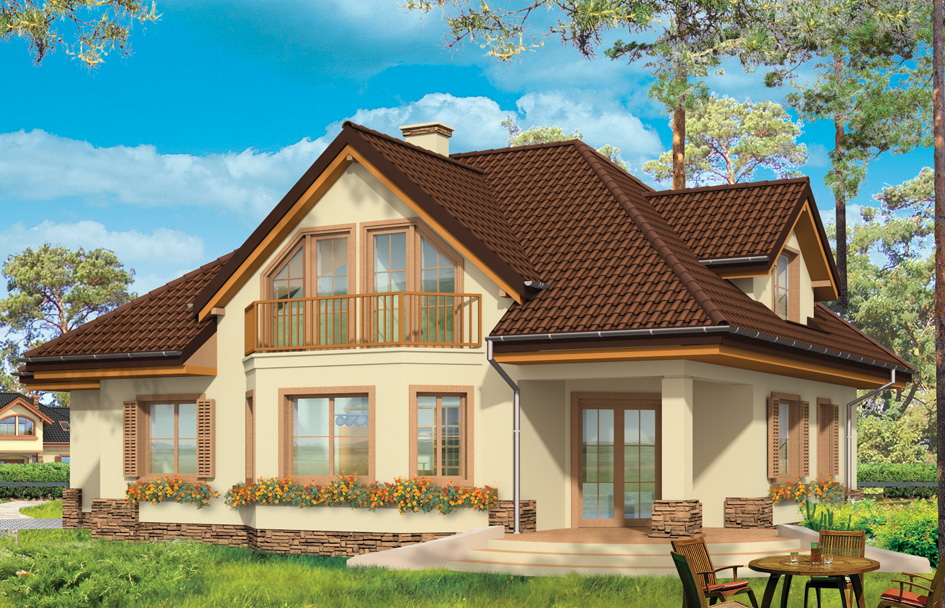

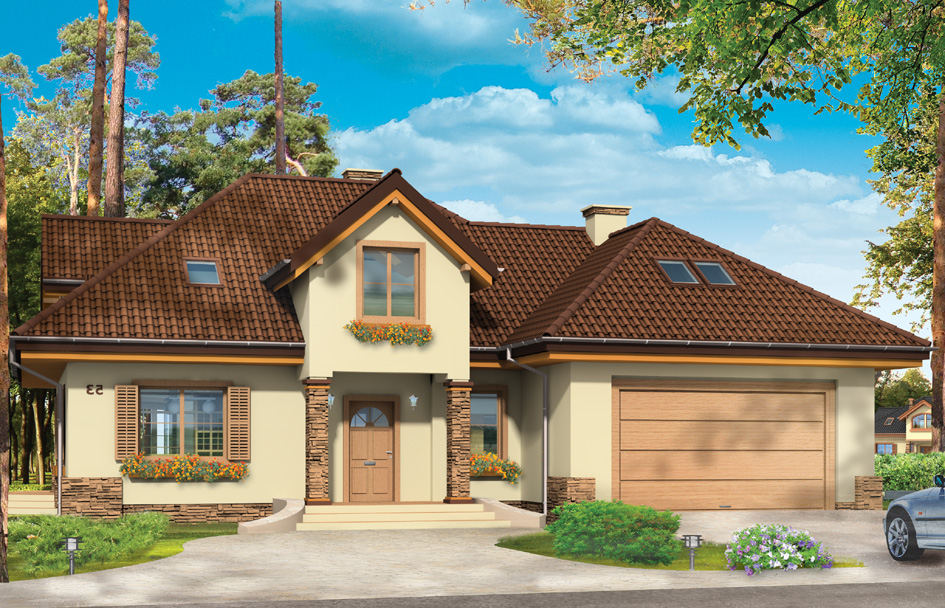

Show mirror image

Price: 1040 EUR

Description Plans Elevations Situations Animation Variants (0) Realizations (12) Detailed drawings List of materials Comments (3)

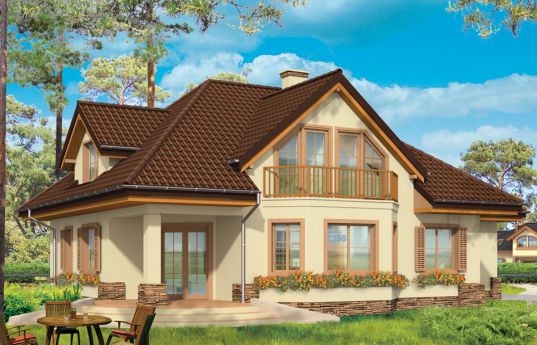

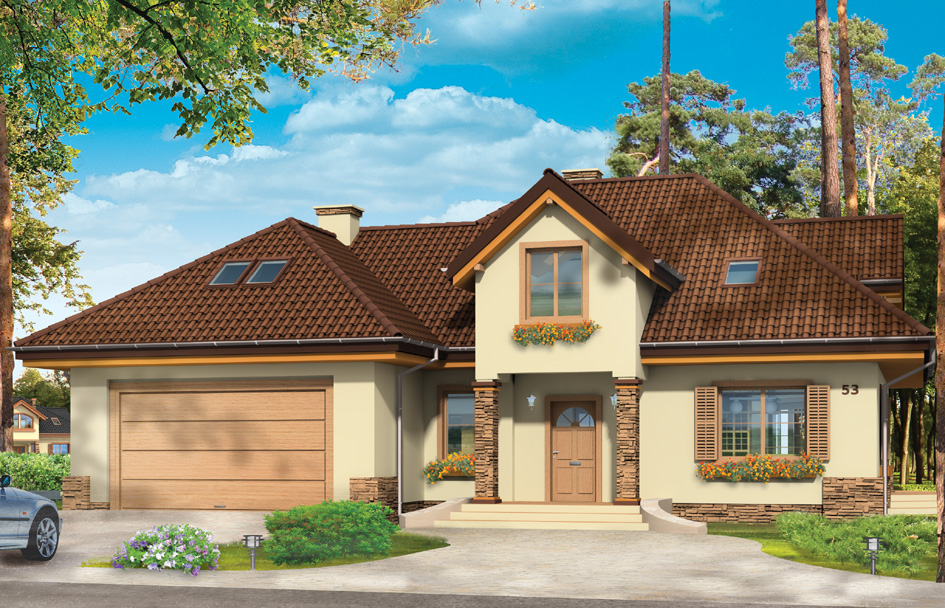

Maja 3 house plan is the second stage of the project May. The house has been narrowed so as to fit in a small plot. Furthermore, in house May 3 some elements of the facade has been changed into simpler and less expensive solution: eliminated arched windows and one bay window. There is also available mirror version of this house plan.

Specifications:

Cubature: 840,6 m³ / 29681,59 ft³
Built-up area: 182,8 m² / 1966,93 ft²
Total area: 293,1 m² / 3153,76 ft²
Net area: 215,4 m²+ garage / 2317,70 ft² + garage
Usable area: 207 m² / 2227,32 ft²
Roof area: 343 m² / 3690,68 ft²
Roof slope: 35 and 40 degrees
Height of the building: 7,82 m (8,29 m with foundation) / 25,65 ft (27,19 ft with foundation)
Wide of the building: 16,48 m / 54,05 ft
Length of the building: 14,96 m / 49,07 ft
Minimum plot width: 23,78 m / 77,99 ft
Minimum plot length: 22,96 m / 75,31 ft
Height of rooms: 2,80 m / 9,18 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls - bilayer wall - porotherm blocks
Ceiling - Teriva
Roof - tile
Elevation - thin-layer plaster

The costs of implementing:

The raw state open	50 500,00 EUR
The raw state closed	77 800,00 EUR
The cost of finishing works	79 200,00 EUR
Execution of turnkey home	157 000,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Maja III - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Maja 3 - detailed file

House plan Maja 3 - detailed file - mirror
