Amadeus house plan

Usable area: 175.52 m2   /   The cost of the realization: 150 700 EUR

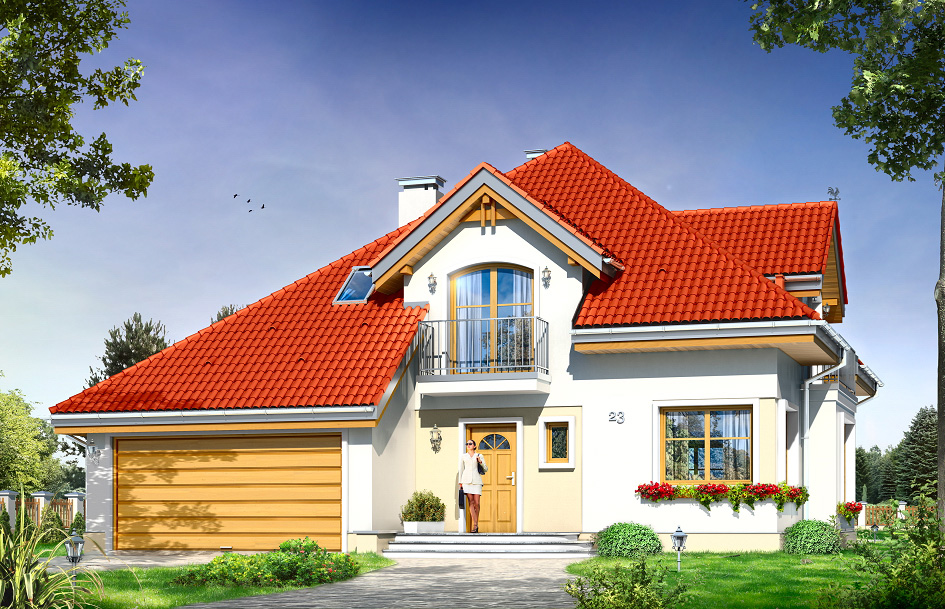

House plan Amadeus - front visualization

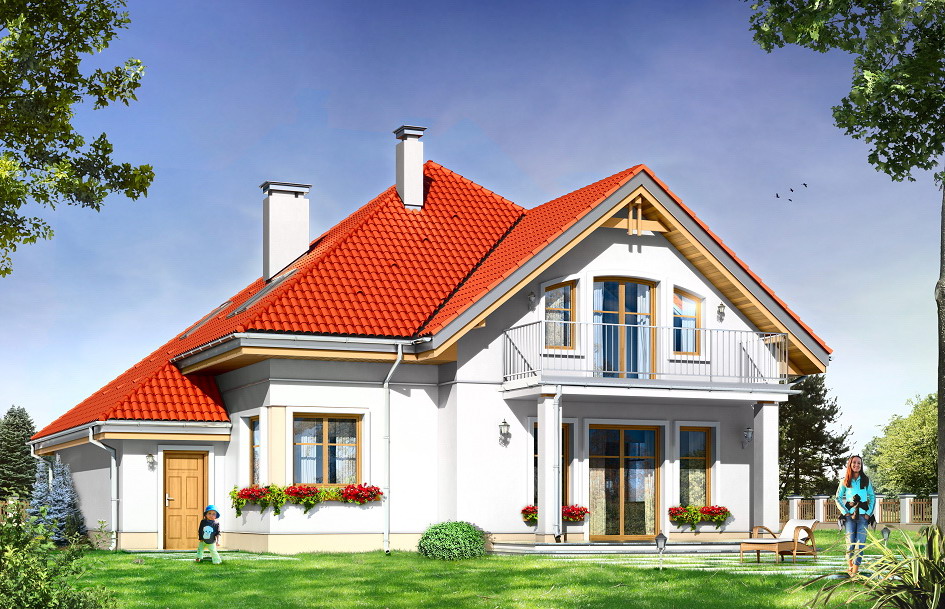

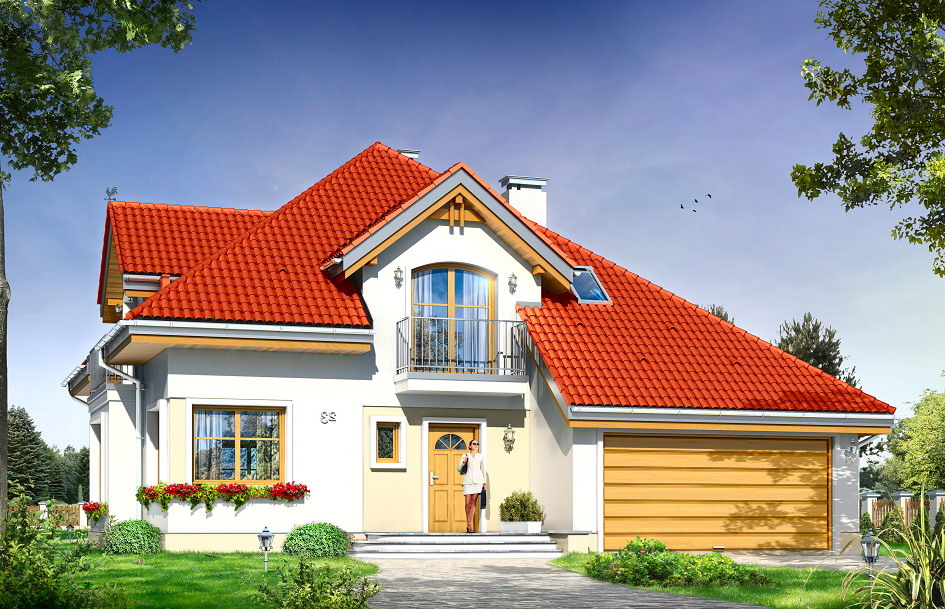

Show mirror image

Amadeus house plan is the representative, one-storey single-family villa or a family of 4-5 people with the useful attic. This house plan has everything you need from a comfortable seat: a shapely, original figure and functional spacious interior. The building is also structurally simple, and easy to build. Moreover silhouette of the house was built on a square plan and is optimal in respect of efficiency. Architecturally, the house refers to the pre-war villa, but it is used in contemporary detail. On the ground floor a very nice living room with dining area and lounge with elegant staircase, kitchen with corner window and pantry, and an additional room with a bathroom that could serve as a study, but also as an additional bedroom have been designed. On the ground floor there is also a convenient garage for two cars and a large boiler room. On the top floor three are spacious bedrooms – each one with balcony walker and a wardrobe. Besides to bedroom a beautiful nicely lighted, bathroom was designed, which can be naturally divided into two separate rooms - if parents want to have a separate toilet with shower. Above the attic there is a small attic. Amadeus house plan is also available in a mirror version.

  • Cubature: 901 m3/ 31814,31 ft3
  • Built-up area: 165,29 m2/ 1778,52 ft2
  • Total area: 263,99 m2/ 2840,53 ft2
  • Net area: 184,42 m2 + garage / 1984,36 ft2 + garage
  • Usable area: 175,52 m2/ 1888,60 ft2
  • Roof area: 258,94 m2/ 2786,19 ft2
  • Roof slope: 38 degrees
  • Height of the building: 8,81 m (9,26 m with foundation) / 28,90 ft ( 30,37 ft with foundation)
  • Wide of the building: 14,06 m / 46,12 ft
  • Length of the building: 14,36 m / 47,10 ft
  • Minimum plot width: 21,06 m / 69,07 ft
  • Minimum plot length: 23,01 m / 75,47 ft
  • Height of rooms: 2,67 m / 8,76 ft

• Foundations - concrete bench and foundation walls with concrete blocks
• External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling -  Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof -  tile


The costs of implementing:
The raw state open 50 200,00 EUR
The raw state closed 77 000,00 EUR
The cost of finishing works 73 700,00 EUR
Execution of turnkey home 150 700,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Amadeus - detailed file

House plan Amadeus - detailed file- mirror

Amadeus house plan 3222 Marco
2012.10.18 7 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Amadeus house plan 1408 Xello
2012.03.01 1 Pozytywny komentarz Negatywny komentarz

I'll also build this house, in my case decided minimalism: simple and easy to build body of curiously designed interior.

Amadeus house plan 1410 Kim22
2012.03.01 1 Pozytywny komentarz Negatywny komentarz

Nice house plan, we really like it, we will not make any changes.
